Selecting the correct size tractor with suitable weight and hydraulic capacity for your GreenTec Quadsaw and Multi-Carrier package is vital to ensure safe, efficient, and high-performance pruning and vegetation management. Mismatched equipment can lead to poor cutting performance, tractor instability, excessive wear, and even damage to machines. This guide helps you make the right choice.
Understanding the GreenTec Multi-Carrier

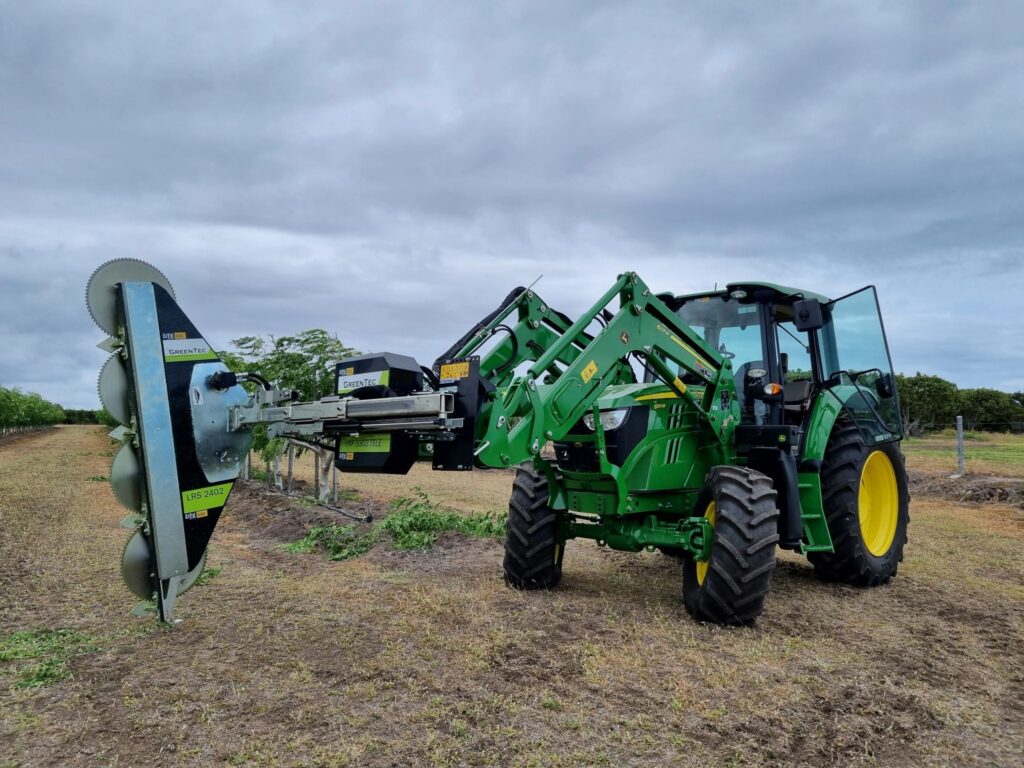

The GreenTec Multi-Carrier series is a versatile attachment frame that mounts on the tractor front end loader and can carry a wide range of tools — including Quadsaws, Hedge Cutters, Cutter Bars, Barrier Mowers and more. Multi Carriers are designed to work on skid steers, tractor front-end loaders, telehandlers and excavators.
GreenTec Multi-Carriers are available in several models — from compact to heavy-duty — giving flexibility in terms of reach, cutting size and the vehicle required to carry it.
Tractor Size Requirements for Quadsaw & Multi-Carriers Packages
Below is a table showing the minimum weight and oil flow requirement when mounting a Quadsaw & Multi-Carrier to a tractor or skid steer:
| Quadsaw Model | Multi-Carrier Model | Minimum Tractor / Skid Steer Weight | Hydraulic Oil Flow Required |
| LRS 1402 | 2303 / 2303 T | 1,500 Kg | 25 L/min |
| LRS 1602 | 2803 / 2803 T | 2,500 Kg | 40 L/min |
| LRS 2002 | 3303 / 3303 T | 4,500 Kg | 50 L/min |
| LRS 2402 | 3303 / 3303 T | 5,000 Kg | 50 L/min |
These figures reflect the minimum mass and hydraulic capability needed for stable, consistent cutting performance. Heavier machines with higher oil flow will generally give better performance and control.
Multi Carrier Range
- HXF 2303
- Ideal for smaller carriers, such as compact tractors and skid steer loaders > 1,500 kg (minimum).
- Requires 25 L/min hydraulic flow. Regulates hydraulic inflows of up to 100 L/min, returning the excess flow to the vehicle.
- Regulates pressure to 190bar to protect the quadsaw or whichever attachment tool you are using.
- Tools include Quadsaw LRS 1402 and others like cutter bars and hedge cutters.
- Perfect for growers upgrading from manual pruning or seeking a low-weight, economical solution.
-
HXF 2803 & HXF 2803 Tele
- Suitable for medium tractors and larger skid steers. > 2,500 kg (minimum)
- Accepts a broader range of tools, including larger 1602 Quadsaws and hedging equipment.
- Hydraulic requirements typically 25–40 L/min depending on tools used.
- Regulates hydraulic inflows of up to 125 L/min, returning the excess flow to the vehicle.
- Regulates pressure to 190bar to protect the quadsaw or whichever attachment tool you are using.
-
HXF 3303 & HXF 3303 Tele
- Designed for larger tractors, telehandlers and heavy loaders. >4,500kg (minimum)
- Can handle the largest range of tools, including LRS 2402 Quadsaw and heavy cut attachments.
- Hydraulic oil requirement generally 40–50 L/min depending on tool and carrier combination
- Regulates hydraulic inflows of up to 125 L/min, returning the excess flow to the vehicle.
- Regulates pressure to 190bar to protect the quadsaw or whichever attachment tool you are using
Why Oil Flow Matters Just as Much as Weight
It’s not enough for a tractor to simply be the right weight — it must also must deliver sufficient hydraulic flow. Multi Carriers and Quadsaws require continuous oil flow to operate cutting tools. GreenTec designs their carriers and tools so machines with 30–150 L/min can operate the attachments. The engineered hydraulic systems in each attachment tool and multi-carrier are designed to maximize performance whilst keeping oil temperatures to a minimum. Meaning these attachments can be mounted to your existing vehicles with no modifications.
Considerations When Choosing Your Tractor
When matching a tractor or skid steer to a Quadsaw & Multi-Carrier, think about:
Power & Stability
- Adequate ballast and weight for stability.
- Sufficient horsepower and hydraulic flow.
Why DTE Equipment Recommends GreenTec Multi-Carriers and Quadsaws
GreenTec Multi-Carriers & Quadsaws represent:
- A safe, cabin-operated solution for canopy management and roadside vegetation maintenance work — reducing the need for manual pruning.
- An Attach & Go system allowing you to quickly attach or remove the tool and multi carrier from your vehicle.
- A solution you can run on multiple vehicles. With the in built oil and pressure regulator you can safely fit the package to multiple vehicles, whether you are swapping from a telehandler to a skid steer or tractor – the system is protected!
Matching the correct tractor size ensures the Quadsaw and Multi-Carrier work to their full potential — leading to better productivity, safety and lower operating costs.
Need Help Choosing?
At DTE Equipment, we’re here to help you select the best attachment combination for your tractor, skid steer, telehandler or excavator, whether you pruning an orchard, vineyard or managing roadside vegetation or plantation tasks.
Contact Us Today on 07 5315 8020 to discuss which Quadsaw or Multi-Carrier will suit your tractor.
