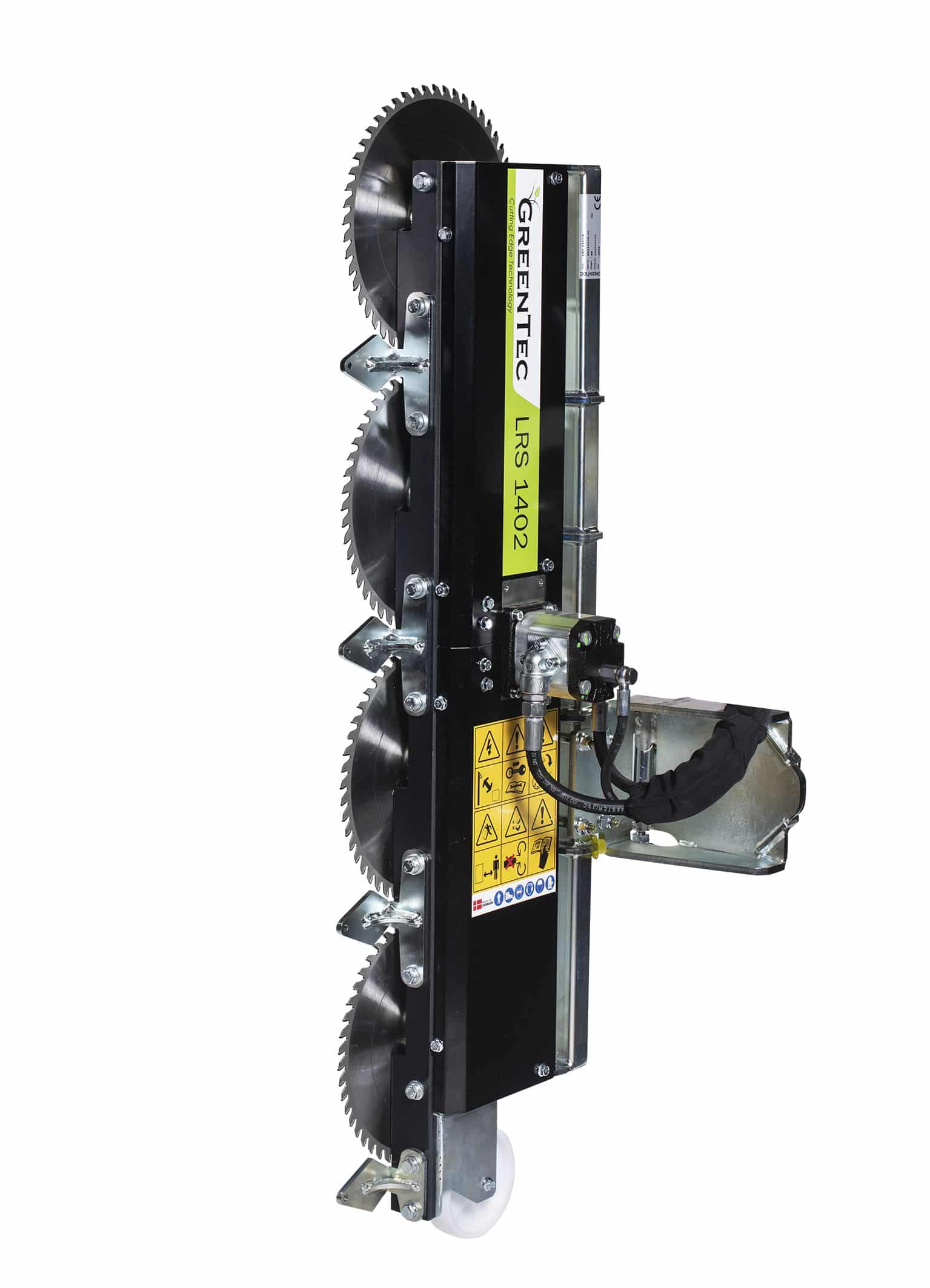

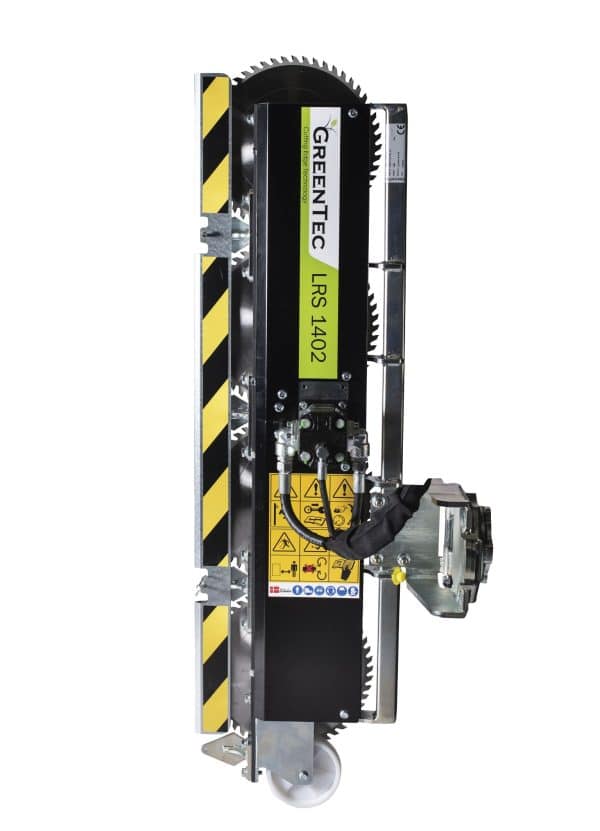

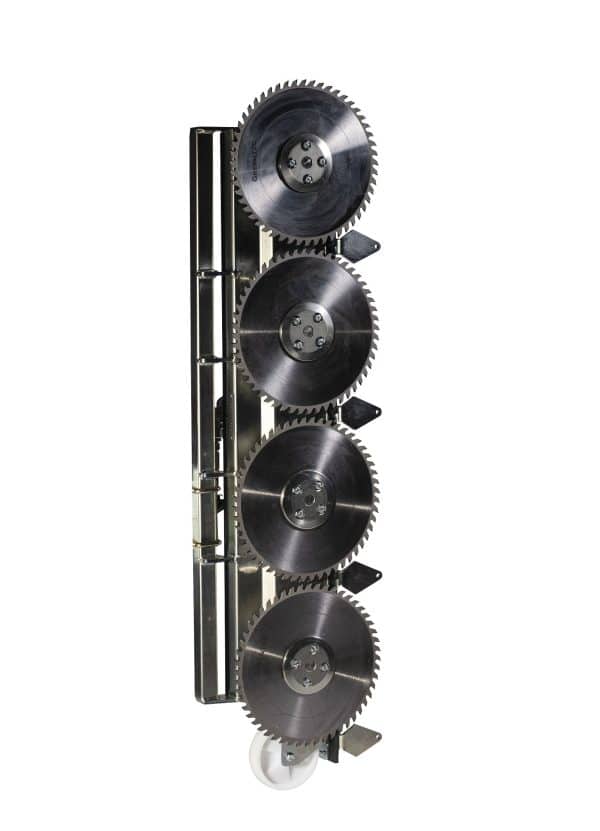

The Quadsaw LRS 1402 is a small, yet powerful limb saw with four blades and a working width of 1.4 m (4’7″). The saw is designed for professional trimming of tree limbs and can cut branches up to 10 cm (3.94″) in thickness. The saw can be fitted on smaller vehicles, such as skid steer loaders and mini excavators, as it has a very low weight of 48 kg (106 lb).
STRONG ARGUMENTS:
- Perfect cutting quality – both thick and thin branches
- Forward speed = high capacity
- Saw blades with carbide tipped teeth = long life and minimal maintenance (grinding)
- Low weight
- Flexible mounting brackets
The Quadsaw LRS 1402 has a working width of 1.4 m (4’7″”)The Quadsaw LRS 1402 cuts branches up to 10 cm (3.94″”) in thicknessThe Quadsaw LRS 1402 has a maximum speed of 5 km/h (3.11 mph)The Quadsaw LRS 1402 weighs 48 kg (106 lb)
Limb saw attachment for skid steer loaders and mini excavators
The Quadsaw LRS 1402 is a small, yet powerful limb saw with four blades and a working width of 1.4 m (4’7″”). The saw is designed for professional trimming of tree limbs and can cut branches up to 10 cm (3.94″”) in thickness. The saw can be fitted on smaller vehicles, such as skid steer loaders and mini excavators, as it has a very low weight of 48 kg (106 lb).

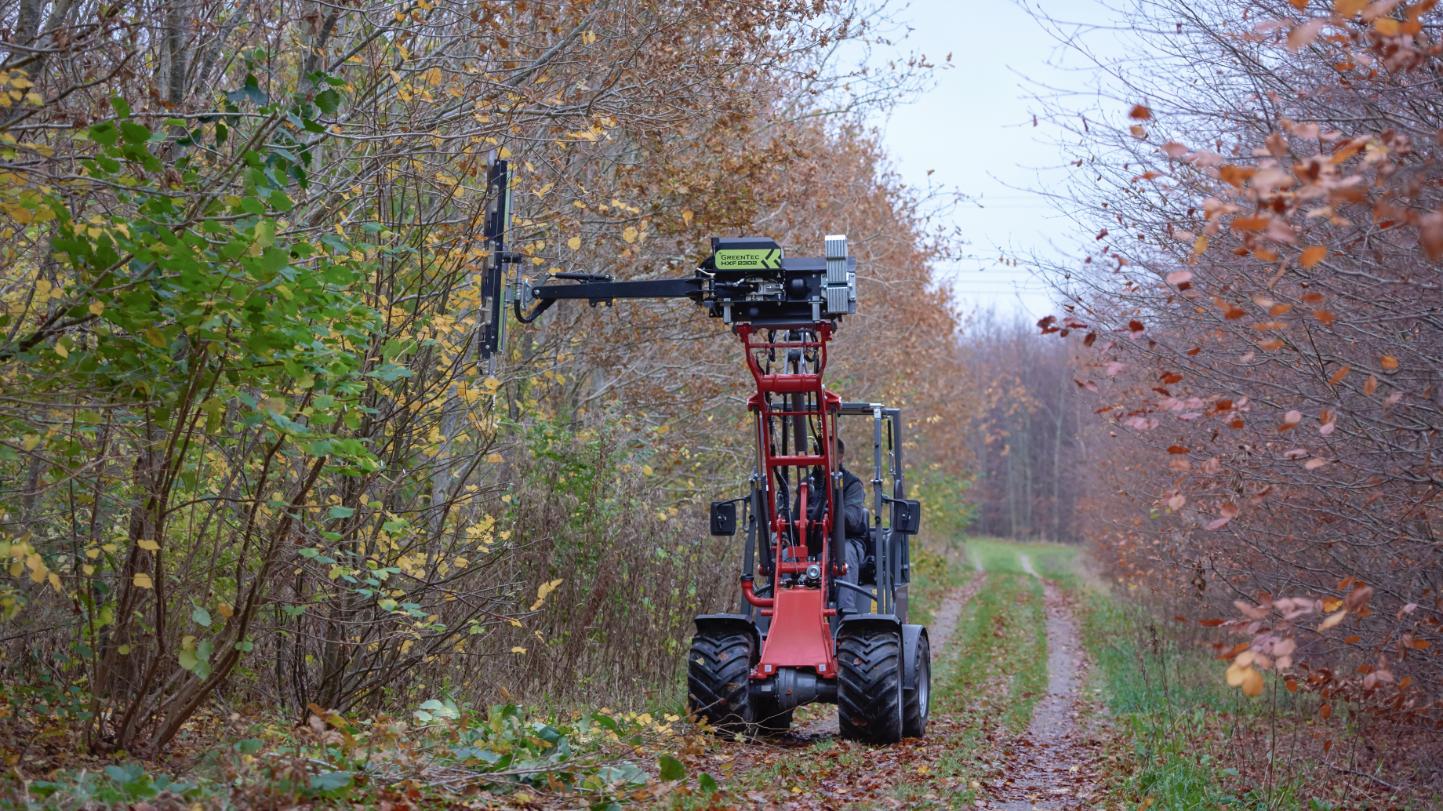

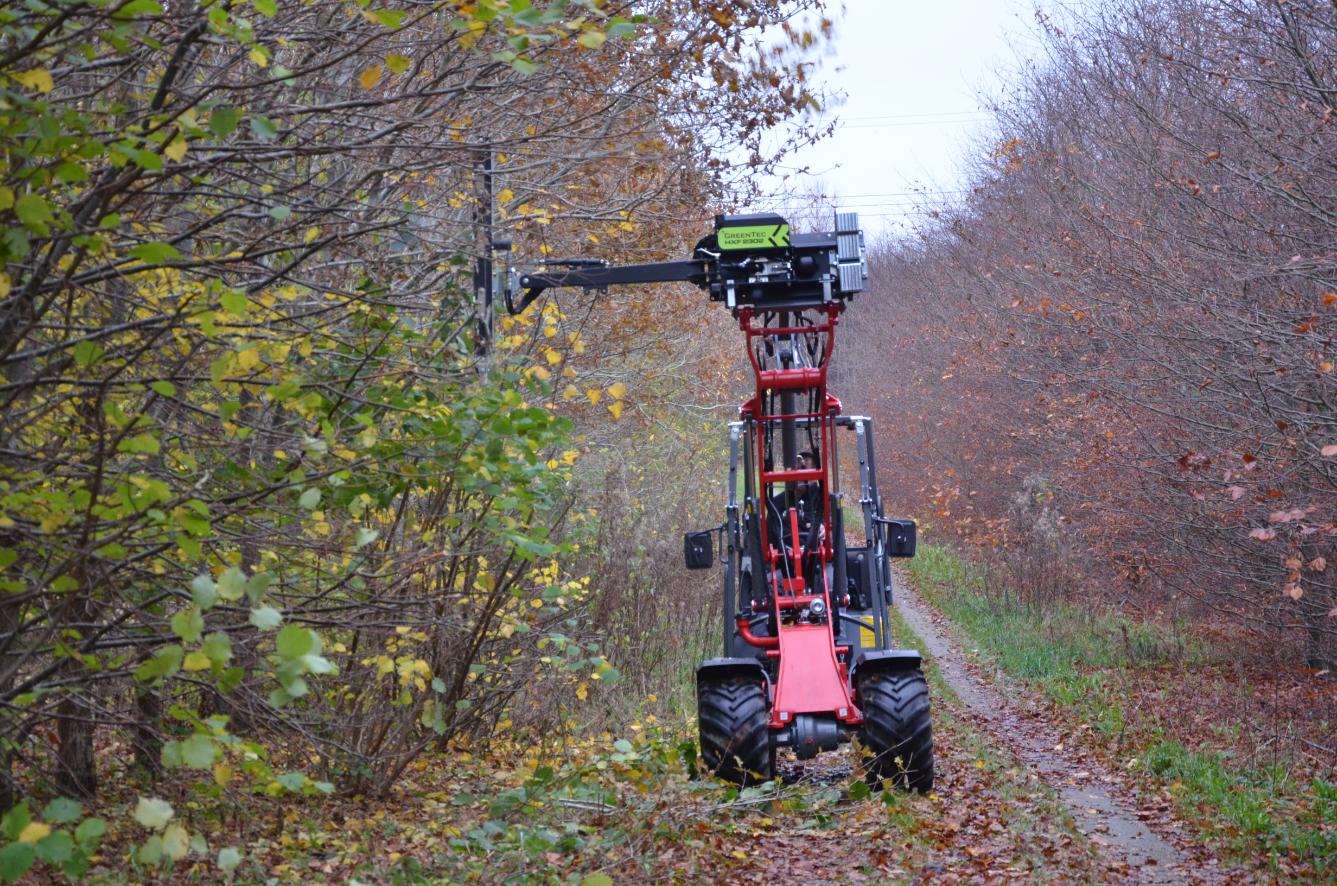

The Quadsaw LRS 1402 is used by farmers, municipalities and contractors across the world for clearing and maintaining windbreaks, roads and trails.

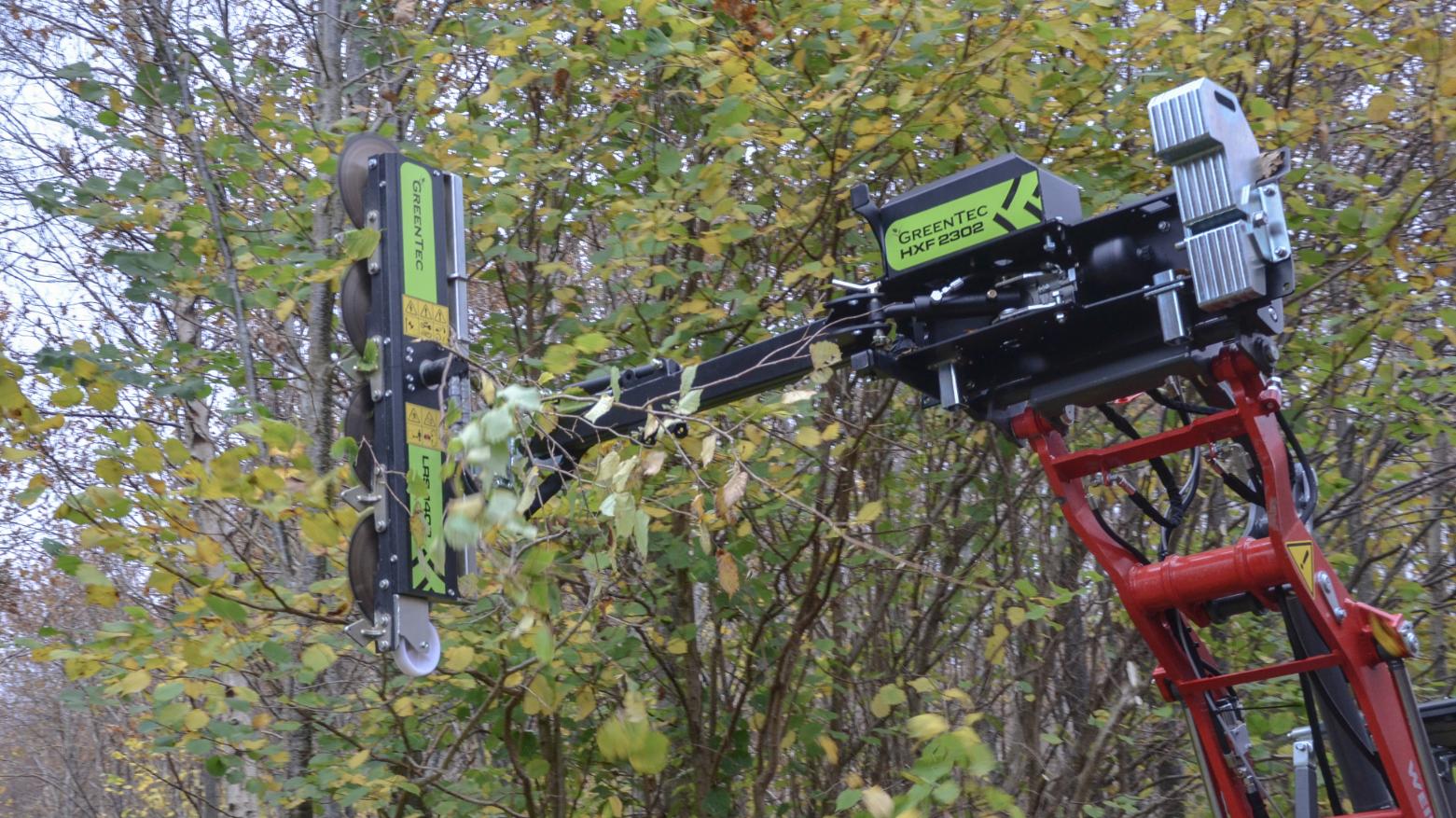

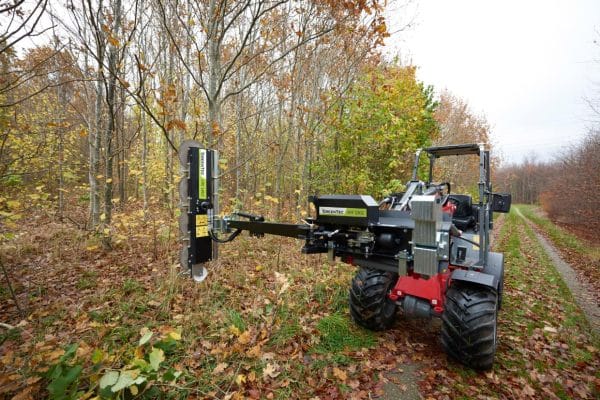

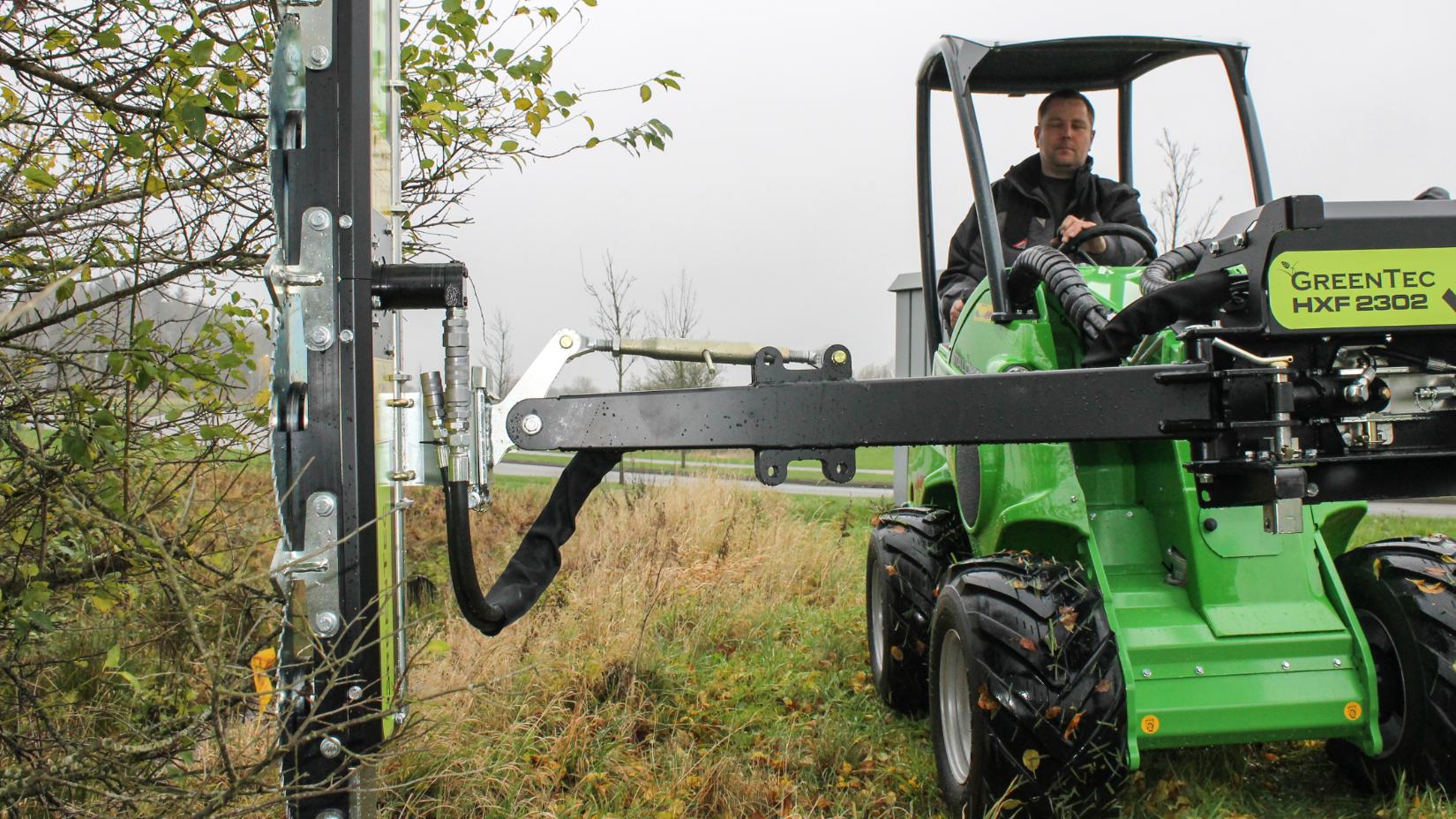

The Quadsaw LRS 1402 is mounted on skid steers or front loaders through our Multi Carrier HXF 2302 or HXF 2802 attachment frames. The limb saw can also be mounted on our Scorpion 330 & 430 or other manufacturers of boom mowers for compact tractors. Another option is to mount the Quadsaw LRS 1402 directly on the arm of mini excavators.
The Quadsaw LRS series fits the following GreenTec machines:
LRS 1402 LRS 1602 LRS 2002 LRS 2402
Multi Carrier HXF 2302 Check mark
HXF 2802 Check mark Check mark
HXF 3302 Check mark Check mark Check mark
Boom Mower Scorpion 330 & 430 Check mark Check mark
Scorpion 530 & 630 Check mark Check mark
Scorpion 730 & 830 Check mark Check mark
TECHNICAL DATA LRS 1402
Working width 1.4 m
(4’7″”)
Sawblades with Widia teeth 4 pcs: Ø 35 cm
(4 pcs: Ø 1’2″”)
Max. branch thickness 0.5 – 10 cm
(0.20″” – 3.94″”)
Required hydraulic connections 1 x double acting + 1 x drain
Required oil flow 25 l/min @ 190 bar
(6.6 gpm @ 2756 psi)
Blade speed 4000 rpm
Driving speed up to 5 km/h
(3.11 mph)
Weight 48 kg
(106 lb)
EQUIPMENT OVERVIEW
Blade diameter: 35 cm (1’2″”) Standard equipment

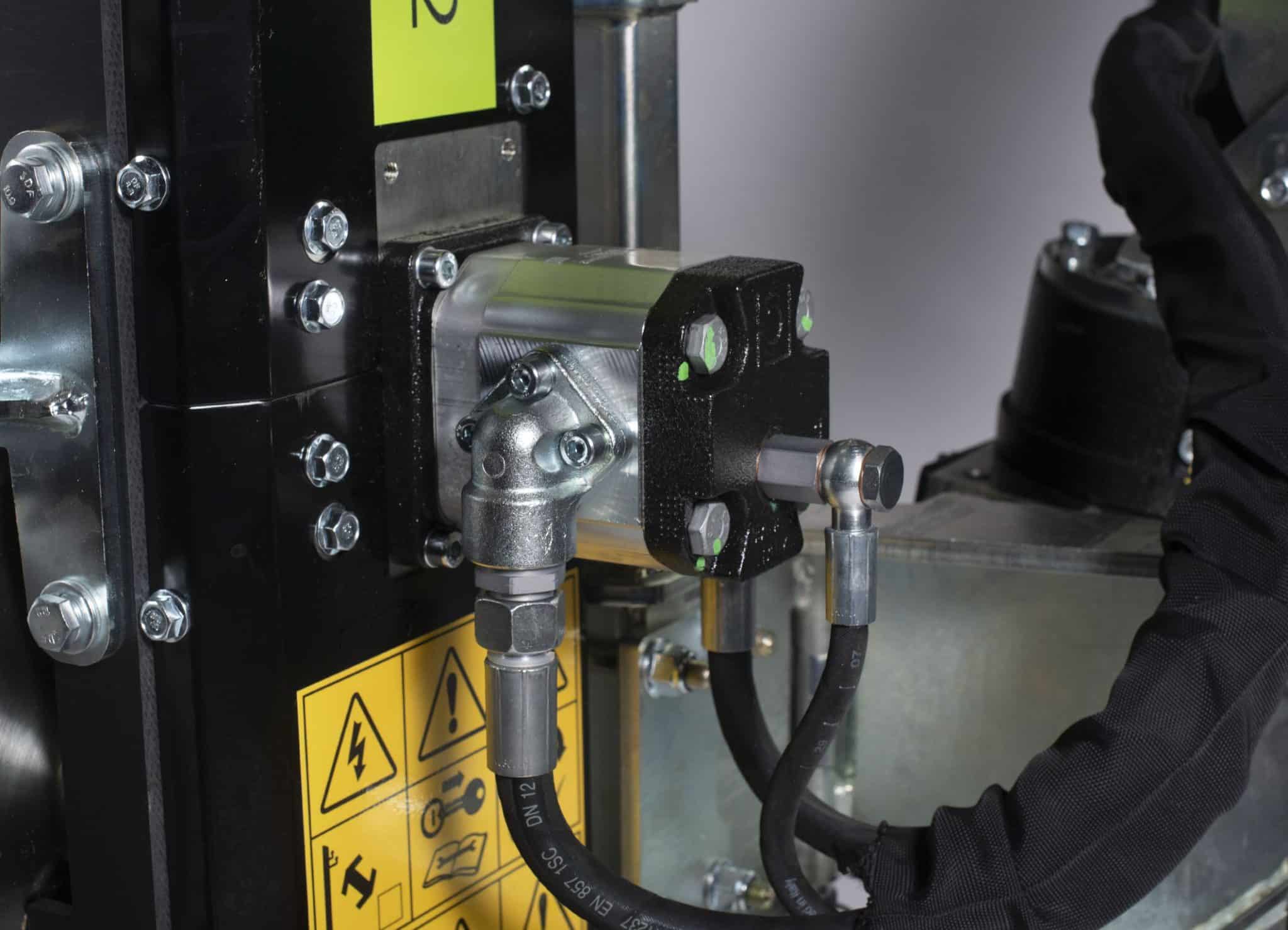

Oil engine: 25 l/min @ max 190 bar (6.6 gpm @ 2756 psi) Standard equipment
Carbide tipped blades Standard equipment
Belt stretcher Standard equipment
Power Band belt drive Standard equipment
Belt tension gauge Standard equipment
Large smooth surface Standard equipment
Narrow body Standard equipment
Branch guider at each saw blade Standard equipment
4 blades in a line Standard equipment
7 ° angle allows overlap between the blades Standard equipment
Flexible mounting point Standard equipment
Support wheel (the saw avoids hitting the ground) Standard equipment
Mechanical quick release Optional equipment
Hydraulic quick release Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
