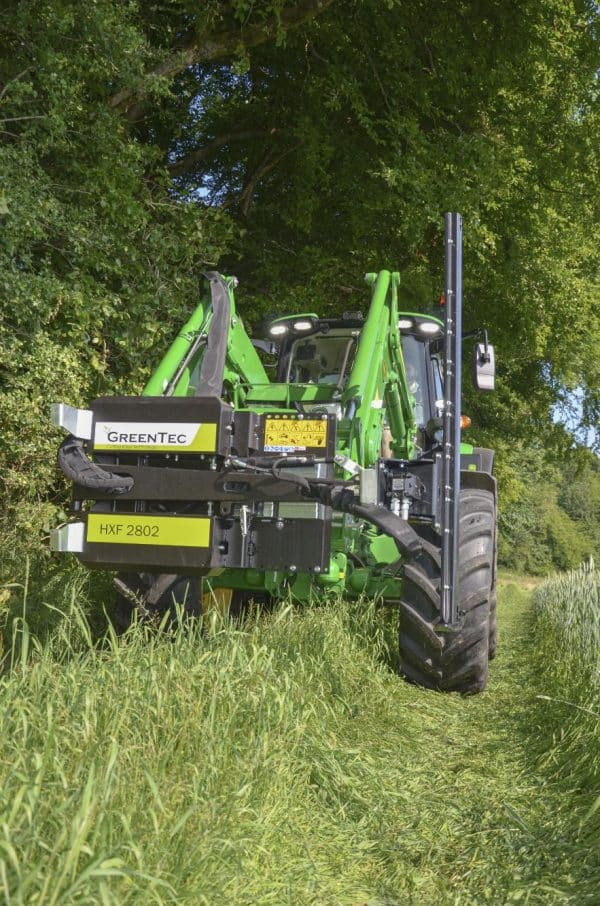

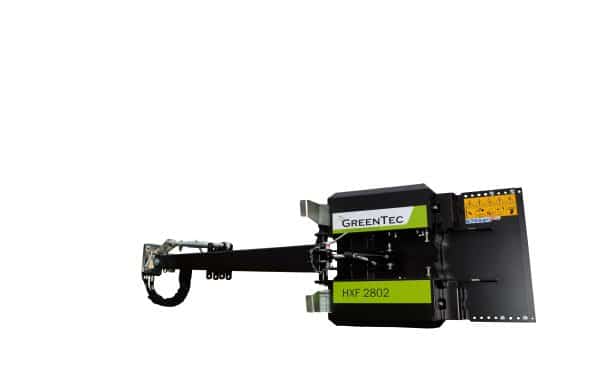

The Multi Carrier HXF 2802 is an attachment frame for front end loader mount mainly but can also be mounted on large skid steer loaders or the like.
The HXF 2802 offers great flexibility as it enables you to mount 11 attachment tools for different purposes, e.g. limb trimming, hedge cutting, fence trimming, guardrail mowing and cleaning of sidewalks.
Front end loader attachments for hedge cutting and windbreak maintenance
The Multi Carrier HXF 2802 is an attachment frame for front end loader mount mainly but can also be mounted on large skid steer loaders or the like.
The HXF 2802 offers great flexibility as it enables you to mount 11 attachment tools for different purposes, e.g. limb trimming, hedge cutting, fence trimming, guardrail mowing and cleaning of sidewalks.

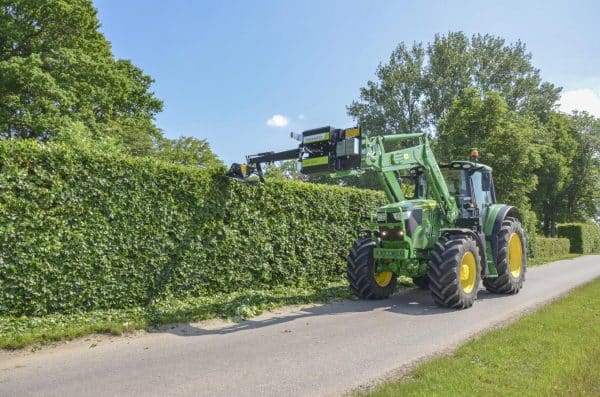

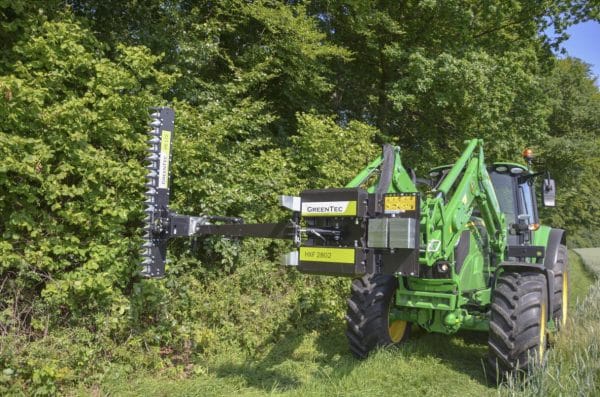

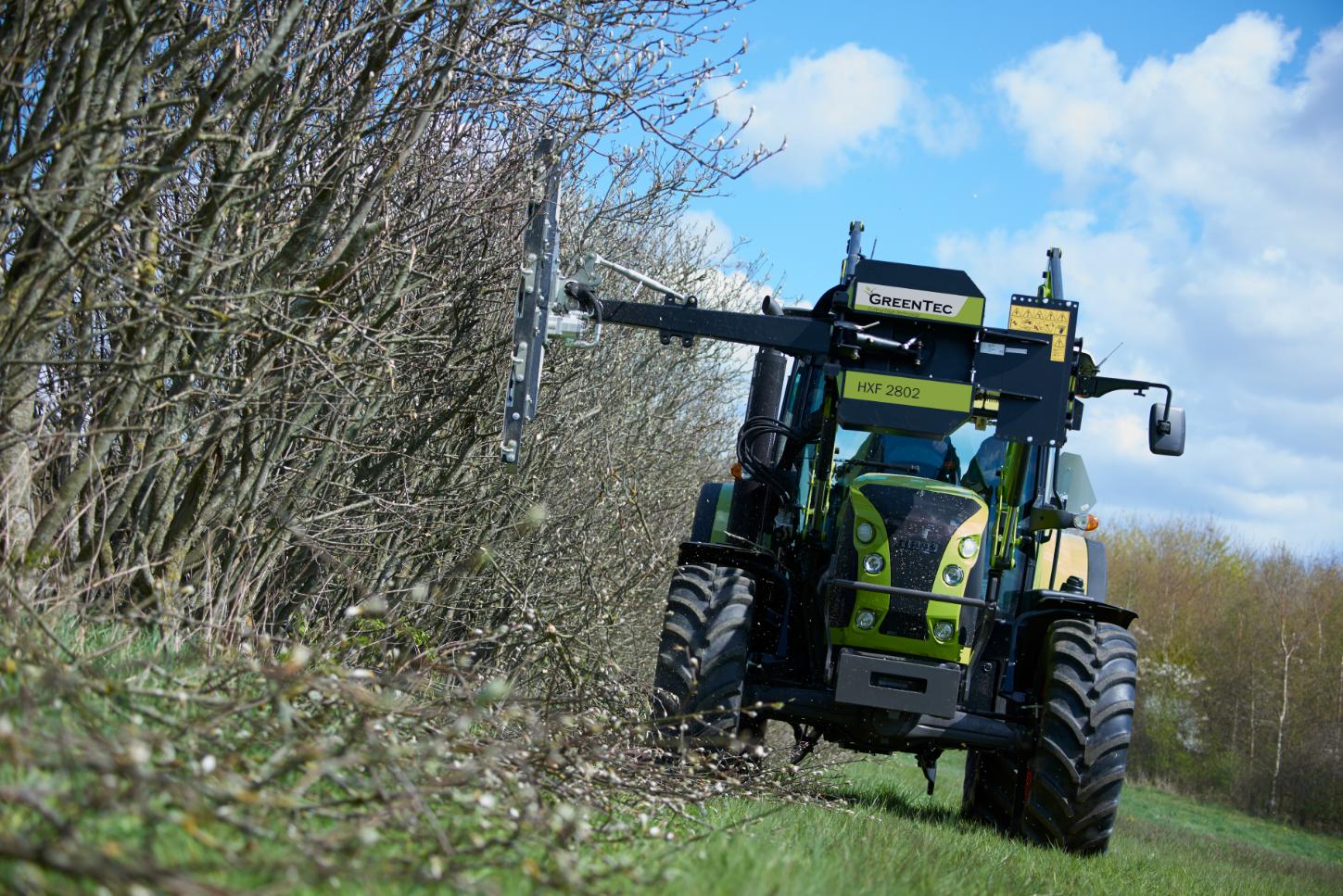

The Quadsaw LRS 1602 and Cutterbar HL 152 – 242 are both attachment tools that will fit perfectly to the HXF attachment frame and can be used for hedge cutting and windbreak maintenance.

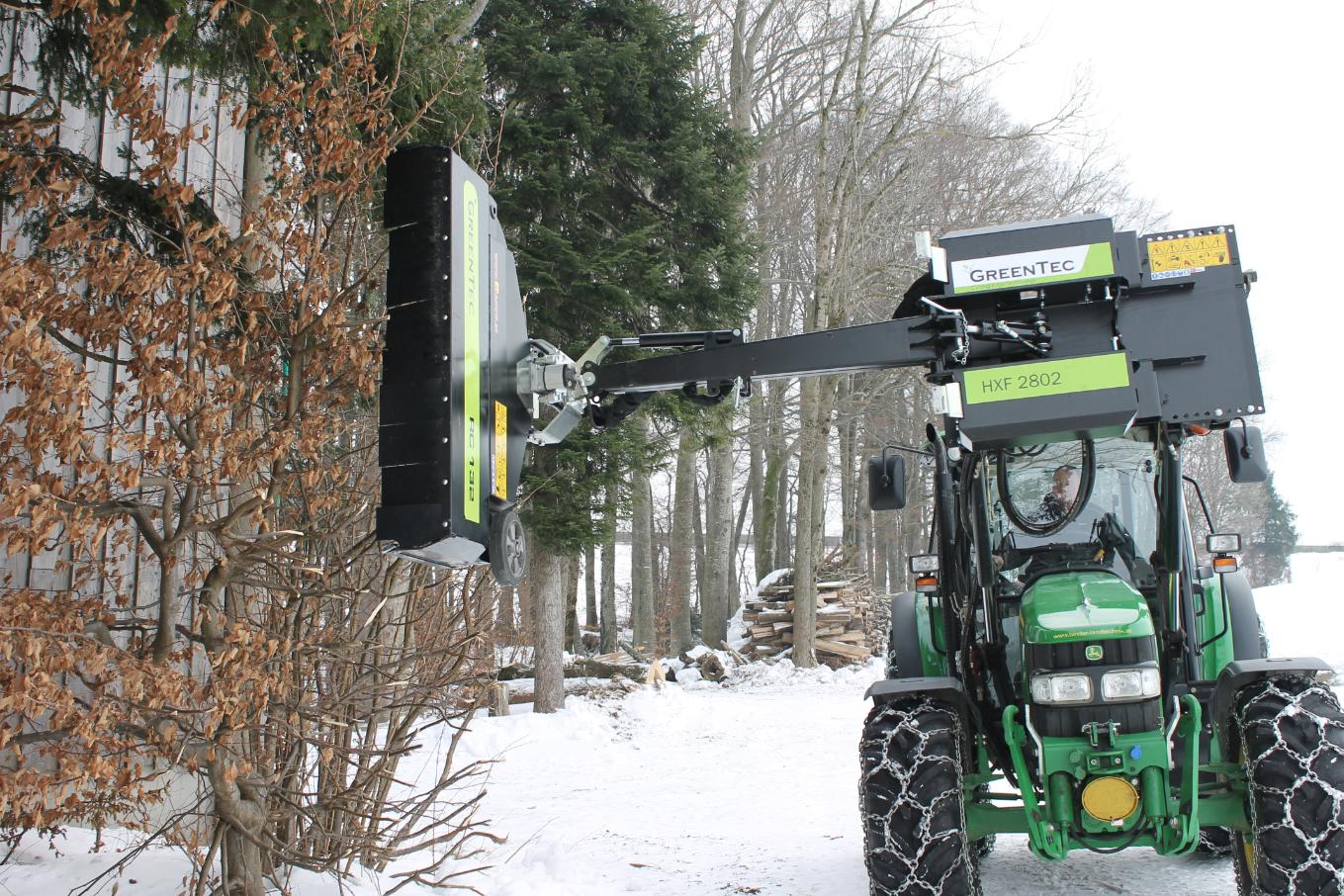

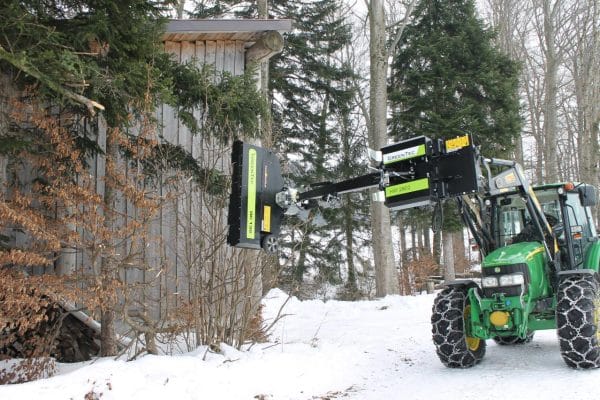

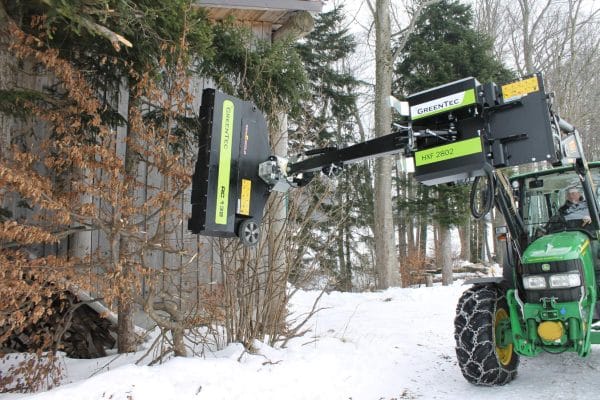

The Rotary Hedge Cutter RC 102 & 132 can be used for light hedge maintenance where the material is cut and shredded in one motion, so you do not have to gather the cut-off material afterwards.
We also offer attachment tools for mowing under fence wires, crash barriers or to cut close around trees in orchards with our Barrier Mower RI 60 & 80.
Furthermore, our BR 70 & 90 series of weed brushes can be used for effective cleaning of sidewalks, gutters, courtyards, anywhere where there are tiles, asphalt or paving stones.
The Multi Carrier HXF 2802 is installed in a few minutes in the loading gear bracket. The arm has a hydraulic break-back with auto reset, which also acts as a cushion to the quadsaw. The hydraulic connections needed are one double acting valve and a free return. When installing the hydraulic cutting angle, another double acting valve is required. Alternatively, an electric control valve can be purchased.
STRONG ARGUMENTS:
Mounted on front end loaders and large skid steer loaders
High road safety
Automatic Hydraulic Break-back
Build in anti-cavitation valve
Easy attachment system
Low weight
11 tools can be mounted on the HXF 2802The Multi Carrier HXF 2802 needs an oil flow of 25 or 40 l/minThe Multi Carrier HXF 2802 is supplied with AHS
EQUIPMENT
Mechanical cutting angle control Standardudstyr
Mechanical switch from working to transport position Standard equipment
Automatic Hydraulic Break-back with pre-pressure Standard equipment
Oil flow divider Standard equipment
Anti-cavitation valve Standard equipment
Pressure relief valve Standard equipment
1.5 m (4’11”) hose kit for attachment tool Standard equipment
Euro brackets Standard equipment
Hydraulic angle control* Optional equipment
Hydraulic angle control incl. e-control of all functions** Optional equipment
Counterweights, 104 kg (229 lb) Optional equipment
8.5 m (27’11”) hose kit (from front loader to tractor rear) – 3 pcs. Optional equipment
8.5 m (27’11”) hose kit (from front loader to tractor rear) – 5 pcs. Optional equipment
Other bracket types Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment
* Hydraulic angle control requires two DA connections.
** When you buy the hydraulic angle control and the e-control with an oil flow divider, you only need one DA connection (and zero-pressure tank drain where it is required).
Standard Equipment
The Multi Carrier is the most road safe solution on the marketAutomatic Hydraulic Break-back with pre-pressureMechanical switch from working to transport positionMechanical cutting angle controlOil flow divider, 25 or 40 l/min (6.6 or 10.6 gpm)Anti-cavitation valve1.5 m (4’11”) hose kit for attachment toolThe Multi Carrier is available for right or left mountingEuro bracketsThe support legs provide stability for quick mounting and dismounting
Optional Equipment
OPTE527/528Hose kit, HXF 2802, 8.5 m (2-3 pcs) (OPTE527/528)OPTE576.3E-control and hydraulic ram for cutting angle (OPTE576.3)OPTE578.2Cutting angle, hydr. HXF 2802 (OPTE578.2)OPTE1251E-control for HXF 2802 Tele – angle and tool (OPTE1251)OPTE4083Counterweights, HXF 2802, 104 kg (229 lb) (OPTE4083)
Brackets – click to enlarge the drawings
OPTE308.1Loader bracket HXF 2802 / Manitue (OPTE308.1)OPTE308.2Loader bracket HXF 2802 / New Holland (OPTE308.2)OPTE308.3Loader bracket HXF 2802 / JCB Q-fit (OPTE308.3)OPTE308.4Loader bracket HXF 2802 / Claas telehandler (OPTE308.4)OPTE308.5Loader bracket HXF 2802 / Merlo (OPTE308.5)OPTE308.6Loader bracket HXF 2802 / Volvo high (OPTE308.6)OPTE577Loader bracket HXF 2802 / Euro Hitch (OPTE577)OPTE577.1Faucheaux brackets (OPTE577.1)OPTE577.2Loader bracket HXF 2802 / Trima-Ville (OPTE577.2)OPTE577.3Loader bracket HXF 2802 / Weidemann hydr. (OPTE577.3)OPTE577.4Loader bracket HXF 2802 / Volvo L30/L35 (OPTE577.4)OPTE577.5Loader bracket HXF 2802 / Schäffer small std. (OPTE577.5)OPTE577.6Loader bracket HXF 2802 / Schäffer Tele. (OPTE577.6)OPTE577.7Loader bracket HXF 2802 / JCB” 409 Agri (OPTE577.7)OPTE4051Loader bracket HXF 3302 / Skid steer (OPTE4051)OPTE4057Loader bracket HFX 2802 / JCB V1 (OPTE4057)OPTE4251Loader bracket HFX 2802 / Kramer spe. (OPTE4251)OPTE4272Universal plate HXF 2802 (OPTE4272)OPTE4275.1Loader bracket HXF 2802 / Terex TL 80-100-120 (OPTE4275.1)
