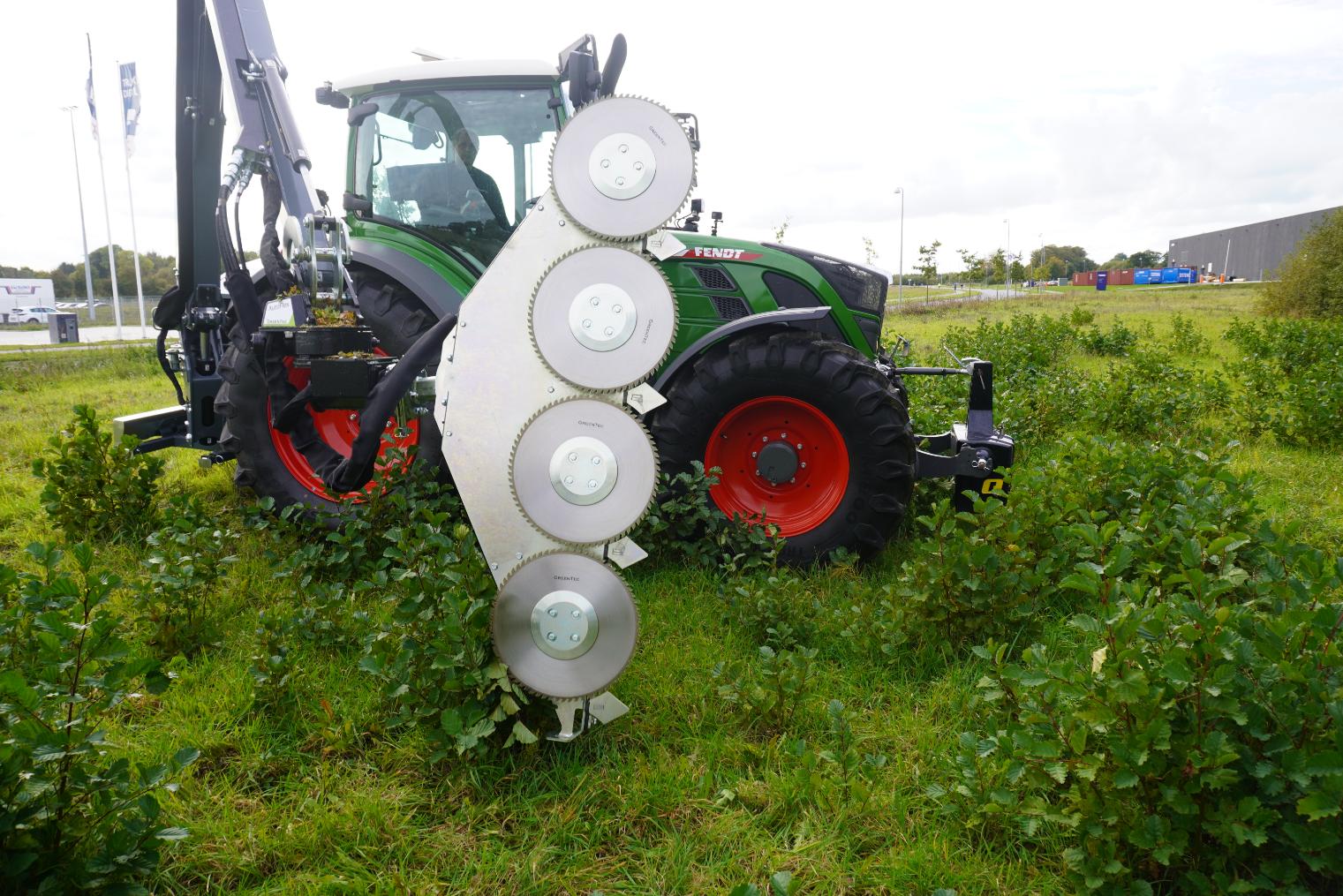

The Quadsaw LRS 2002 has an unmatched capacity with its four circular saw blades and low maintenance costs. The saw performs an excellent job at cutting thick and thin branches with a smooth and clean cut.
STRONG ARGUMENTS:
- Perfect cutting quality, both thick and thin branches
- Forward speed = high capacity
- Power Drive transmission, high efficiency, low power requirements
- Saw blades with carbide tipped teeth = long life and minimal maintenance (grinding)
The Quadsaw LRS 2002 has a working width of 2.0 m (6’7″”)The Quadsaw LRS 2002 cuts branches up to 16 cm in thickness (6.30″”)The Quadsaw LRS 2002 has a maximum driving speed of 5 km/h (3.11 mph)The Quadsaw LRS 2002 weighs 198 kg (437 lb)
Hydraulic circular saw for tractors, excavators and large loaders
The Quadsaw LRS 2002 has an unmatched capacity with its four circular saw blades and low maintenance costs. The saw performs an excellent job at cutting thick and thin branches with a smooth and clean cut.

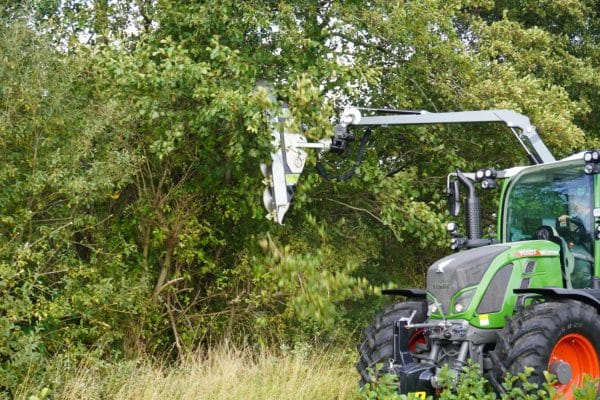

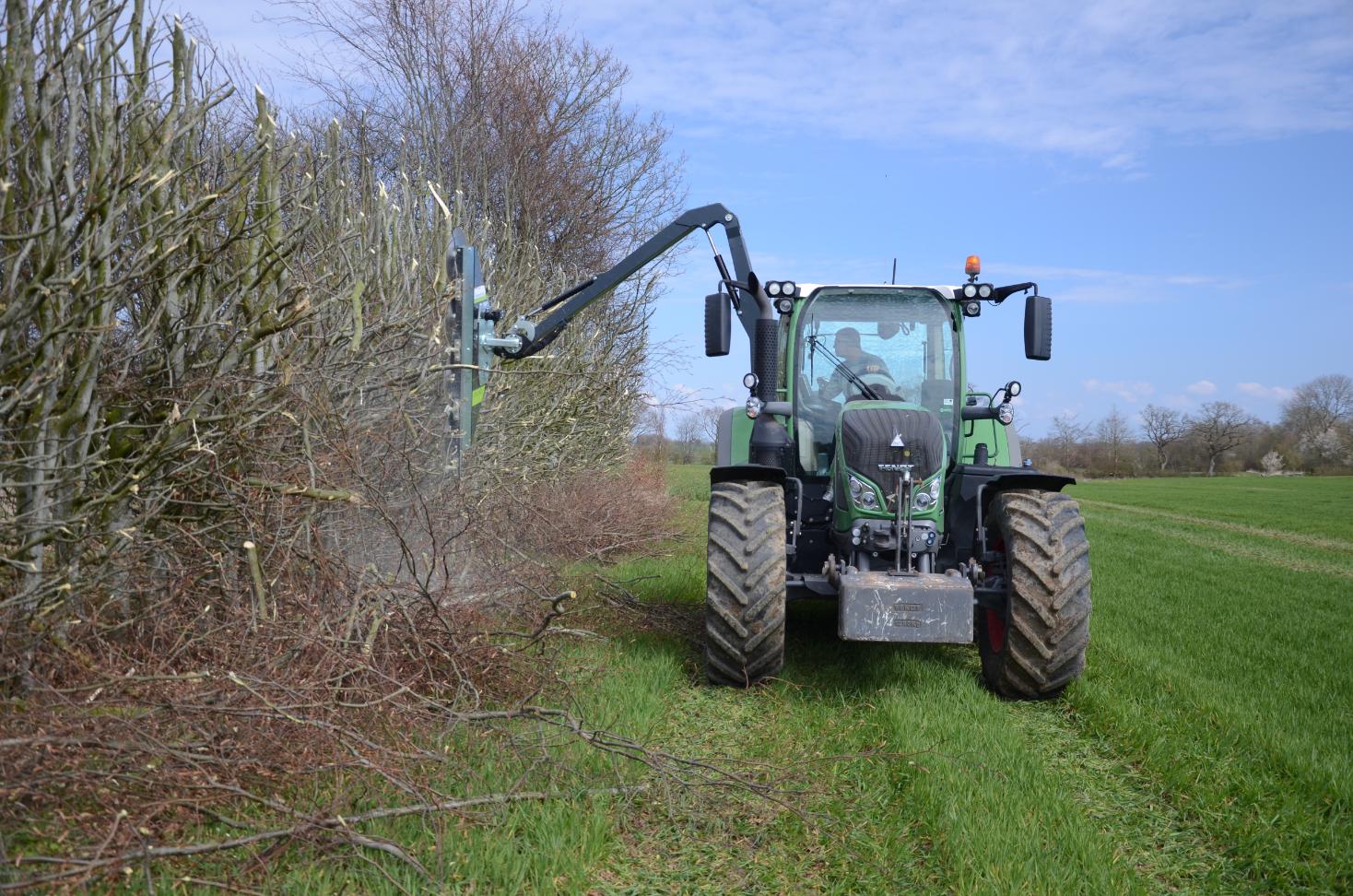

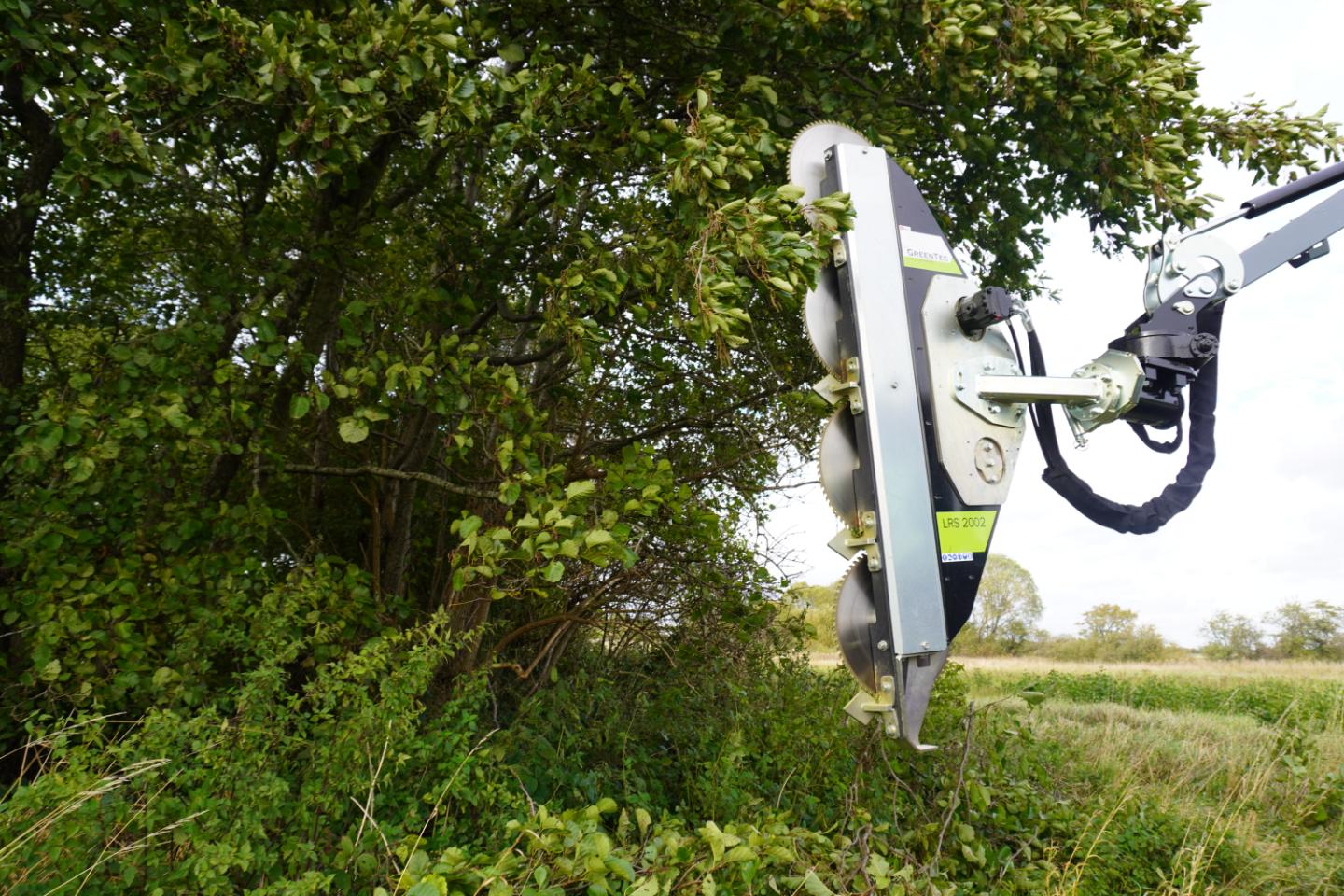

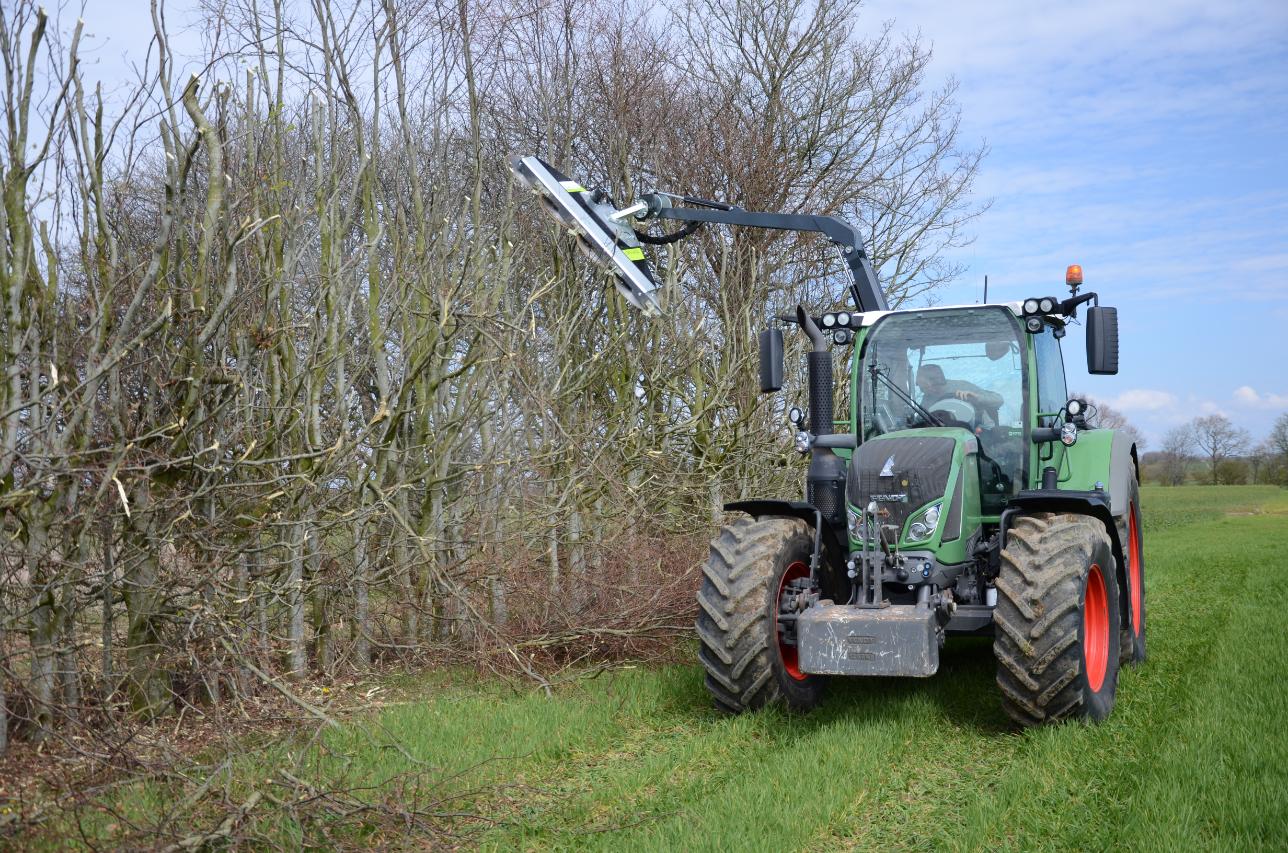

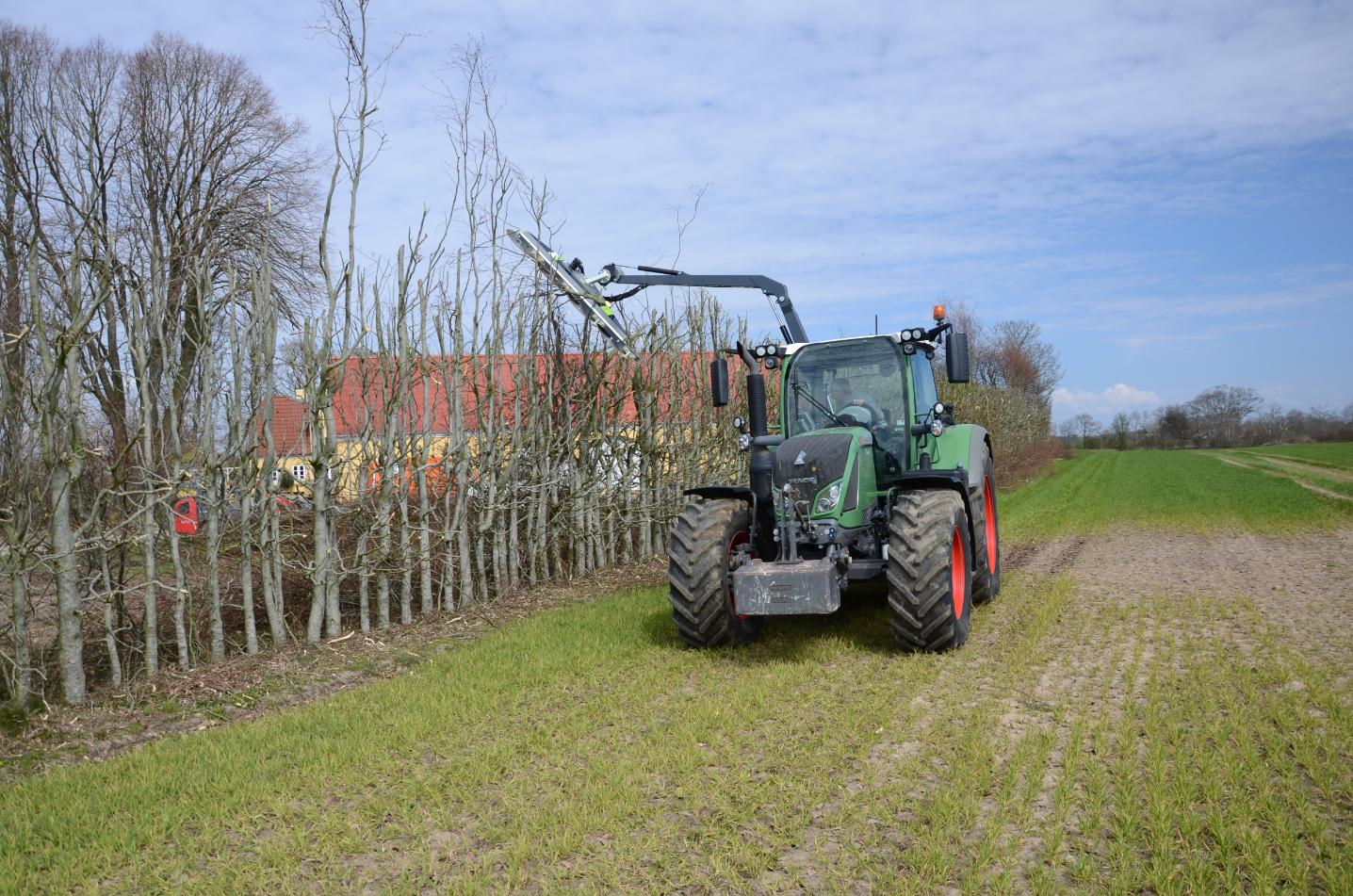

The saw is used for trimming hedgerows near fields and maintaining the effect of shelterbelts, so the crops are protected from the damage that strong wind and erosion cause. The saw is also suitable for maintaining trails in forests where branches extend into the path or road. The high forward speed of 5 km/h (3.11 mph) combined with the large working width of 2.0 m (6’7″”) makes the Quadsaw LRS 2002 an ideal tool for contractors who want to carry out as many hedge trimming jobs as possible.
The saw is manufactured in high-strength steel which is a very light and durable material. Thus, the machine weighs less than 200 kg (440 lb). The Quadsaw LRS 2002 is available in right or left versions and can be mounted on most boom arms, excavators and our Multi Carrier HXF 3302 attachment frame for telehandlers and front loaders.
The Quadsaw LRS series fits the following GreenTec machines:
LRS 1402 LRS 1602 LRS 2002 LRS 2402
Multi Carrier HXF 2302 Check mark
HXF 2802 Check mark Check mark
HXF 3302 Check mark Check mark Check mark
Boom Mower Scorpion 330 & 430 Check mark Check mark
Scorpion 530 & 630 Check mark Check mark
Scorpion 730 & 830 Check mark Check mark
TECHNICAL DATA LRS 2002
Working width 2.0 m
(6’7″”)
Sawblades with Widia teeth 4 pcs: Ø 49.5 cm
(4 pcs: Ø 1’7″”)
Branch thickness 0.5 – 16 cm
(0.20” – 6.30”)
Required hydraulic connections 1 x double acting + 1 x drain
Minimum oil flow, 28 ccm motor 85 l/min @ 150 bar
(22.5 gpm @ 2176 psi)
Alternative oil flow, 15 ccm motor 50 l/min @ 180 bar
(13.2 gpm @ 2611 psi)
Blade speed 3000 – 3200 rpm
Driving speed up to 5 km/h
(3.11 mph)
Weight 198 kg
(437 lb)
EQUIPMENT OVERVIEW
Blade diameter: 49.5 cm (1’7″”) Standard equipment

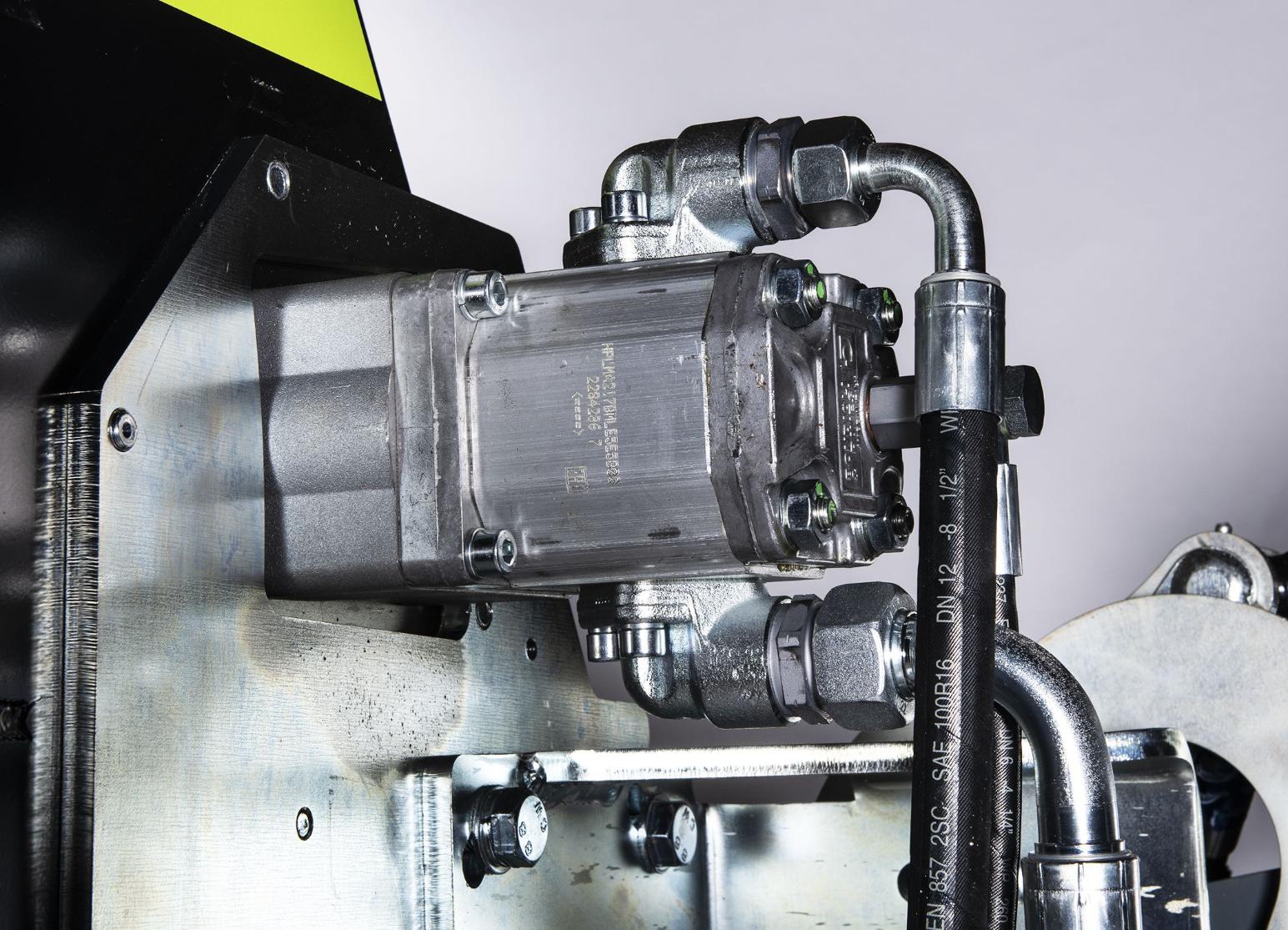

Continuous duty motor Standard equipment
Carbide tipped blades Standard equipment
Belt stretcher Standard equipment
Power Band belt drive Standard equipment
Belt tension gauge Standard equipment
Anti-cavitation valve Standard equipment
Large smooth surface Standard equipment
Narrow body Standard equipment

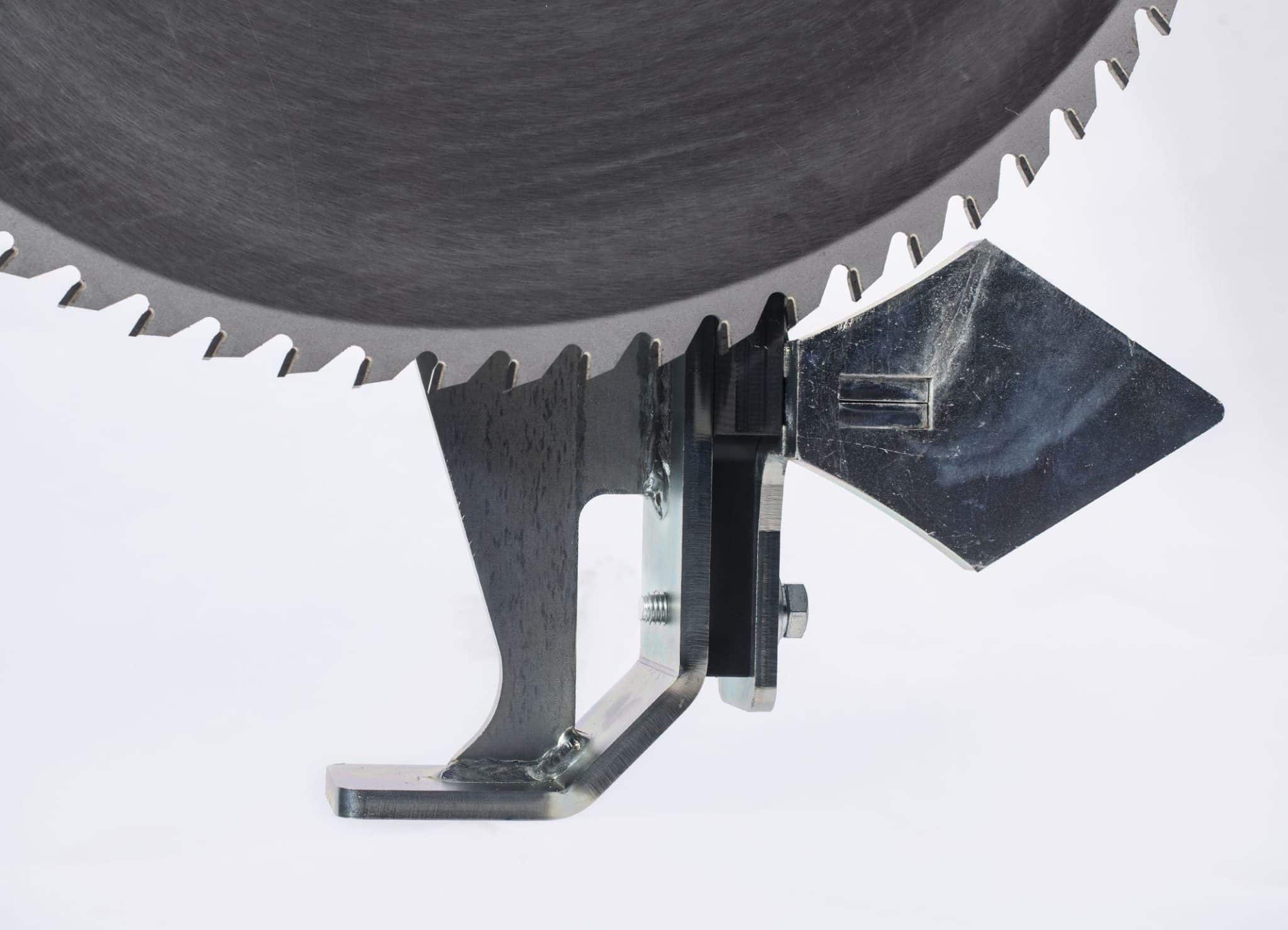

Branch guider at each saw blade Standard equipment

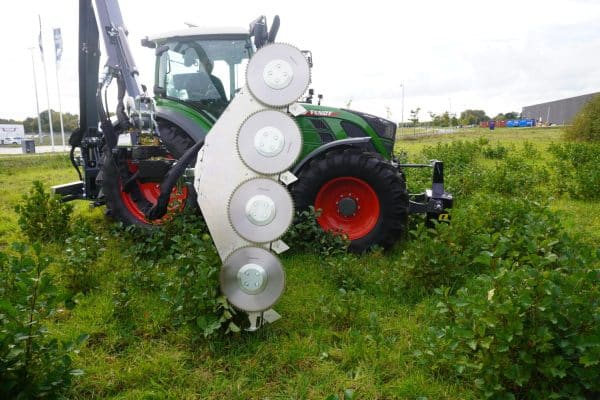

4 blades in a line Standard equipment
7° angle allows overlap between the blades Standard equipment
Skid shoe (the saw avoids hitting the ground) Standard equipment
Pressure relief valve Standard equipment
Saw blades or rotor blades, 4 pieces Standard equipment
Mechanical quick release Optional equipment
Hydraulic quick release Optional equipment
Rotor blades, 4 pieces, retrofitted Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
