The Quadsaw LRS 2402 wields four circular blades with carbide tipped teeth that are extremely sharp and provide a smooth cut of branches and limbs up to 21 cm (8.27”) in thickness. The circular saw has many uses, such as trimming back hedgerows or maintaining paths and roads in forest areas.
STRONG ARGUMENTS:
- Perfect cutting quality, both thick and thin branches
- Forward speed = high capacity
- Power Drive transmission, high efficiency, low power requirements
- Saw blades with carbide tipped teeth = long life and minimal maintenance (grinding)
The Quadsaw LRS 2402 has a working width of 2.4 m (7’10″”)The Quadsaw LRS 2402 cuts branches up to 21 cm (8.27”) in thicknessThe Quadsaw LRS 2402 has a maximum driving speed of 5 km/h (3.11 mph)The Quadsaw LRS 2402 weighs 239 kg (527 lb)
Circular Saw Hedge Cutter
The Quadsaw LRS 2402 wields four circular blades with carbide tipped teeth that are extremely sharp and provide a smooth cut of branches and limbs up to 21 cm (8.27”) in thickness. The circular saw has many uses, such as trimming back hedgerows or maintaining paths and roads in forest areas.

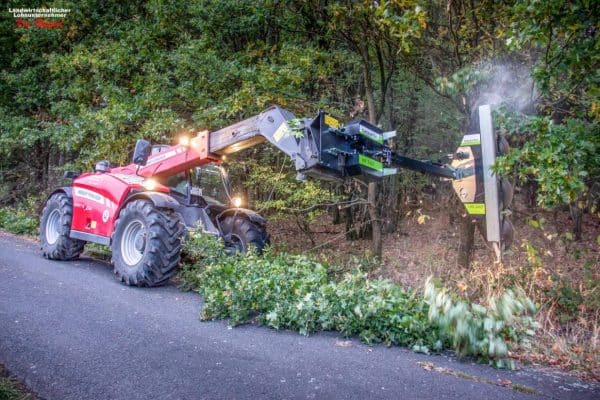

The Quadsaw LRS 2402 has a huge capacity as it has a large working width of 2.4 m (7’10”) and you can maintain a high driving speed of 5 km/h (3.11 mph). This makes the saw ideal for contractors who perform piece work and want to achieve the highest possible efficiency.

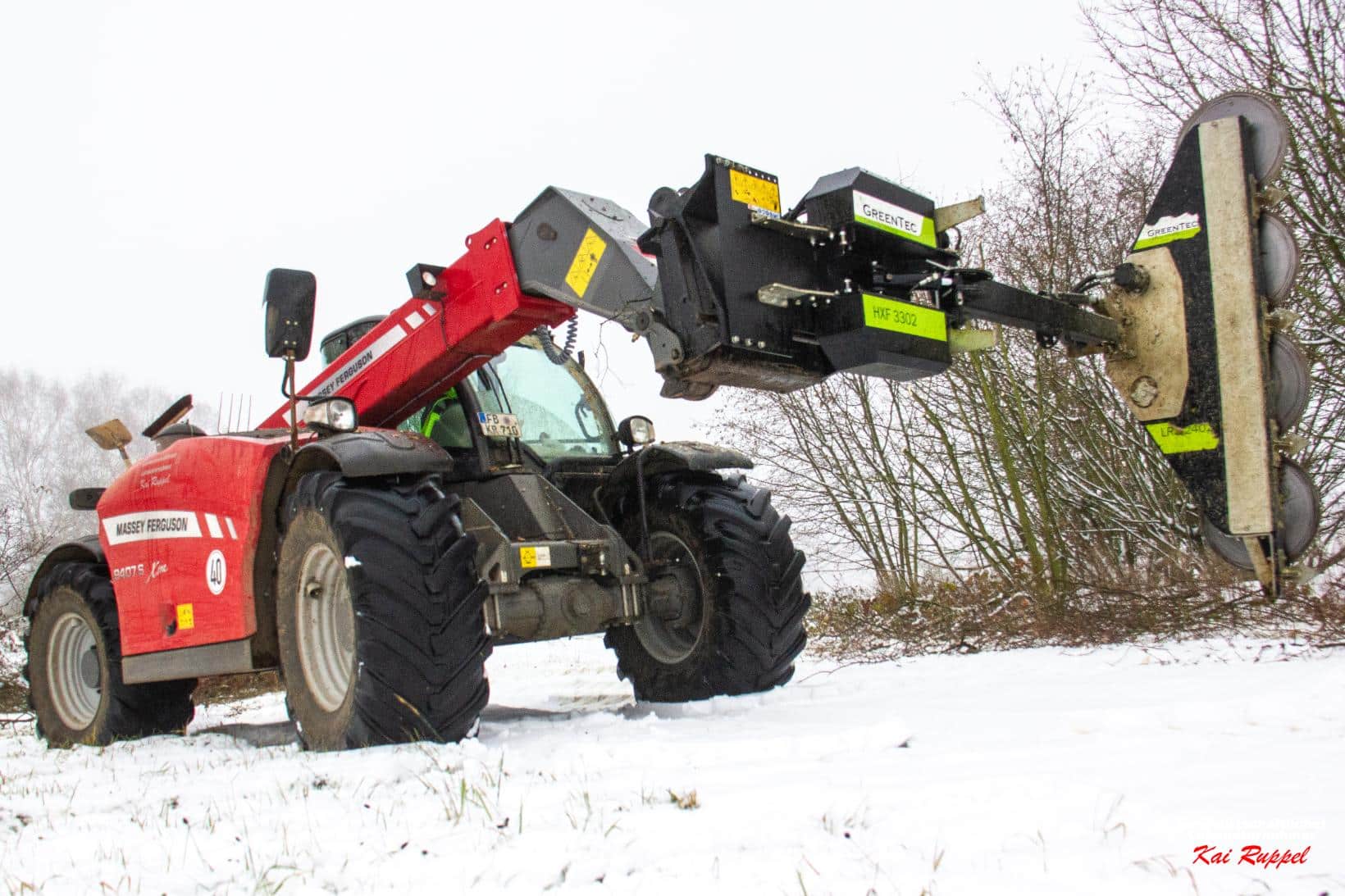

The saw is hydraulic driven and can be mounted on large vehicles used by farmers and contractors. The Quadsaw LRS 2402 can be mounted on telehandlers or front loaders by using our Multi Carrier HXF 3302 attachment frame. It can also be mounted on our boom mowers or directly on backhoes and excavators. We have a large selection of brackets and adapters that you can view in the equipment tab and we constantly expand our range.
The Quadsaw LRS series fits the following GreenTec machines:
LRS 1402 LRS 1602 LRS 2002 LRS 2402
Multi Carrier HXF 2302 Check mark
HXF 2802 Check mark Check mark
HXF 3302 Check mark Check mark Check mark
Boom Mower Scorpion 330 & 430 Check mark Check mark
Scorpion 530 & 630 Check mark Check mark
Scorpion 730 & 830 Check mark Check mark
TECHNICAL DATA LRS 2402
Working width 2.4 m
(7’10”)
Sawblades with Widia teeth 4 pcs: Ø 59.5 cm
(4 pcs: Ø 1’11″”)
Branch thickness 0.5 – 21 cm
(0.20” – 8.27”)
Required hydraulic connections 1 x double acting + 1 x drain
Minimum oil flow, 28 ccm motor 85 l/min @ 150 bar
(22.5 gpm @ 2176 psi)
Alternative oil flow, 15 ccm motor 50 l/min @ 180 bar
(13.2 gpm @ 2611 psi)
Blade speed 3200 rpm
Driving speed up to 5 km/h
(3.11 mph)
Weight 239 kg
(527 lb)
EQUIPMENT OVERVIEW
Blade diameter: 59.5 cm (1’11″”) Standard equipment
Continuous duty motor Standard equipment
Carbide tipped blades Standard equipment
Belt stretcher Standard equipment

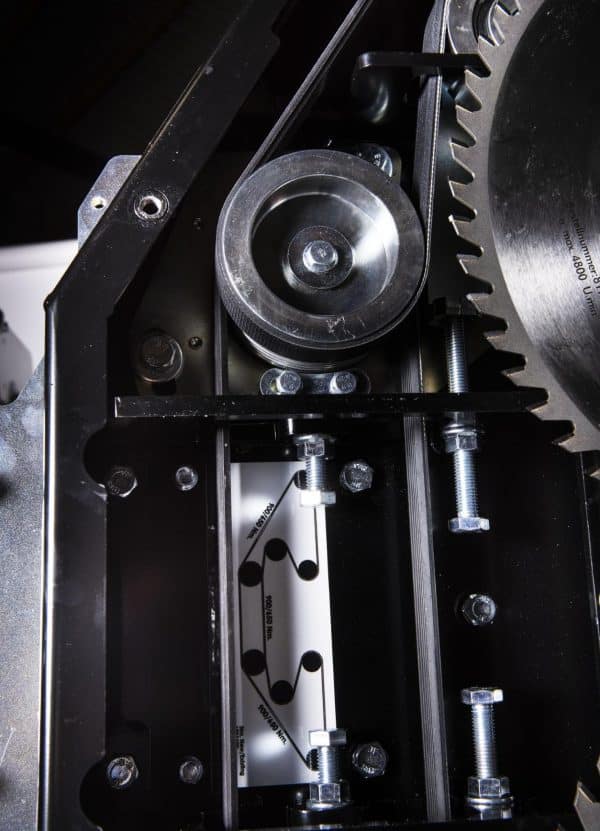

Power Band belt drive Standard equipment
Belt tension gauge Standard equipment
Anti-cavitation valve Standard equipment
Large smooth surface Standard equipment
Narrow body Standard equipment
Branch guider at each saw blade Standard equipment
4 circular blades in a line Standard equipment
7° angle allows overlap between the blades Standard equipment
Skid shoe (the saw avoids hitting the ground) Standard equipment
Pressure relief valve Standard equipment
Saw blades or rotor blades, 4 pieces Standard equipment
Mechanical quick release Optional equipment
Hydraulic quick release Optional equipment
Rotor blades, 4 pieces, retrofitted Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
