Greentec Multi Carrier HXF 3302

Greentec Multi Carrier HXF 3302

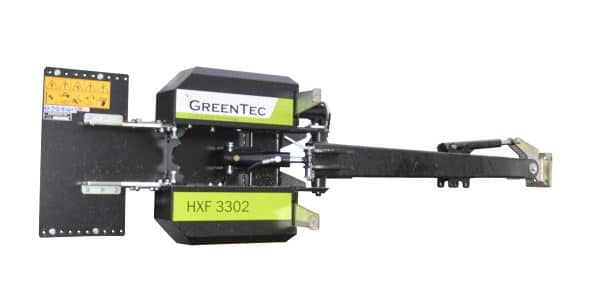

The Multi Carrier HXF 3302 is the largest model in the HXF series and is mainly mounted on telehandlers, large front end loaders and backhoes.

Name(Required)
This field is for validation purposes and should be left unchanged.

Thanks for downloading

Before your download begins, please fill out the form below.

Telehandler attachments for hedge cutting and windbreak maintenance

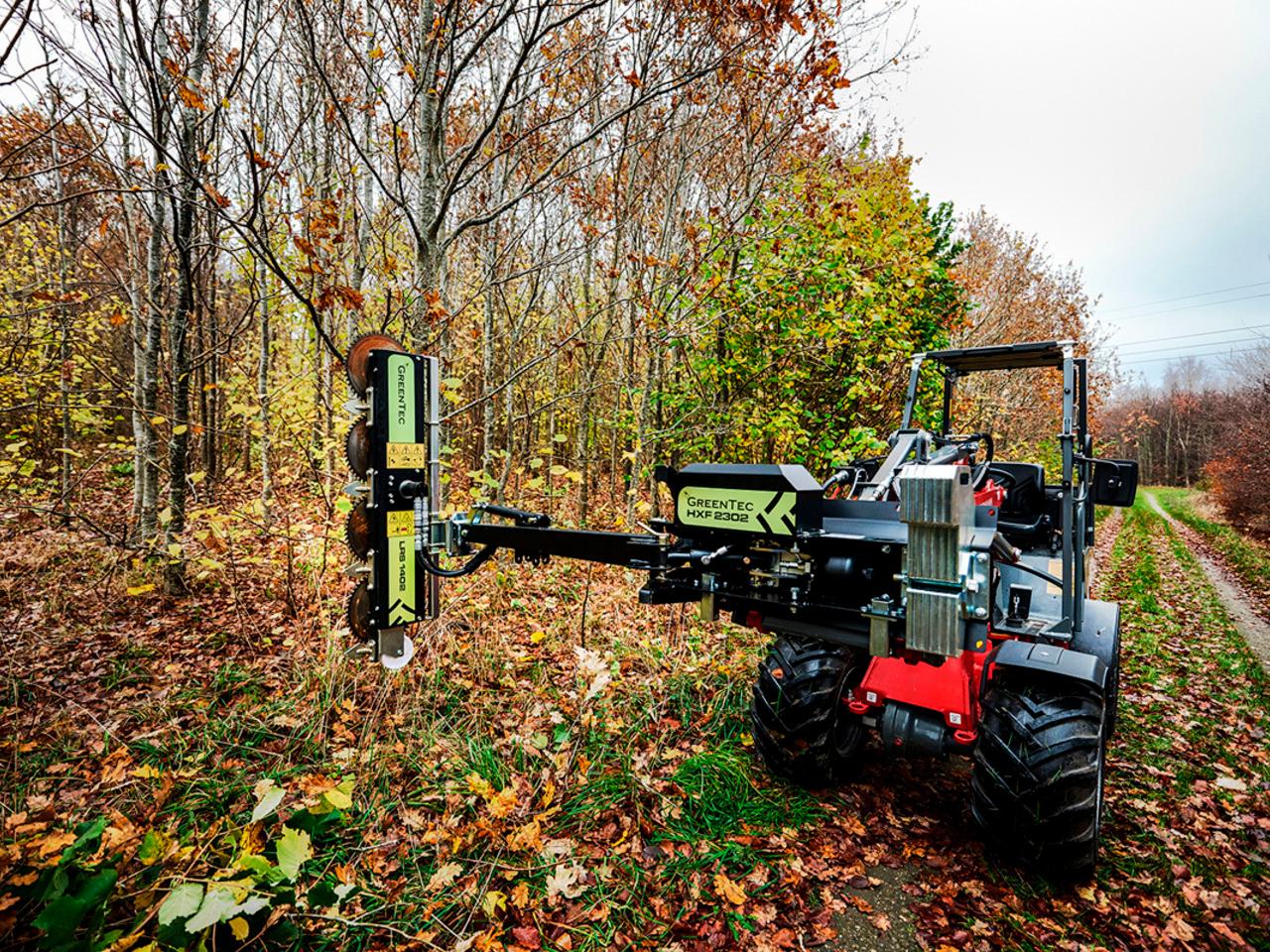

The Multi Carrier HXF 3302 is the largest model in the HXF series and is mainly mounted on telehandlers, large front end loaders and backhoes.

A wide variety of tools for hedge trimming and shelterbelt maintenance can be attached to the Multi Carrier HXF 3302 frame:

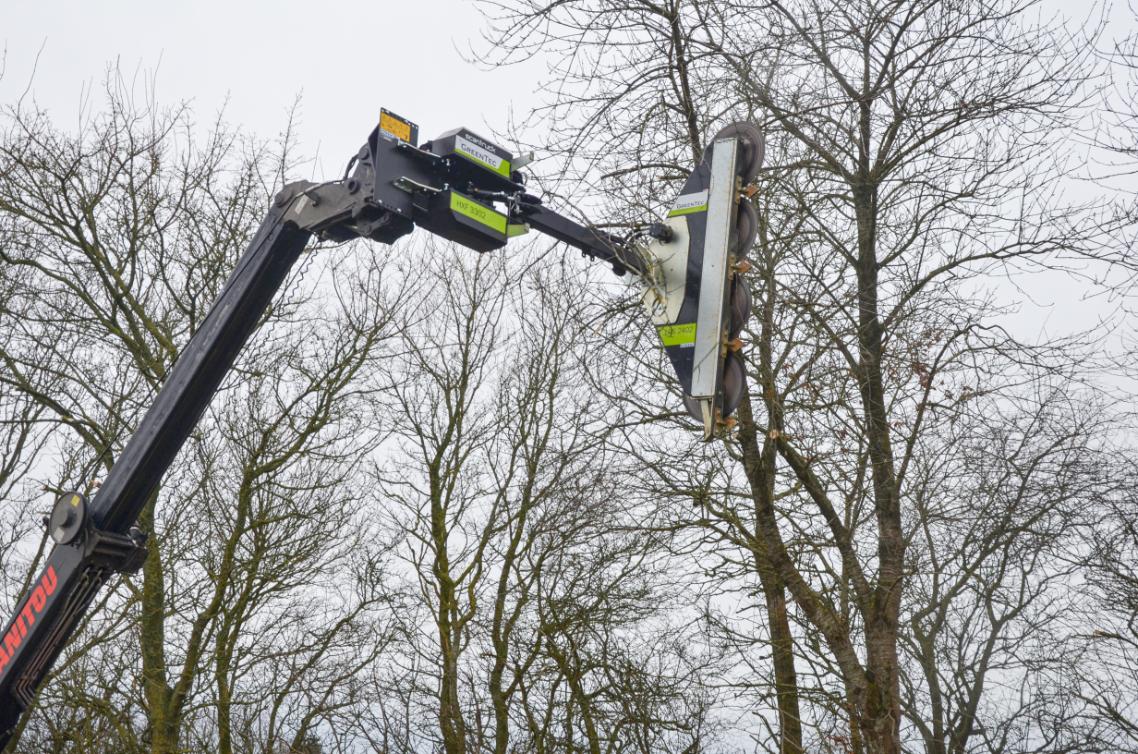

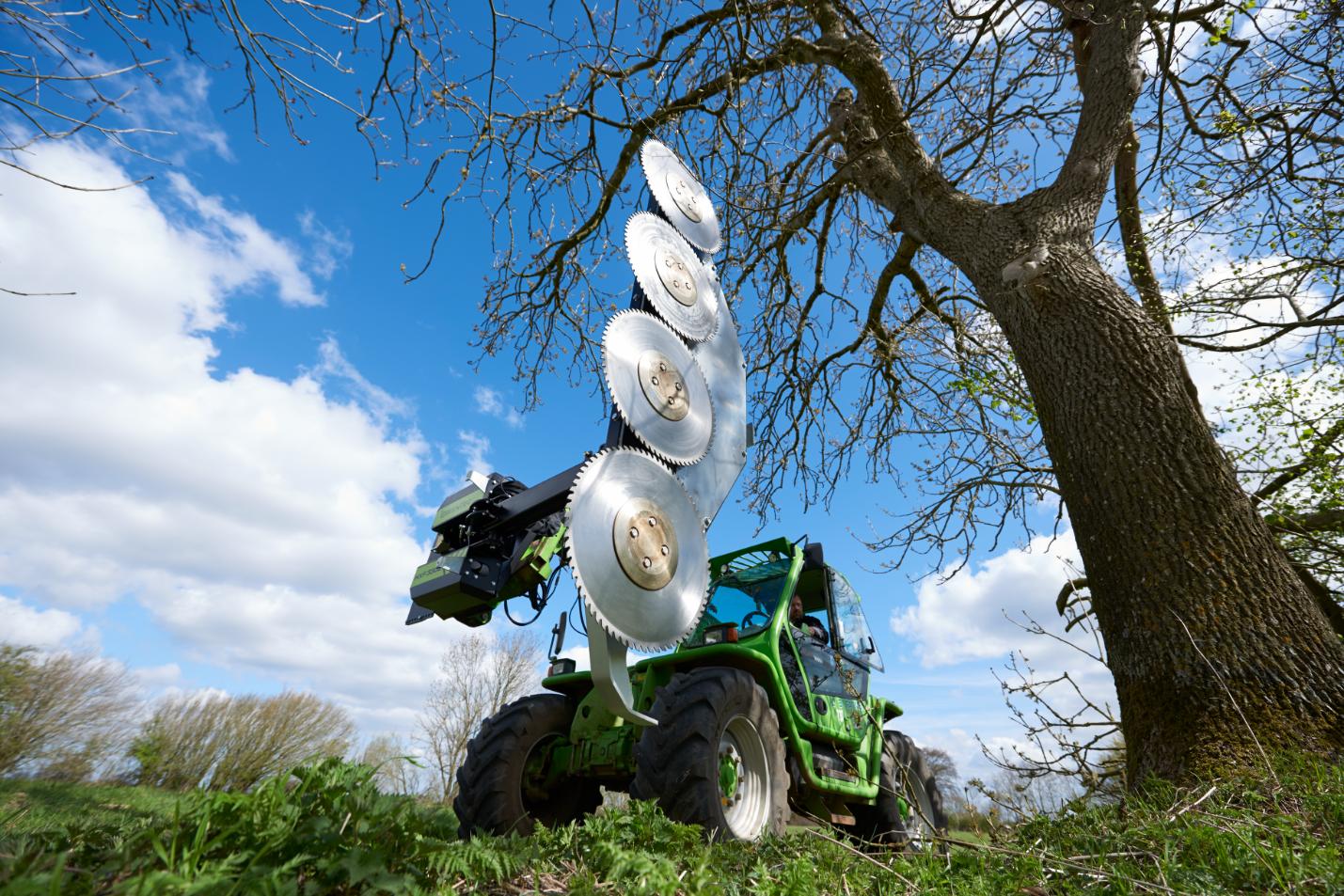

The Quadsaw LRS 2002 and LRS 2402 are the ideal solution for windbreak maintenance where large branches need to be cut (maximum 21 cm (8.28″”) thickness). The quadsaws provide a smooth cut and have a high forward working speed. However, the noise level is high and there are some maintenance costs regarding the sawblades.

The Cutterbax HX 170 – 270 series can also be used for windbreak maintenance. The cutterbars have a lower noise level and do not require any maintenance. However, they have a lower capacity and can only cut relatively small branches (maximum 11 cm (4.33″”) thickness).

The Rotary Hedge Cutter RC 162 is designed for hedge cutting and performs three operations in one. It cuts, shreds and disposes the cut-off material, so you do not have to pick it up afterwards. The Rotary Hedge Cutter RC 162 is best suited for reguraly hedge cutting where the branches are no more than 4 cm (1.57″”) thick.

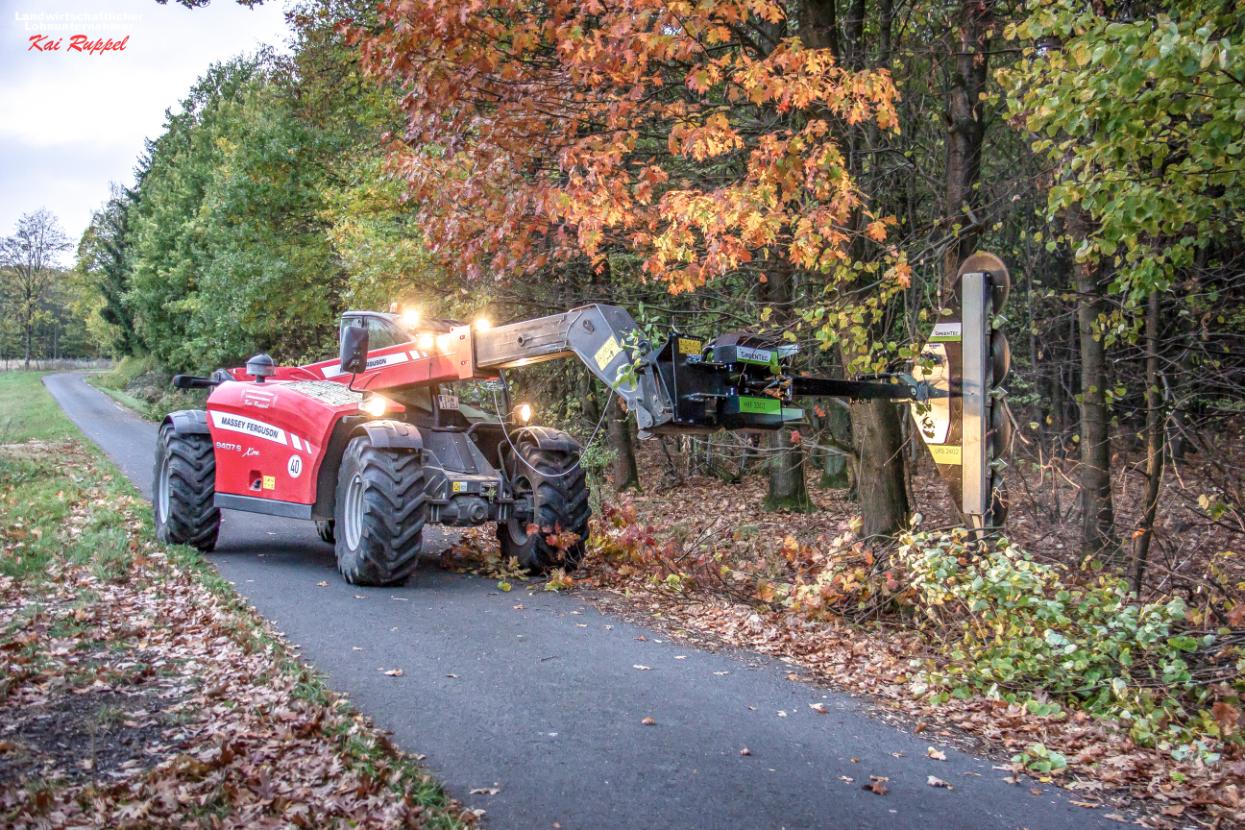

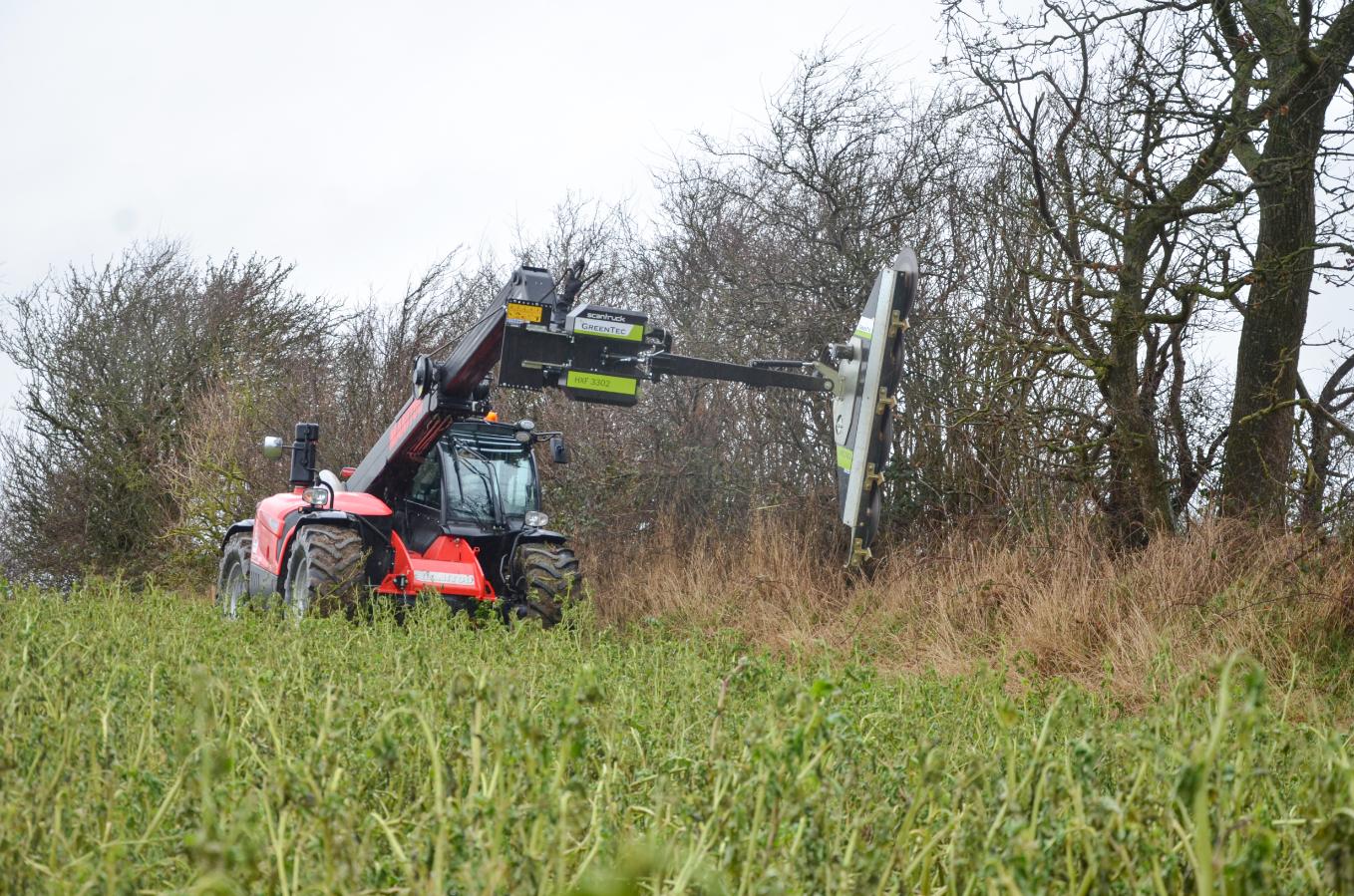

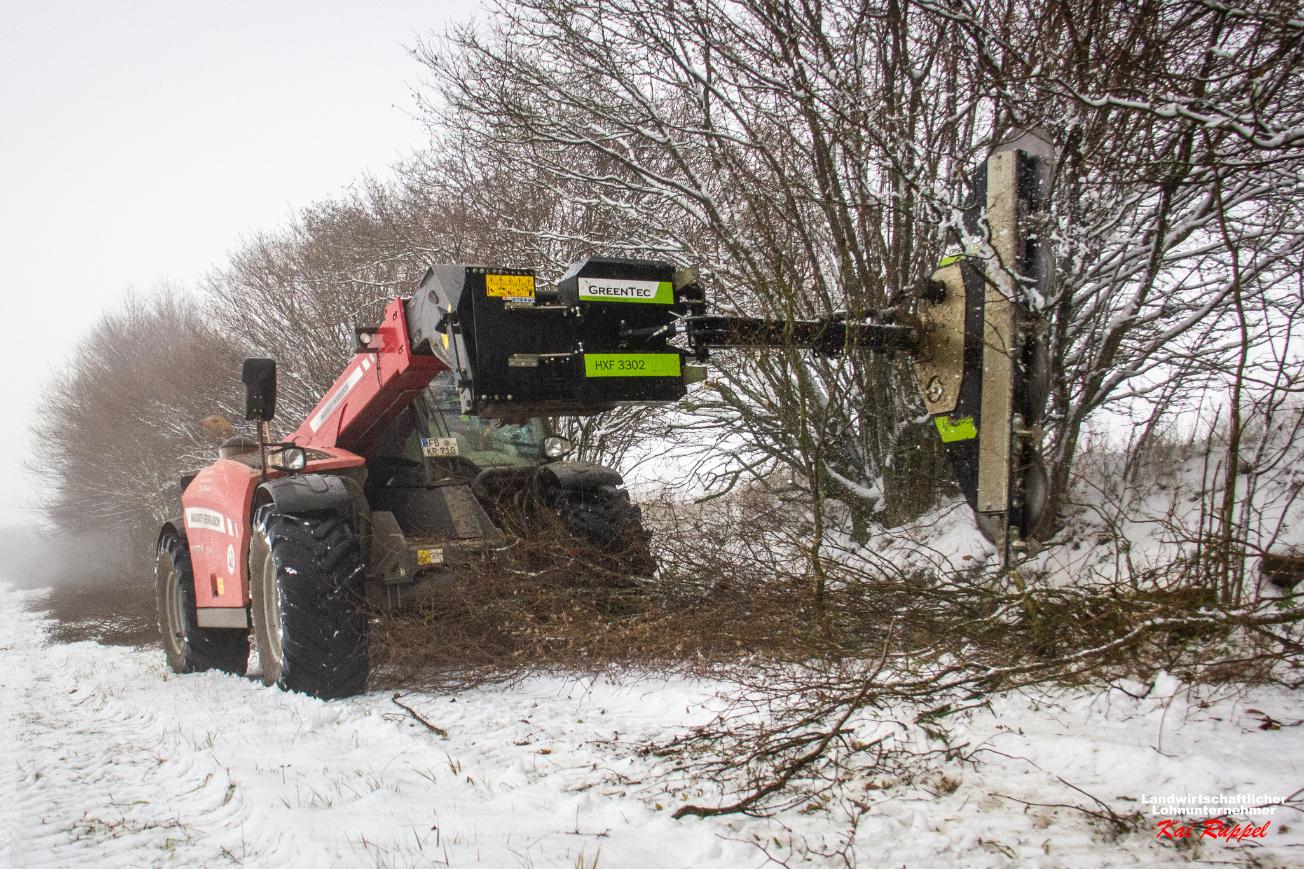

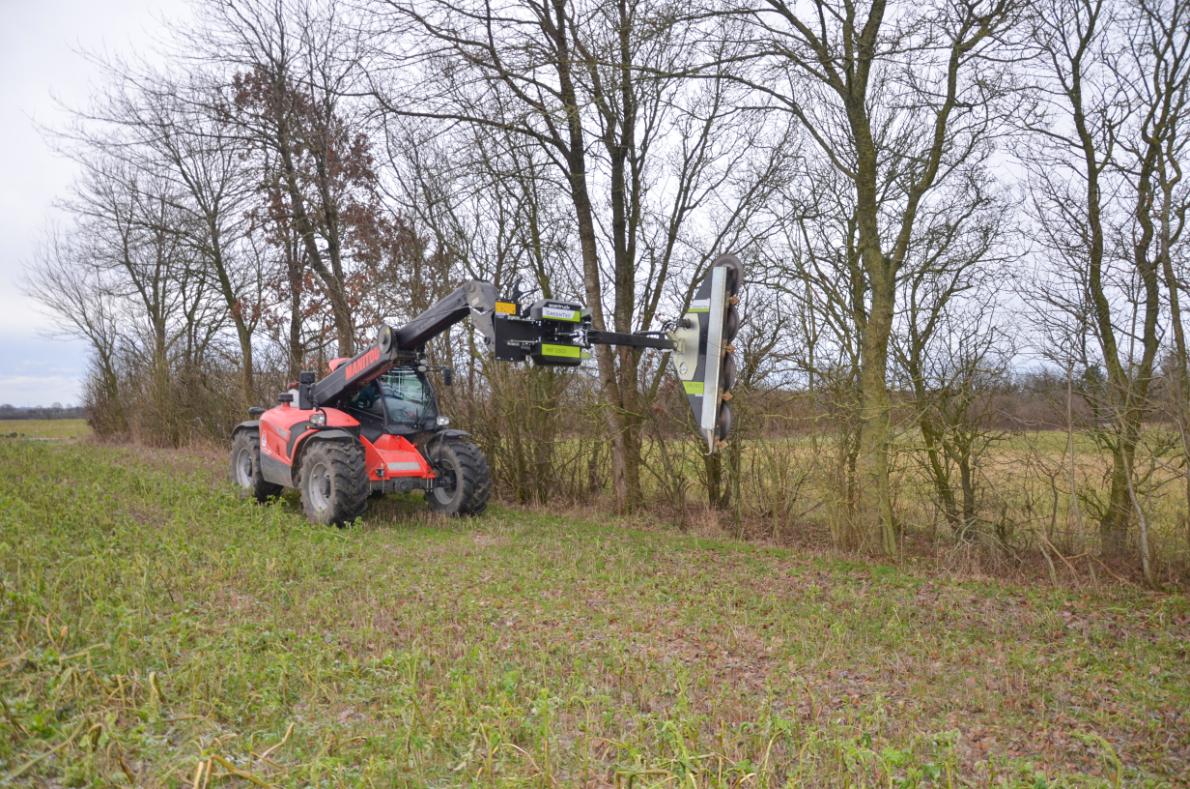

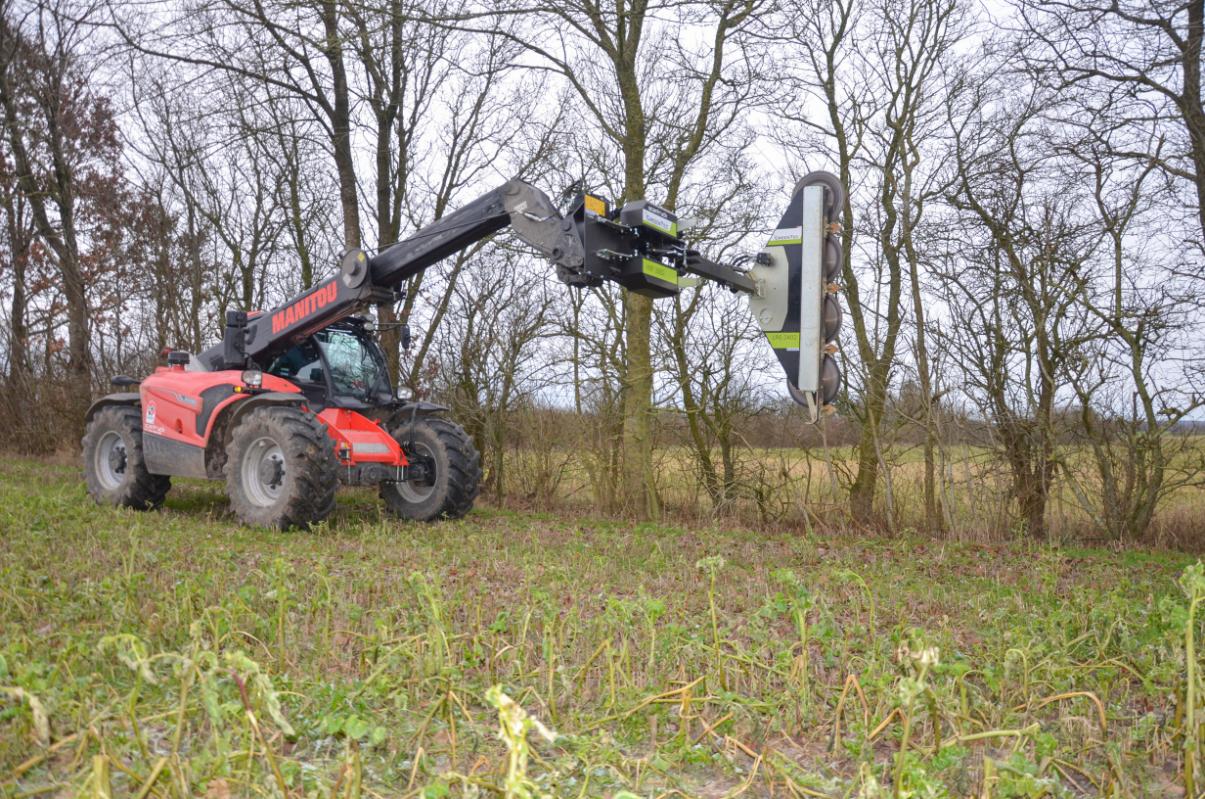

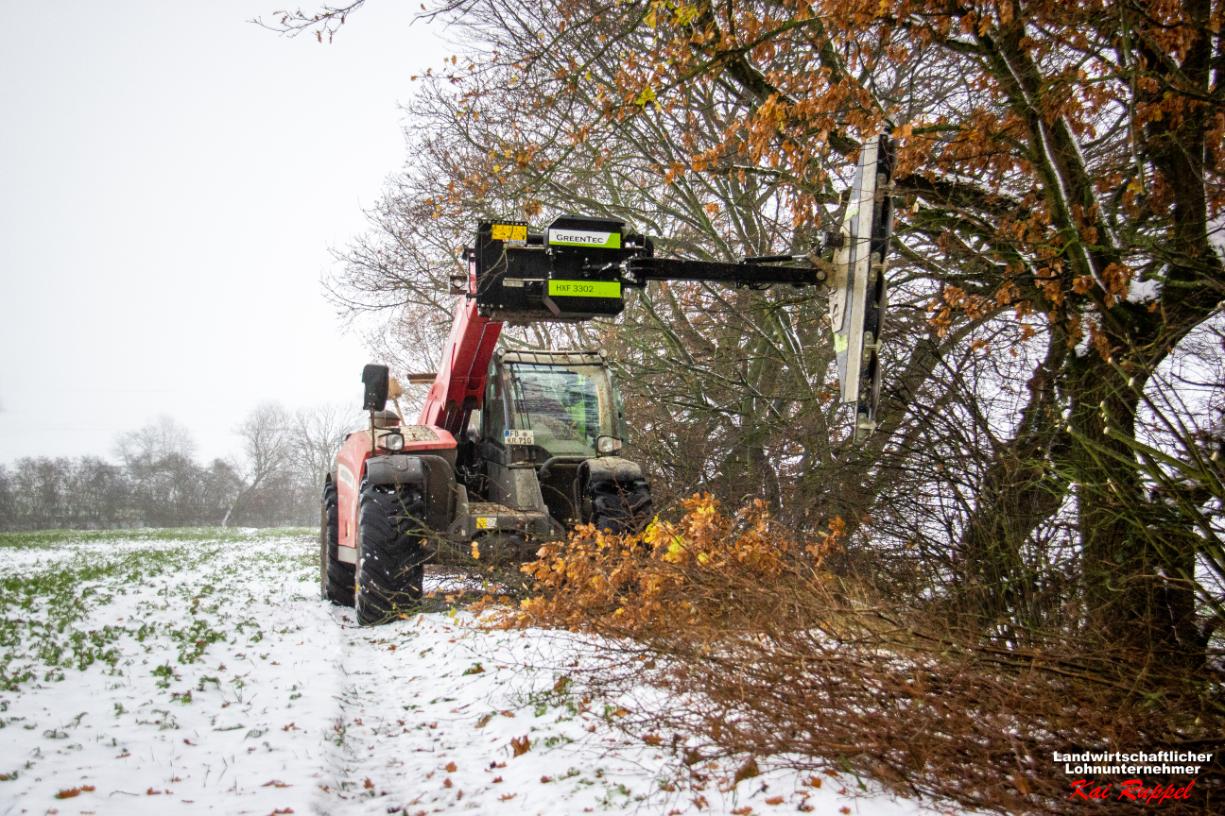

All the tools are attached to the Multi Carrier HXF 3302 frame which is mounted on the vehicle. The HXF 3302 is mounted on the carrier vehicle’s quick-hitch system whereafter all the hydraulic hoses are connected. The mounting of the machine only requires a few minutes of your time.

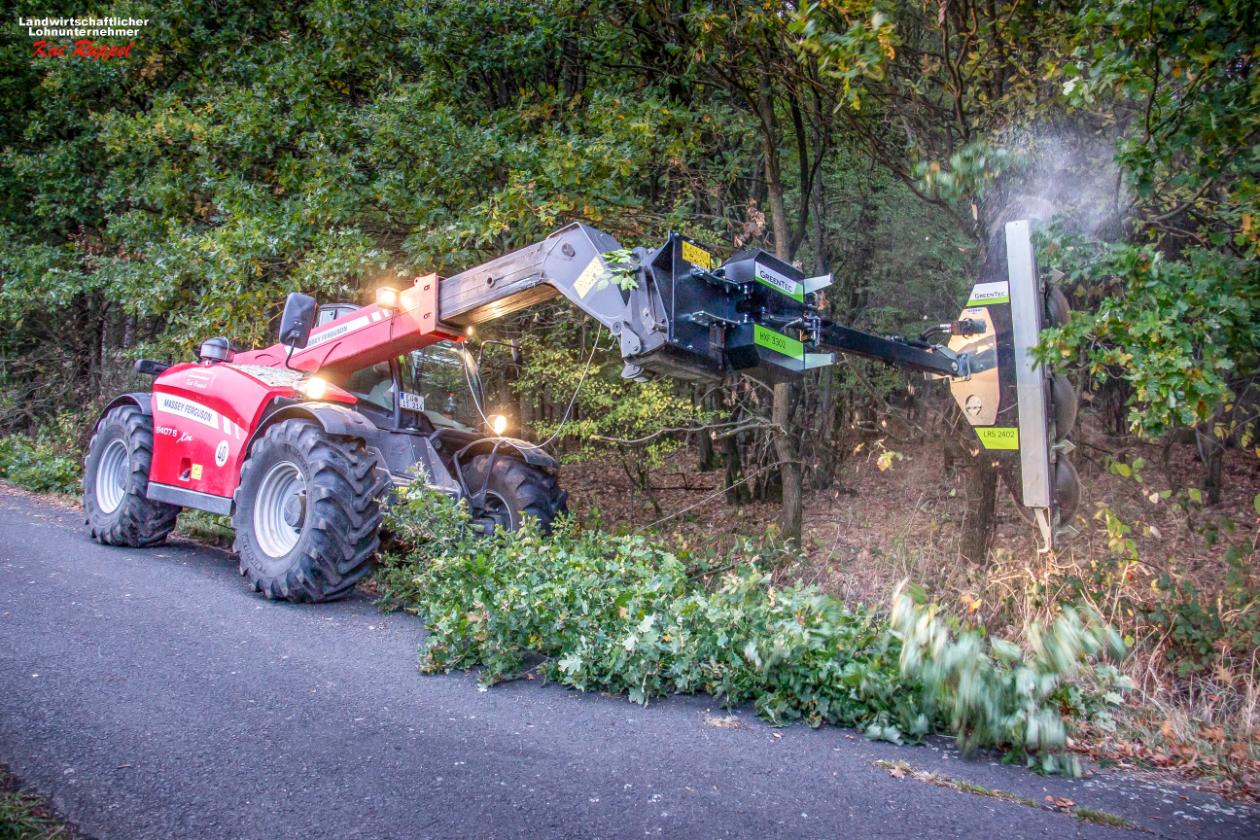

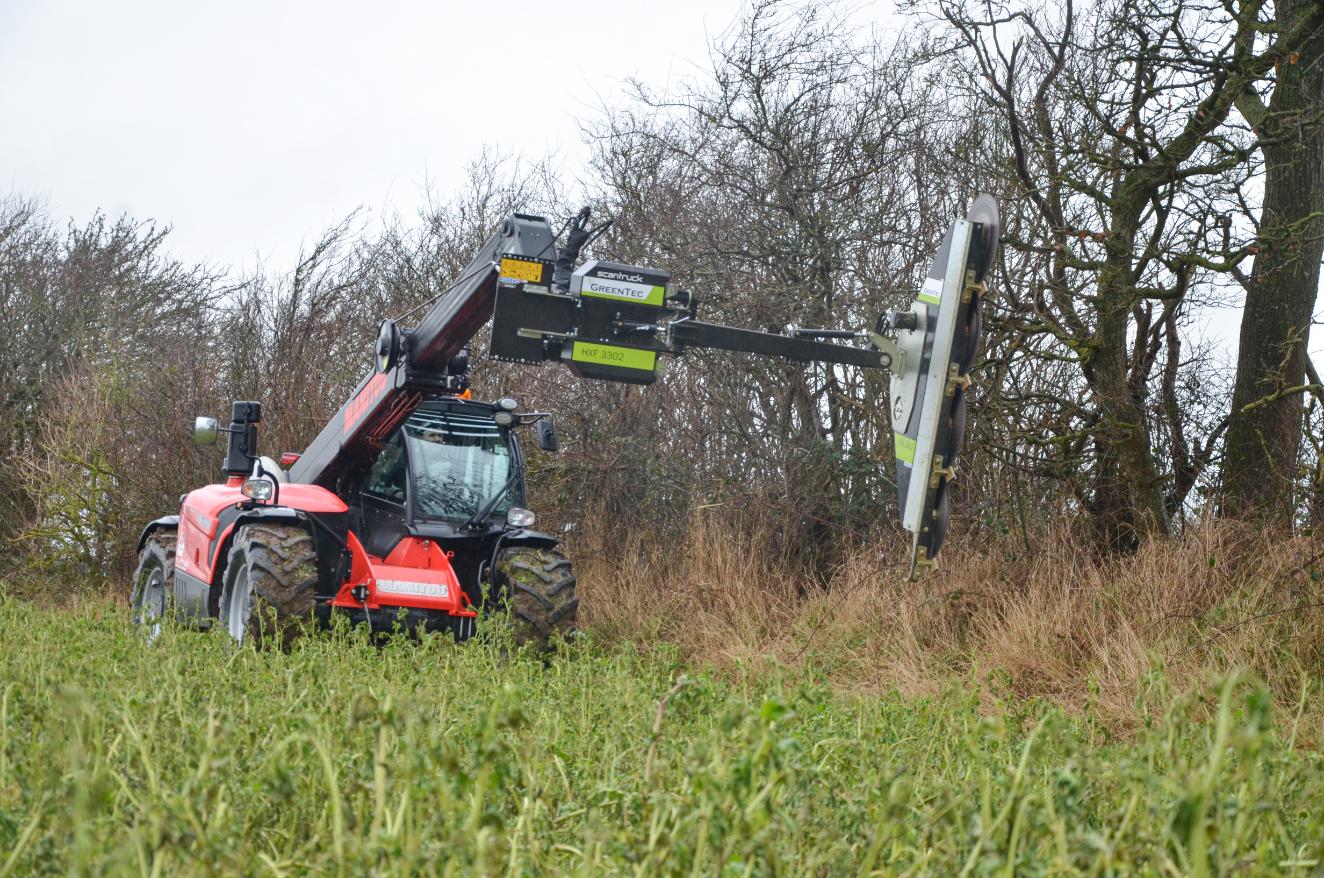

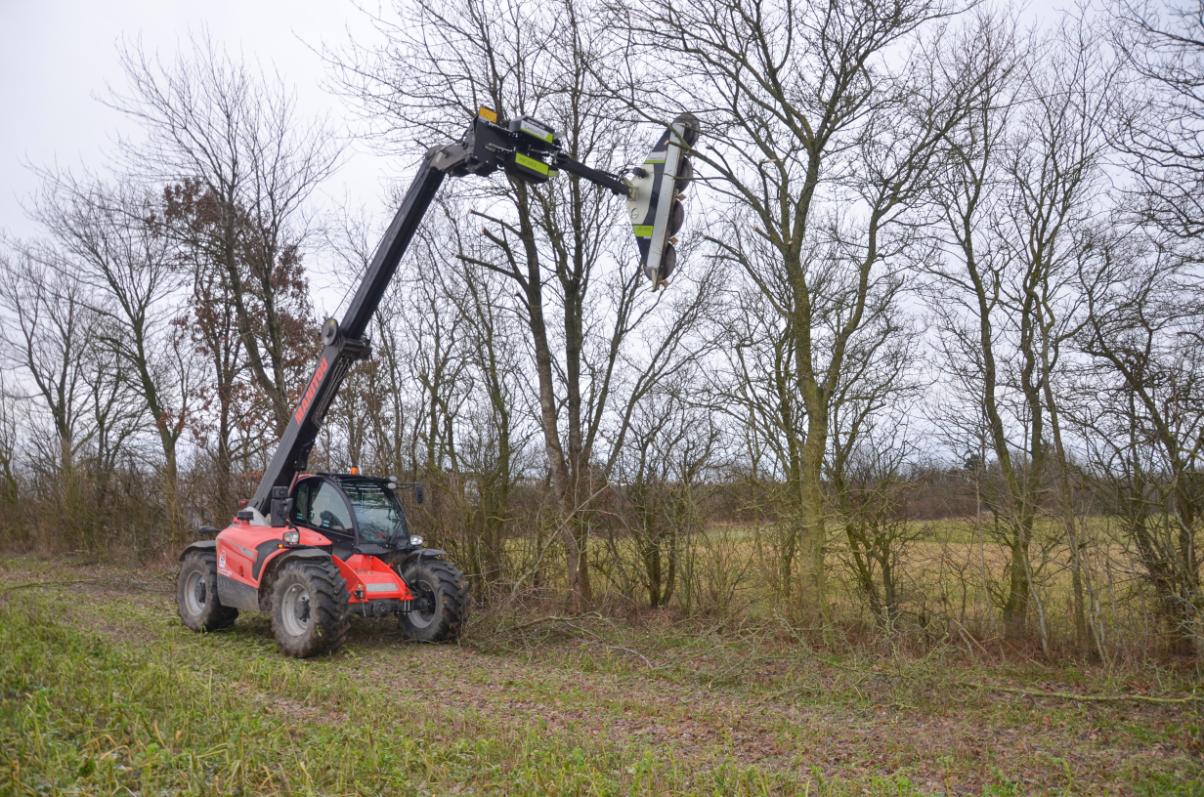

When the HXF 3302 is mounted on a telehandler, it can advantageously be a left hand version. Thus, the driver has a perfect view to the attachment tool.

STRONG ARGUMENTS:

  • Mounted on front end loaders, telehandlers, wheel loaders and excavators
  • High road safety
  • Automatic Hydraulic Break-back (AHS)
  • Build in anti-cavitation valve
  • Easy attachment system
  • Low weight

13 tools can be mounted on the HXF 3302Multi Carrier HXF 3302 requires an oil flow of 40-50 l/minMulti Carrier HXF 3302 is supplied with AHS

EQUIPMENT

  • Mechanical cutting angle control Standard equipment
  • Mechanical switch from working to transport position Standard equipment
  • Automatic Hydraulic Break-back with pre-pressure Standard equipment
  • Oil flow divider Standard equipment
  • Anti-cavitation valve Standard equipment
  • Pressure relief valve Standard equipment
  • 1.5 m (4’11″”) hose kit for attachment tool Standard equipment
  • Euro brackets Standard equipment
  • Hydraulic angle control* Optional equipment
  • Hydraulic angle control incl. e-control of all functions** Optional equipment
  • Counterweights, 126 kg (278 lb) Optional equipment
  • 8.5 m (27’11″”) hose kit (from front loader to tractor rear) – 3 pcs. Optional equipment
  • 8.5 m (27’11″”) hose kit (from front loader to tractor rear) – 5 pcs. Optional equipment

Other bracket types Optional equipment

Standard equipment = Standard equipment

Optional equipment = Optional equipment

* Hydraulic angle control requires two DA connections.

** When you buy the hydraulic angle control and the e-control with an oil flow divider, you only need one DA connection (and a zero-pressure tank drain where it is required).

Standard Equipment

  • The Multi Carrier is the most road safe solution on the market
  • Automatic Hydraulic Break-back with pre-pressureMechanical switch from working to transport position
  • Mechanical cutting angle controlOPTE6045Oil flow divider, minimum 40 or 50 l/min (10.6 or 13.2 gpm)
  • (OPTE6045)1.5 m (4’11″”) hose kit for attachment toolCrab steer option (only telescopic handler)The Multi Carrier is available for right or left mountingEuro brackets
  • The support legs provide stability for quick mounting and dismounting

Optional Equipment

OPTE6541E-control and hydraulic ram for cutting angle (OPTE6541)OPTE1252E-control for HXF 3302 Tele – angle and tool (OPTE1252)OPTE6040Cutting angle, hydr. HXF 3302 (OPTE6040)OPTE401740 l/min (10.6 gpm) oil flow, HXF 3302 (OPTE4017)OPTE6041Hose kit, HXF 3302, 8.5 m (3 pcs) (OPTE6041)OPTE6044Counterweights, HXF 3302, 126 kg (278 lb) (OPTE6044)

Brackets – click to enlarge the drawings

OPTE4041Loader bracket HXF 3302 / Manitou St. (OPTE4041)OPTE4042Loader bracket HXF 3302 / NH Tele (OPTE4042)OPTE4043Loader bracket HXF 3302 / JCB Q-fit (OPTE4043)OPTE4044Loader bracket HXF 3302 / Claas telehandler (OPTE4044)OPTE4045Loader bracket HXF 3302 / Merlo Tele. (OPTE4045)OPTE4045.1Loader bracket HXF 3302 / Merlo ZM3 (OPTE4045.1)OPTE4046Loader bracket HXF 3302 / Volvo high (OPTE4046)OPTE4046.1Loader bracket HXF 3302 / Volvo low (OPTE4046.1)OPTE4047Loader bracket HXF 3302 / Euro Hitch (OPTE4047)OPTE4048Loader bracket HXF 3302 / Bobcat Telescope (OPTE4048)OPTE4049Loader bracket HXF 3302 / NH LB115 (OPTE4049)OPTE4050Loader bracket HXF 3302 / JD telehandler (OPTE4050)OPTE4051Loader bracket HXF 3302 / Skid steer (OPTE4051)OPTE4052Loader bracket HXF 3302 / CAT telehandler (OPTE4052)OPTE4053Loader bracket HXF 3302 / Kramer, small model (OPTE4053)OPTE4054Loader bracket HXF 3302 / Schäffer Tele (OPTE4054)OPTE4055Loader bracket HXF 3302 / MX-Mailleux (OPTE4055)OPTE4056Loader bracket HFX 3302 / JLG/Deutz (OPTE4056)OPTE4206Loader bracket HXF 3302 / Trima-Ville (OPTE4206)OPTE4251Loader bracket HFX 2802 / Kramer spe. (OPTE4251)OPTE4259Loader bracket HXF 3302 / Kramer (OPTE4259)OPTE4273Universal plate HXF 3302 (OPTE4273)OPTE4274Loader bracket HXF 3302 / Case farmlift-NH Th (OPTE4274)OPTE4275Loader bracket HXF 3302 / Terex TL 80-100-120 (OPTE4275)”

Specifications

Reach from center of vehicle to end of tool2.5 m (8'2")
Transport width"2.2 m (7'3"")"
Standard oil flow50 l/min @ 180 bar (13.2 gpm @ 2611 psi)
Alternative oil flow40 l/min @ 180 bar (10.6 gpm @ 2611 psi)
Weight without brackets200 kg (441 lb)
