The Multi Carrier HXF 2302 is particularly distinguished by its lightweight, compact and inexpensive design. This ensures a perfect match for smaller carrier vehicles exceeding 1,200 kg (2,646 lb). A wide variety of tools can be attached to the Multi Carrier for hedge and windbreak maintenance as well as fence mowing and cleaning of sidewalks
Boom mower for skid steer loader and compact tractor

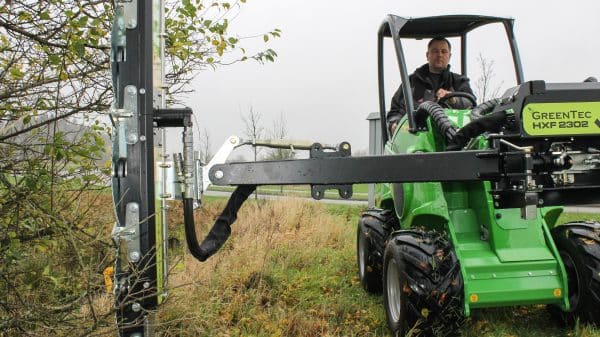

The Multi Carrier is a boom mower specifically build for skid steer loaders, compact tractors and mini excavators due to its low weight.
The Multi Carrier HXF 2302 is particularly distinguished by its lightweight, compact and inexpensive design. This ensures a perfect match for smaller carrier vehicles exceeding 1,200 kg (2,646 lb). A wide variety of tools can be attached to the Multi Carrier for hedge and windbreak maintenance as well as fence mowing and cleaning of sidewalks
The Multi Carrier and the attachment tools are run from the hydraulic system of the vehicle.
BOOM MOWER COMPATIBLE WITH QUADSAWS, CUTTERBARS AND BARRIER MOWERS
The following attachment tools can be fitted to the Multi Carrier HXF 2302:

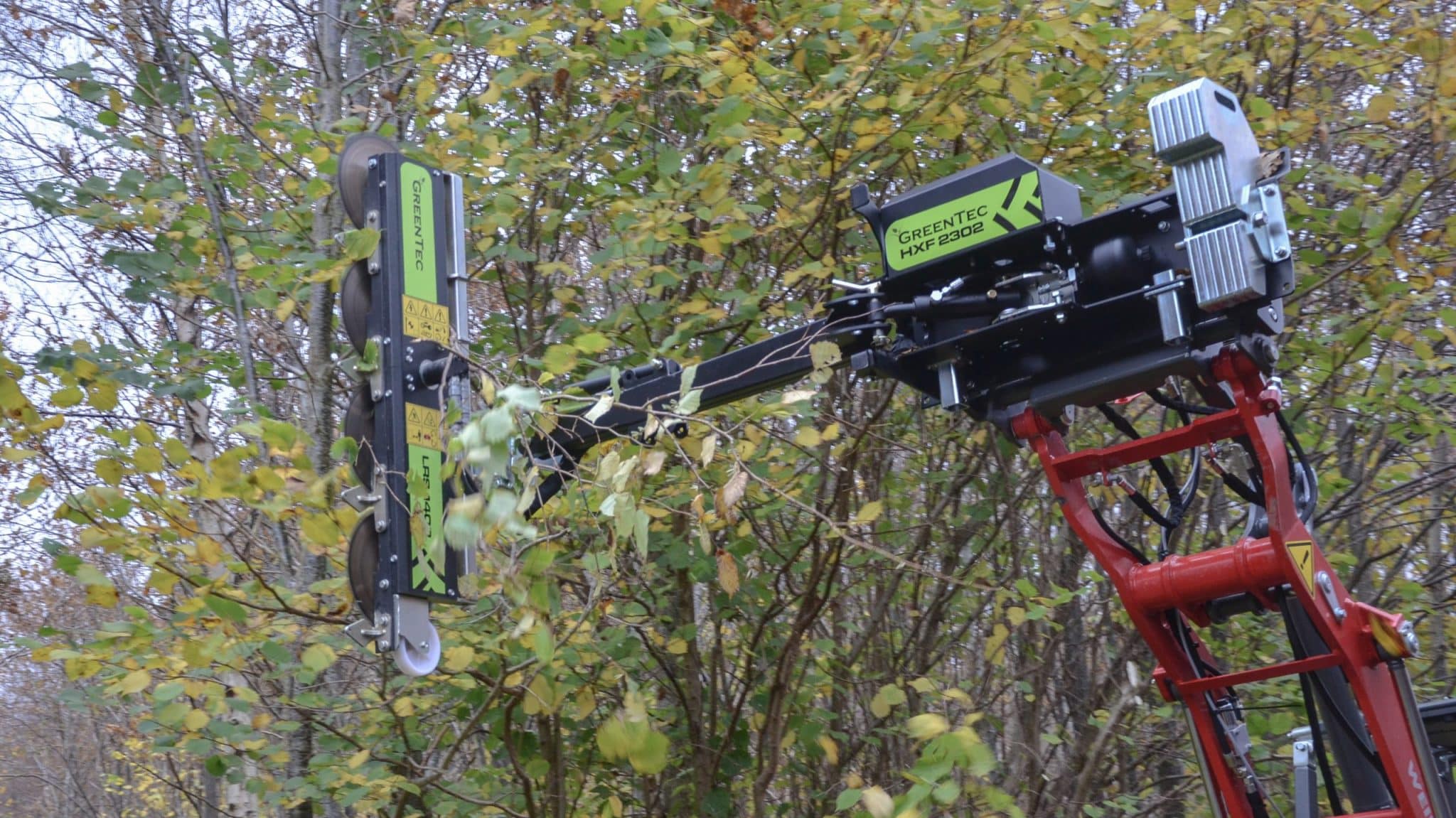

– Quadsaw LRS 1402
– Rotary Hedge Cutter RC 102
– Cutterbar HL 152
– Barrier Mower RI 60 & 80
– Weed Clearing Brush BR 70
A hydraulic and mechanical quick release system makes it extremely easy to swap tools.
Through the compact and inexpensive construction, the Multi Carrier HXF 2302 is a small investment for a multipurpose solution. The machine is used in municipal, grounds maintenance, industrial and agricultural sectors.
STRONG ARGUMENTS:
Mounted on skid steer loaders and compact tractors
High road safety
Automatic Hydraulic Break-back (AHS)
Anti-cavitation valve and oil flow divider
Easy attachment system
Low weight
6 tools can be mounted on the HXF 2302The HXF 2302 requires an oil flow of 25 l/minThe HXF 2302 is supplied with AHS
EQUIPMENT
Mechanical cutting angle control Standardudstyr
Mechanical switch from working to transport position Standardudstyr
Stand for vertical dismounting Standardudstyr
Automatic Hydraulic Break-back with pre-pressure (AHS) Standardudstyr
Oil flow divider Standardudstyr
Anti-cavitation valve Standardudstyr
Pressure relief valve Standardudstyr
1.5 m (4’11) hose kit for attachment tool Standardudstyr
Hydraulic and mechanical quick release (integrated on HXF 2302) Standardudstyr
Euro brackets Standardudstyr
Hydraulic angle control* Optional equipment
Hydraulic angle control incl. e-control of all functions** Optional equipment
Counterweights, 55 kg (123 lb) Optional equipment
8.5 m (27’11”) hose kit (from front loader to tractor rear) – 3 pcs. Optional equipment
8.5 m (27’11”) hose kit (from front loader to tractor rear) – 5 pcs. Optional equipment
Other bracket types Optional equipment
Standardudstyr = Standard equipment
Optional equipment = Optional equipment
* Hydraulic angle control requires two DA connections.
** When you buy the hydraulic angle control and the e-control with an oil flow divider, you only need one DA connection (and zero-pressure tank drain where it is required).
Standard Equipment
The Multi Carrier is the most road safe solution on the marketAutomatic Hydraulic Break-back with pre-pressureMechanical switch from working to transport positionOil flow divider, minimum oil requirement is 25 l/min (6.6 gpm)Anti-cavitation valveMechanical cutting angle controlMechanical quick releaseHydraulic quick releaseThe Multi Carriers are available as a right or left versions1.5 m (4’11”) hose kit for attachment toolEuro bracketsThe support legs provide stability for quick mounting and dismounting
Optional Equipment
OPTE3500Counterweights, HXF 2302, 56 kg (123 lb) (OPTE3500)OPTE6000Cutting angle, hydr. HXF 2302 (OPTE6000)OPTE6004Hose kit, HXF 2302, 8.5 m (3 pcs) (OPTE6004)OPTE6500E-control and hydraulic ram for cutting angle (hydr. angle control included) (OPTE6500)OPTE6501/6501.1E-control inclusive hydr. angle control (OPTE6501/6501.1)
Brackets – click to enlarge the drawings
OPTE577.8Loader bracket HXF 2302 / Volvo L20F (OPTE577.8)OPTE4000Loader bracket HXF 2302 / Eurohitch (OPTE4000)OPTE4001Loader bracket HXF 2302 / Schäffer old (OPTE4001)OPTE4002Loader bracket HXF 2302 / Schäffer Tele (OPTE4002)OPTE4003Loader bracket HXF 2302 / Avant Staldkat (OPTE4003)OPTE4004Loader bracket HXF 2302 / Weidemann Hydr. (OPTE4004)OPTE4005Loader bracket HXF 2302 / Trima (OPTE4005)OPTE4006Loader bracket HXF 2302 / Giant (OPTE4006)OPTE4007Loader bracket HXF 2302 / Bobcat & Kubota FL (OPTE4007)OPTE4008Loader bracket HXF 2302 / Schäffer small (OPTE4008)OPTE4010Loader bracket HXF 2302 / Kramer “Small” (OPTE4010)OPTE4011Loader bracket HXF 2302 / Stensballe/Timan (OPTE4011)OPTE4012Loader bracket HXF 2302 / JD Compact frontloader (OPTE4012)OPTE4013Loader bracket HXF 2302 / A- Frame (OPTE4013)OPTE4014Loader bracket HXF 2302 / Stiegel/Uni loader (OPTE4014)OPTE4015Loader bracket HXF 2302 / Case 221F (OPTE4015)OPTE4016Loader bracket HXF 2302 / Mailleux (OPTE4016)OPTE4019Loader bracket HXF2302 / CAT 908M (OPTE4019)OPTE4021Loader bracket HXF2302 / Liebherr (OPTE4021)OPTE4058Loader brackets HXF 2302 / Volvo L30-L35 (OPTE4058)OPTE4138Loader bracket HXF 2302 / CAT906H (OPTE4138)OPTE4271Universal plate HXF 2302 (OPTE4271)
