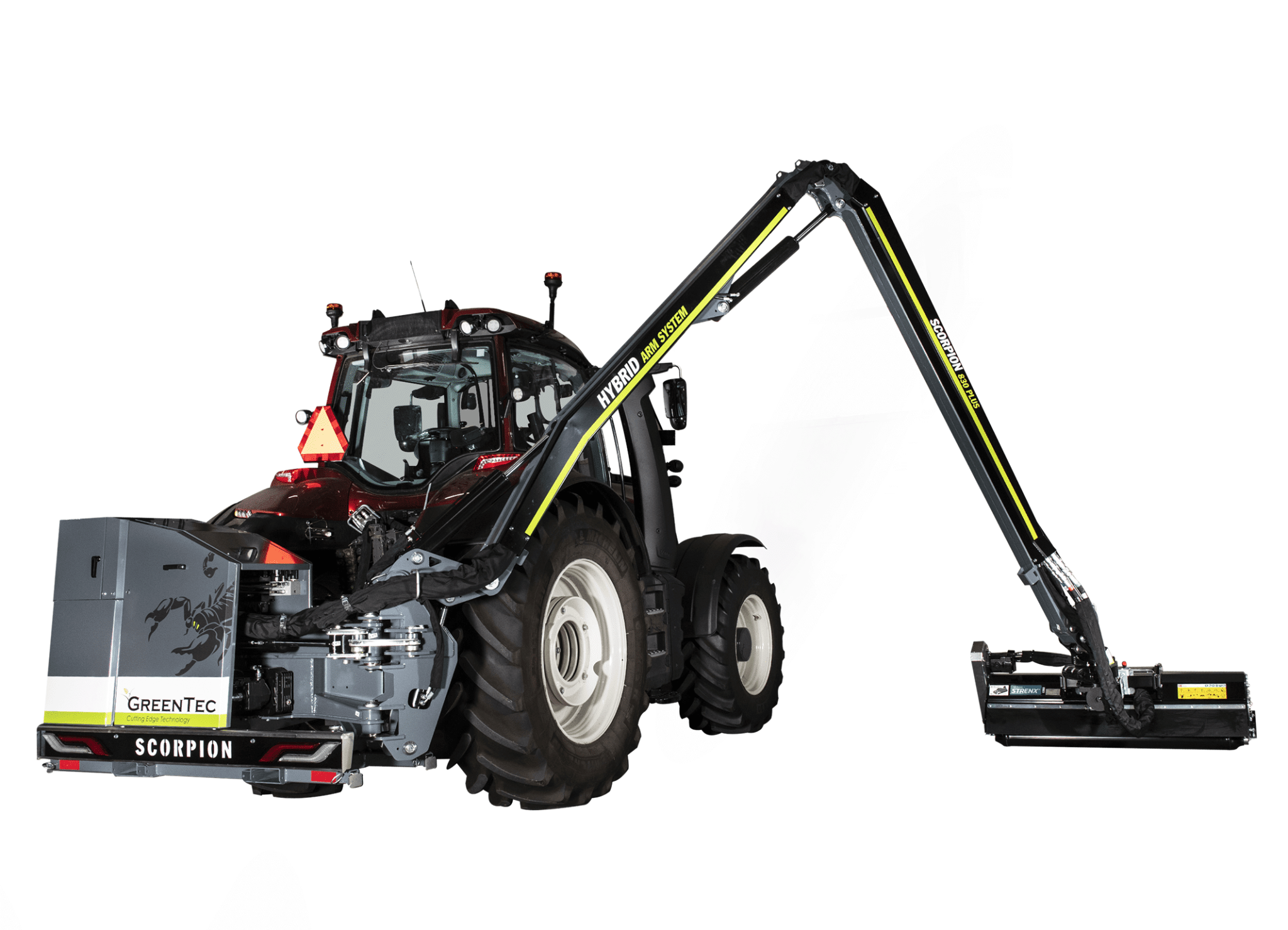

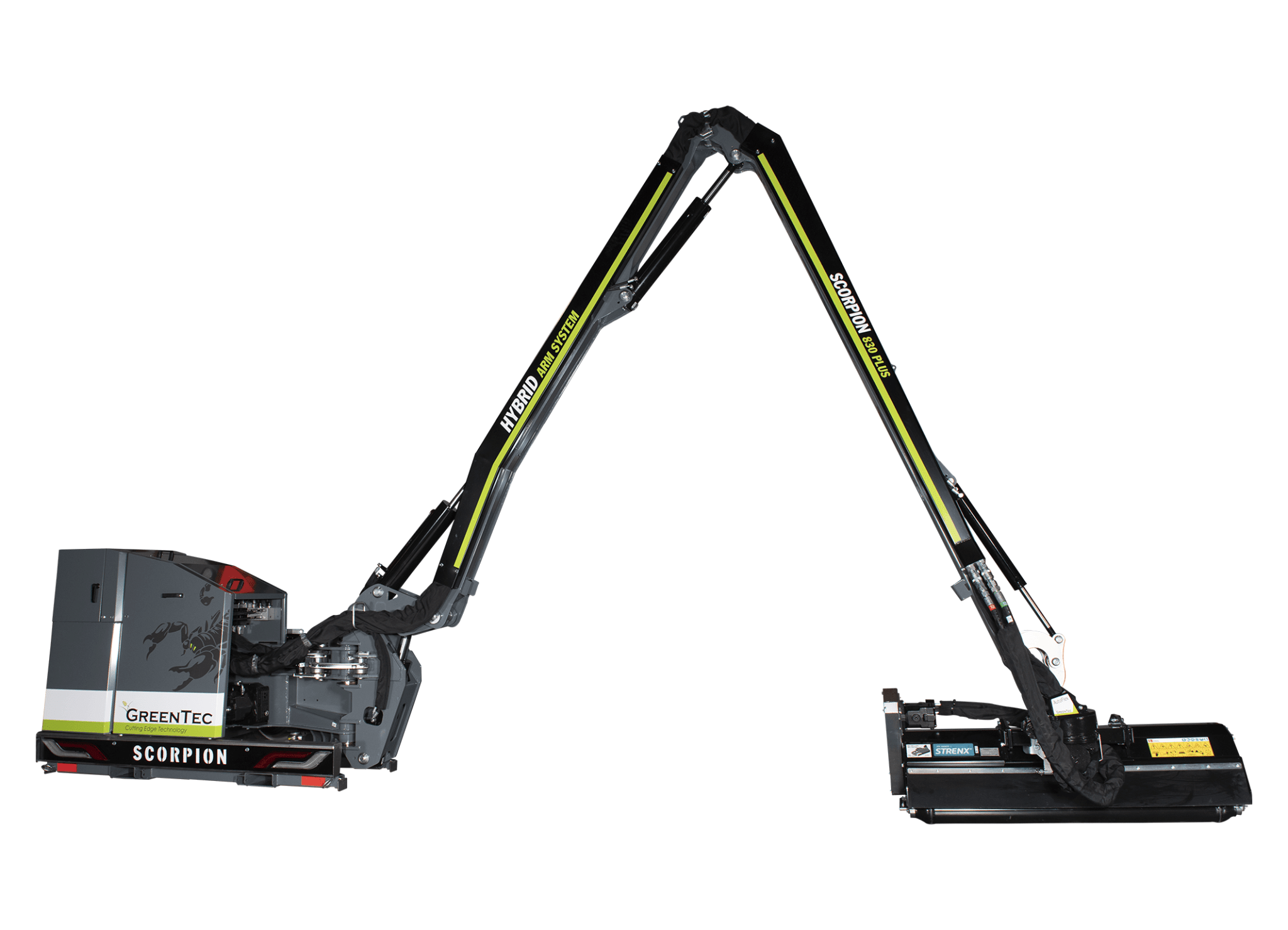

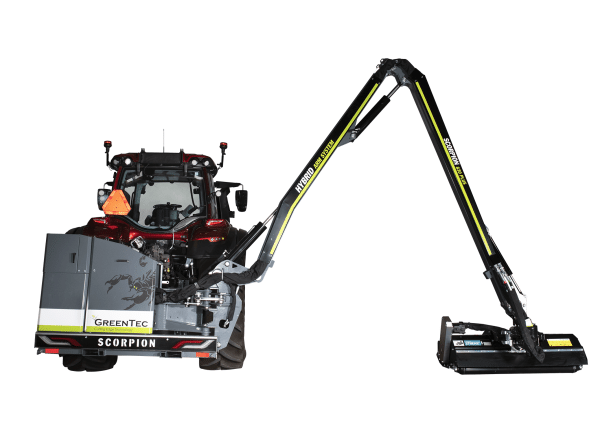

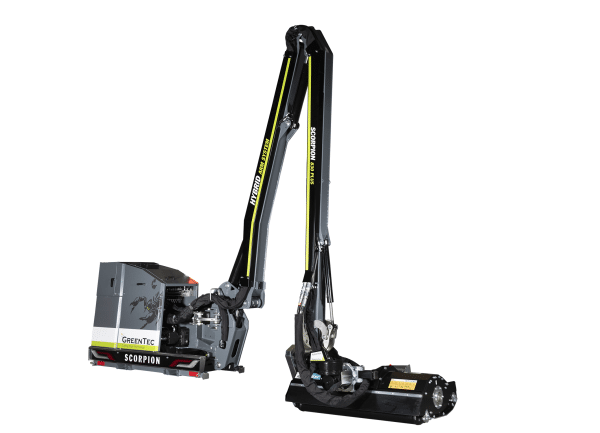

We have truly created a groundbreaking product with our Scorpion arm mower which has been awarded a silver medal in innovation by the Agritechnica Commission. The Scorpion boom mowers are designed for contractors and farmers who maintain large green areas.
Product Details:
- Hybrid Arm System: Easy to change between parallel and non-parallel motion
- 50% stronger construction and 25% lower weight by using Strenx high strength steel
- 155° hydraulic turn of the arm with Power Control
- Auto Height Control where the cutting head floats above the ground (Optional equipment)
- The 4-point mounting system increases the stability
- Extend your forward reach with Rotor Flex (Optional equipment on the S models)
20 tools can be attached to the Scorpion 8 series. The Scorpion 830-8 series has a horizontal reach of 8.3 m and vertical working width of 8.1 m. Scorpion 830 requires a minimum vehicle weight of 8000 kg.
Long Arm Mowers for Tractors
Greentec have truly created a groundbreaking product with the Scorpion arm mower which has been awarded a silver medal in innovation by the Agritechnica Commission. The Scorpion boom mowers are designed for contractors and farmers who maintain large green areas. The Scorpion series has many innovative features that ease the workload of the driver and significantly increase efficiency. GreenTec has more than 30 years of experience in selling machines for landscape maintenance. The machines are developed and manufactured at our headquarters in Kolding, Denmark. An extensive range of hydraulic tools can be attached to the Scorpion arm. We offer attachment tools for trimming trees and hedges, mowing grass in roadsides and slopes, removing moss and weeds from sidewalks, cleaning streams and ditches from sludge and mud, cutting grass under fences and guardrails, etc. The Scorpion arm mowers are available in 3 series which vary in range, minimum vehicle weight, equipment and selection of tools. The Scorpion 8 series consists of 4 different models: 730 S, 730 PLUS, 830 S and 830 PLUS. All models can be rear mounted. The Scorpion 730 and 830 are available in two versions – STANDARD and PLUS. The difference between the versions is the hydraulic performance and the included equipment. For instance, the PLUS models have Rotor Flex and Auto Flex as standard equipment. The Scorpion 8 series contains the largest models of our arm mowers and is particularly useful for work that requires a long reach. Due to their size, the arm mowers must be mounted on a relatively large tractor. The arm mower must be mounted in the back of the tractor for extra stability. The minimum required weight of the tractor is 7,000 kg (15,432 lb) for the Scorpion 730 and 8,000 kg (17,637 lb) for the Scorpion 830. No slope or ditch is too long or steep for the Scorpion 8 series as it has horizontal reaches of 7.3 or 8.3 m (23’11″” or 27’3″”). The boom arms can also be used in forest areas for cutting branches off tall trees by using the large vertical reaches of 7.1 or 8.1 m (23’4″” or 26’7″”) depending on model.
Equipment OverviewÂ
Hybrid Arm System with dual function
Strenx 700 steel construction
155° hydraulic turn of the arm with power control
Rotor Flex, double pivot joint
(270° turn of cutting head and 180° cutting angle)
Auto Flex, automatic vertical positioning
Danfoss proportional valve PVG 32/16
Danfoss joystick with 4 proportional functions
2 oil flows: 85 and 50 l /min. (22.45 and 13.21 gpm)
Hydraulic float of arm and cutting angle
Oil cooler
Air Stream Control (Effective oil cooling)
220 l (58.12 gallons) oil tank capacity
4-point and K80 mounting for cat. 2 or 3
PTO 450-850 rpm (Rear mounted)
PTO 450-750 rpm (Rear mounted)

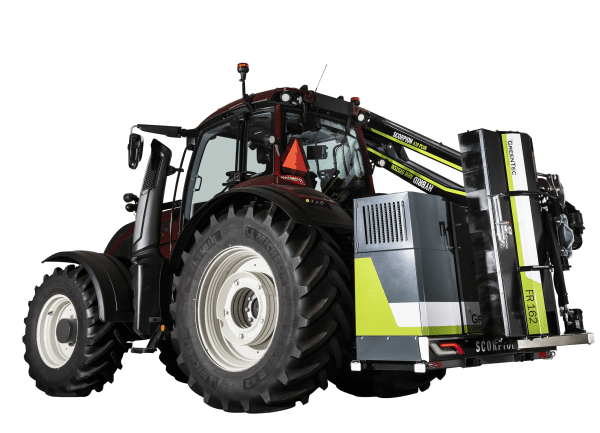

Transport safety
LED lights
Auto Height Control (For verge mowing)* Optional equipment
Quick release, hydraulic Optional equipment
Quick release, mechanical Optional equipment
K80 ball hitch for 4-point mounting** Optional equipment
430 kg (948 lb) counterweights Optional equipment
Leaf Blower LG attached to boom mower Optional equipment
Bio oil Optional equipment
