“The Rotary Hedge Cutter RC 162 is a professional attachment tool designed specifically for hedge cutting and developed for the discerning customer with a focus on:
Cutting performance, efficiency, output and working environment.”
STRONG ARGUMENTS:
- Perfect cutting quality
- Reduction of diseases in the hedge
- No expenditures for removal of the cut-off material
- Minimal wear and maintenance costs
- The enclosed cutter housing improves safety
- Low noise level which reduces noise nuisance
The Rotary Hedge Cutter RC 162 has a working width of 1.6 m (5’3″”)The Rotary Hedge Cutter RC 162 cuts branches of up to 4 cm (1.57”) in thicknessThe Rotary Hedge Cutter RC 162 has a maximum speed of 2.5 km/h (1.55 mph)The Rotary Hedge Cutter RC 162 weighs 200 kg (441 lb)
Hydraulic Hedge Trimmer Attachment for Tractors, Loaders, Telehandlers and Excavators
The Rotary Hedge Cutter RC 162 is a professional attachment tool designed specifically for hedge cutting and developed for the discerning customer with a focus on:
Cutting performance, efficiency, output and working environment.

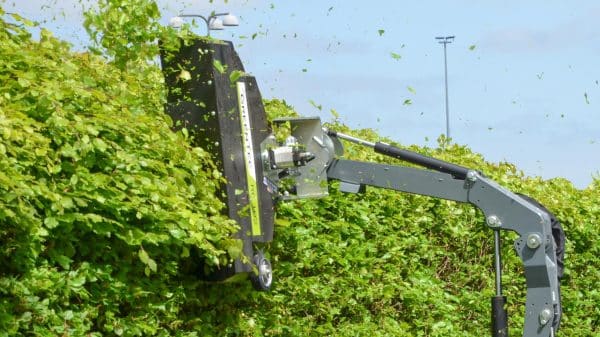

The RC 162 performs three operations in one. It cuts, shreds and disposes the cut-off material. The blade system consists of 18 special hardened blades that provide a smooth and consistent cut of branches up to 4 cm (1.57″”) in diameter.

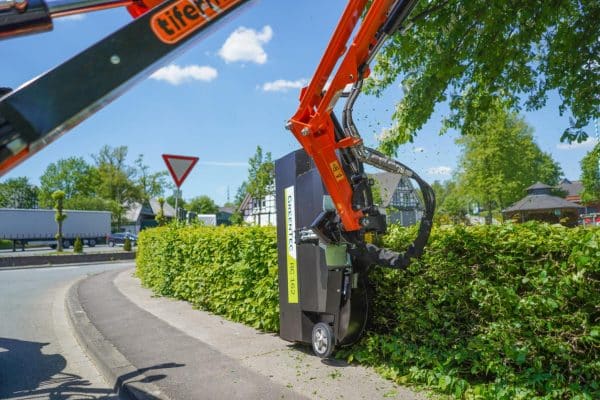

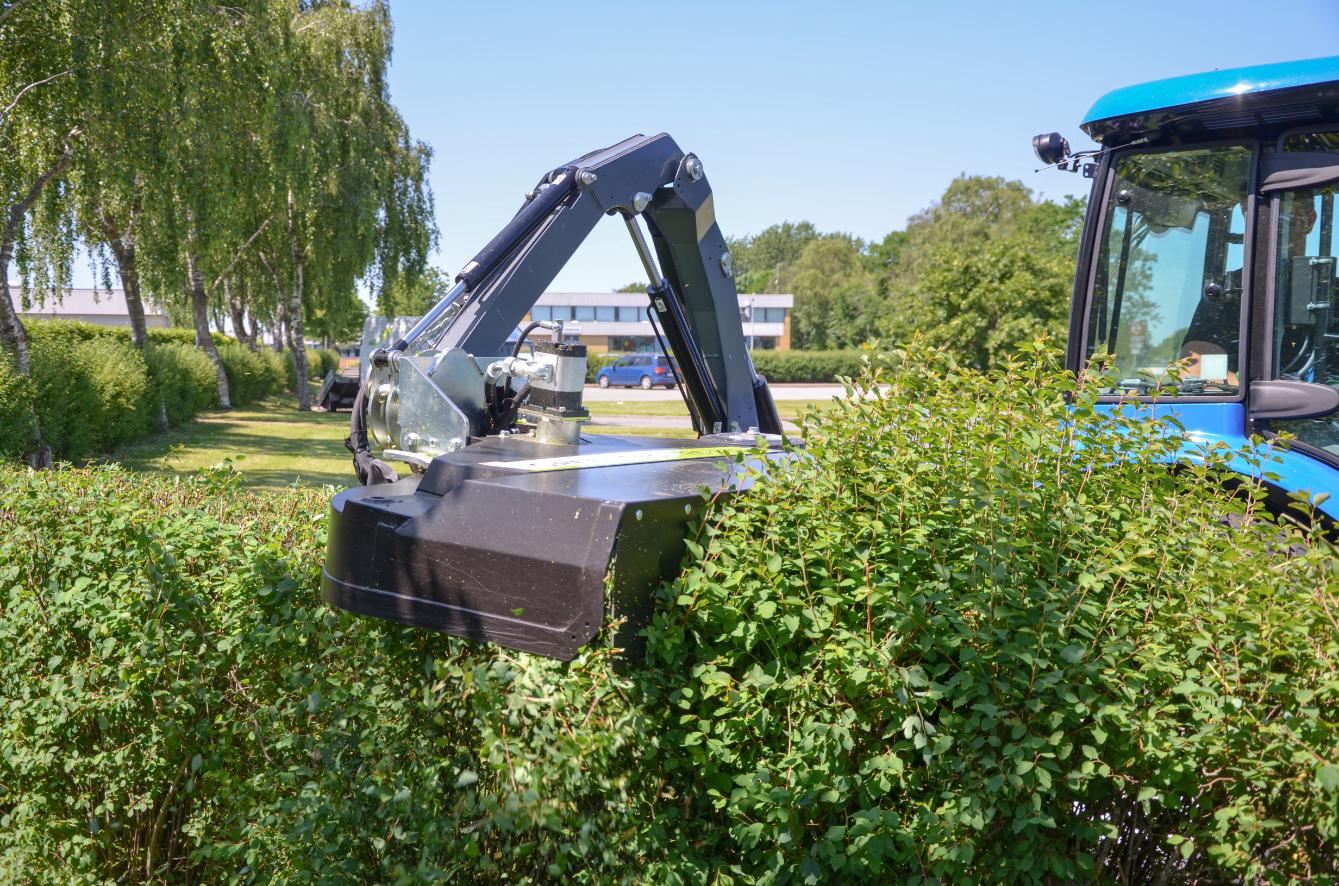

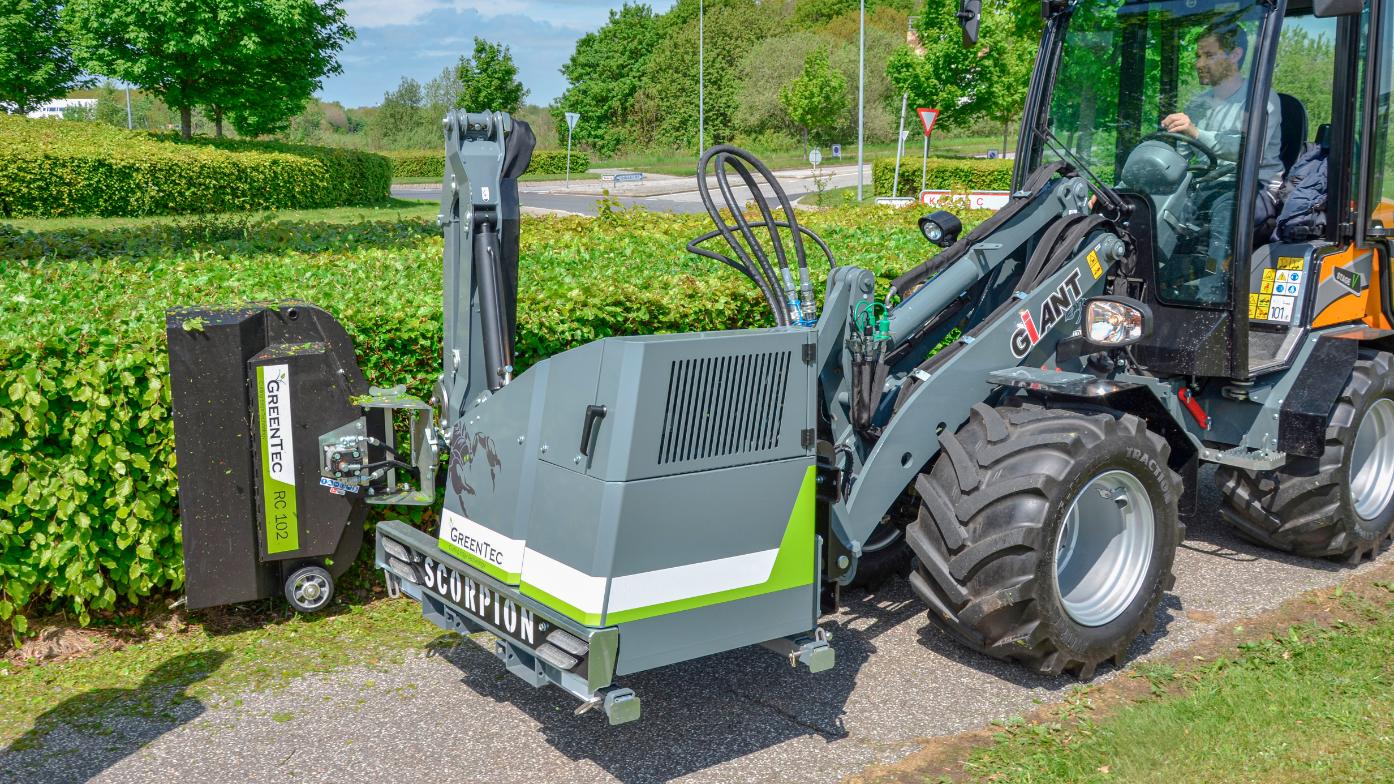

The Rotary Hedge Cutter RC 162 can be attached to our Multi Carrier HXF 3302 which can be mounted on front end loaders, telehandlers, wheel loaders and excavators. You can also attach the RC 162 to our Scorpion boom mowers or other manufacturers of boom mowers for tractors. Another possibility is to mount the Rotary Hedge Cutter RC 162 directly on the arm of excavators.
The Rotary Hedge Cutter RC series fits the following GreenTec machines:

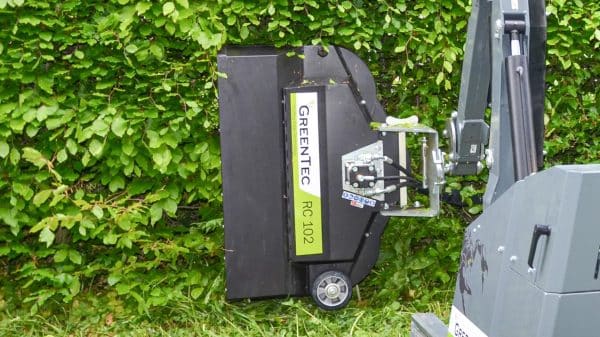

RC 102 RC 132 RC 162
Multi Carrier HXF 2302 Check mark
HXF 2802 Check mark Check mark
HXF 3302 Check mark Check mark

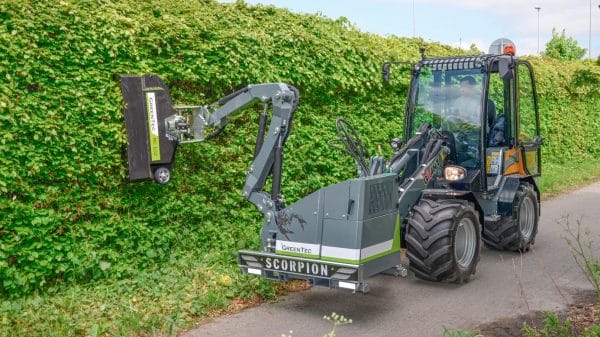

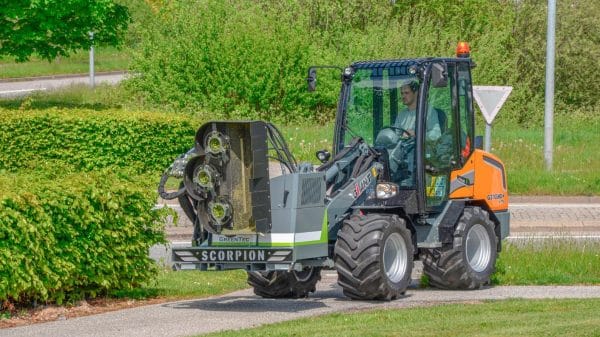

Boom Mower Scorpion 330 & 430 Check mark Check mark
Scorpion 530 & 630 Check mark
Scorpion 730 & 830 Check mark

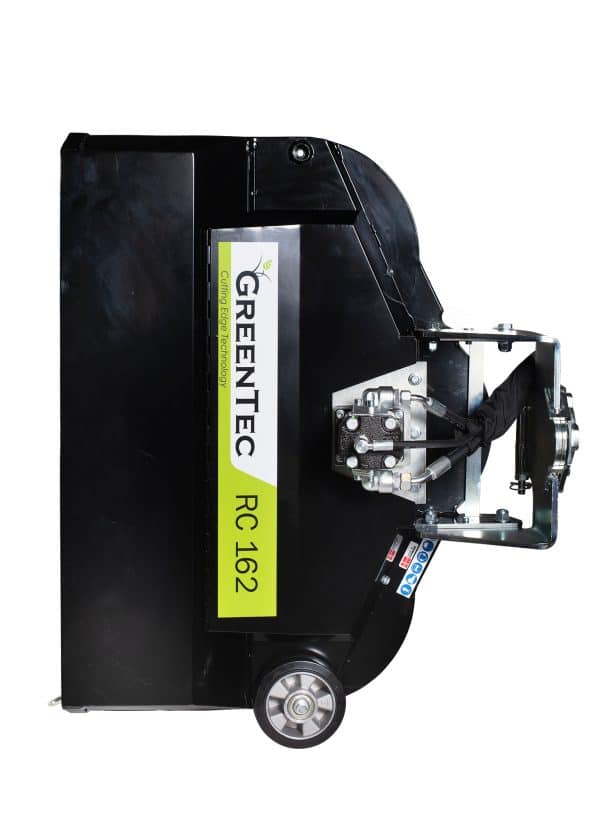

TECHNICAL DATA RC 162
Working width 1.6 m
(5’3″”)

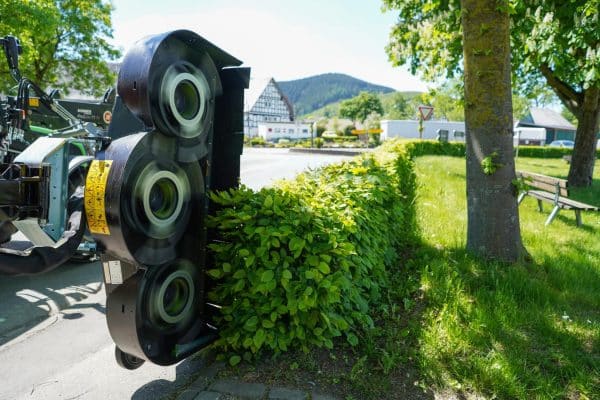

Number of rotors 3 pcs
Blades per rotor 6 pcs
Max. branch thickness 4 cm
(1.57”)
Driving speed up to 2.5 km/h
(1.55 mph)
Required hydraulic connections 1 x double acting + 1 x drain
Required oli flow 50 l/min @ 180 bar
(13.2 gpm @ 2611 psi)
Weight 200 kg
(441 lb)
EQUIPMENT OVERVIEW
Hydraulic motor Standard equipment
Power Band belt drive Standard equipment
Belt tightener Standard equipment
Blade system with double cutting depth Standard equipment
360° free-swinging blades Standard equipment
Tool to change blades with ease Standard equipment
Gradual cutting angle setting Standard equipment
Lean lifter Standard equipment
Support wheel Standard equipment
Rubber flap kit Standard equipment
Enforced body Standard equipment
Smooth surface Standard equipment
Performance enhanced cutting angle Standard equipment
Easy access to the belt drive Standard equipment
Mechanical quick release Optional equipment
Hydraulic quick release Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
