Greentec LRS 2402 Twinsaw

Greentec LRS 2402 Twinsaw

All branches receive a smooth and even cut by the eight circular blades with carbide tipped teeth. It is a great solution for trimming back trees and hedgerows in agricultural areas or maintaining large forest territories.

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

Thanks for downloading

Before your download begins, please fill out the form below.

Product Details:

  • Perfect cutting quality, both thick and thin branches
  • Forward speed = high capacity
  • Power Drive transmission provides high efficiency and low power requirements
  • Saw blades with carbide tipped teeth for long life

The Greentec LRS 2402 Twinsaw has a working width of 4.8 m, can cut branches up to 21 cm (8.27″”) in thickness, a maximum driving speed of 5 km/h (3.11 mph) and weight of 600 kg.

Tree Saw Attachments for Excavators

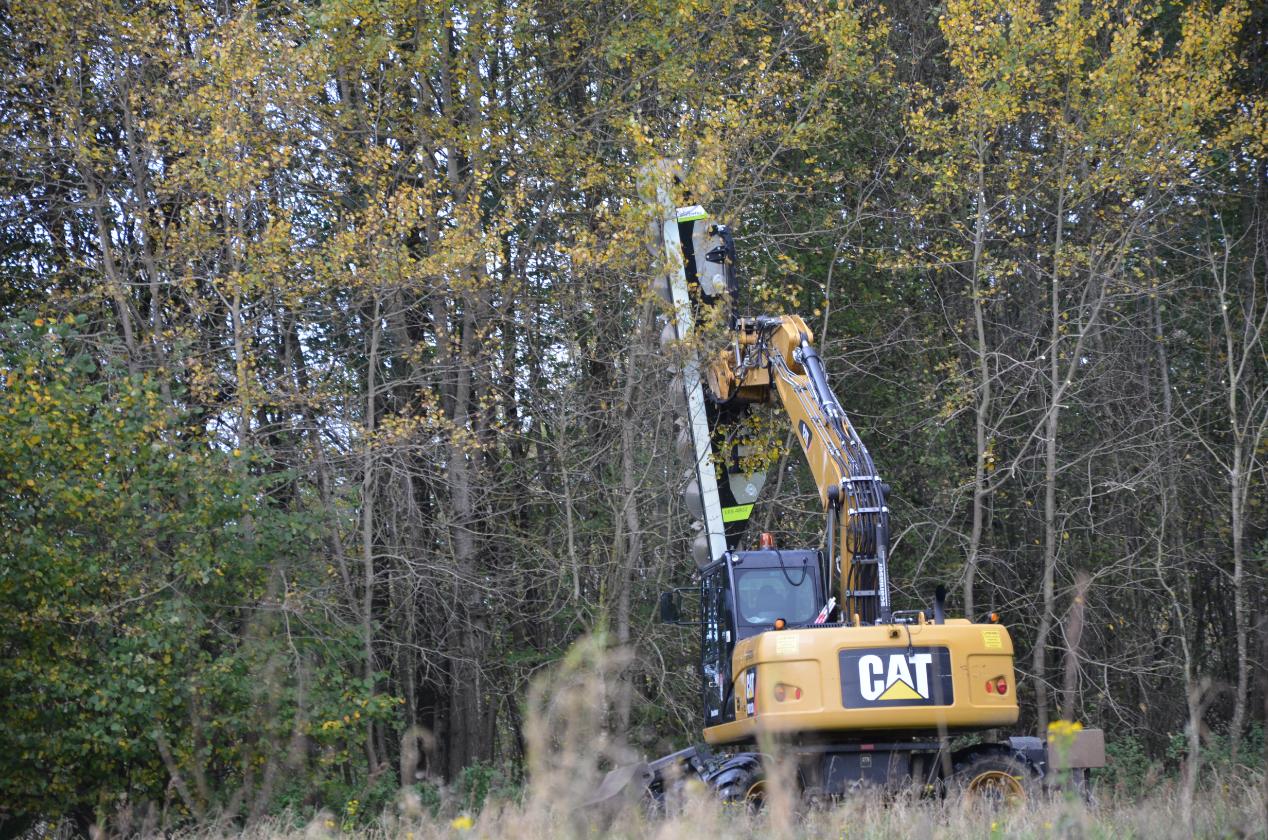

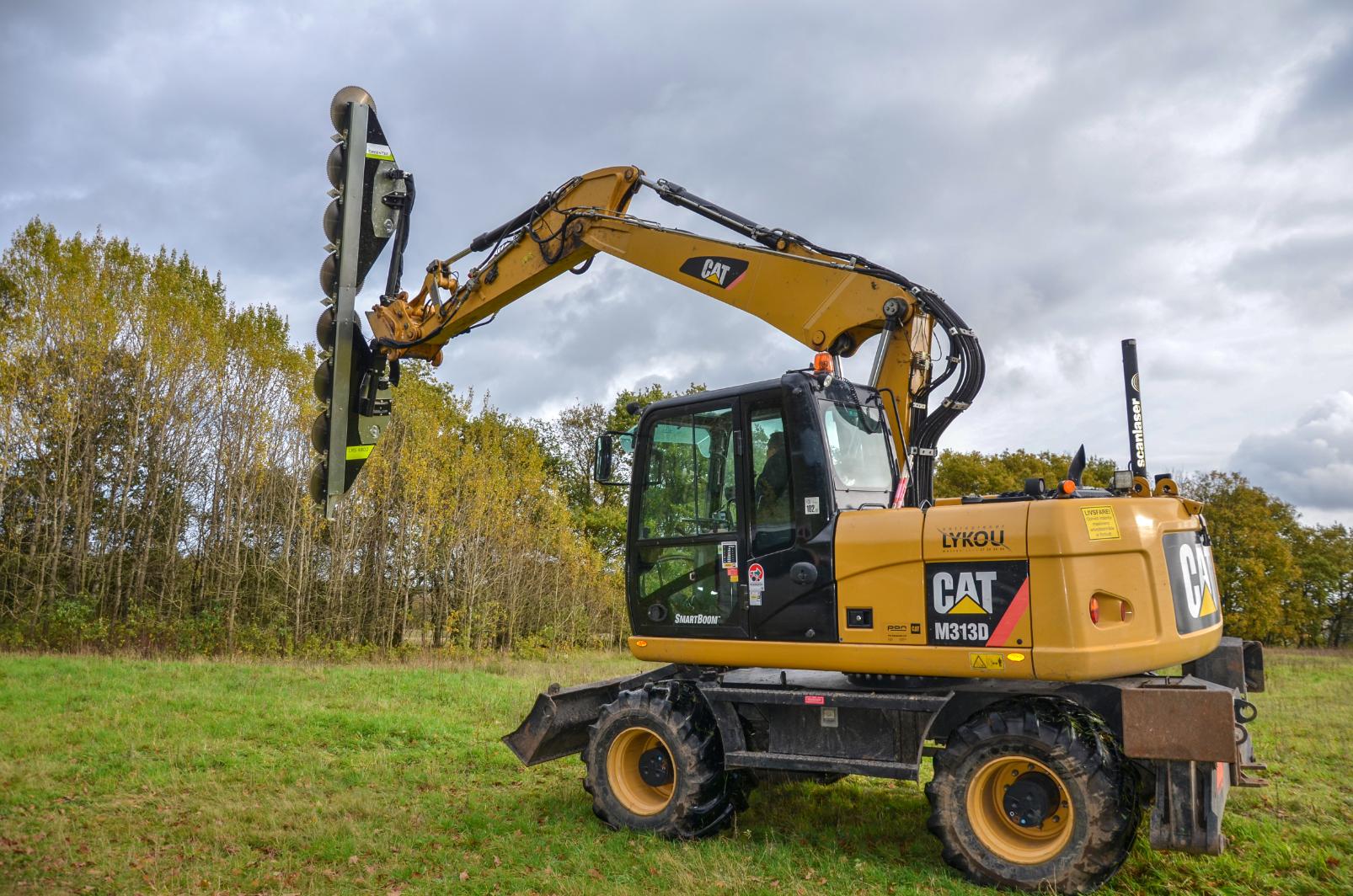

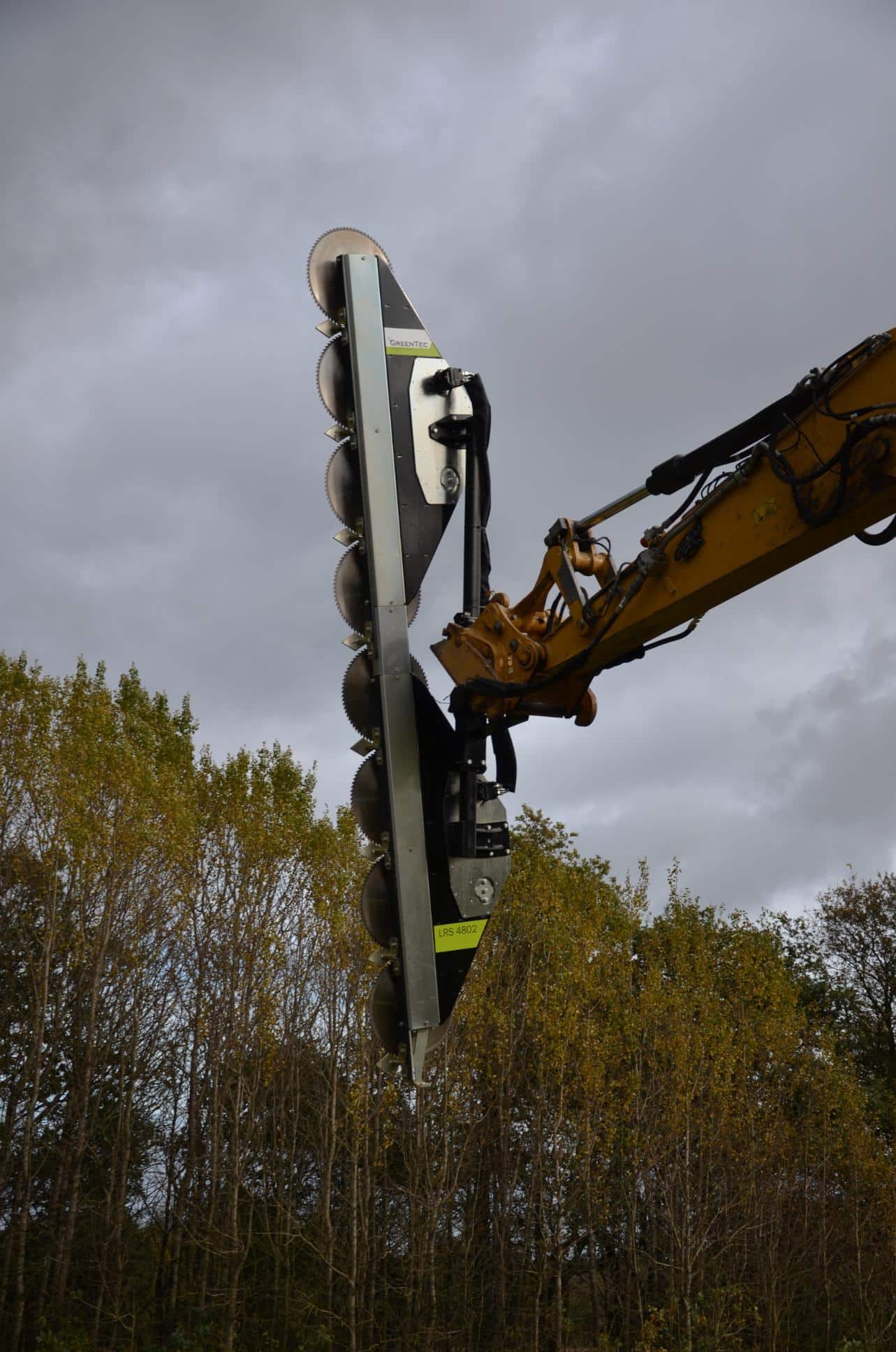

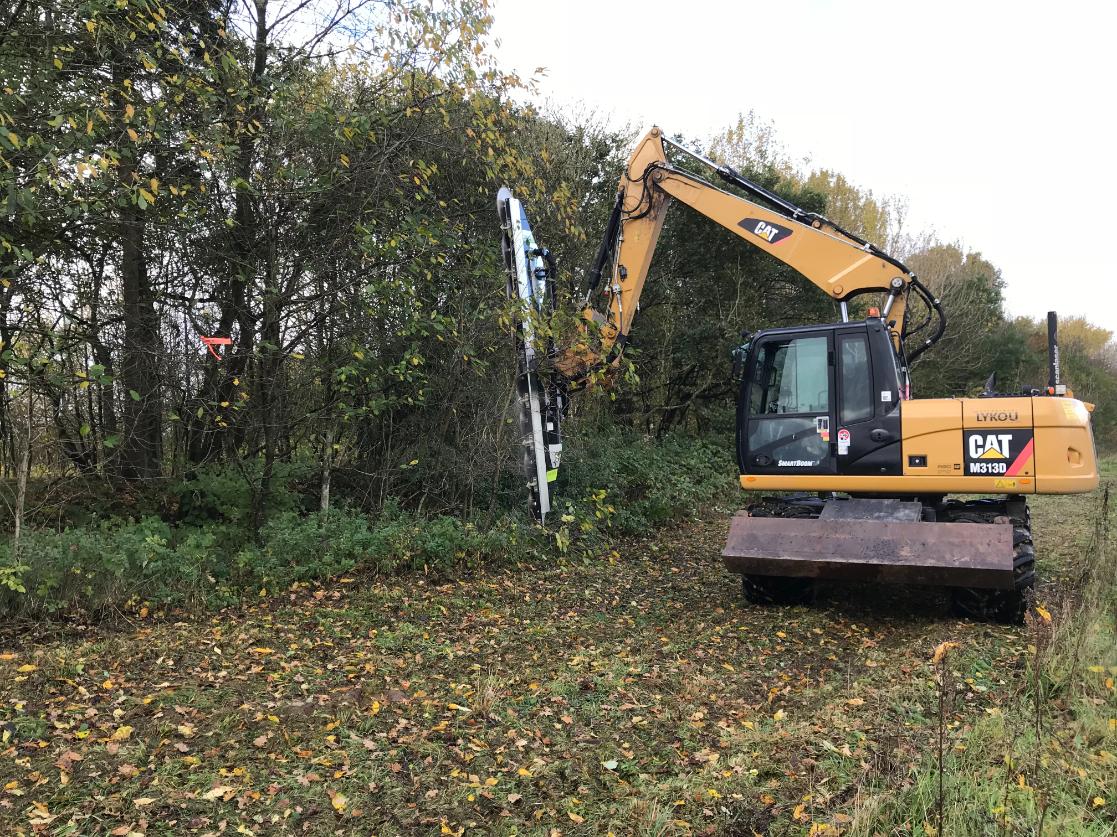

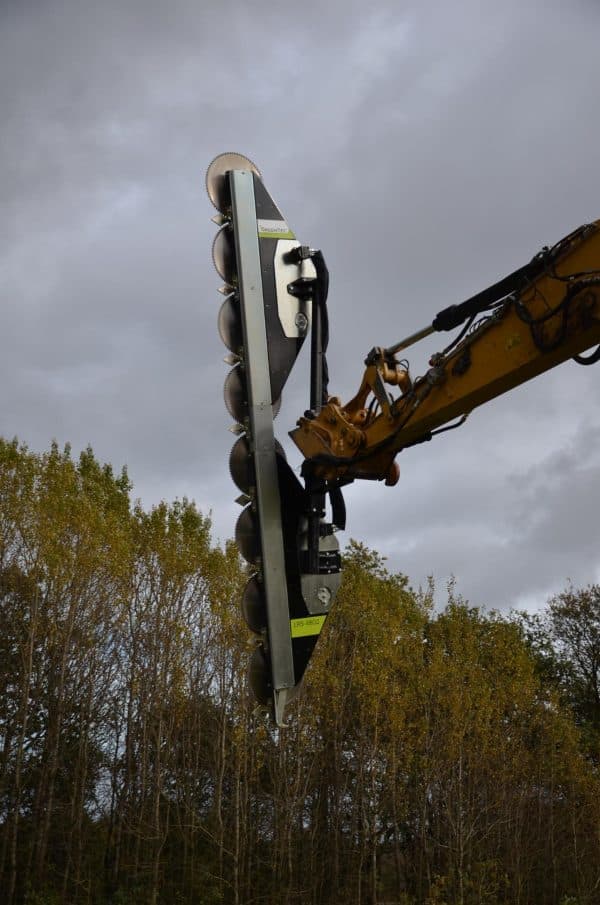

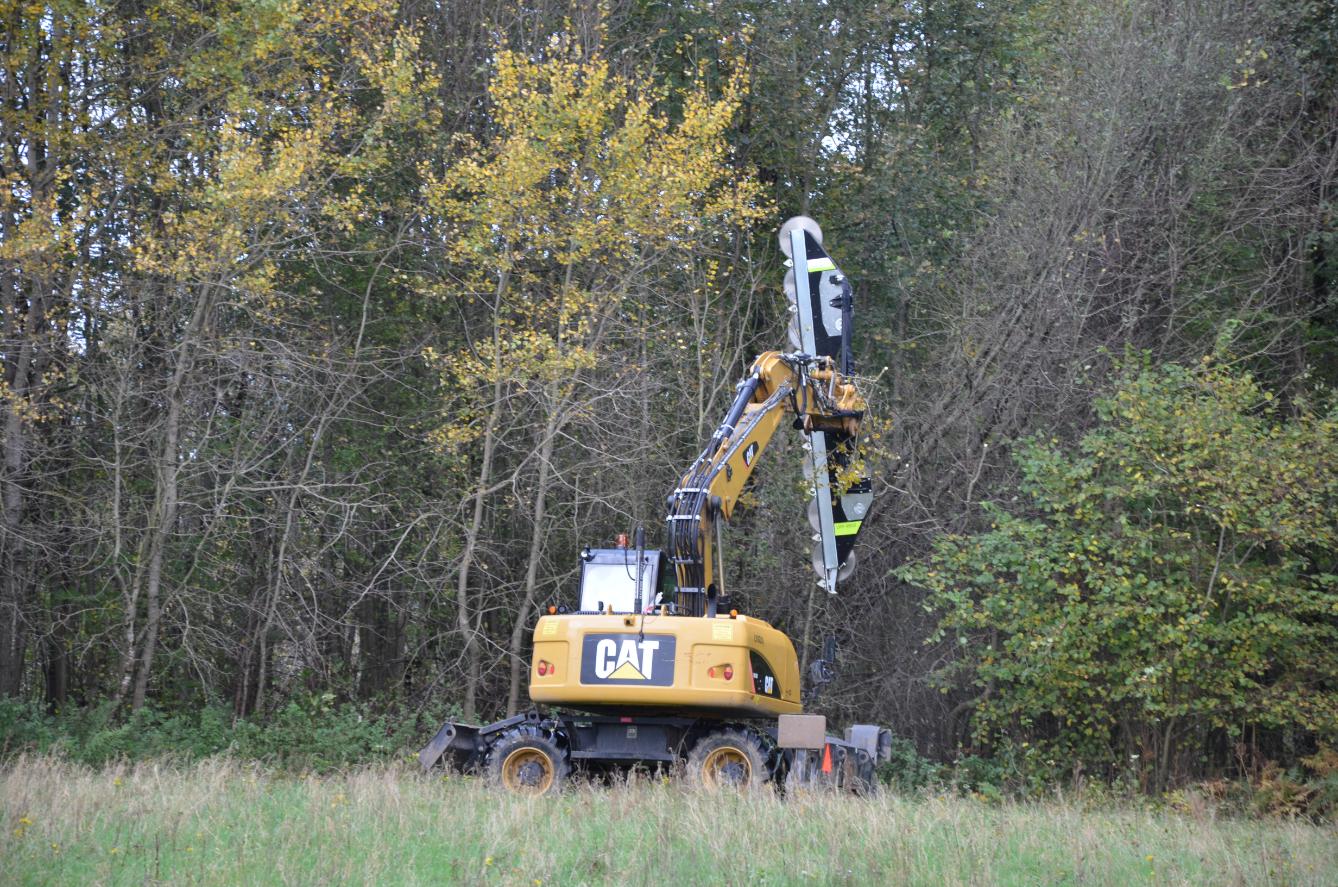

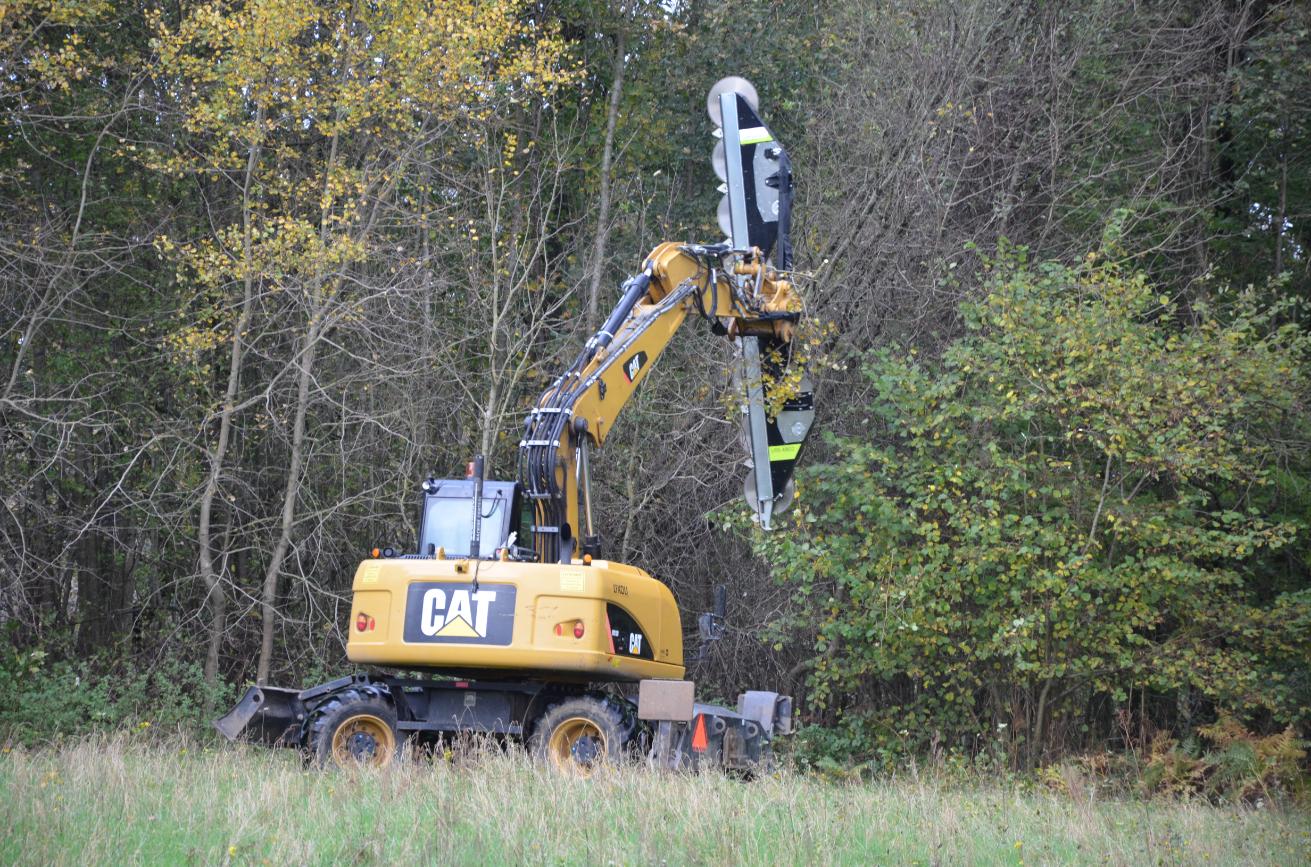

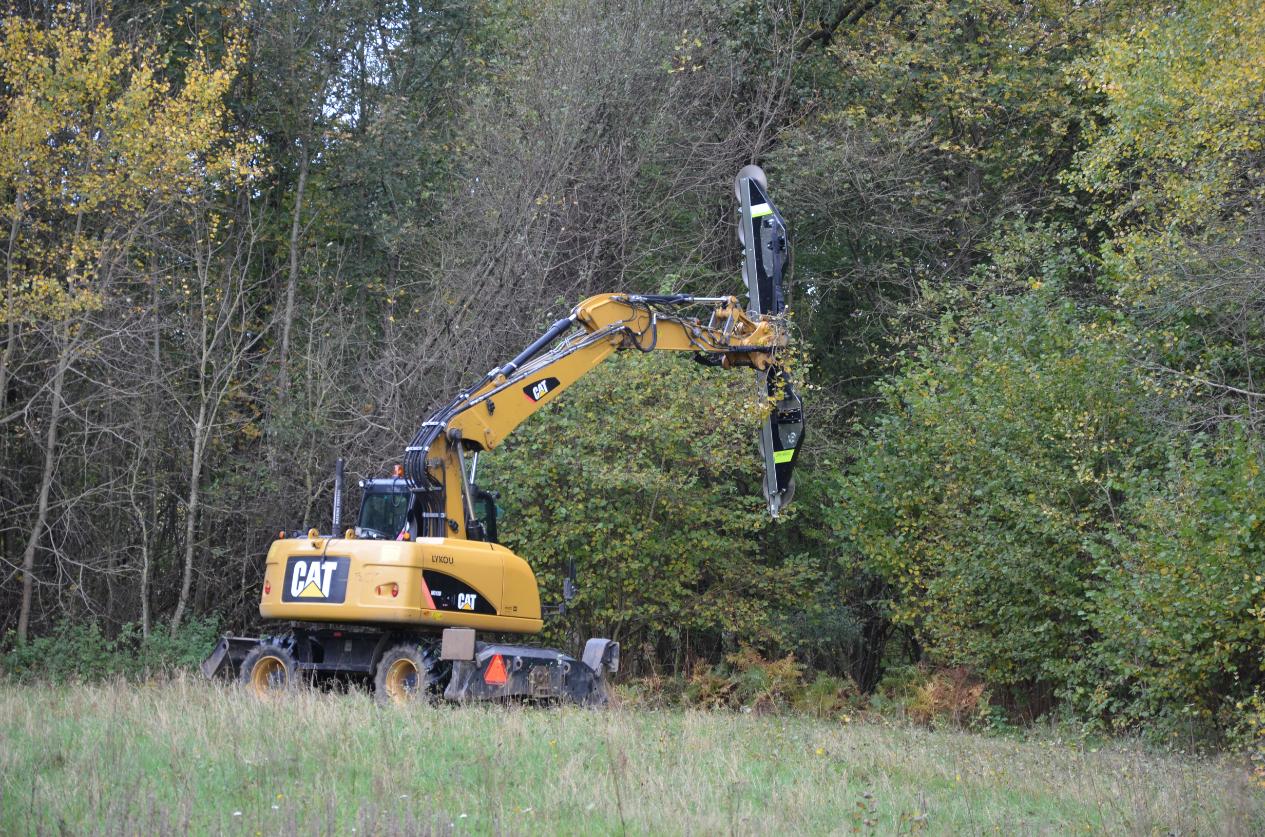

GreenTec presents the world’s largest saw with working widths of either 4.0 or 4.8 m (13’1” or 15’9”). It goes without saying that the capacity is huge. All branches receive a smooth and even cut by the eight circular blades with carbide tipped teeth. It is a great solution for trimming back trees and hedgerows in agricultural areas or maintaining large forest territories. The saw can be mounted on large backhoe loaders and excavators. We also offer smaller tree saws for skid steers, front loaders, telehandlers, mini diggers and boom arms.

Equipment Overview

Blade diameter: 59.5 cm
Continuous duty motor
Carbide tipped blades
Belt stretcher
Power Band belt drive
Belt tension gauge
Anti-cavitation valve
Large smooth surface
Narrow body
Branch guider

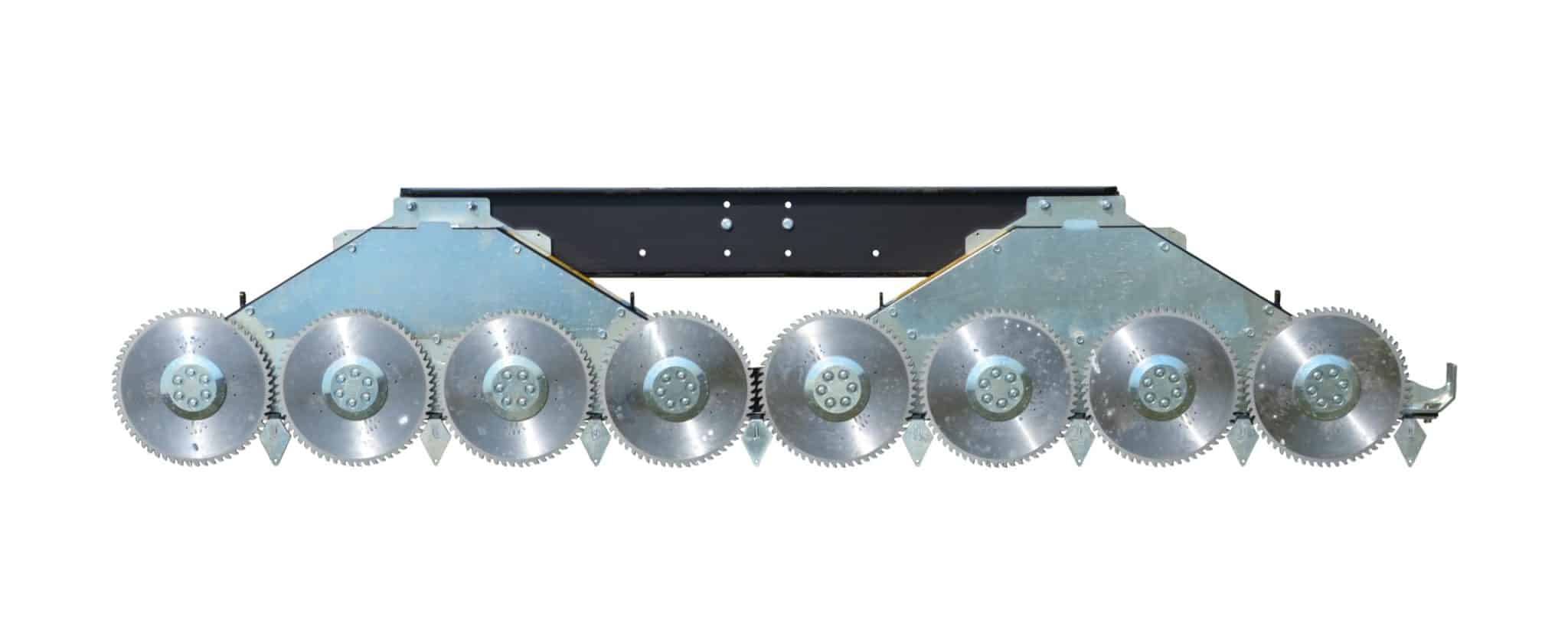

8 blades in a line
7° angle allows overlap between the blades
Skid shoe (the saw avoids hitting the ground)
Pressure relief valve

Specifications

Working width4.8 m (15’9”)
Sawblades with Widia teeth8 pcs: Ø 49.5 cm (8 pcs: Ø 1’7”)
Branch thickness0.5 – 16 cm (0.20” – 6.30”)
Required hydraulic connections (2 x 50 l/min)2 x double acting + 1 x drain
Oil flow (2 x 50 l/min)1 x 50 l/min @ 180 bar (2 x 13.2 gpm @ 2611 psi)
Required hydraulic connections (1 x 100 l/min)1 x double acting + 1 x drain
Oil flow (1 x 100 l/min)1 x 100 l/min @ 180 bar (1 x 26.4 gpm @ 2611 psi)
Driving speed up to5 km/h (3.11 mph)
Weight600 kg (1323 lb)
