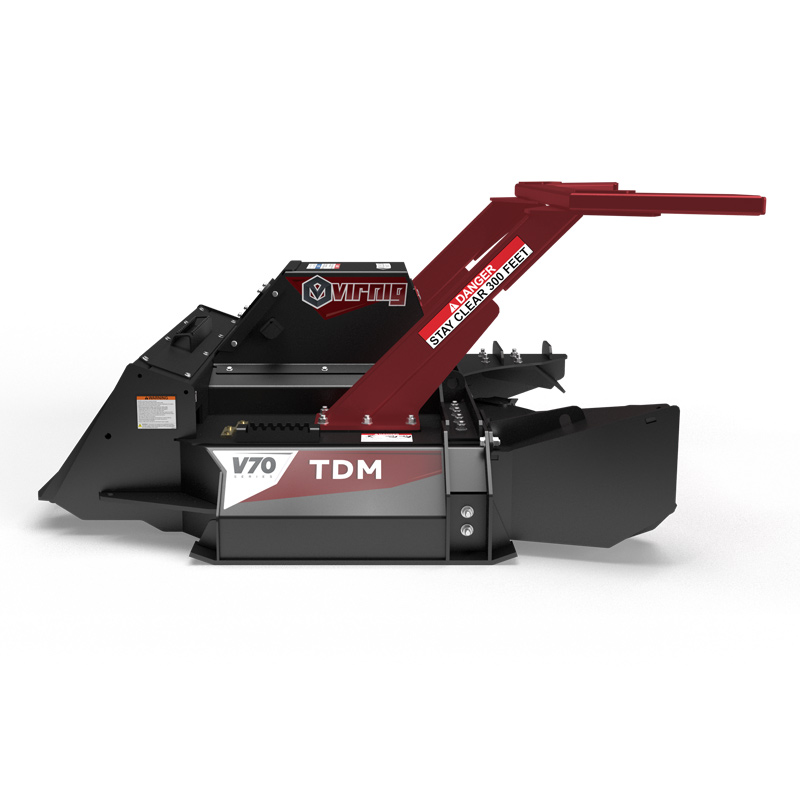

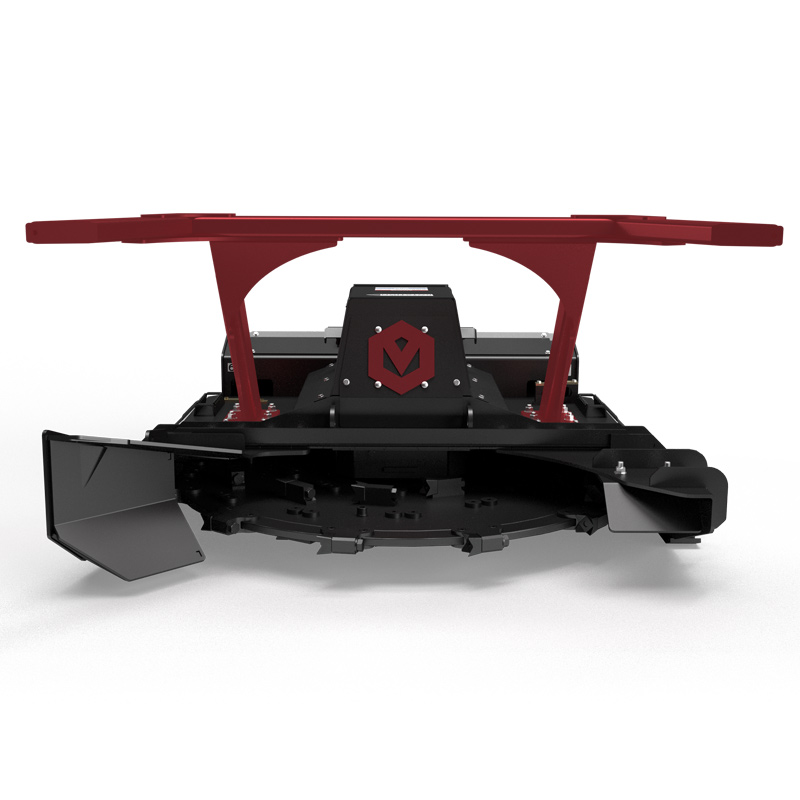

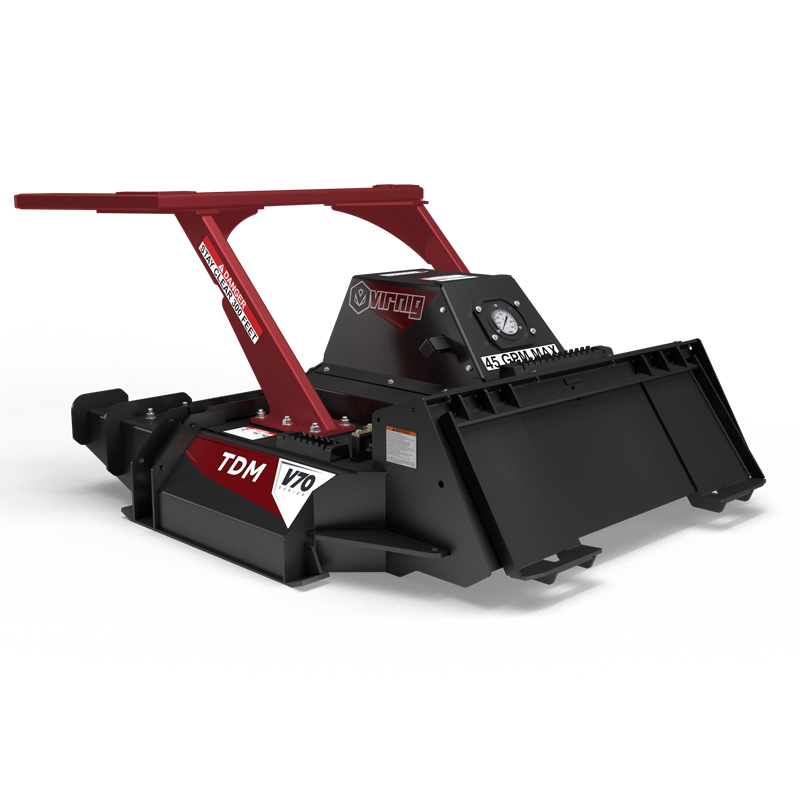

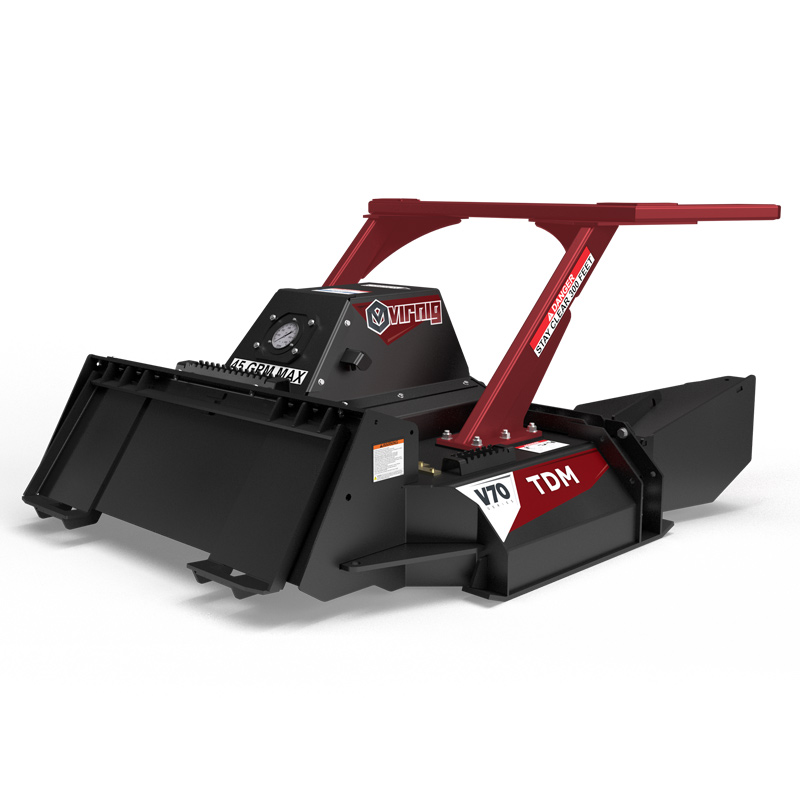

Virnig V70 Tree Disc Mulcher

Virnig V70 Tree Disc Mulcher

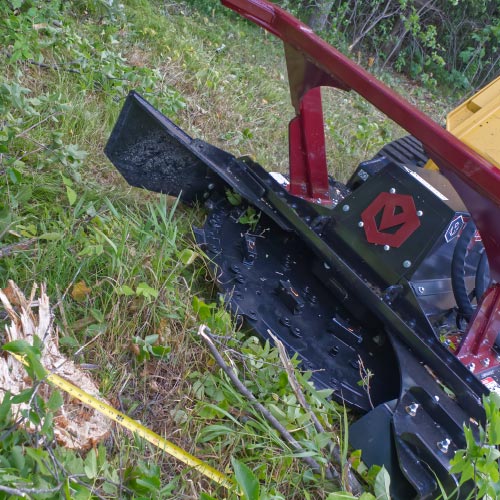

Efficiently mulch 6-8” diameter trees and quickly cut up to 14” diameter trees.

  • BENT-AXIS PISTON MOTOR WITH RELIEF VALVES
  • STANDARD MOTOR GUARD & SPINDLE GUARD

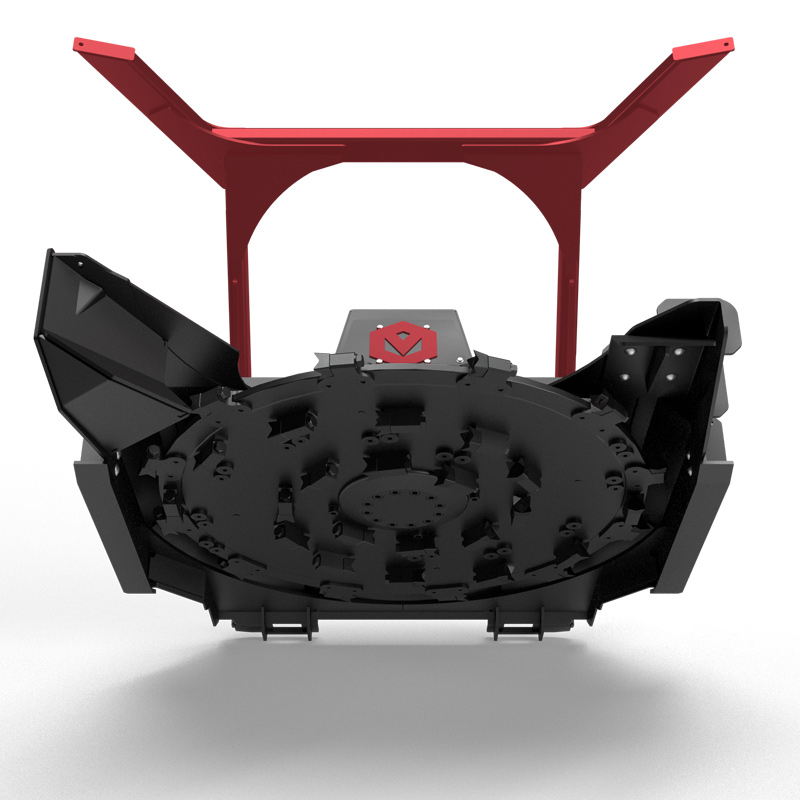

  • 60″ FULLY-MACHINED PERFECTLY BALANCED QUADCO® DISC

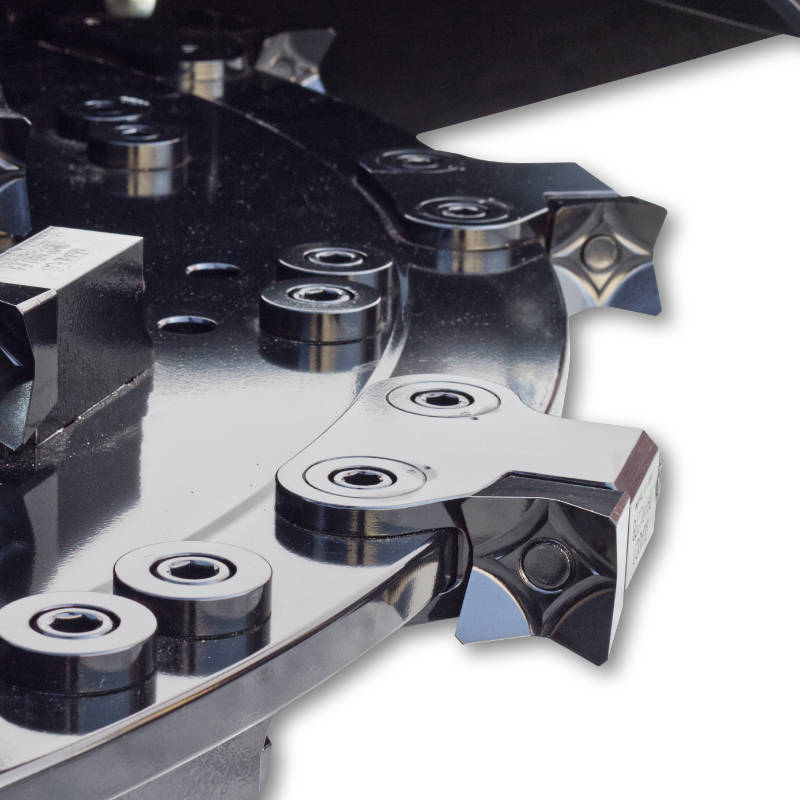

  • BOLT-ON STEEL TOOTH MOUNTS WITH FOUR-SIDED ROTATABLE & REPLACEABLE TEETH (CARBIDE TEETH AVAILABLE)
  • 3 DECK MOUNTED TEETH & RECUTTER BAR FOR A FINER FINISH
  • 3/8″ GRADE 80 INTERIOR DECK WELDMENT
  • REPLACEABLE PUSH BAR, CHUTE & DEFLECTOR
  • TWO CHUTE STYLES Choose from two chute styles; standard or open. See options tab for details.

Requires a high flow loader with a flow rate of 30-50 GPM. Max operating pressure is 4,200 PSI. DO NOT OPERATE MULCHER WITHOUT A SHATTERPROOF CAB ON LOADER.

Download Brochure
This field is for validation purposes and should be left unchanged.
Name(Required)
Address(Required)

Thanks for downloading

Before your download begins, please fill out the form below.

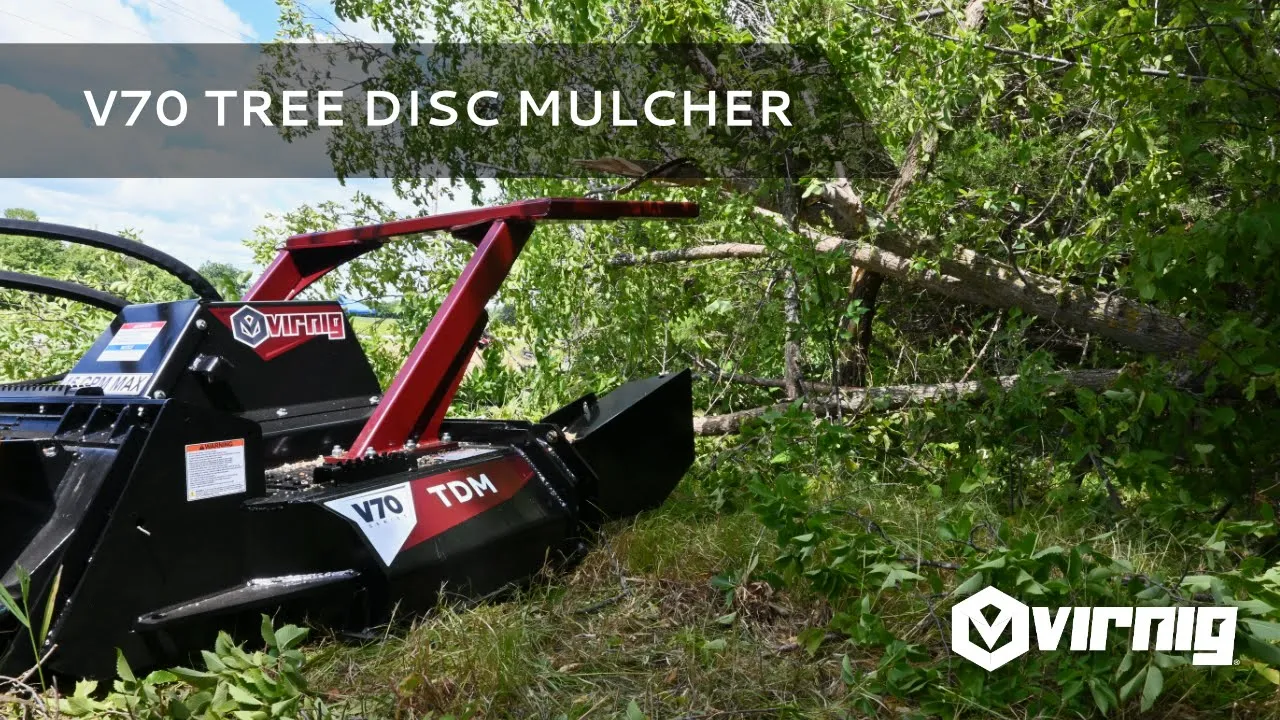

Videos
null
null
null
Specifications
ModelTDM60
Cut Width60.0 in / 1524 mm
Overall Width70.0 in / 1778 mm
Overall Height40.5 in / 1029 mm
Overall Depth77.5 in / 1969 mm
Deck Height11.0 in / 279 mm
Push Bar Height40.5 in / 1029 mm
Minimum Cut Height2.1 in / 53 mm
Cutting Capacity, Diameter14.0 in / 356 mm
Number of Teeth: Top / Bottom / Outside12 / 20 / 12
Maximum Disc Thickness1.25 in / 32 mm
Deck Thickness¹: Top, Side / Inside0.25, 0.25 / 0.375 in / 6.4, 6.4 / 9.5 mm
Recommended Flow Rate30 - 50 GPM / 114 - 190 L/min
Max Operating Pressure4500 PSI / 31.0 MPa
Approximate Weight2710 lb / 1229 kg
Recommended Loader CapacityGreater than 2800 lb / 1270 kg

*Inside deck material is Grade 80 Plate (80,000 PSI / 552 MPa minimum yield strength).

Disc Tip Speeds (FPM / m/min)

Requires a High Flow Loader with a Flow Rate of 30–50 GPM / 114–190 L/min
Max Operating Pressure: 4200 PSI / 29.0 MPa
Model30 GPM35 GPM40 GPM45 GPM50 GPM
TDM60-HF4511,155 FPM / 56.67 m/s13,006 FPM / 66.36 m/s14,875 FPM / 75.74 m/s16,730 FPM / 84.98 m/s–
TDM60-HF50–––14,810 FPM / 75.47 m/s16,460 FPM / 83.70 m/s

Flow rates are shown in gallons per minute (GPM) / litres per minute (L/min), and disc tip speeds are shown in feet per minute (FPM) / meters per second (m/s). Max operating pressure is 4200 PSI / 29.0 MPa.

FAQs

Virnig attachments are rated to provide maximum performance and protection against damage when paired with an appropriately sized loader. Here’s a checklist to get the right attachment for your loader.

Go here to find skid steer capacity and specs.

Contact DTE Equipment for the most accurate attachment specs..

Virnig sells mini skid steer, compact tractor, and skid steer attachments through a network of independently owned dealers throughout the United States and Canada. Contact DTE Equipment.

Please contact DTE Equipment to obtain pricing information.

All Virnig skid steer attachments are manufactured with a universal mount to fit most skid steer loaders. The mounting frame is built to ISO 24410 and SAE J2513 standards.

All Virnig mini skid steer attachments are manufactured with a Toro®/mini universal mount, Bobcat® mount, or ASV® mount.

Most Virnig attachments are ready to work right off the pallet.

To minimize setup time, Virnig Manufacturing requires the machine brand and model to be listed in every order for attachments with hydraulic components. This ensures proper hose length, routing, and coupler sizing. In addition, all hydraulic Virnig Attachments are tested for leaks and proper operation before leaving the factory. There may be specific scenarios in which additional setup time will be required.

Most parts for Virnig skid steer attachments are available in-stock and can be shipped as early as the same day the order is received. Fabricated and back ordered parts are available with a reasonable lead time. Virnig uses several shipping options to provide timely and cost effective delivery to customers.

Check with DTE Equipment for replacement part availability.

All Virnig parts and attachments are warranted for one year from the end user’s date of purchase, or the dealer’s date of first rental/demonstration. If the warranty period has expired, a sales receipt or first rental slip will be required for warranty consideration.

Virnig uses NitroSteel® cylinder rods because they are a superior performing alternative to chrome plating. The finish offers improved corrosion resistance and better grease retention.

Chrome plated cylinder rods can flake or pit and destroy the seals or other internal components; resulting in downtime and expensive repairs.

A NitroSteel® rod will perform better and increase the service life of a cylinder, making it the cost-effective choice. Learn more about the benefits of the NitroSteel® process.

Options

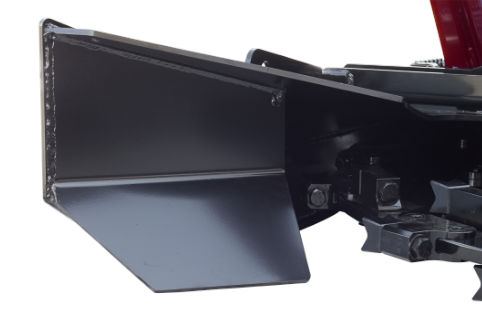

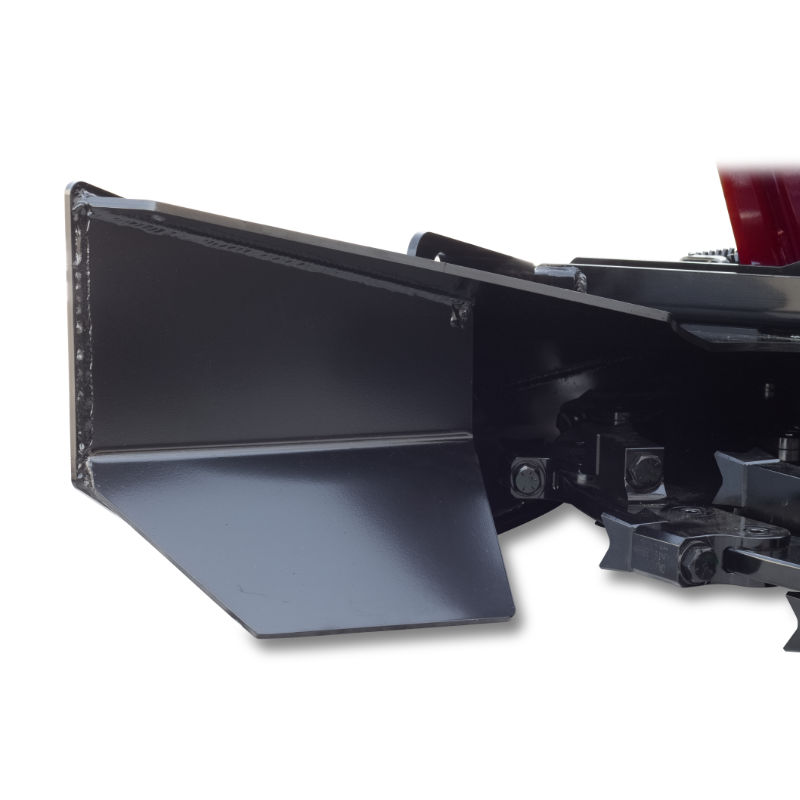

STANDARD CHUTE

  • Tapered design helps guide trees into the disc.
  • Bottom edge drops below the disc to scoop trees.

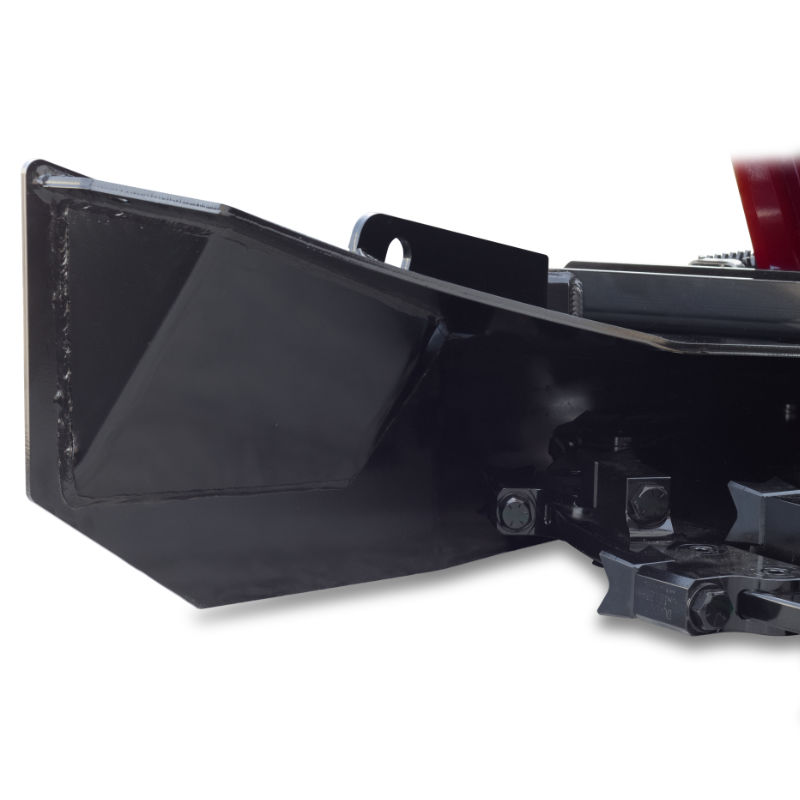

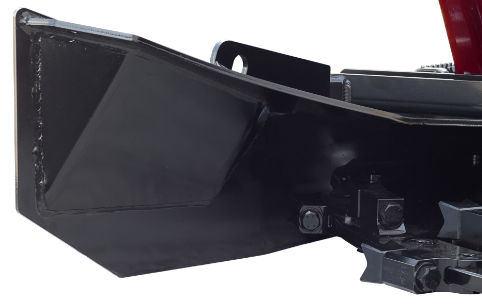

OPEN CHUTE

  • Increased space between chute and disc to process larger, bushy material.
  • Bottom edge flush with disc allowing work at or below grade.

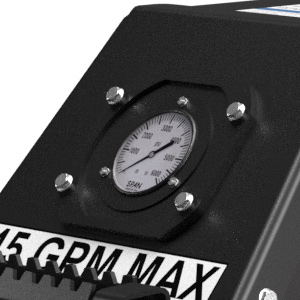

PRESSURE GAUGE

  • Monitor hydraulic operating pressure for max productivity.
  • Helps utilize full disc inertia and maintain high performance without going into relief.
