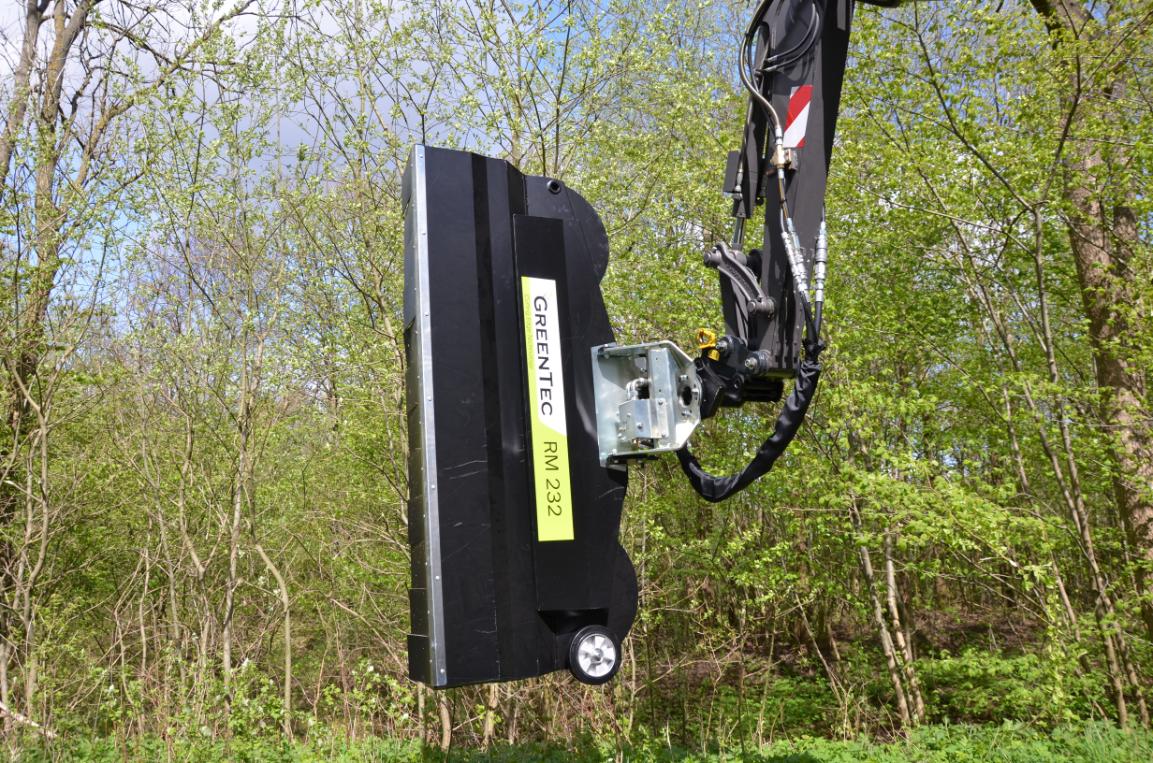

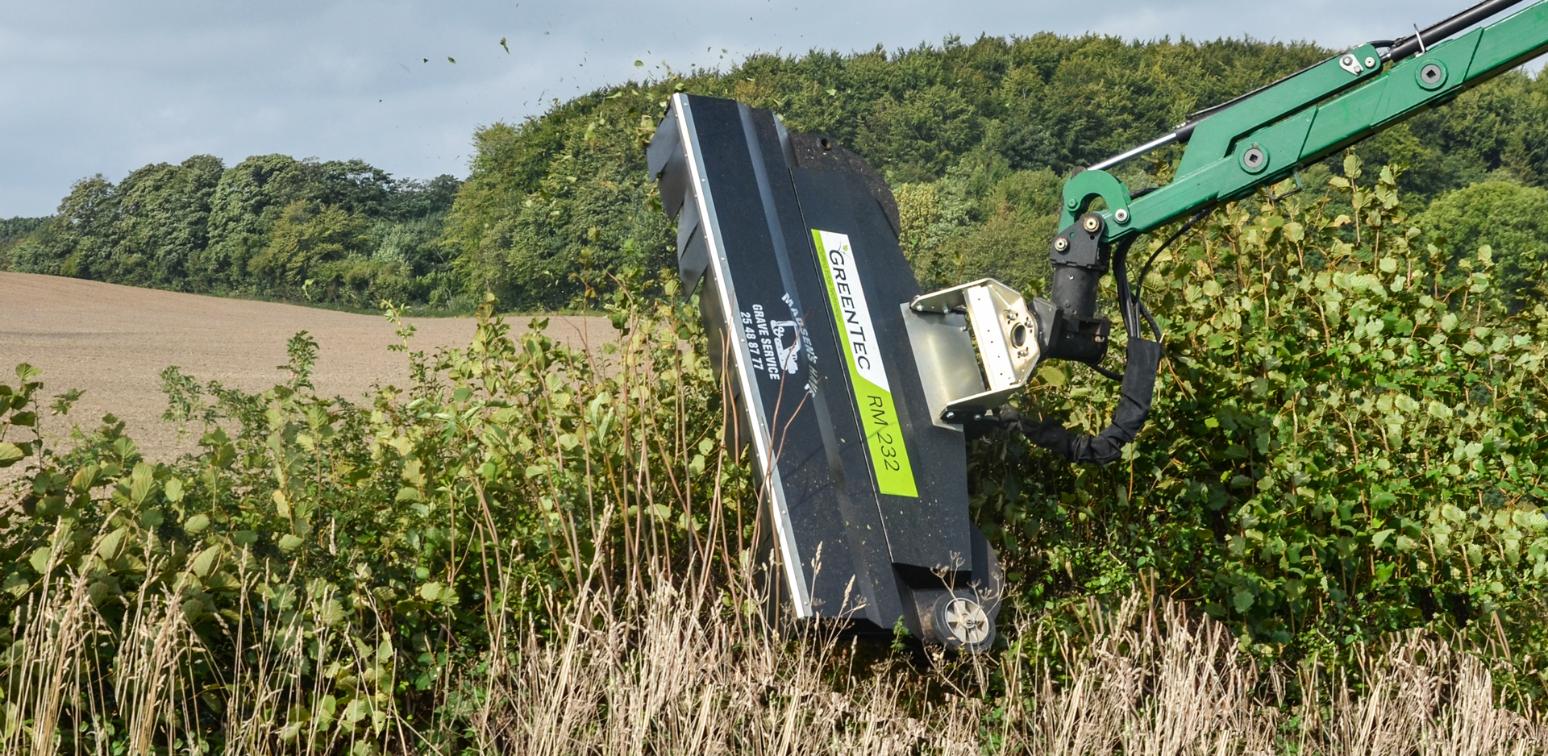

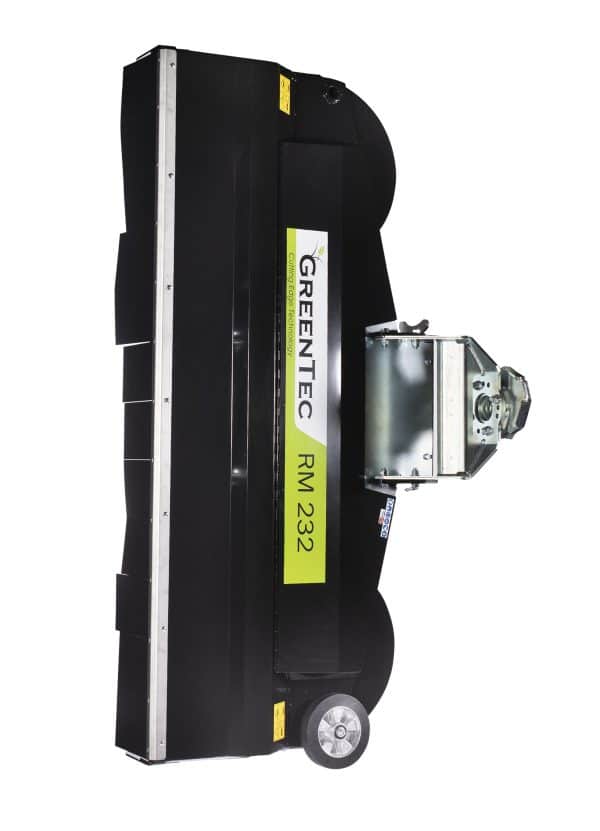

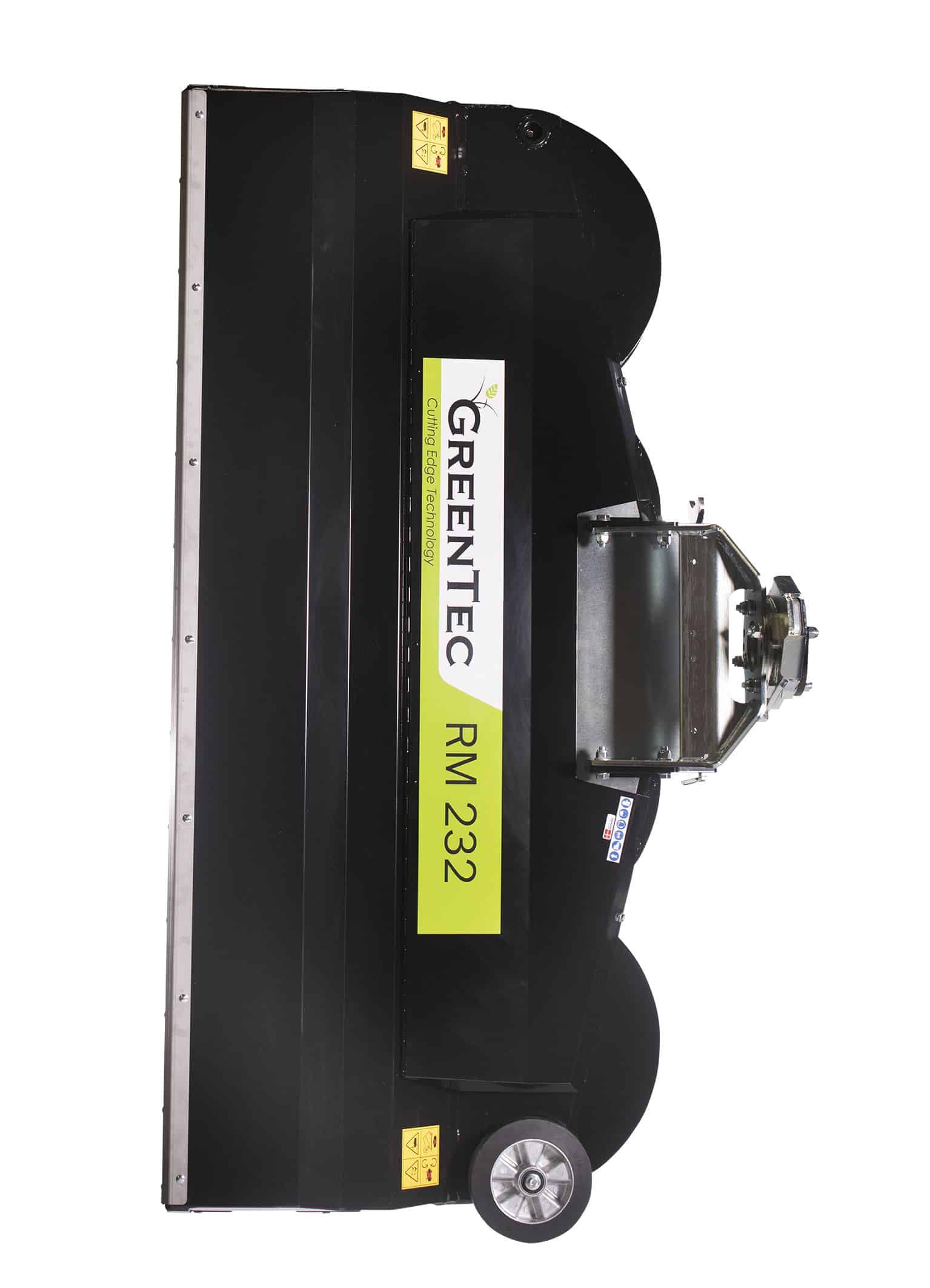

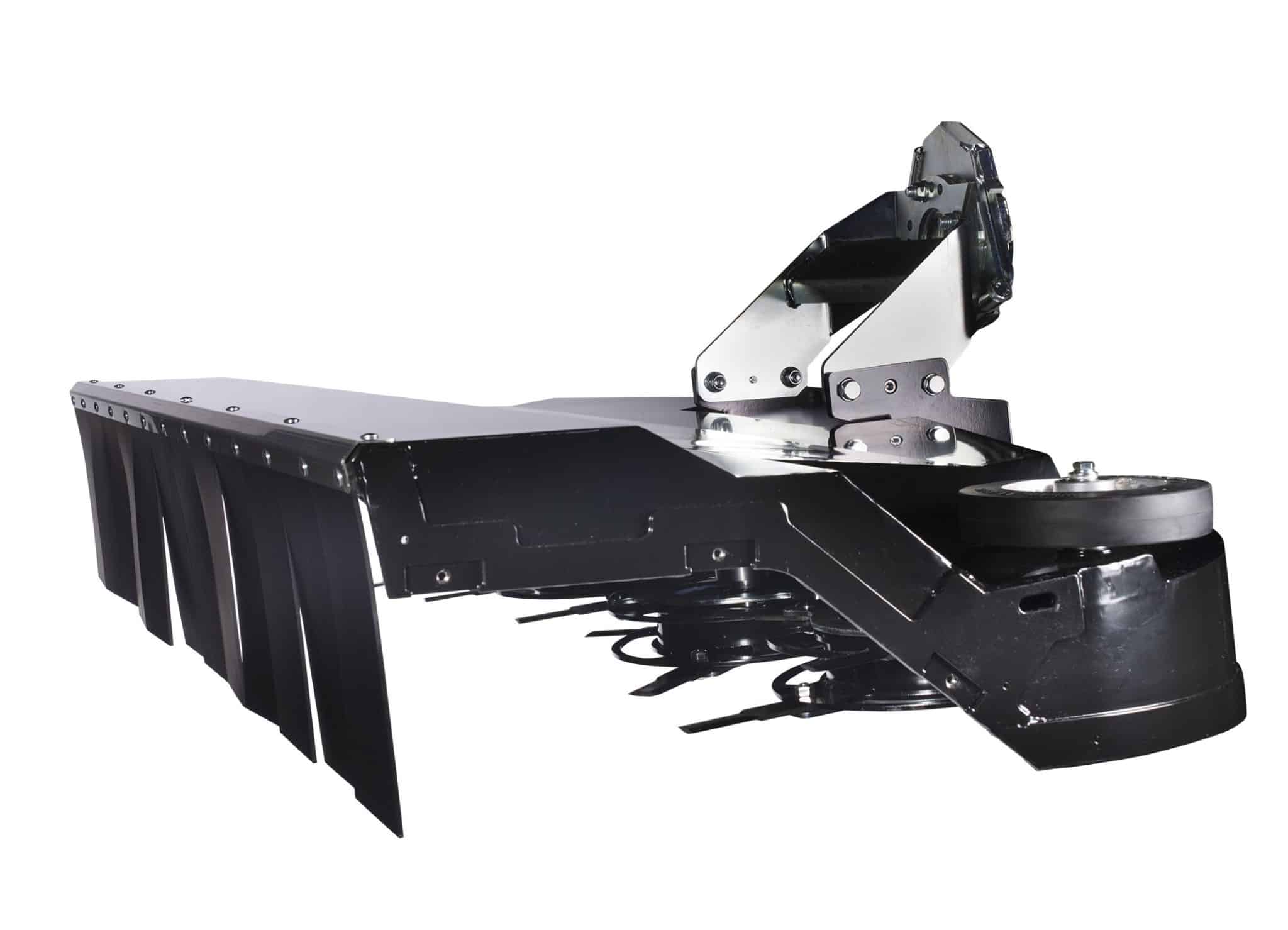

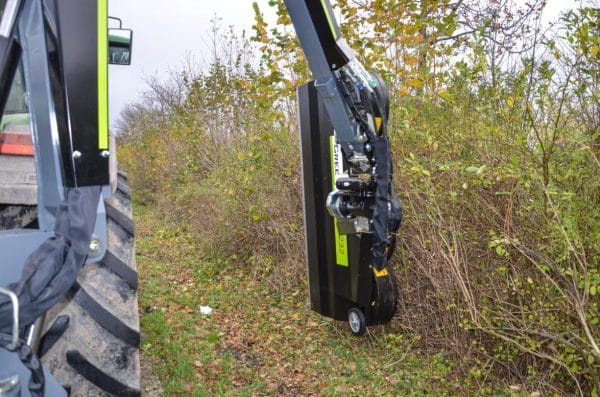

The Rotary Mulcher RM 232 is a top professional tool, ideal for hedge trimming and windbreak maintenance. Large capacity combined with an ”all in one” concept, where all functions are performed in a single workflow. The hedge mulcher has a clean cut and leaves the material pulverized at the bottom. Branches up to 4 cm (1.57″) are cut and crushed into small pieces.

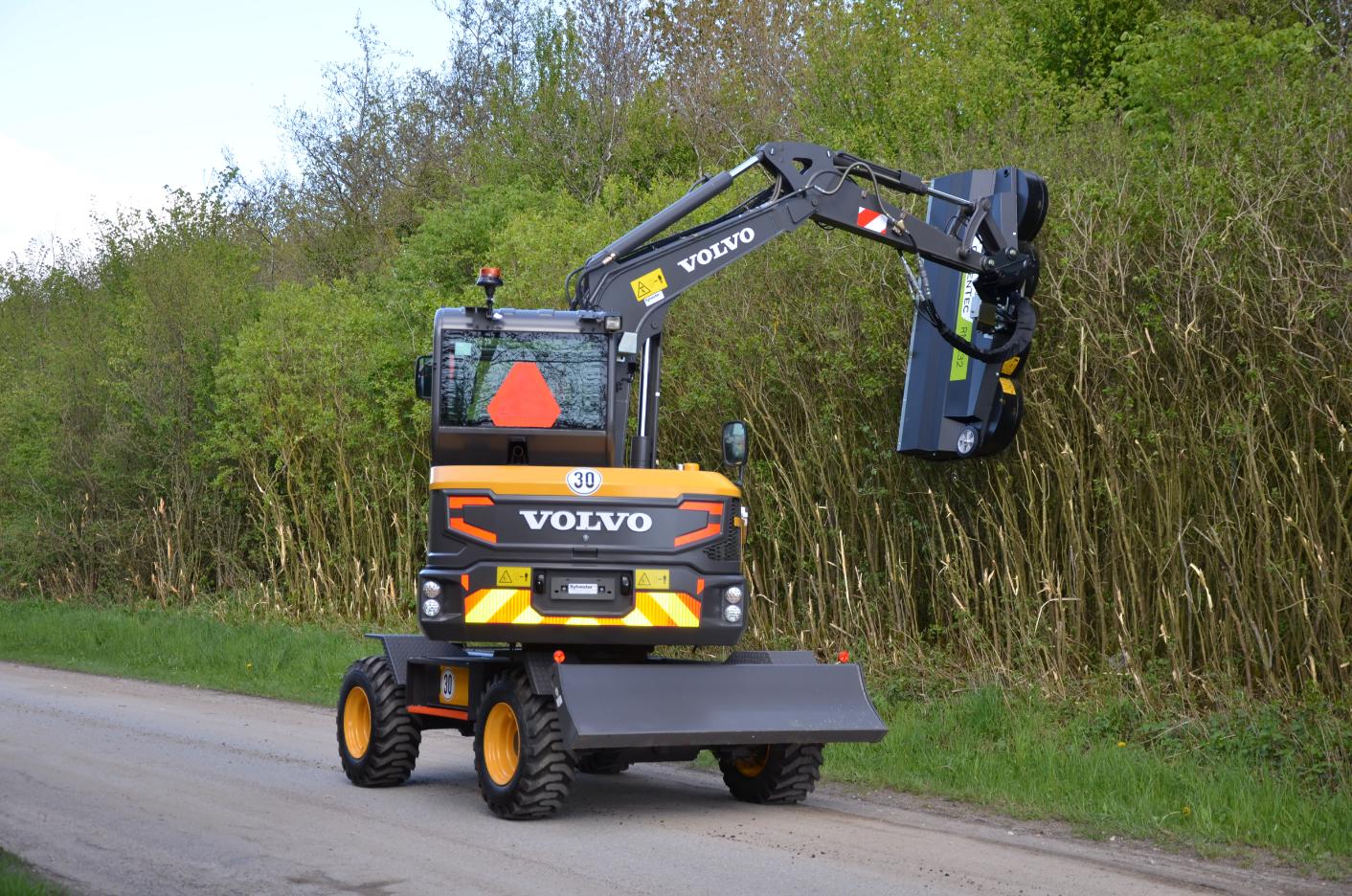

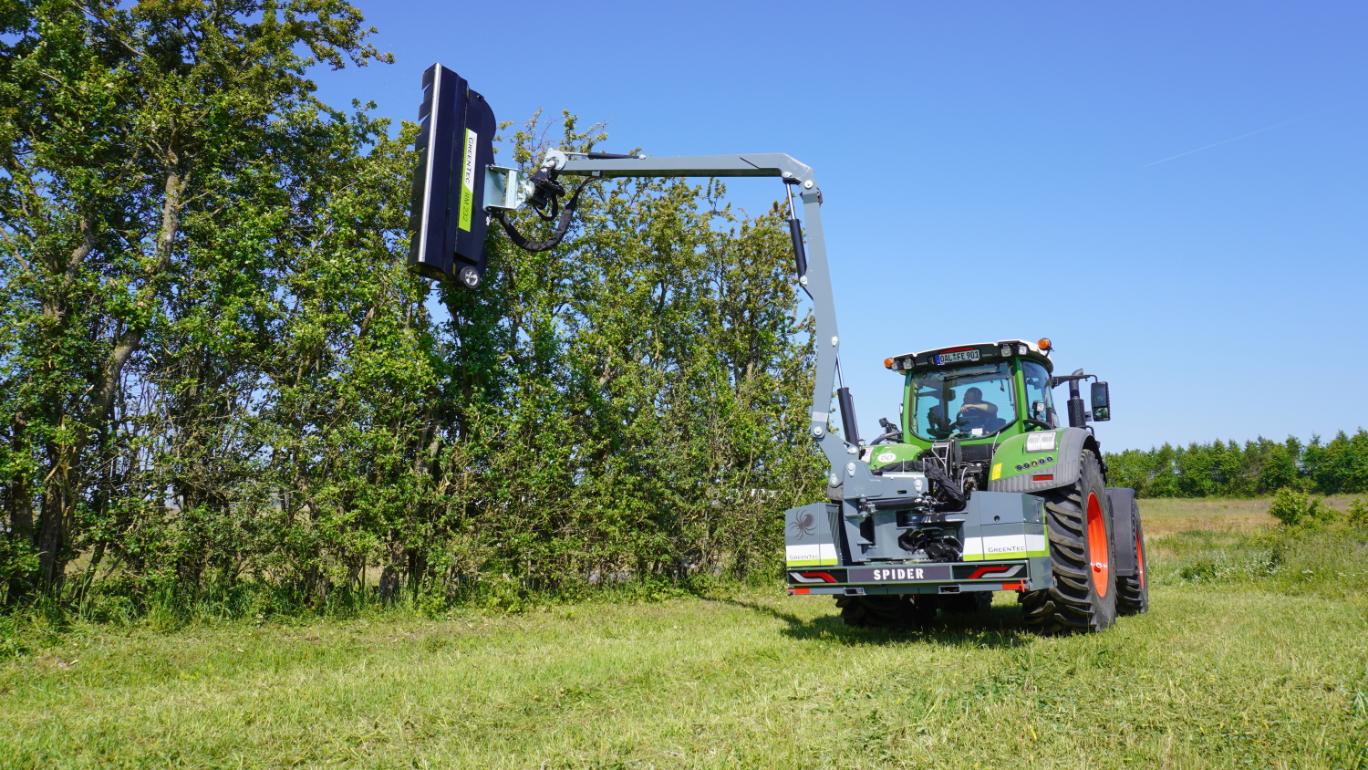

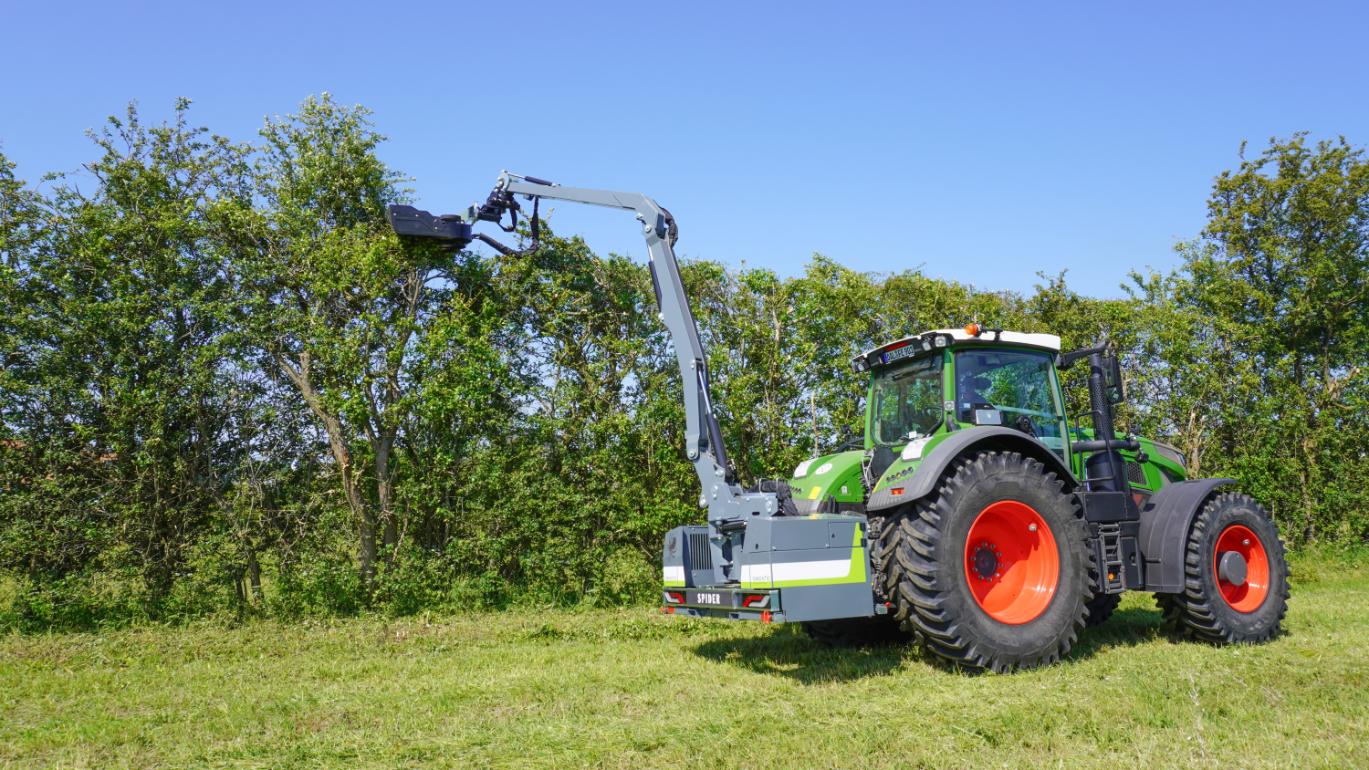

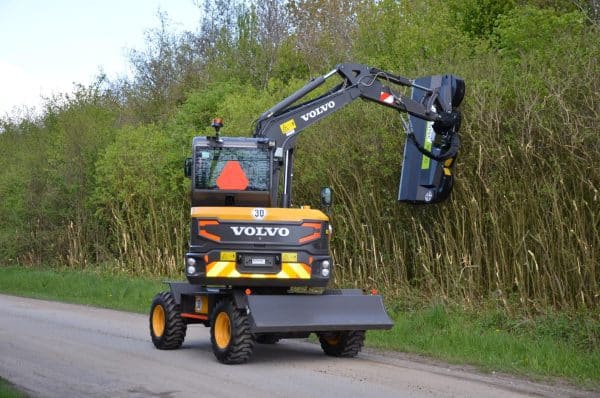

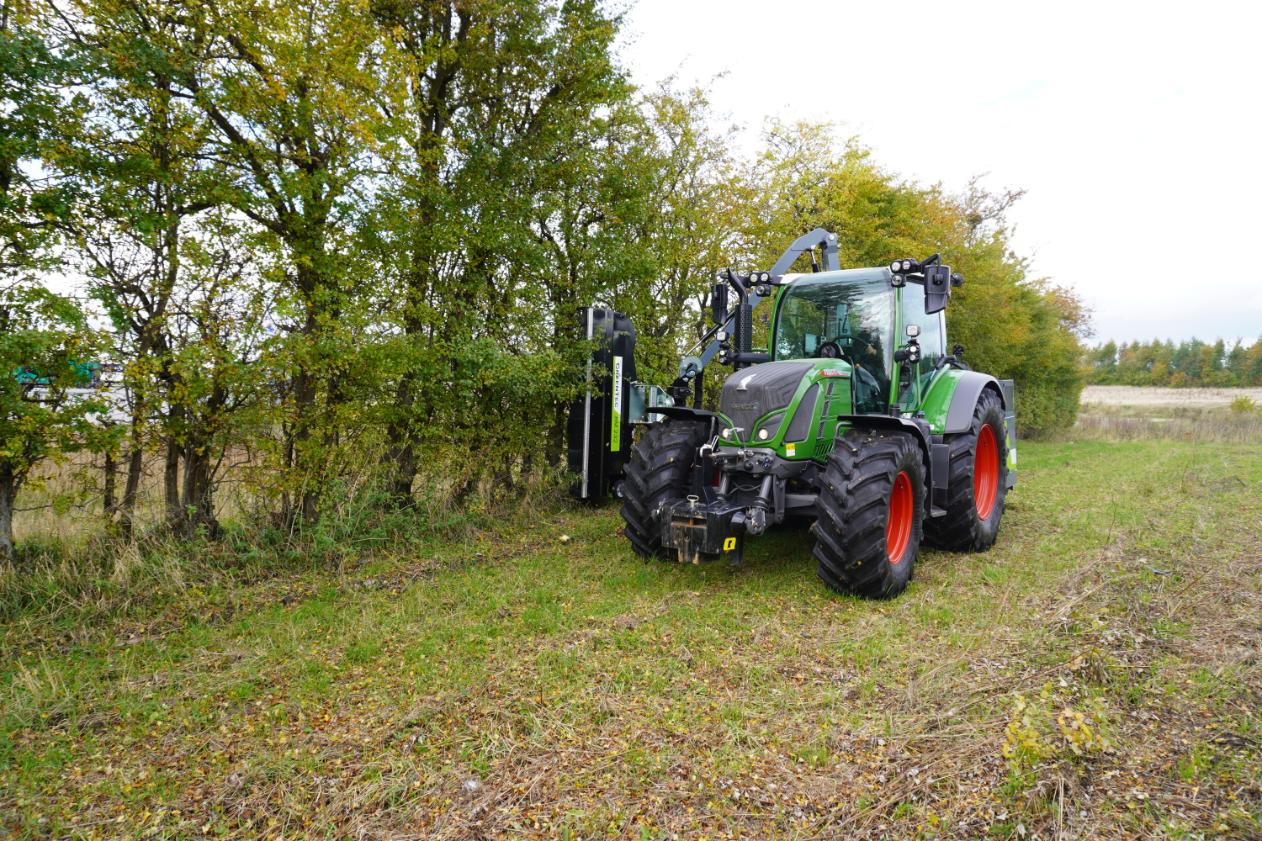

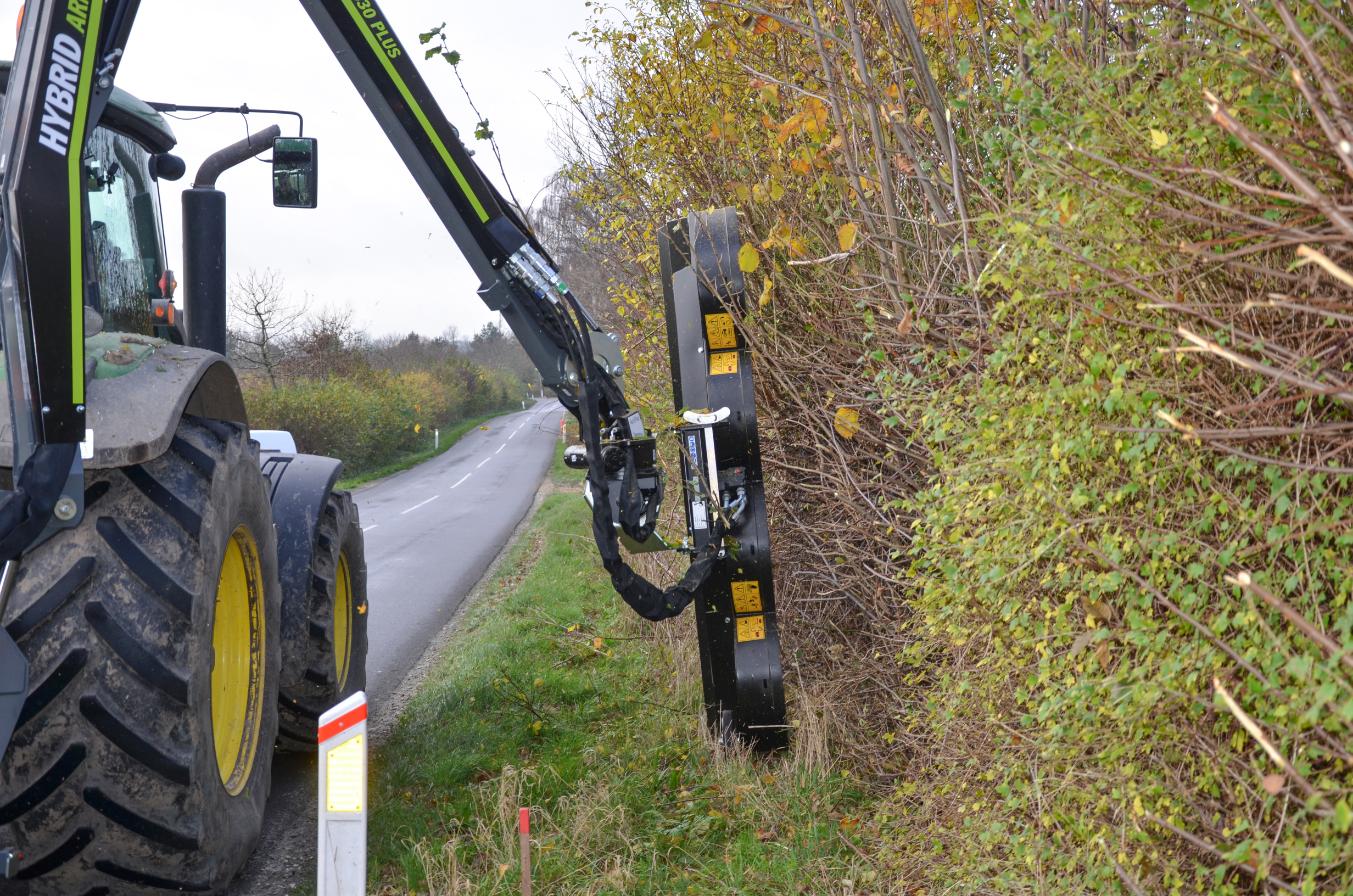

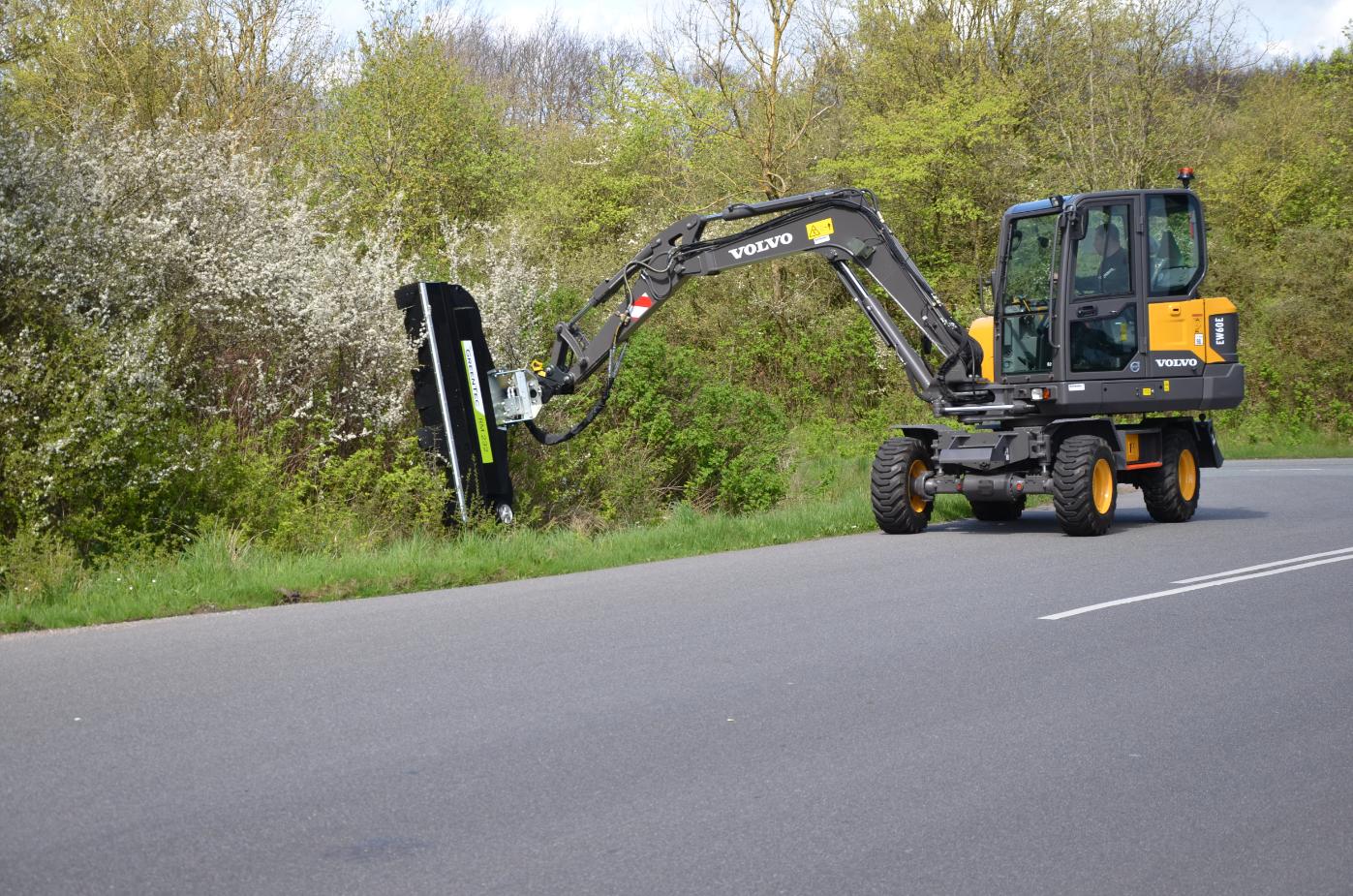

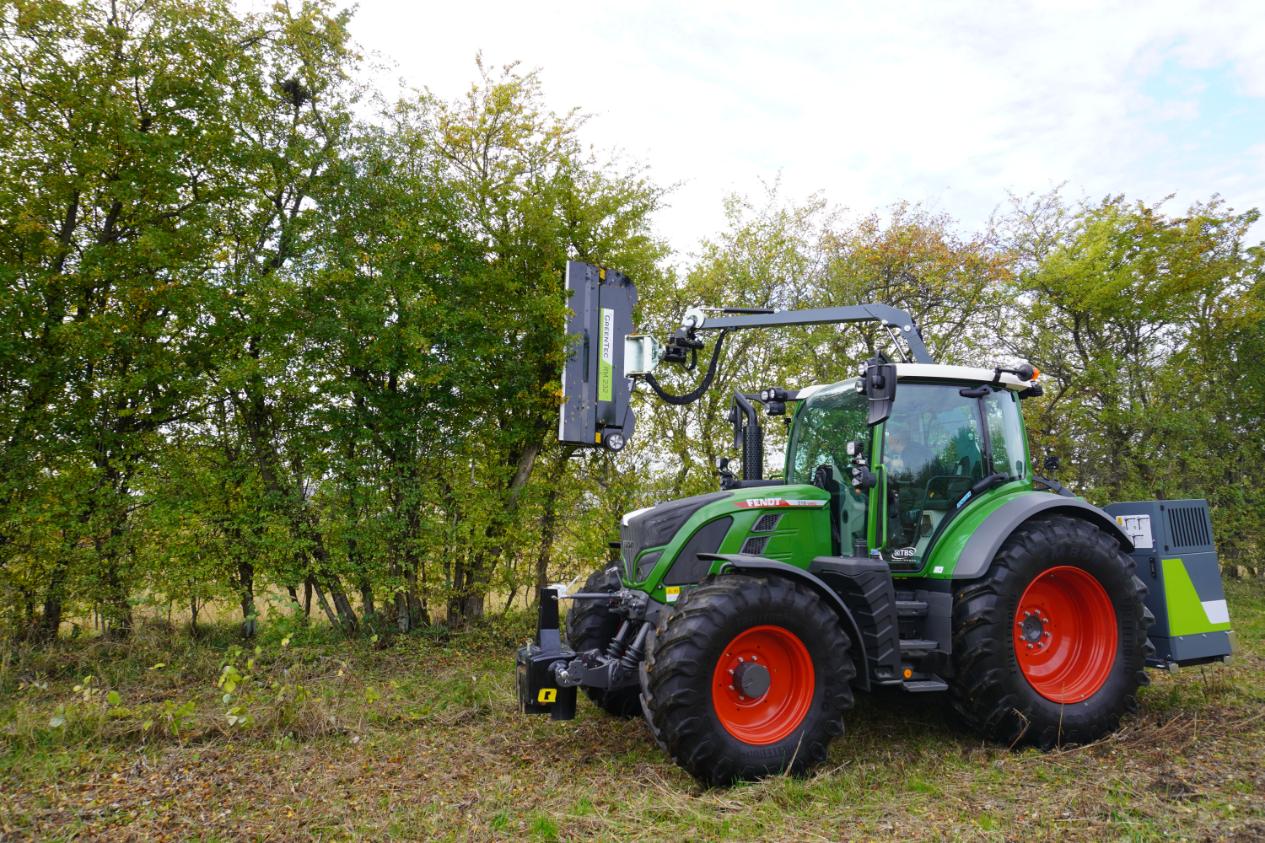

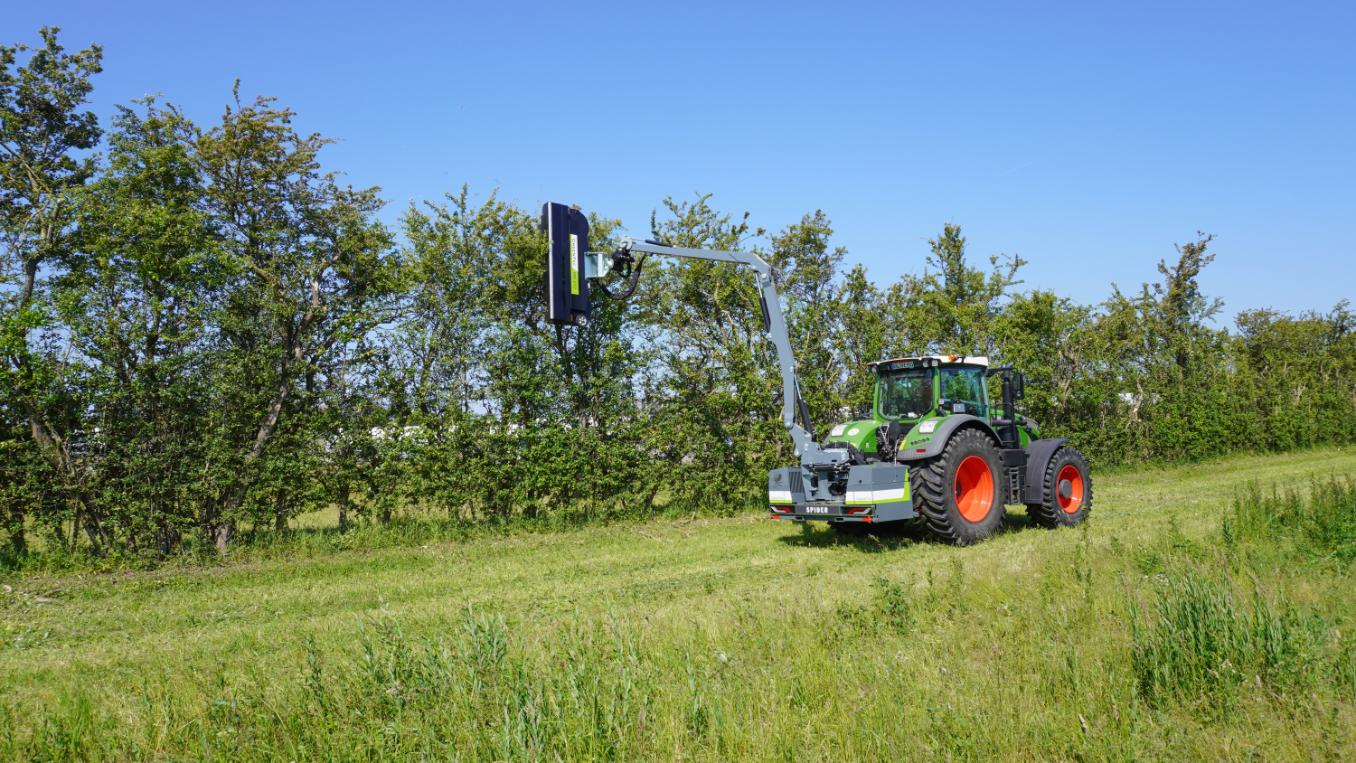

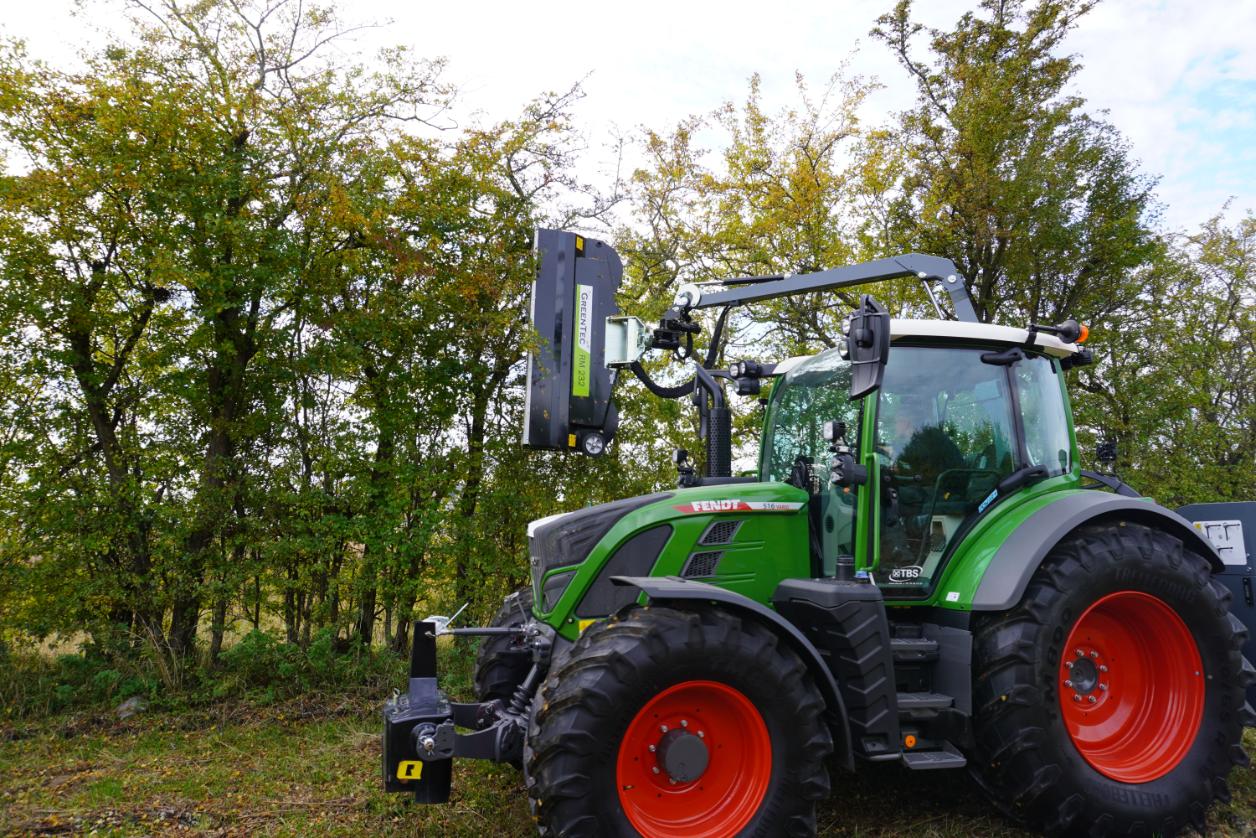

Hedge mulcher for tractor, excavator and telehandler
The Rotary Mulcher RM 232 is a top professional tool, ideal for hedge trimming and windbreak maintenance. Large capacity combined with an ”all in one” concept, where all functions are performed in a single workflow. The hedge mulcher has a clean cut and leaves the material pulverized at the bottom. Branches up to 4 cm (1.57″”) are cut and crushed into small pieces.
The machine is produced in high strength steel and only weighs 310 kg (683 lb) which makes it possible to mount the RM 232 on most boom mowers and excavators.
The Rotary Mulcher RM 232 fits the following GreenTec machines:
RM 232

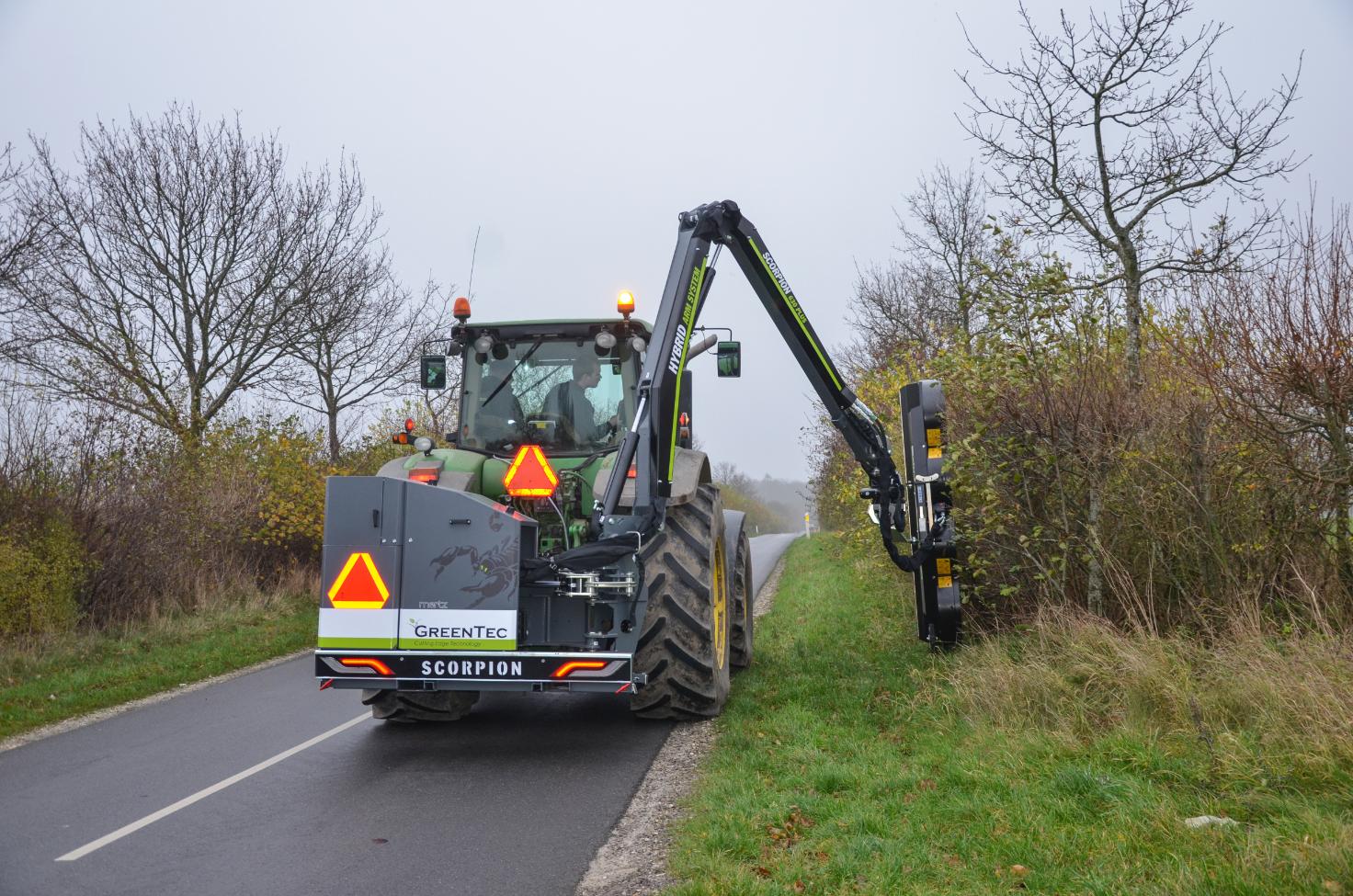

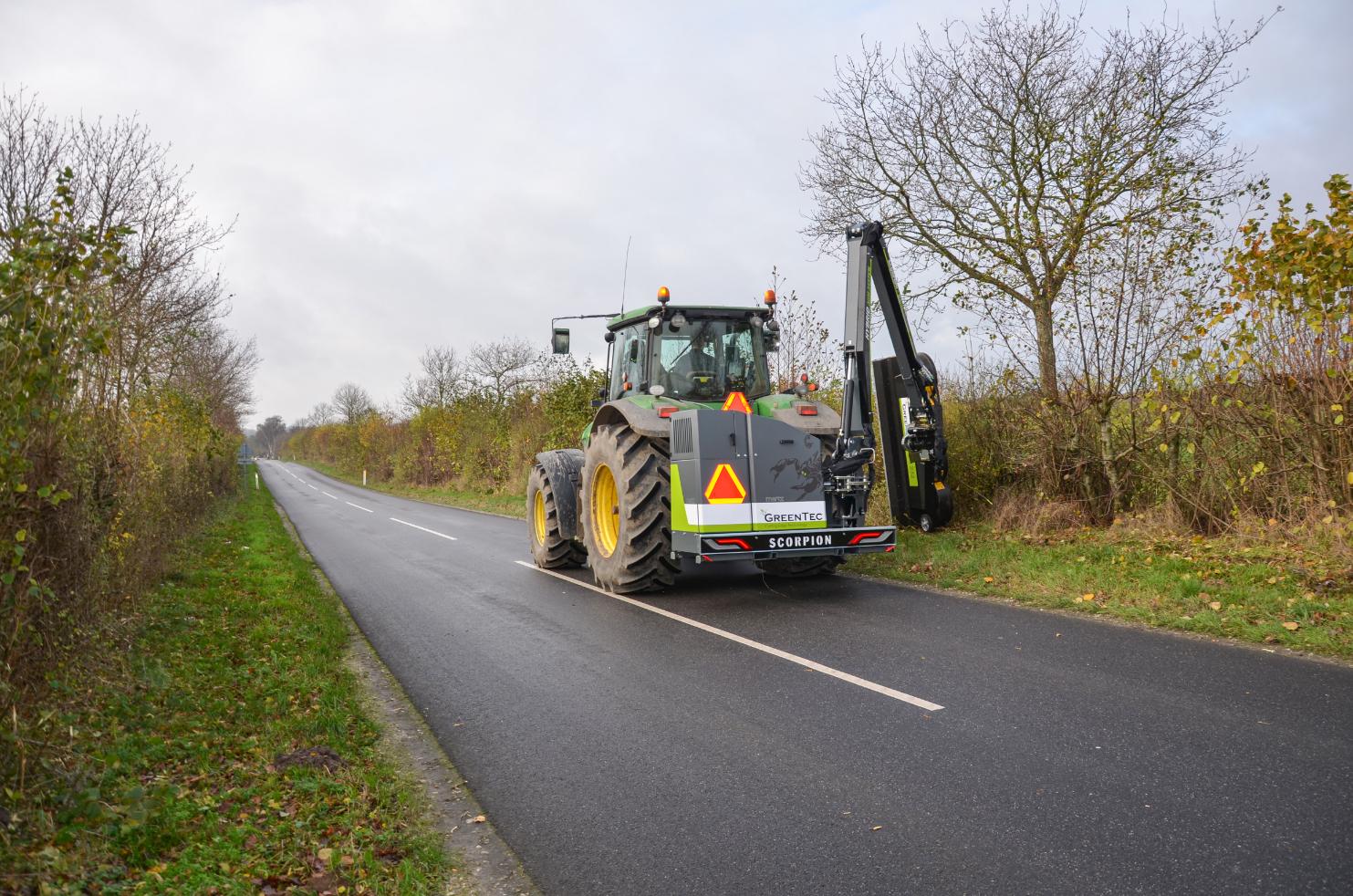

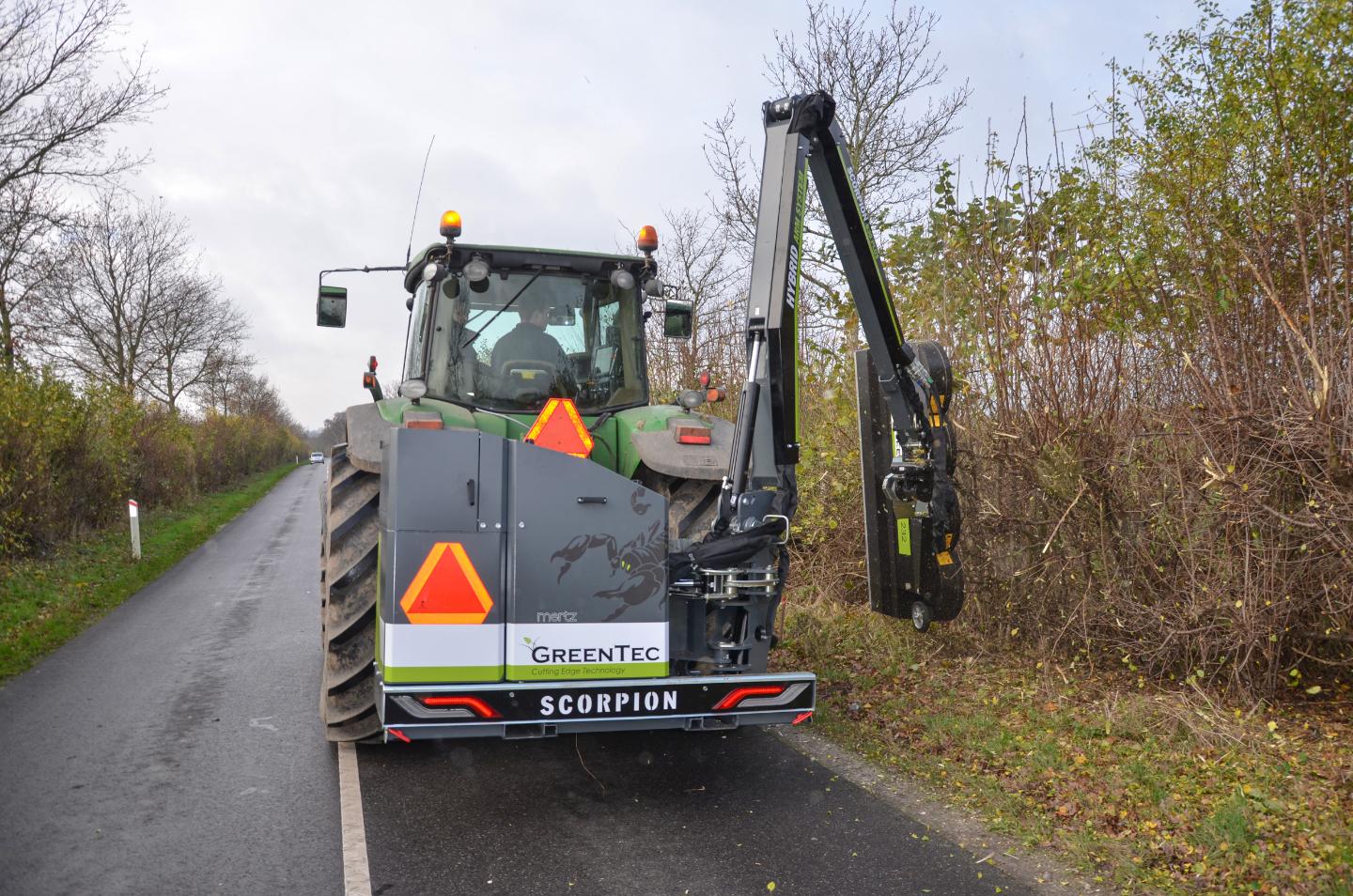

Boom Mower Scorpion 330 & 430
Scorpion 530 & 630 Check mark
Scorpion 730 & 830 Check mark
STRONG ARGUMENTS:
Perfect cutting quality of branches up to 4 cm (1.57”) in thickness
High capacity, 2.3 m (7’7″”) working width – up to 4 km/h (2.5 mph)
No disposal costs for the cut-off material

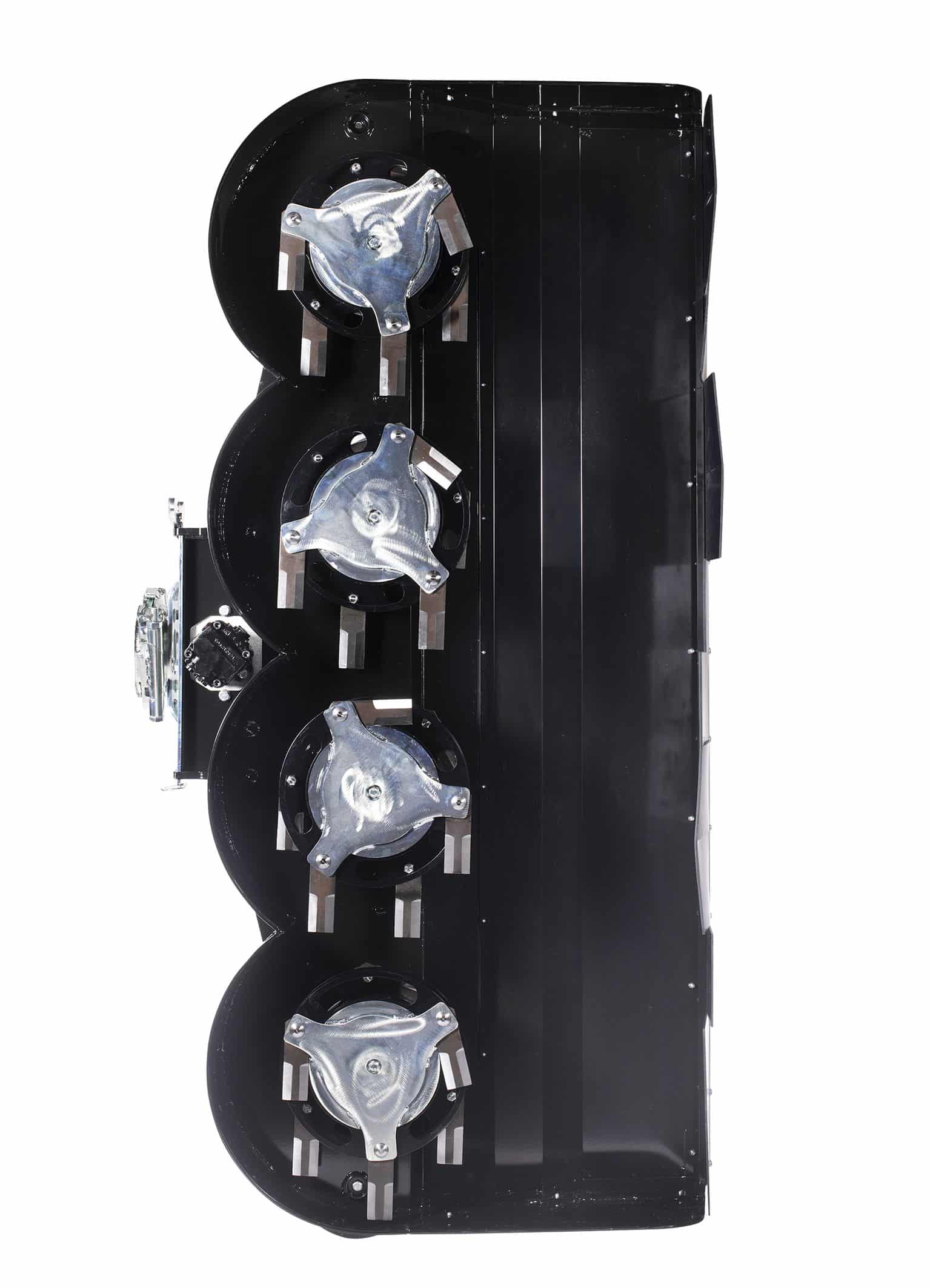

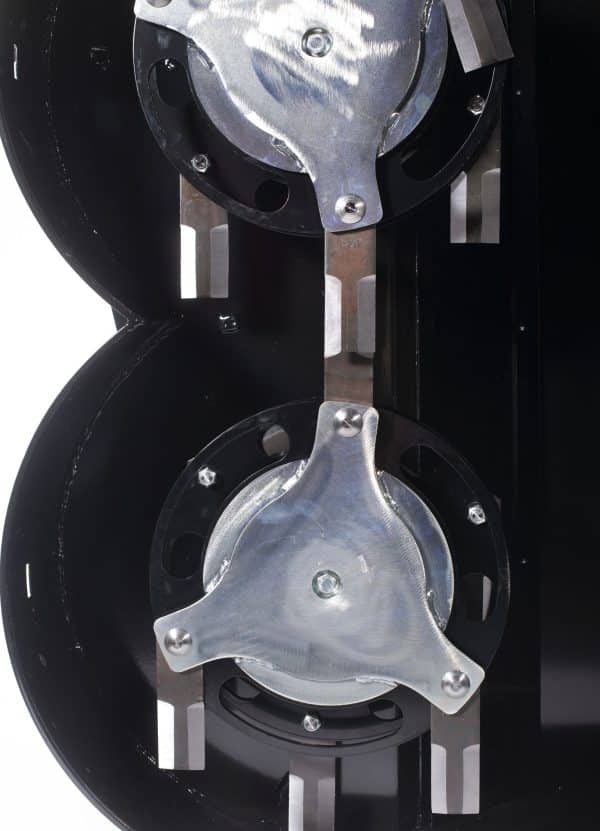

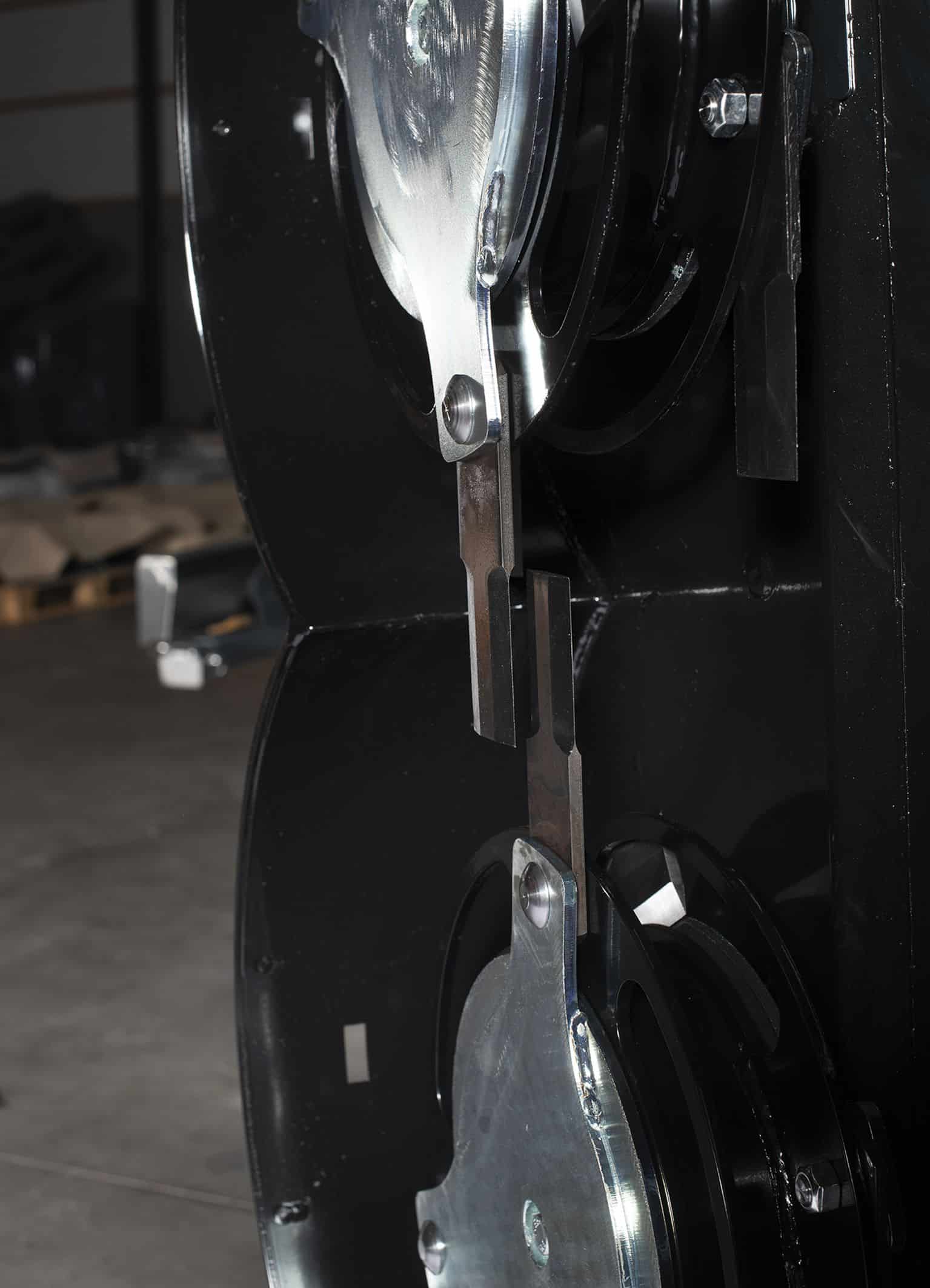

6 pieces of blades per rotor (deviate from overload)
Minimal wear and maintenance
Many mounting options
The Rotary Mulcher RM 232 has a working width of 2.3 m (7’7″”)The Rotary Mulcher RM 232 cuts branches up to 4 cm (1.57”) in thicknessThe Rotary Mulcher RM 232’s maximum speed is 4 km/h (2.5 mph)The Rotary Mulcher RM 232 weighs 250 kg (683 lb)
EQUIPMENT OVERVIEW

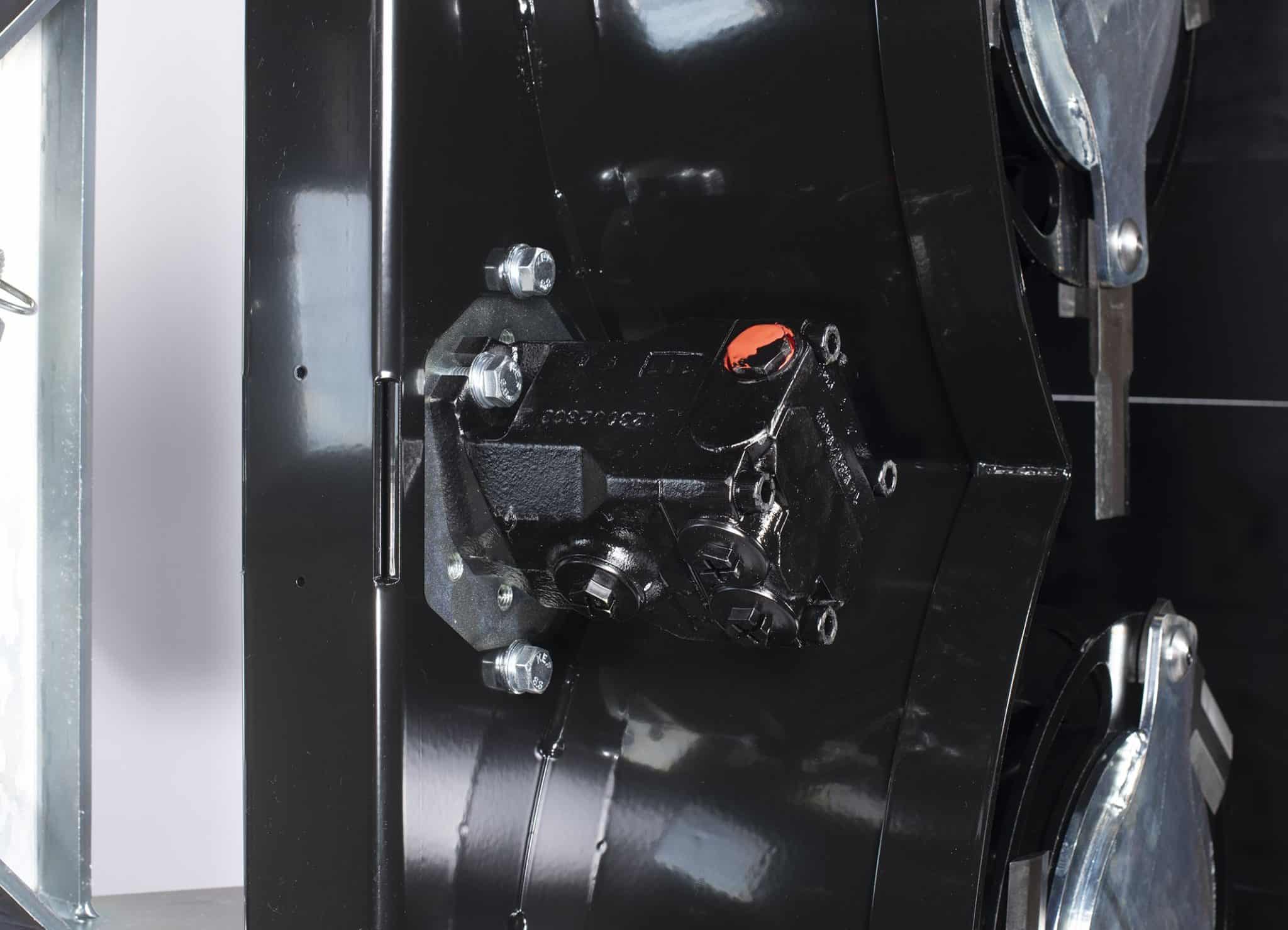

Hydraulic motor Standard equipment

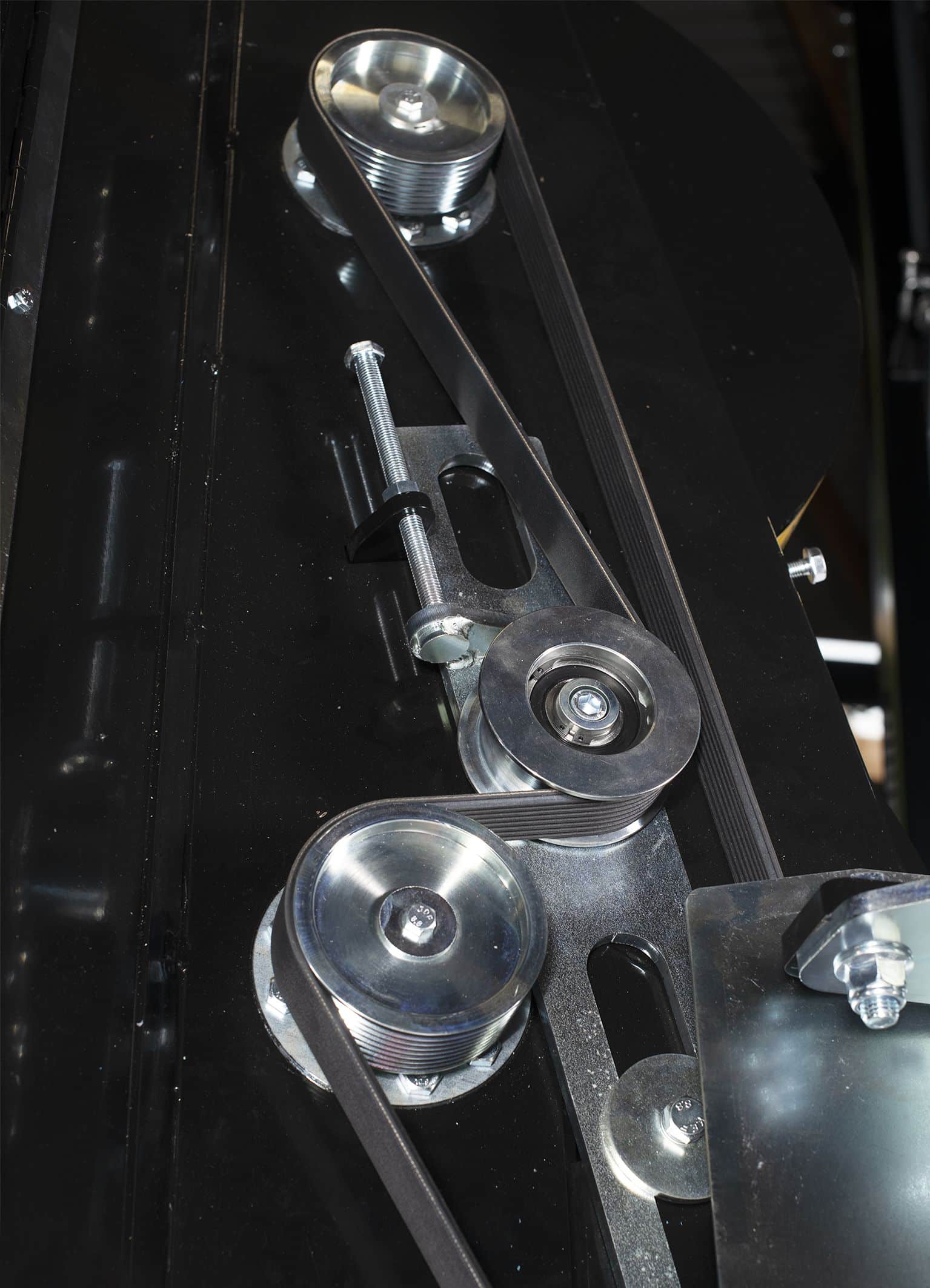

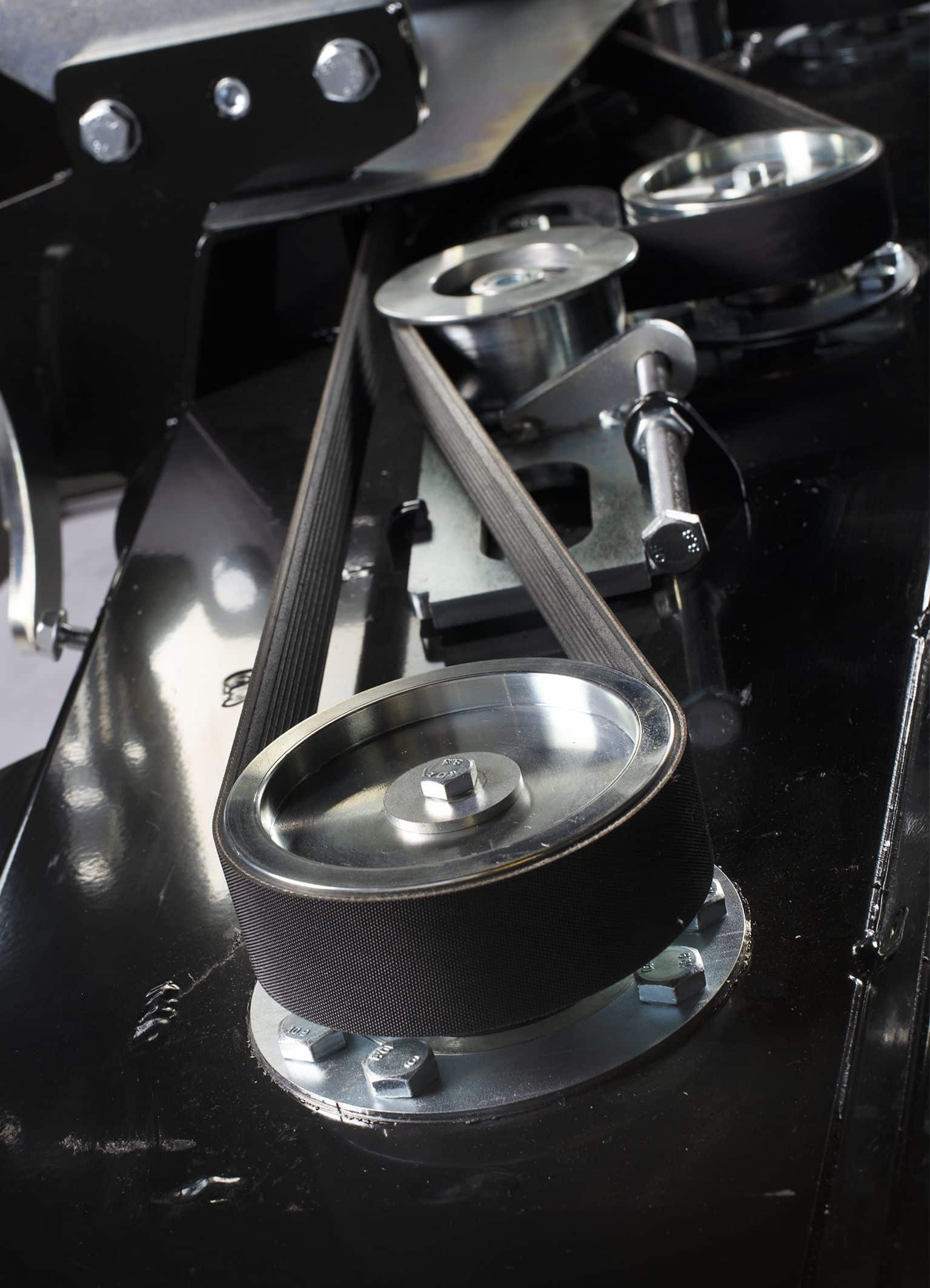

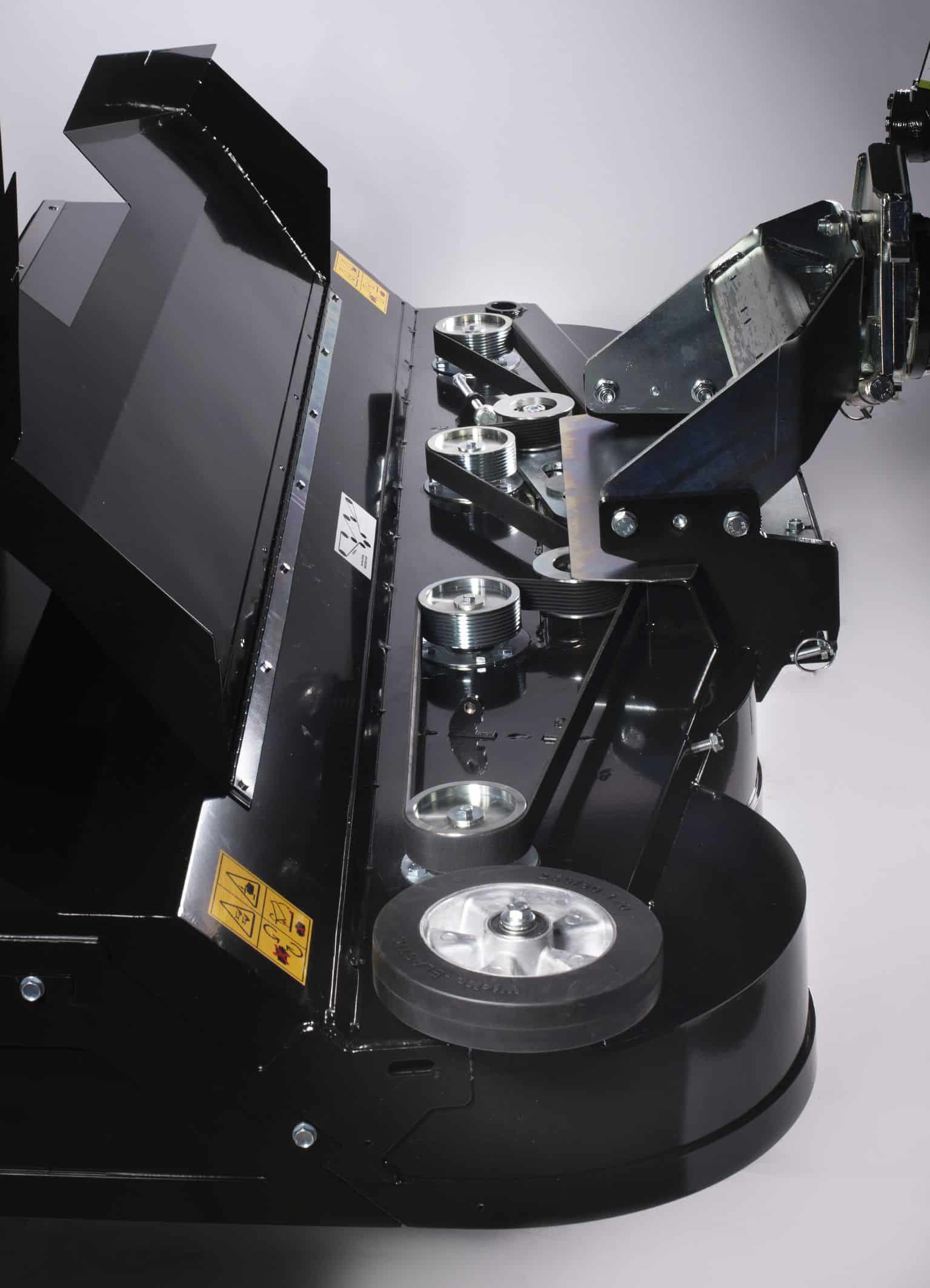

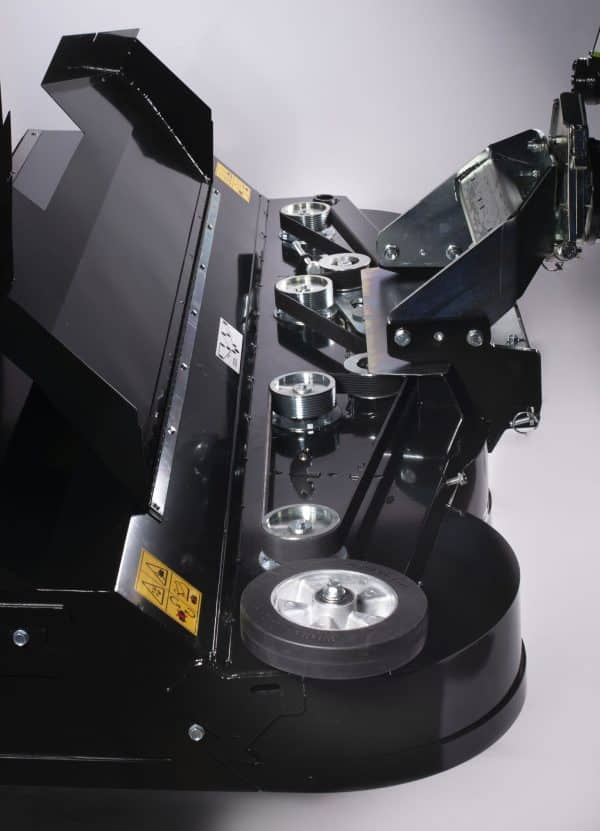

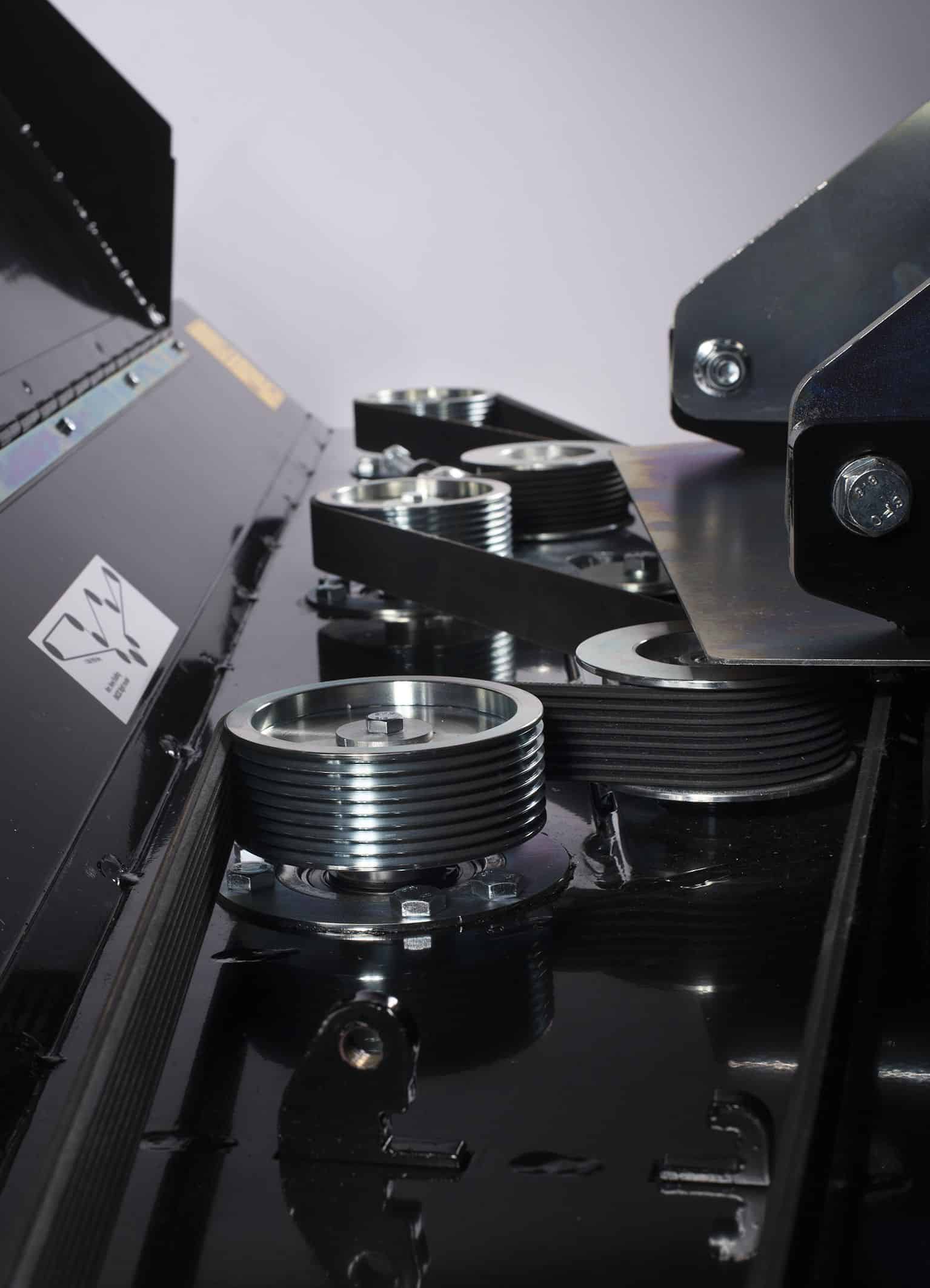

Power Band belt drive Standard equipment
Belt tightener Standard equipment
Blade system with double cutting depth Standard equipment

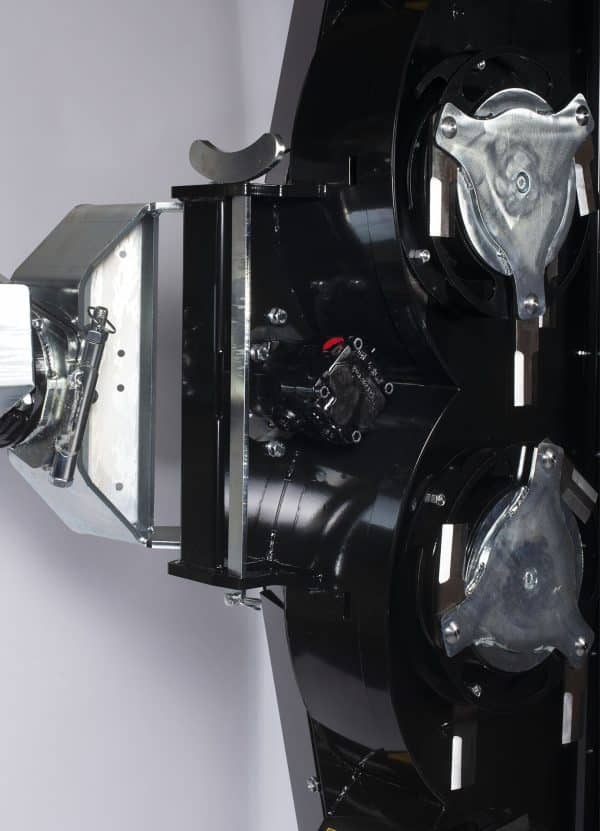

Free-swinging blades Standard equipment

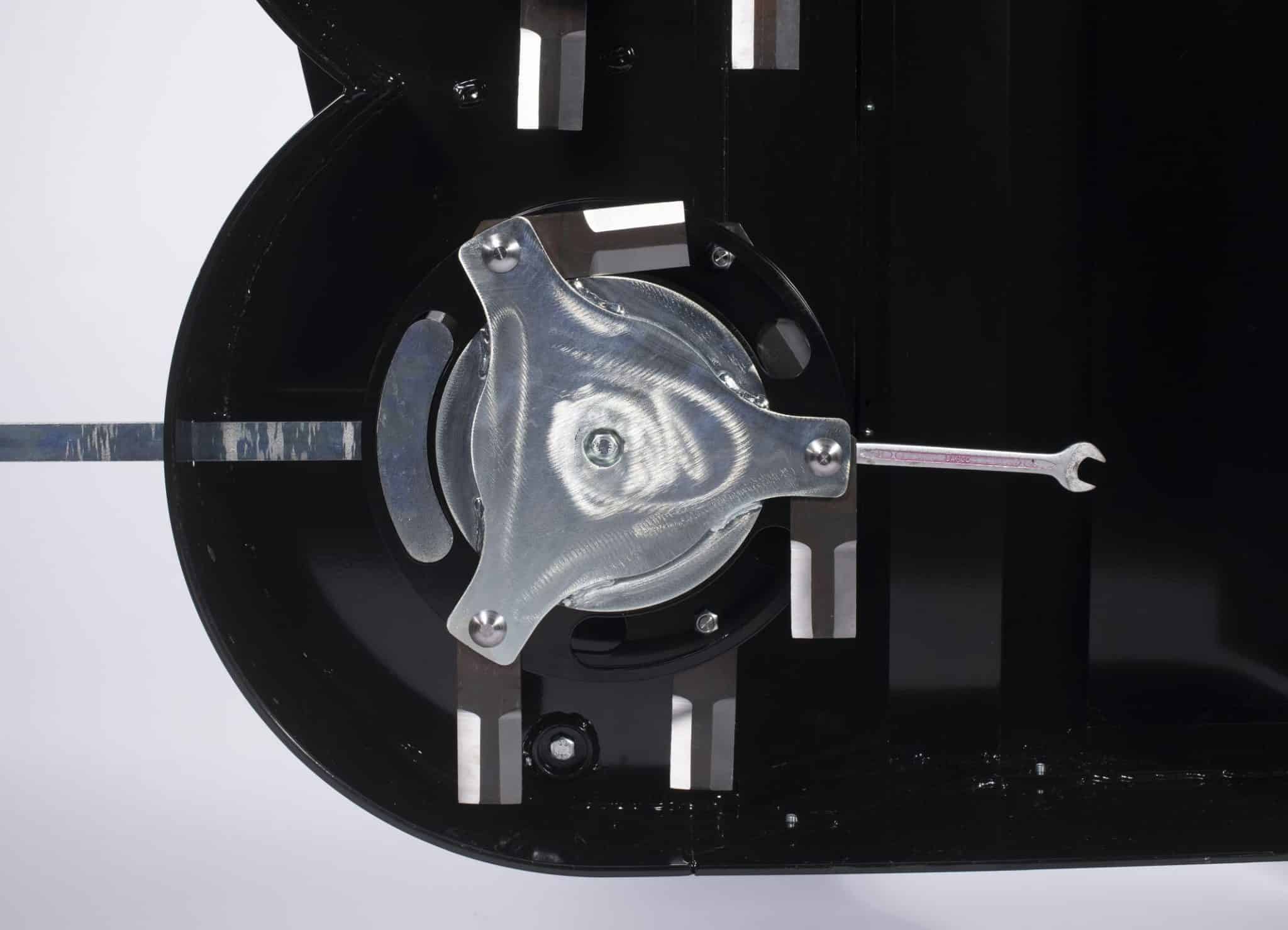

Tool for easy change of blades Standard equipment
Gradual cutting angle setting Standard equipment

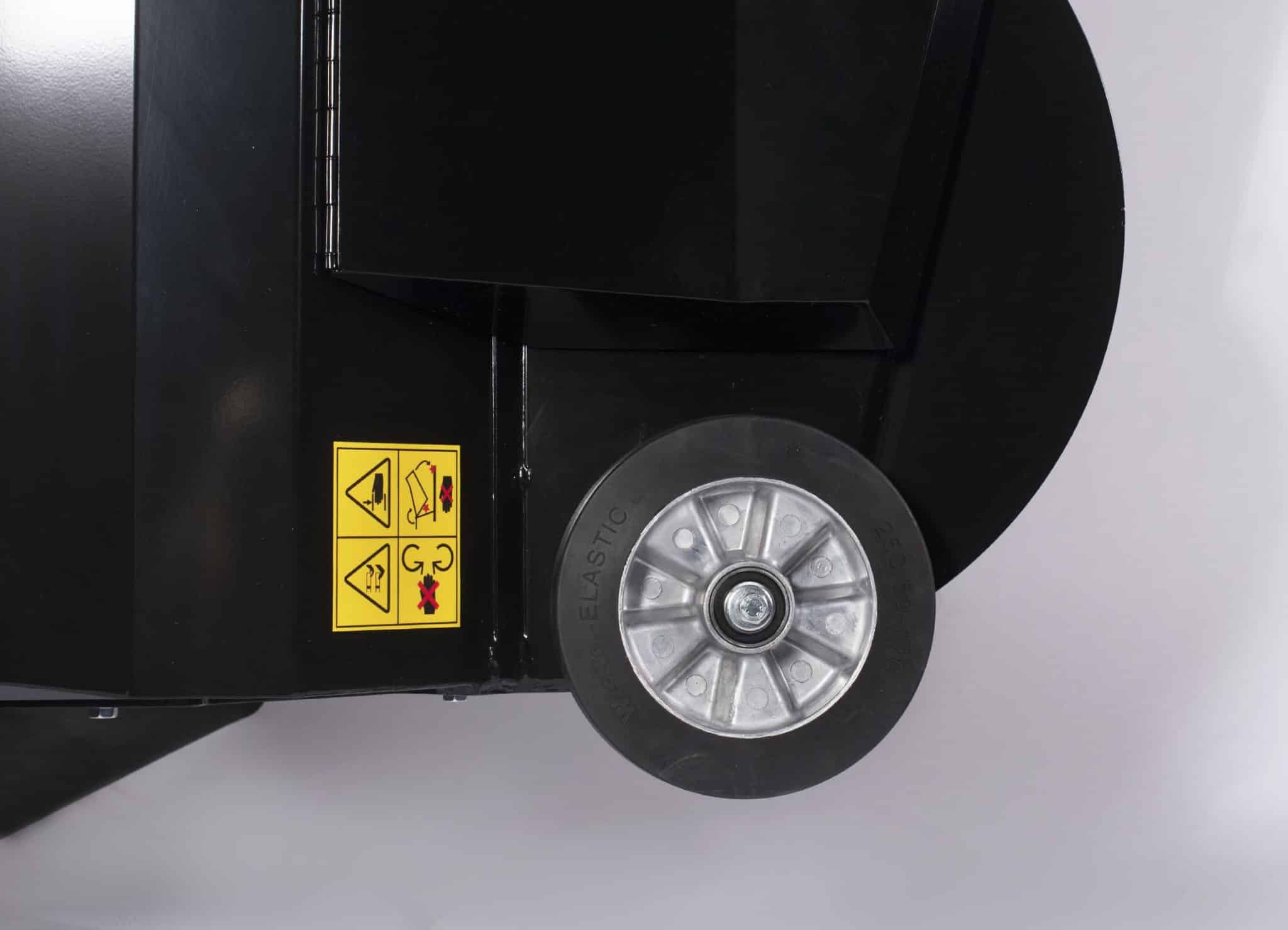

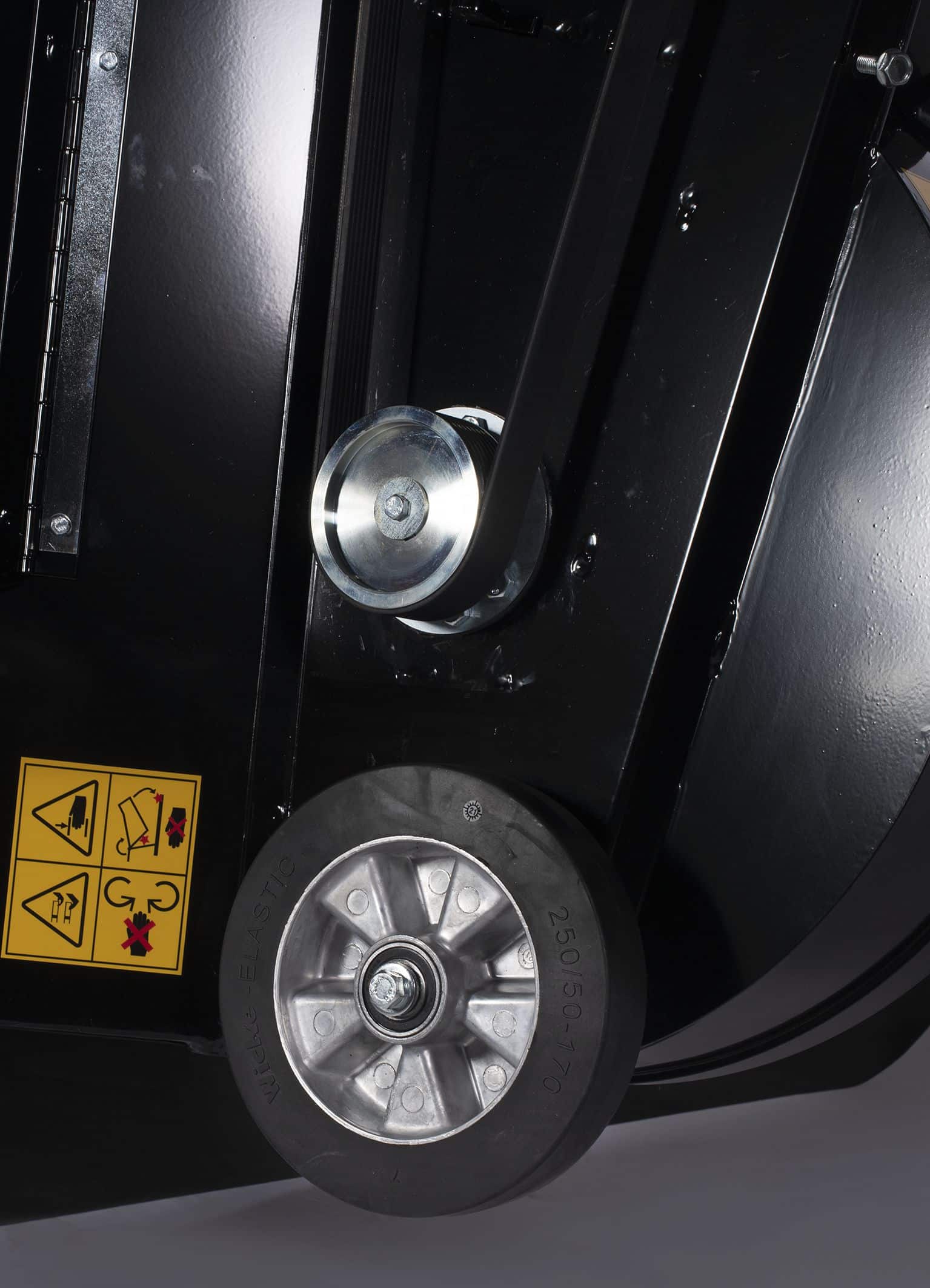

Support wheel Standard equipment
Rubber flap kit Standard equipment
Enforced body Standard equipment
Smooth surface Standard equipment

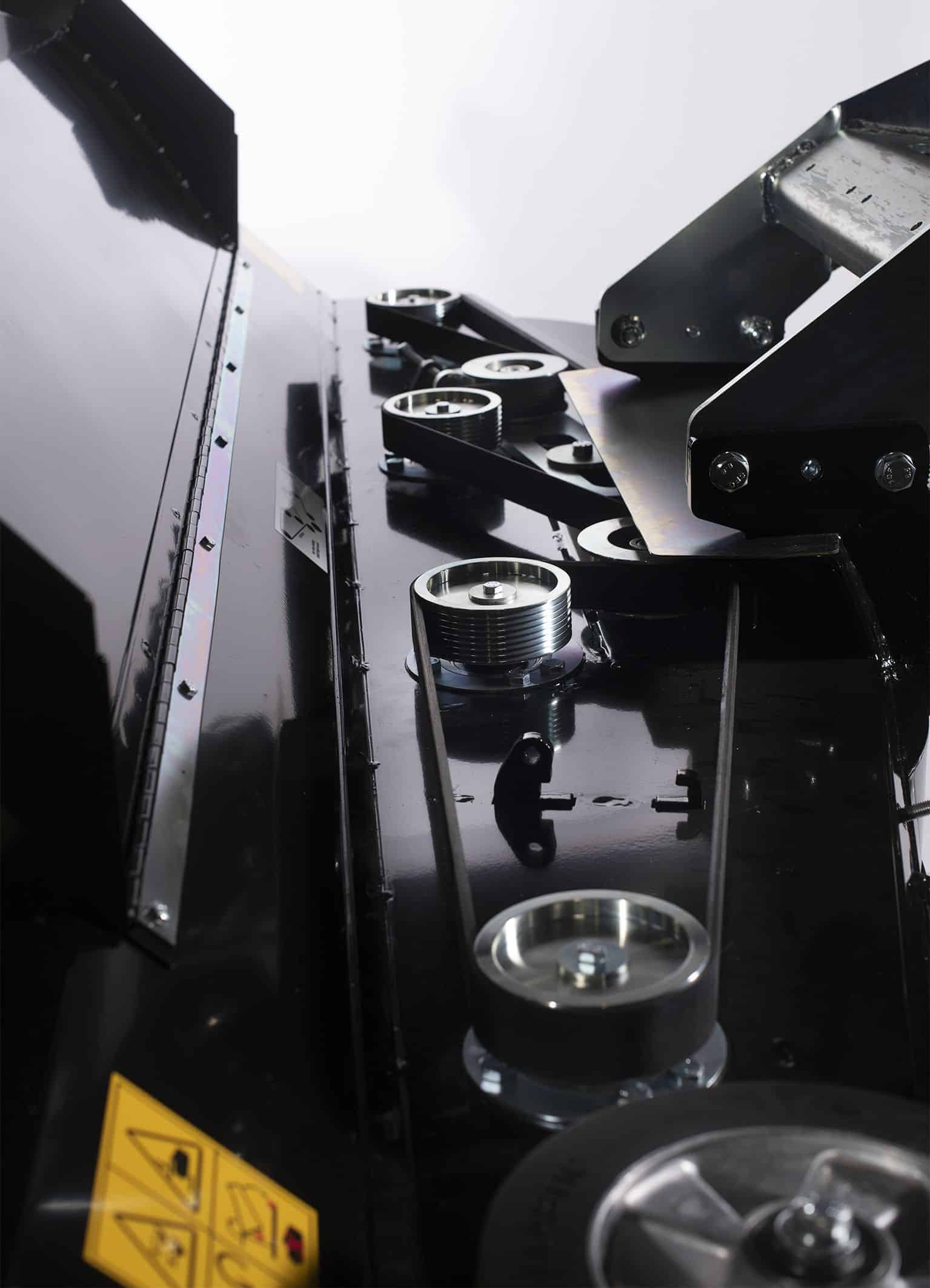

Easy access to the belt drive Standard equipment
Detachable lower cover when cutting vertically Standard equipment
Pressure relief valve Standard equipment
Anti-cavitation valve Standard equipment
Mechanical quick release Optional equipment
Hydraulic quick release Optional equipment
Standard equipment = Standard equipment,
Optional equipment = Optional equipment
Standard Equipment
Hydraulic motorBelt driveBelt tightenerEasy access to belt driveBlade system with double cutting depthFree-swinging bladesGradual cutting angle settingEasy change of bladesTool to change bladesRubber flap kitSupport wheelSmooth surfaceDetachable bottomEnforced body
Optional Equipment
OPTE1092.3Hydr. quick rel. RM 232 / SC 6-8S (OPTE1092.3)OPTE1093.3Hydr. quick rel. RM 232 / SC 6-8P (OPTE1093.3)OPTE3081.1Hydr. quick rel. RM 232 / Twiga MID (OPTE3081.1)OPTE3164Hydr. quick rel. RM232 / PRO-Flex (OPTE3164)
Brackets – click to enlarge the drawings
OPTE1096.3Quickcoupling mech. RM 232 / SC 6-8 S&P (OPTE1096.3)OPTE1097Adapter RM 232 / SC 6-8 P (OPTE1097)OPTE1098Adapter RM 232 / SC 6-8 S (OPTE1098)OPTE1098.1Adapter RM 232 / SC 6-8 S, rotorflex (OPTE1098.1)OPTE1208Adapter for RM 232 / Digger cw diverter (OPTE1208)OPTE3082Quickcoupling mech. RM 232 / Twiga (OPTE3082)OPTE4230Adapter RM 232 / Noremat cw divider (OPTE4230)OPTE4244Adapter RM 232 / Twiga Flex (OPTE4244)OPTE4246Adapter RM 232 / Twiga cw divider (OPTE4246)OPTE4248Adapter RM 232 / Dücker DUA cw divider (OPTE4248)OPTE4249Adapter RM 232 / Mulac without divider (OPTE4249)OPTE4250Adapter RM 232 / Mulac cw divider (OPTE4250)OPTE4252Adapter RM 232 / FM-Epoke cw divider (OPTE4252)OPTE4253Adapter RM 232 / Dücker UNA cw divider (OPTE4253)OPTE4256Adapter RM 232 / McConnel cw divider (OPTE4256)OPTE4265Adapter RM 232 / Hydrema cw divider (OPTE4265)”
