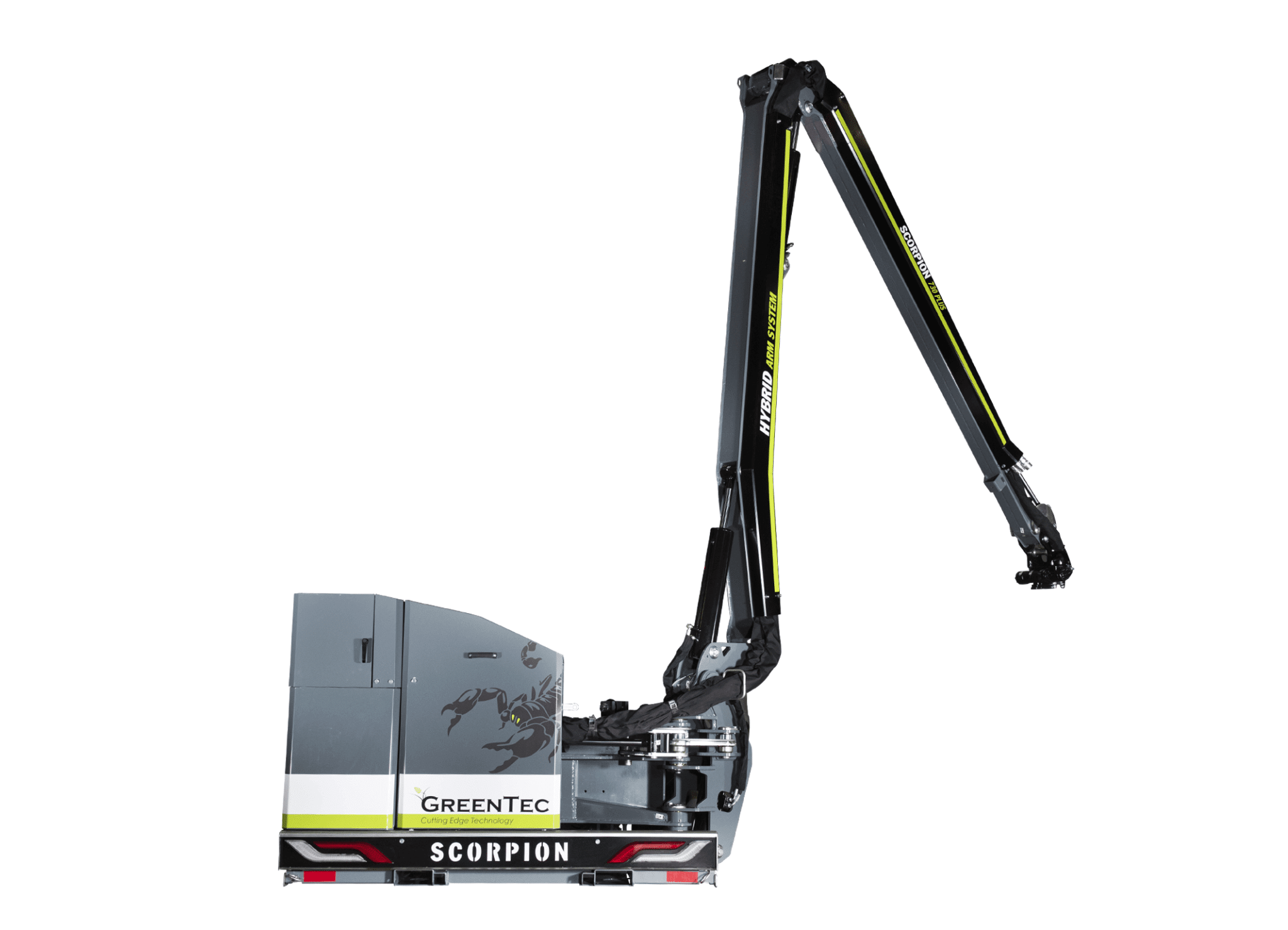

The Scorpion 730 PLUS is a professional boom mower used by municipalities, agricultural contractors, forest workers, and landscapers, is suitable for roadside maintenance, verge mowing, hedge cutting, and tree trimming, and is designed for large tractors with a weight of at least 7,000 kg (15,432 lb), using a four‑point mounting system on the mainframe for fast and reliable installation.
Recommended Uses of Scorpion 730 PLUS
The Scorpion 730 PLUS is engineered for high-performance vegetation management and large-scale operations. Recommended applications include:
- Roadside maintenance along highways, rural roads, and urban streets
- Verge mowing for bike paths, parks, and public green spaces
- Hedge cutting and shaping in agricultural, residential, and park environments
- Tree trimming and branch removal in forests, orchards, or urban areas
- Slope, ditch, and embankment maintenance for safety and visibility
- Agricultural hedgerow management and edge vegetation control
Equipped with Rotor Flex and Auto Flex for optimal operator visibility and cutting head positioning, a hybrid arm system, and strong Strenx 700 steel construction, the Scorpion 730 PLUS offers efficient, precise, and safe operation even in challenging or confined spaces.
Features Under the Hood
- Hybrid arm system – control the arm with or without parallel motion.
- Rotor Flex and Auto Flex – improves operator view and positioning of cutting head.
- 155° arm movement – hydraulic turn of the arm with Power Control.
- Danfoss joystick – 4 proportional functions.
- Air stream control – effective oil cooling.
- LED lights – visible from a long distance.
- Strenx 700 steel construction – high‑strength and durable steel.
- Hydraulic system – Danfoss 60 ccm piston pump.
Equipment Overview
Standard features included with the machine:
✔ Hybrid Arm System with dual function
✔ Strenx 700 steel construction
✔ 155° hydraulic turn of the arm with Power Control
✔ Rotor Flex, double pivot joint (270° turn of cutting head and 180° cutting angle)
✔ Auto Flex, automatic vertical positioning
✔ Danfoss proportional valve PVG 32/16
✔ Danfoss joystick with 4 proportional functions
✔ Two oil flows: 85 l/min and 50 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle
✔ Oil cooler
✔ Air Stream Control (effective oil cooling)
✔ 220 l (58.12 gal) oil tank capacity
✔ 4‑point mounting for Cat. 2 or 3
✔ PTO 450–750 rpm (rear mounted)
✔ Automatic Hydraulic Security (AHS)
✔ Transport safety
✔ LED lights
Optional equipment:
🔹 Auto Height Control (for verge mowing)*
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 Hose kit, 4 pieces for arm
🔹 K80 ball hitch for 4‑point mounting**
🔹 430 kg (948 lb) counterweights
🔹 Leaf Blower LG attached to boom mower
🔹 Bio oil
Attachment Tools (examples included on page)
The following tools can be fitted to the boom mower:
- Greentec Rotary Mulcher 232 – Cut and shred branches | Range: 2.3 m (7′ 7″) | Diameter up to 4 cm
- Greentec Hedge Cutter RC 162 – Cut and shred branches | Range: 1.6 m (5′ 3″) | Diameter up to 4 cm
- Greentec LRS 2002 Twinsaw – Smooth cut of branches | Range: 2.0 m (6′ 7″) | Diameter up to 16 cm
- Greentec LRS 2402 Twinsaw – Smooth cut of branches | Range: 2.4 m (7′ 10″) | Diameter up to 21 cm
- Greentec Cutterbar HL 212 – Hedge and tree trimmer | Range: 2.1 m (6′ 11″) | Diameter up to 6 cm
- Greentec Cutterbar HL 242 – Hedge and tree trimmer | Range: 2.4 m (7′ 10″) | Diameter up to 6 cm
Models
- 9992730R‑85P – Scorpion 730‑8 PLUS, rear mounted.
