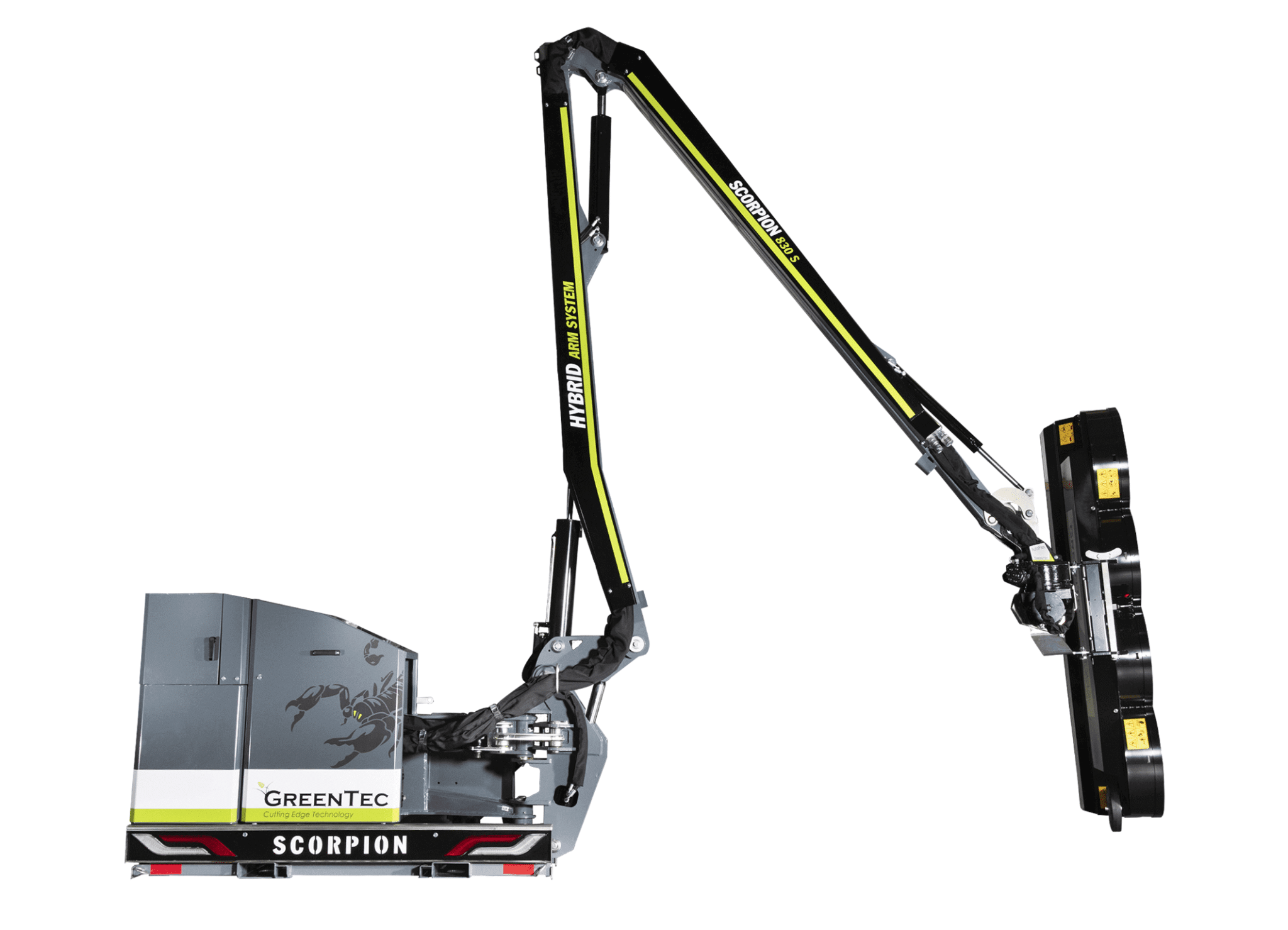

The Scorpion 830 S is a professional boom mower designed for municipalities, agricultural contractors, forest workers, and landscapers; is suitable for roadside maintenance, verge mowing, hedge cutting, and tree trimming; and is designed for large tractors weighing at least 8,000 kg (17,637 lb), using a four‑point mounting system on the mainframe for fast and reliable installation.
Recommended Uses of Scorpion 830 S
The Scorpion 830 S is designed for heavy-duty vegetation management and large-scale operations. Recommended applications include:
- Roadside maintenance along highways, rural roads, and urban streets
- Verge mowing for bike paths, parks, and public green areas
- Hedge cutting and shaping in agricultural, residential, and park environments
- Tree trimming, branch removal, and general arboricultural work
- Maintenance of slopes, ditches, and embankments for safety and visibility
- Management of hedgerows and edge vegetation in agricultural settings
With its hybrid arm system, Strenx 700 steel construction, and 155° hydraulic arm movement, the Scorpion 830 S provides efficient, precise, and safe operation, even in challenging or confined spaces.
Features Under the Hood
- Roadside maintenance along highways, rural roads, and urban streets
- Verge mowing for bike paths, parks, and public green areas
- Hedge cutting and shaping in agricultural, residential, and park environments
- Tree trimming, branch removal, and general arboricultural work
- Maintenance of slopes, ditches, and embankments for safety and visibility
- Management of hedgerows and edge vegetation in agricultural settings
Equipment Overview
Standard features included with the machine:
✔ Hybrid Arm System with dual function
✔ Strenx 700 steel construction
✔ 155° hydraulic turn of the arm with power control
✔ Danfoss proportional valve PVG 32/16
✔ Danfoss joystick with 4 proportional functions
✔ Two oil flows: 85 l/min and 50 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle
✔ Oil cooler
✔ Air Stream Control (effective oil cooling)
✔ 220 l (58.12 gal) oil tank capacity
✔ 4‑point mounting for Cat. 2 or 3
✔ PTO 450–850 rpm (rear mounted)
✔ Automatic Hydraulic Security (AHS)
✔ Transport safety
✔ LED lights
Optional equipment:
🔹 Auto Height Control (for verge mowing)*
🔹 Rotor Flex, double pivot joint (270° turn of cutting head & 180° cutting angle)*
🔹 Auto Flex, automatic vertical positioning*
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 Hose kit, 4 pieces for arm
🔹 K80 ball hitch for 4‑point mounting**
🔹 430 kg (948 lb) counterweights
🔹 Leaf Blower LG attached to boom mower
🔹 Bio oil
Attachment Tools (examples included on page)
The following tools can be fitted to the boom mower:
- Greentec Rotary Mulcher 232 – Cut and shred branches | Range: 2.3 m (7′ 7″) | Diameter up to 4 cm
- Greentec Hedge Cutter RC 162 – Cut and shred branches | Range: 1.6 m (5′ 3″) | Diameter up to 4 cm
- Greentec LRS 2002 Twinsaw – Smooth cut of branches | Range: 2.0 m (6′ 7″) | Diameter up to 16 cm
- Greentec LRS 2402 Twinsaw – Smooth cut of branches | Range: 2.4 m (7′ 10″) | Diameter up to 21 cm
- Greentec Cutterbar HL 212 – Hedge and tree trimmer | Range: 2.1 m (6′ 11″) | Diameter up to 6 cm
- Greentec Cutterbar HL 242 – Hedge and tree trimmer | Range: 2.4 m (7′ 10″) | Diameter up to 6 cm
Models
- 9992830R‑85S – Scorpion 830‑8 S, rear mounted.
