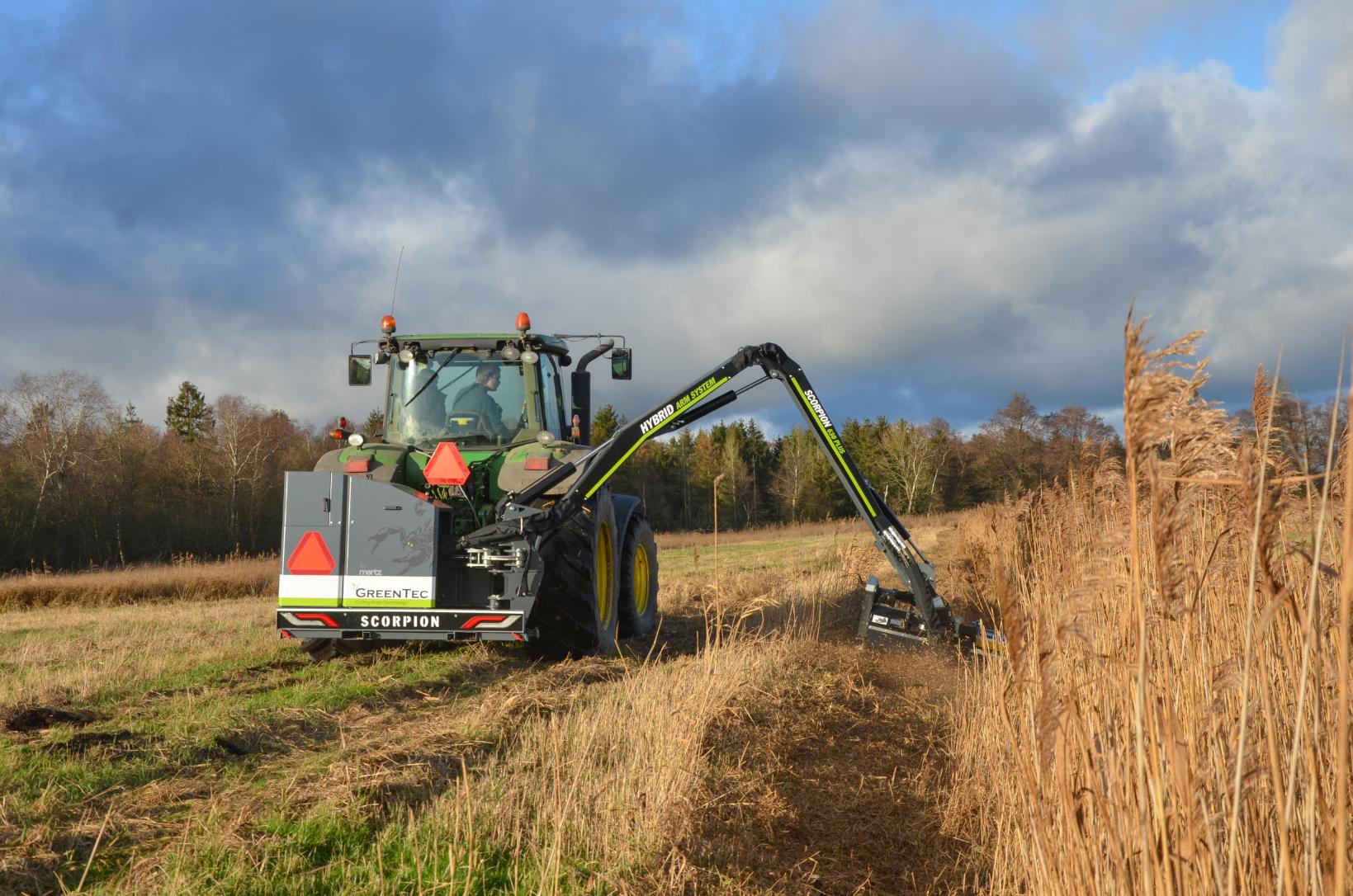

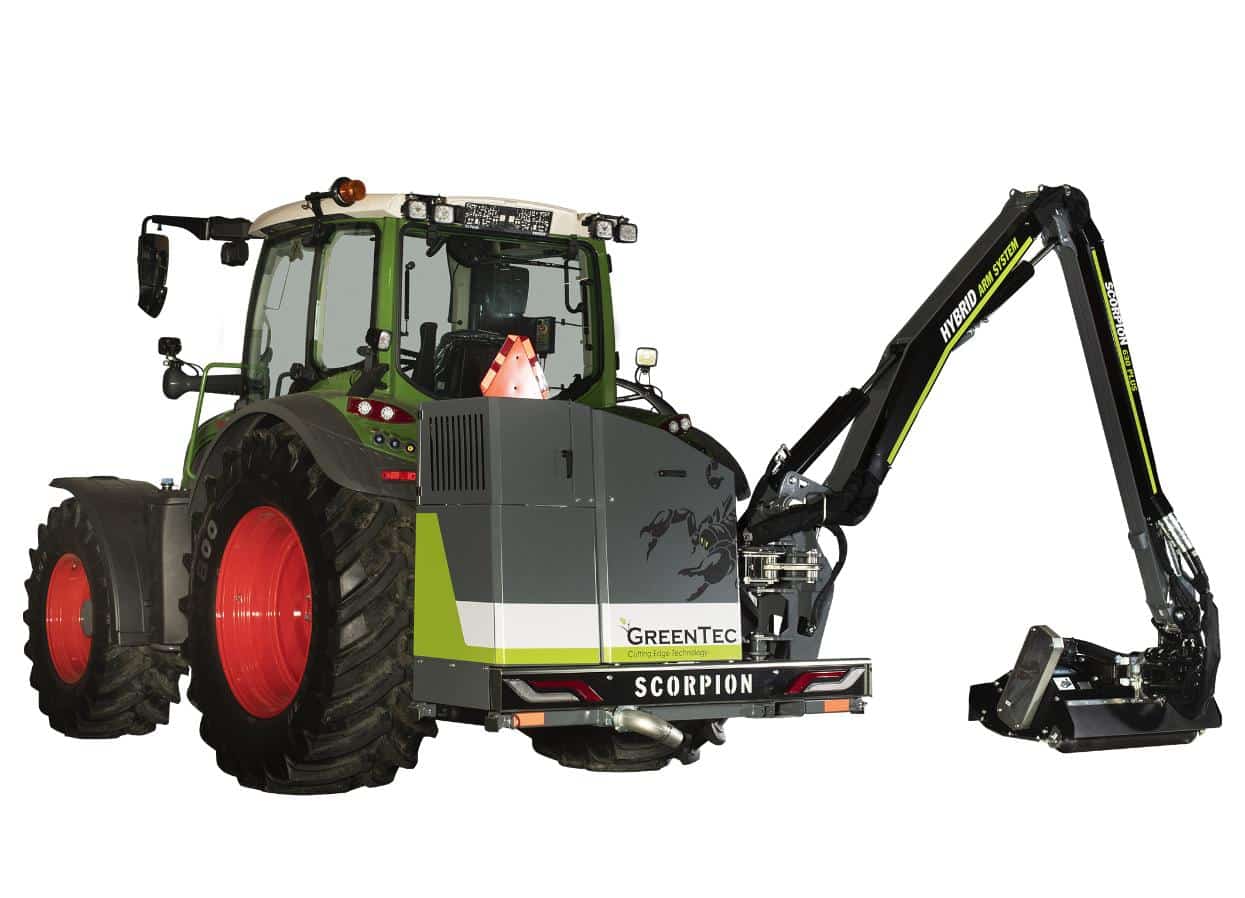

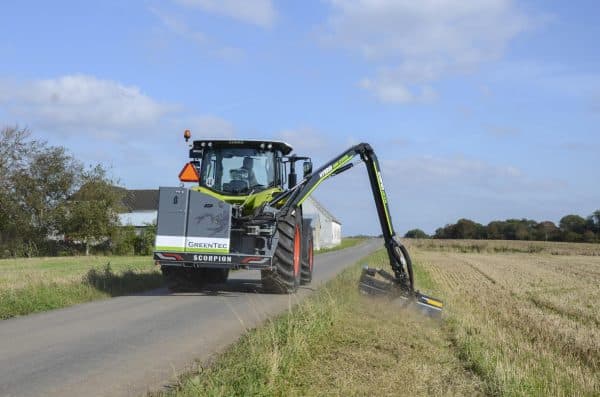

The Scorpion 630 PLUS is a professional boom mower used by municipalities, agricultural contractors, forest workers, and landscapers, is suitable for roadside maintenance, verge mowing, hedge cutting, and tree trimming, and is designed for medium-sized tractors with a minimum operating weight of 5,000 kg (11,023 lb), using a four-point mounting system on the mainframe for fast and reliable installation.
Recommended Uses of Scorpion 630 PLUS
The Scorpion 630 PLUS is designed for demanding professional vegetation management, providing long reach, precision control, and versatility for medium-sized tractors. Recommended applications include:
- Roadside maintenance along highways, rural roads, and embankments

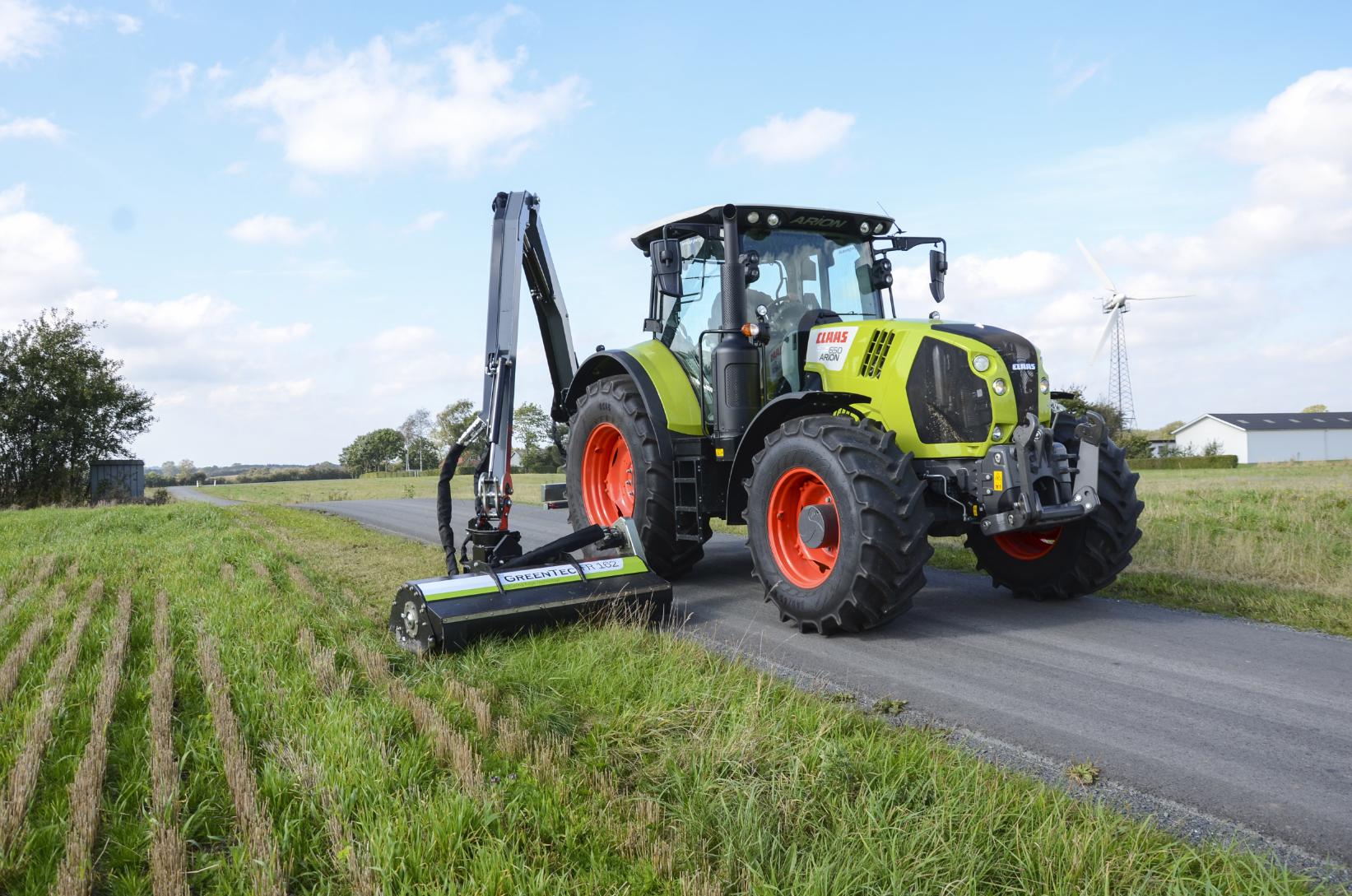

- Verge mowing along cycle paths, sidewalks, and public areas

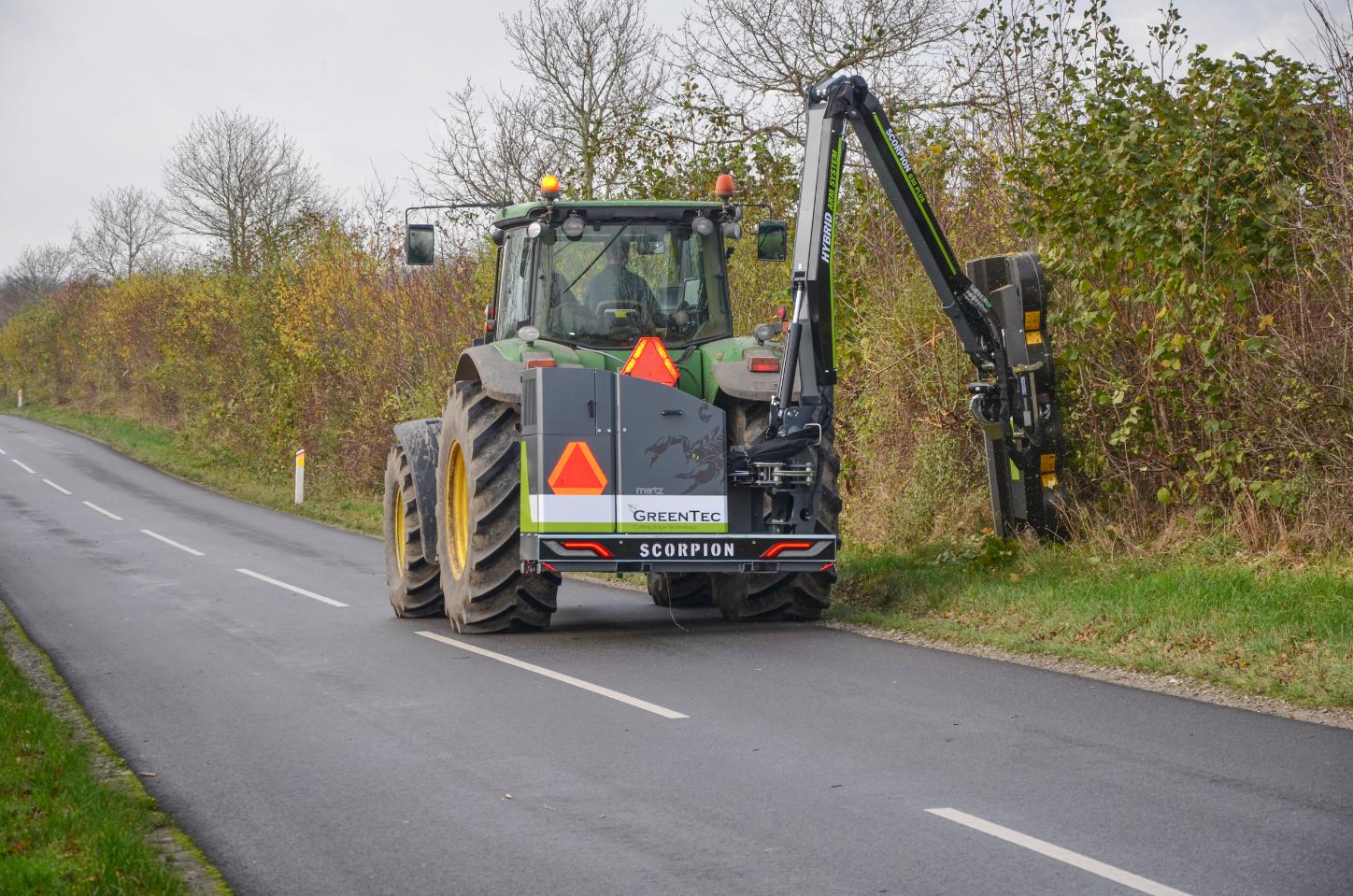

- Hedge cutting and shaping in parks, residential zones, and estates
- Tree trimming and branch removal in forested or urban areas
- Maintenance of ditches, slopes, and field boundaries
- Agricultural hedgerow management and field-edge vegetation control
With features such as Rotor Flex, Auto Flex, and a hybrid arm system, the Scorpion 630 PLUS allows safe, efficient, and precise work even in restricted spaces or near obstacles, ensuring professional-grade performance in a variety of terrains and conditions.
Features Under the Hood
- Hybrid arm system – control the arm with or without parallel motion
- Rotor Flex – 270° turn of cutting head and 180° cutting angle.
- Auto Flex – automatic vertical positioning.
- Danfoss joystick – 4 proportional functions.
- Air Stream Control – effective oil cooling.
- LED lights – visible from a long distance.
- 155° hydraulic turn of the arm with Power Control.
- Strenx 700 steel construction – high-strength durable steel.
- Hydraulic system – Danfoss 60 ccm piston pump.
Equipment Overview
Standard features included with the machine:
✔ Hybrid Arm System with dual function
✔ Strenx 700 steel construction
✔ 155° hydraulic turn of arm with power control
✔ Rotor Flex, double pivot joint (270° turn of cutting head and 180° cutting angle)
✔ Auto Flex, automatic vertical positioning

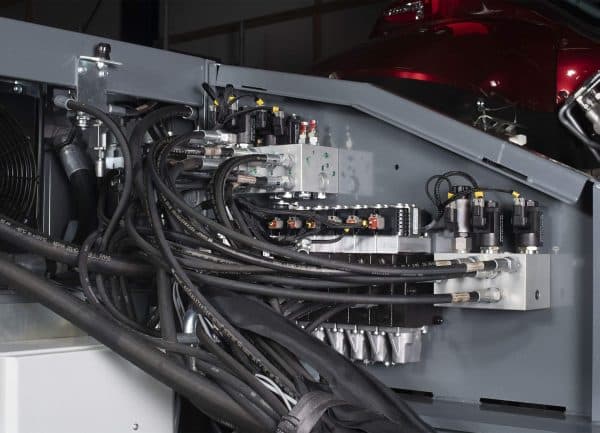

✔ Danfoss proportional valve PVG 32/16
✔ Danfoss joystick with 4 proportional functions
✔ Two oil flows: 85 l/min and 50 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle

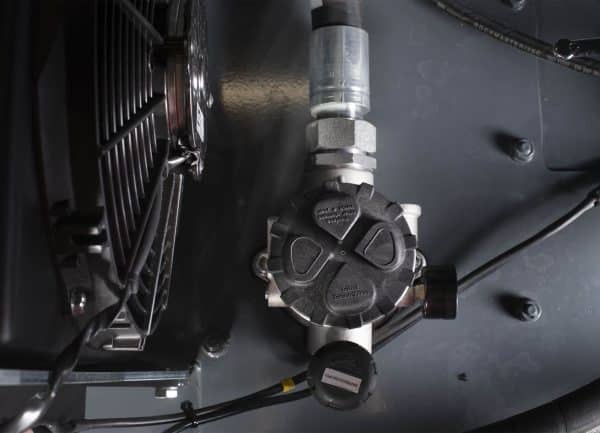

✔ Oil cooler
✔ Air Stream Control (effective oil cooling)
✔ 220 l (58.12 gal) oil tank capacity

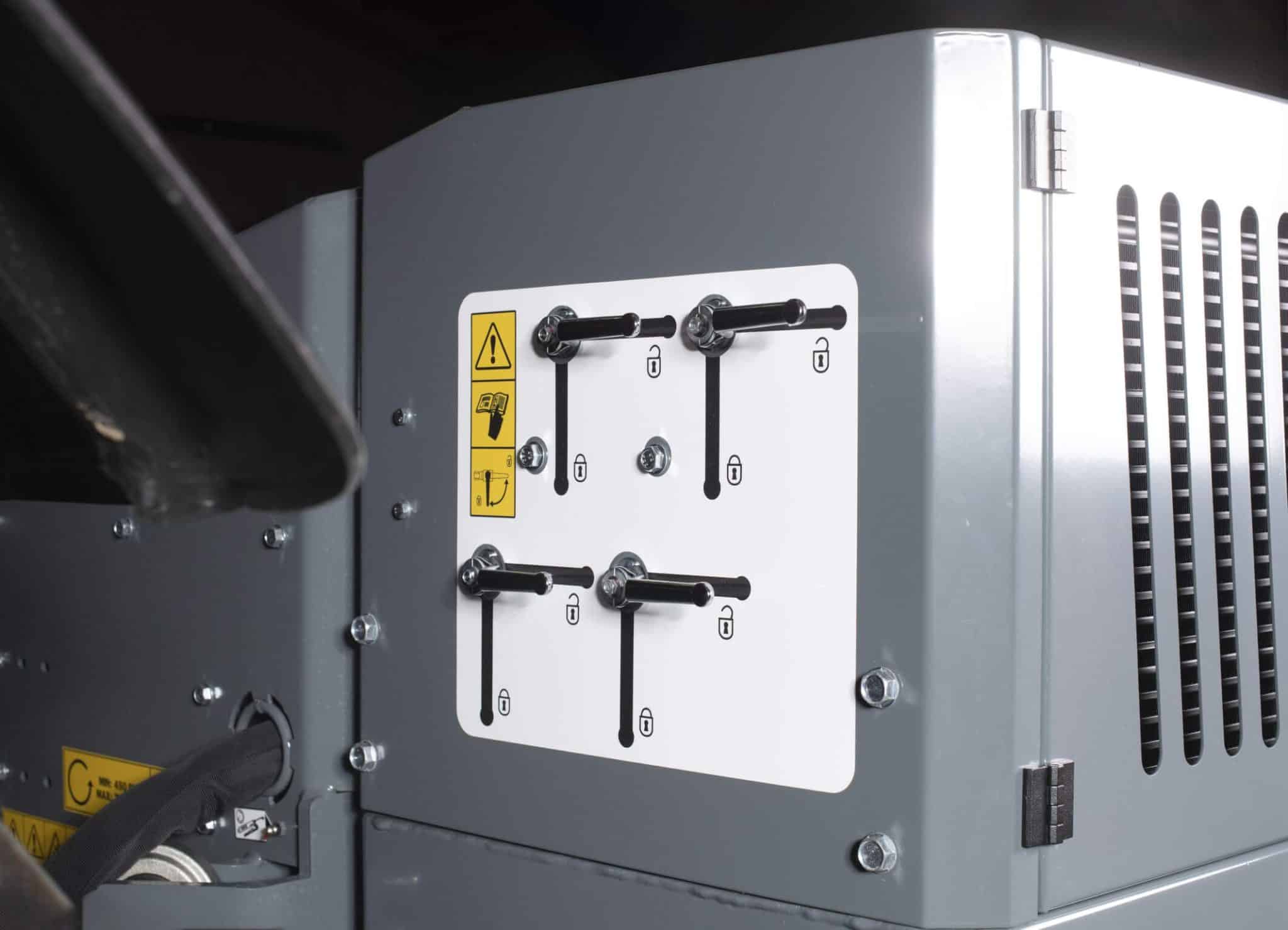

✔ 4-point mounting for Cat. 2 or 3
✔ PTO 450–750 rpm (rear mounted)
✔ Automatic Hydraulic Security (AHS)

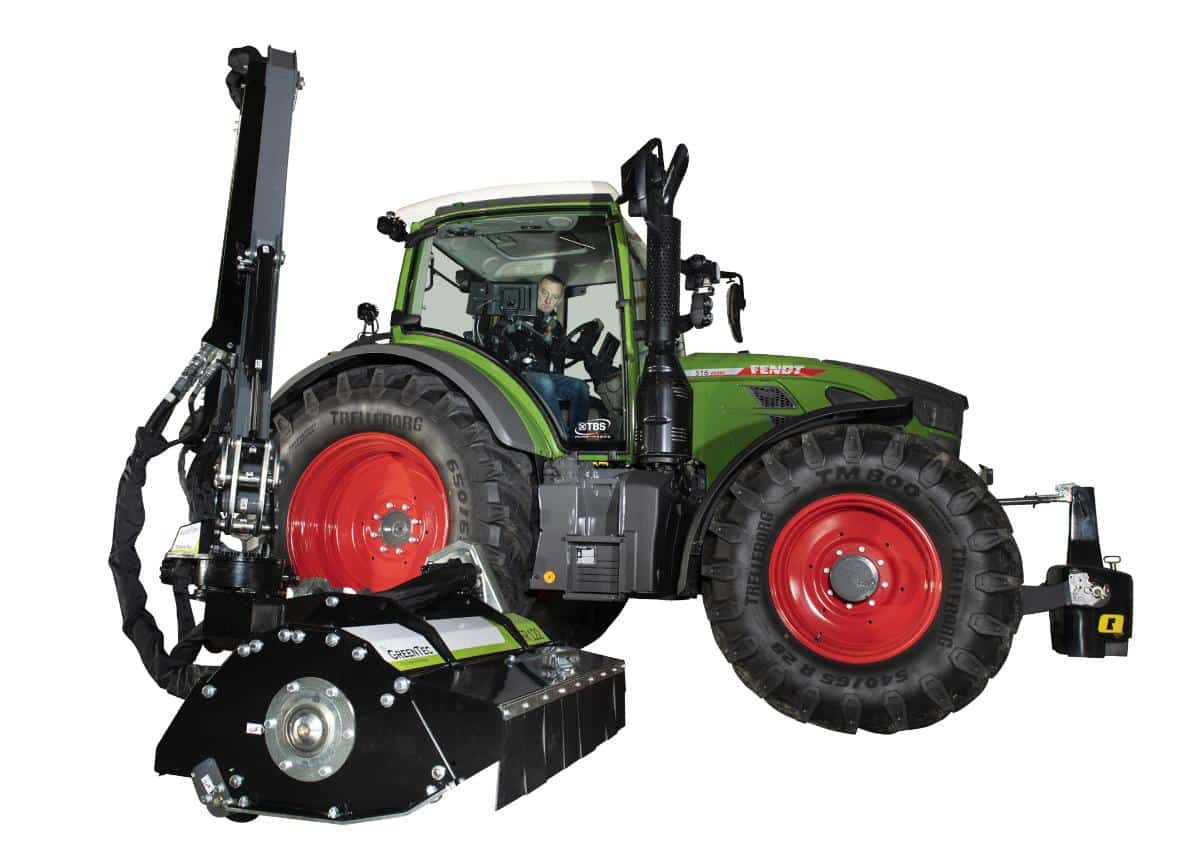

✔ Transport safety
✔ LED lights
Optional equipment:
🔹 Auto Height Control (for verge mowing)*
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 Hose kit, 4 pieces for arm
🔹 K80 ball hitch for 4-point mounting**
🔹 430 kg (948 lb) counterweights
🔹 Leaf Blower LG attached to boom mower
🔹 Bio oil
Attachment Tools (examples included on page)
The following tools can be fitted to the boom mower:
- Greentec Rotary Mulcher 232 – Cut and shred branches | Range: 2.3 m (7′ 7″) | Diameter up to 4 cm
- Greentec Hedge Cutter RC 162 – Cut and shred branches | Range: 1.6 m (5′ 3″) | Diameter up to 4 cm
- Greentec LRS 2002 Twinsaw – Smooth cut of branches | Range: 2.0 m (6′ 7″) | Diameter up to 16 cm
- Greentec LRS 2402 Twinsaw – Smooth cut of branches | Range: 2.4 m (7′ 10″) | Diameter up to 21 cm
- Greentec Cutterbar HL 212 – Hedge and tree trimmer | Range: 2.1 m (6′ 11″) | Diameter up to 6 cm
- Greentec Cutterbar HL 242 – Hedge and tree trimmer | Range: 2.4 m (7′ 10″) | Diameter up to 6 cm
Models
- 9992630R-85P – Scorpion 630-6 PLUS, rear mounted.
