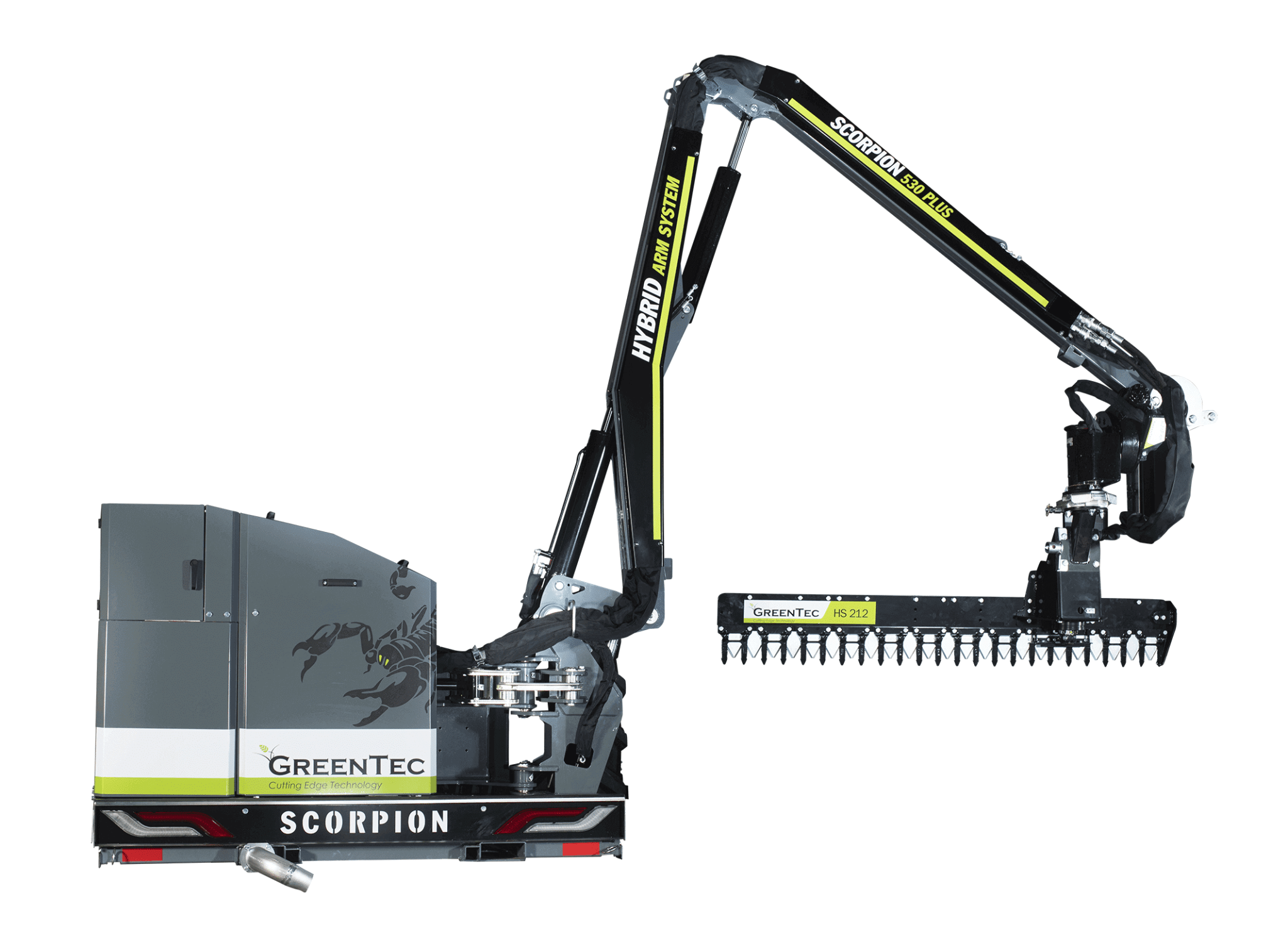

The Scorpion 530 PLUS is a professional boom mower used by municipalities, agricultural contractors, forest workers, and landscapers; is suitable for roadside maintenance, verge mowing, hedge cutting, and tree trimming; and is designed for medium‑sized tractors weighing at least 4,000 kg (8,819 lb), using a four‑point mounting system on the mainframe for fast and reliable installation.
Recommended Uses of Scorpion 530 PLUS
The Scorpion 530 PLUS is designed for high-capacity, professional vegetation management where powerful hydraulics and long reach are required. It is ideally suited for:
- Roadside and verge mowing for municipalities and road maintenance contractors
- Hedge cutting and large-scale hedge maintenance along roads, fields, and property boundaries
- Trimming trees and overhanging branches along roads, forest tracks, and utility corridors
- Maintenance of embankments, ditches, and sloped roadside areas
- Agricultural field edge and hedgerow maintenance
- Forestry and access-road vegetation control
- 155° hydraulic turn of the arm with Power Control.
- Heavy-duty use with larger cutting and pruning attachments, such as branch cutters and hedge-and-tree trimmers
With its high-pressure hydraulic system, long working reach, and advanced head positioning (Rotor Flex and Auto Flex), the Scorpion 530 PLUS is especially recommended for demanding, continuous professional operations on medium-sized tractors.
Features Under the Hood
- Hybrid arm system – control the arm with or without parallel motion.
- Rotor Flex – 270° turn of cutting head and 180° cutting angle.
- Auto Flex – automatic vertical positioning.
- Danfoss joystick – 4 proportional functions.
- Air Stream Control – effective oil cooling.
- LED lights – visible from a long distance.
- 155° hydraulic turn of the arm with Power Control.
- Strenx 700 steel construction – high‑strength durable steel.
Equipment Overview
Standard features included with the machine:
✔ Hybrid Arm System with dual function
✔ Strenx 700 steel construction
✔ 155° hydraulic turn of the arm with power control
✔ Rotor Flex, double pivot joint (270° turn of cutting head and 180° cutting angle)
✔ Auto Flex, automatic vertical positioning
✔ Danfoss proportional valve PVG 32/16
✔ Danfoss joystick with 4 proportional functions
✔ Two oil flows: 85 l/min and 50 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle
✔ Oil cooler
✔ Air Stream Control (effective oil cooling)
✔ 220 l (58.12 gal) oil tank capacity
✔ 4‑point mounting for Cat. 2 or 3
✔ PTO 450–750 rpm (rear mounted)
✔ Automatic Hydraulic Security (AHS)
✔ Transport safety
✔ LED lights
Optional equipment:
🔹 Auto Height Control (for verge mowing)*
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 Hose kit, 4 pieces for arm
🔹 K80 ball hitch for 4‑point mounting**
🔹 430 kg (948 lb) counterweights
🔹 Leaf Blower LG attached to boom mower
🔹 Bio
Attachment Tools (examples included on page)
The following tools can be fitted to the boom mower:
- Greentec Rotary Mulcher 232 – Cut and shred branches | Range: 2.3 m (7′ 7″) | Diameter up to 4 cm
- Greentec Hedge Cutter RC 162 – Cut and shred branches | Range: 1.6 m (5′ 3″) | Diameter up to 4 cm
- Greentec LRS 2002 Twinsaw – Smooth cut of branches | Range: 2.0 m (6′ 7″) | Diameter up to 16 cm
- Greentec LRS 2402 Twinsaw – Smooth cut of branches | Range: 2.4 m (7′ 10″) | Diameter up to 21 cm
- Greentec Cutterbar HL 212 – Hedge and tree trimmer | Range: 2.1 m (6′ 11″) | Diameter up to 6 cm
- Greentec Cutterbar HL 242 – Hedge and tree trimmer | Range: 2.4 m (7′ 10″) | Diameter up to 6 cm
Models
- 9992530R‑85P – Scorpion 530‑6 PLUS, rear mounted.
