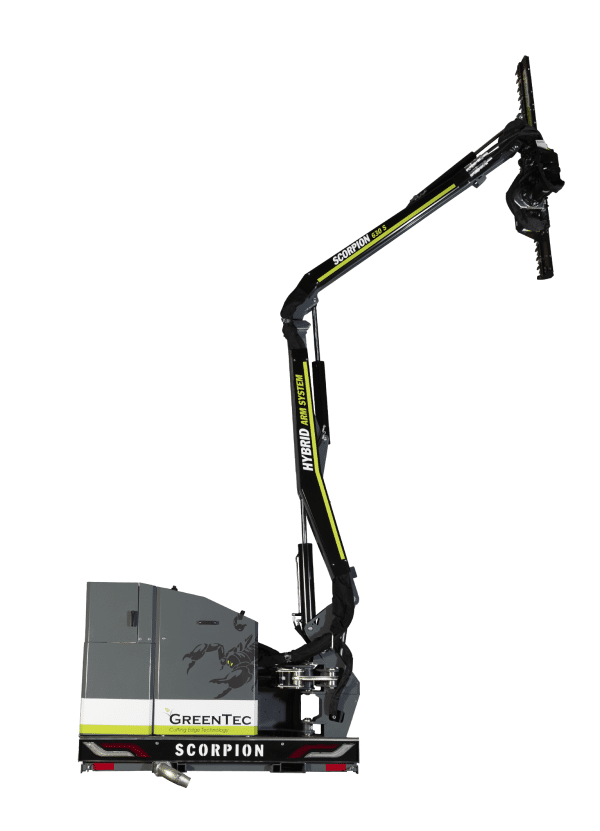

The Scorpion 630 S is a professional boom mower designed for municipalities, agricultural contractors, forest workers, and landscapers; is suitable for roadside maintenance, verge mowing, hedge cutting, and tree trimming; and is designed for medium-sized tractors weighing at least 5,000 kg (11,023 lb), using a four-point mounting system on the mainframe for fast and reliable installation.
Recommended Uses of Scorpion 630 S
The Scorpion 630 S is engineered for professional vegetation management in demanding environments, providing long reach and precision control for large-scale operations. It is especially suited for:
- Roadside maintenance along highways, rural roads, and embankments
- Verge mowing along cycle paths, sidewalks, and public areas
- Hedge cutting and shaping in parks, residential zones, and estates
- Tree trimming and branch removal in forested or urban areas
- Maintenance of ditches, slopes, and field boundaries
- Agricultural hedgerow management and field-edge vegetation control
With its extended reach, front or rear mounting flexibility, and hybrid arm system, the Scorpion 630 S ensures safe, efficient, and precise work in areas with limited space or challenging terrain, while maintaining visibility and control close to obstacles, traffic, and sensitive areas.
Features Under the Hood
- Hybrid arm system – control the arm with or without parallel motion.
- 4-point mounting – easy installation that provides full stability.
- Danfoss joystick – 4 proportional functions.
- Air stream control – effective oil cooling.
- LED lights – visibility from a long distance.
- 155° hydraulic turn of the arm with Power Control.
- Strenx 700 steel construction – high-strength and durable steel.
- Hydraulic system supplied by vehicle.
Equipment Overview
Standard features included with the machine:
✔ Hybrid Arm System with dual function
✔ Strenx 700 steel construction
✔ 155° hydraulic turn of the arm with power control
✔ Danfoss proportional valve PVG 32/16
✔ Danfoss joystick with 4 proportional functions
✔ Two oil flows: 85 l/min and 50 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle
✔ Oil cooler
✔ Air Stream Control (effective oil cooling)
✔ 220 l (58.12 gal) oil tank capacity
✔ 4-point mounting for Cat. 2 or 3
✔ PTO 450–850 rpm (rear mounted)
✔ Automatic Hydraulic Security (AHS)
✔ Transport safety
✔ LED lights
Optional equipment:
🔹 Auto Height Control (for verge mowing)*
🔹 Rotor Flex, double pivot joint (270° turn of cutting head & 180° cutting angle)*
🔹 Auto Flex, automatic vertical positioning*
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 Hose kit, 4 pieces for arm
🔹 K80 ball hitch for 4-point mounting**
🔹 430 kg (948 lb) counterweights
🔹 Leaf Blower LG attached to the boom mower
🔹 Bio oil
Attachment Tools (examples included on page)
The following tools can be fitted to the boom mower:
- Greentec Rotary Mulcher 232 – Cut and shred branches | Range: 2.3 m (7′ 7″) | Diameter up to 4 cm
- Greentec Hedge Cutter RC 162 – Cut and shred branches | Range: 1.6 m (5′ 3″) | Diameter up to 4 cm
- Greentec LRS 2002 Twinsaw – Smooth cut of branches | Range: 2.0 m (6′ 7″) | Diameter up to 16 cm
- Greentec LRS 2402 Twinsaw – Smooth cut of branches | Range: 2.4 m (7′ 10″) | Diameter up to 21 cm
- Greentec Cutterbar HL 212 – Hedge and tree trimmer | Range: 2.1 m (6′ 11″) | Diameter up to 6 cm
- Greentec Cutterbar HL 242 – Hedge and tree trimmer | Range: 2.4 m (7′ 10″) | Diameter up to 6 cm
Models
- 9992630R-85S – Scorpion 630-6 S, rear mounted.
