Greentec RI60 Barrier Mower

Greentec RI60 Barrier Mower

The Barrier Mower RI 60 & 80 is the ideal solution for maintenance of fence lines, guardrails, orchards and vineyards. The fence line mower goes around every obstacle whether that be fence posts, crash barriers or trees.

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

Thanks for downloading

Before your download begins, please fill out the form below.

Product Details:

  • Anti-scalping protection disc
  • Good ground following capability
  • Adjustable spiral springs for the plate
  • Rubber protection around the disc
  • Two blades perform a uniform cutting result

The Greentec RI 60 Barrier Mower  has a working width of 0.6m,  a maximum driving speed of 3 km/h (1.86 mph) &weight of  45kg.

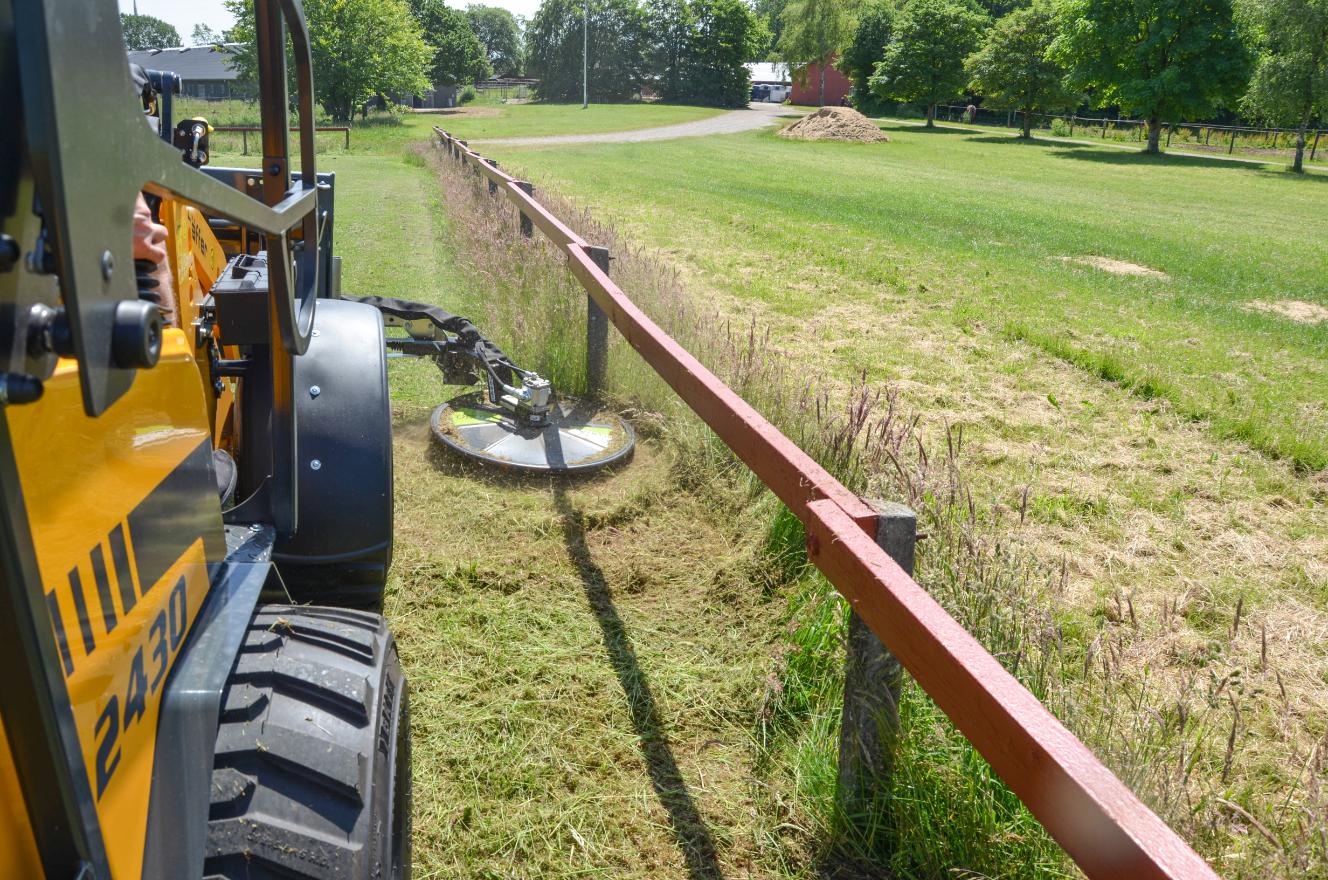

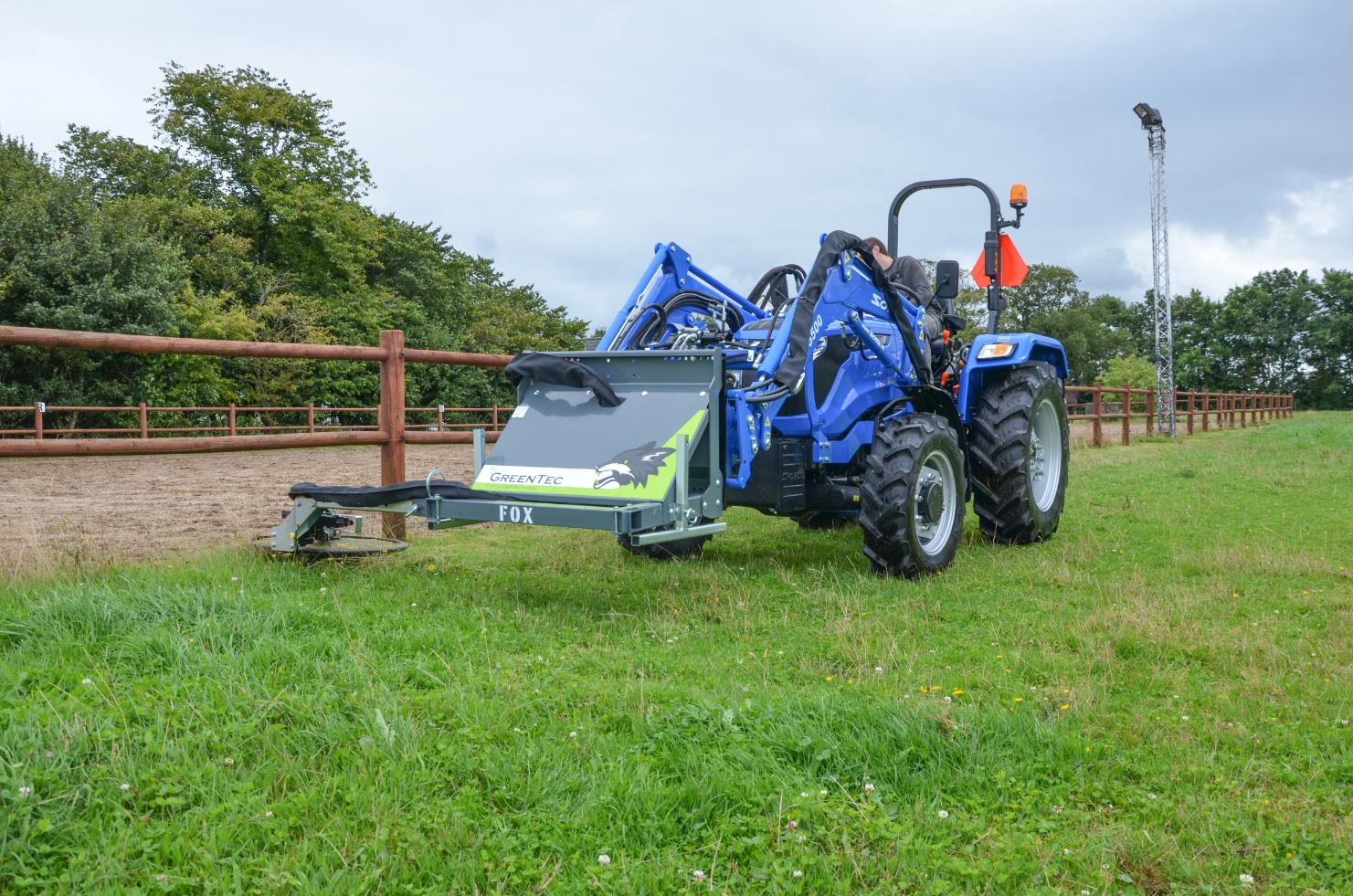

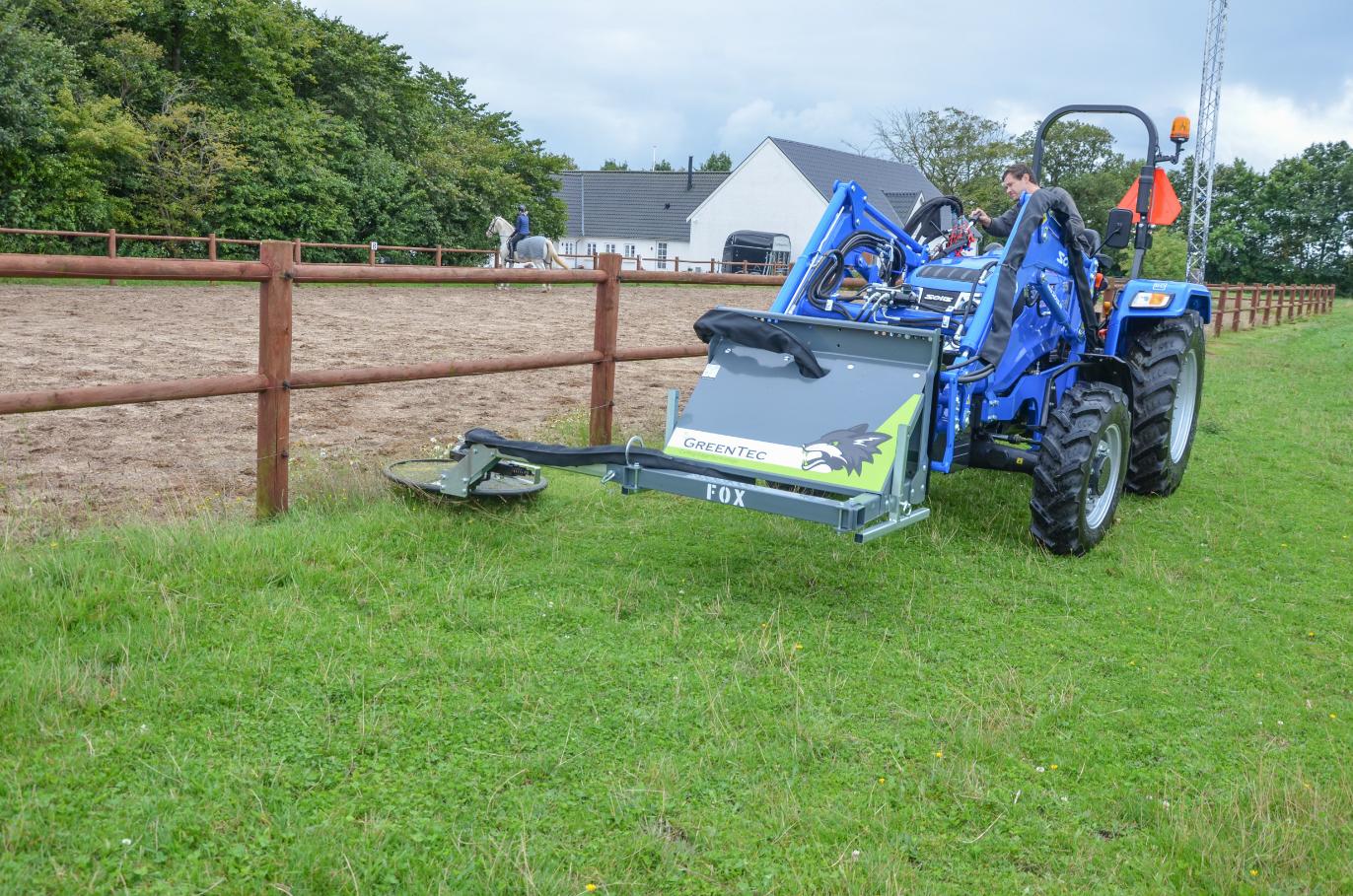

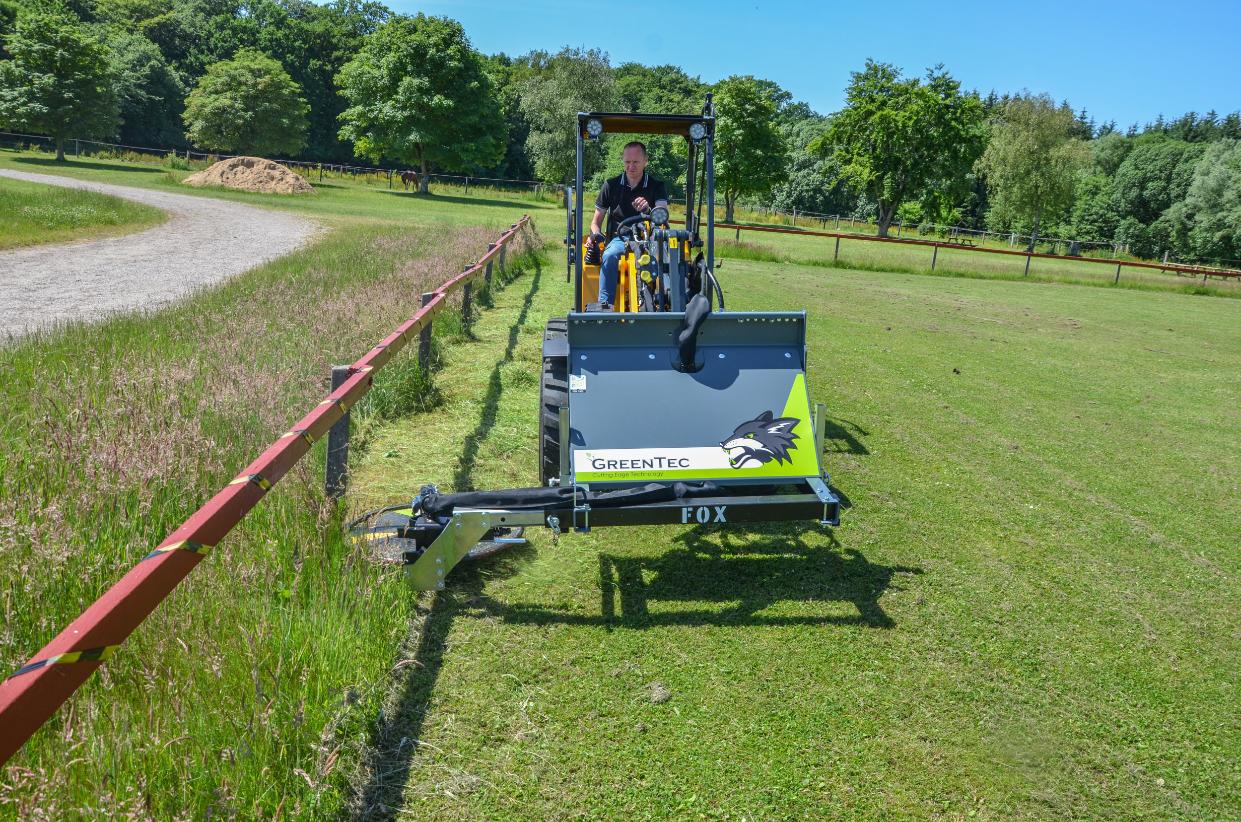

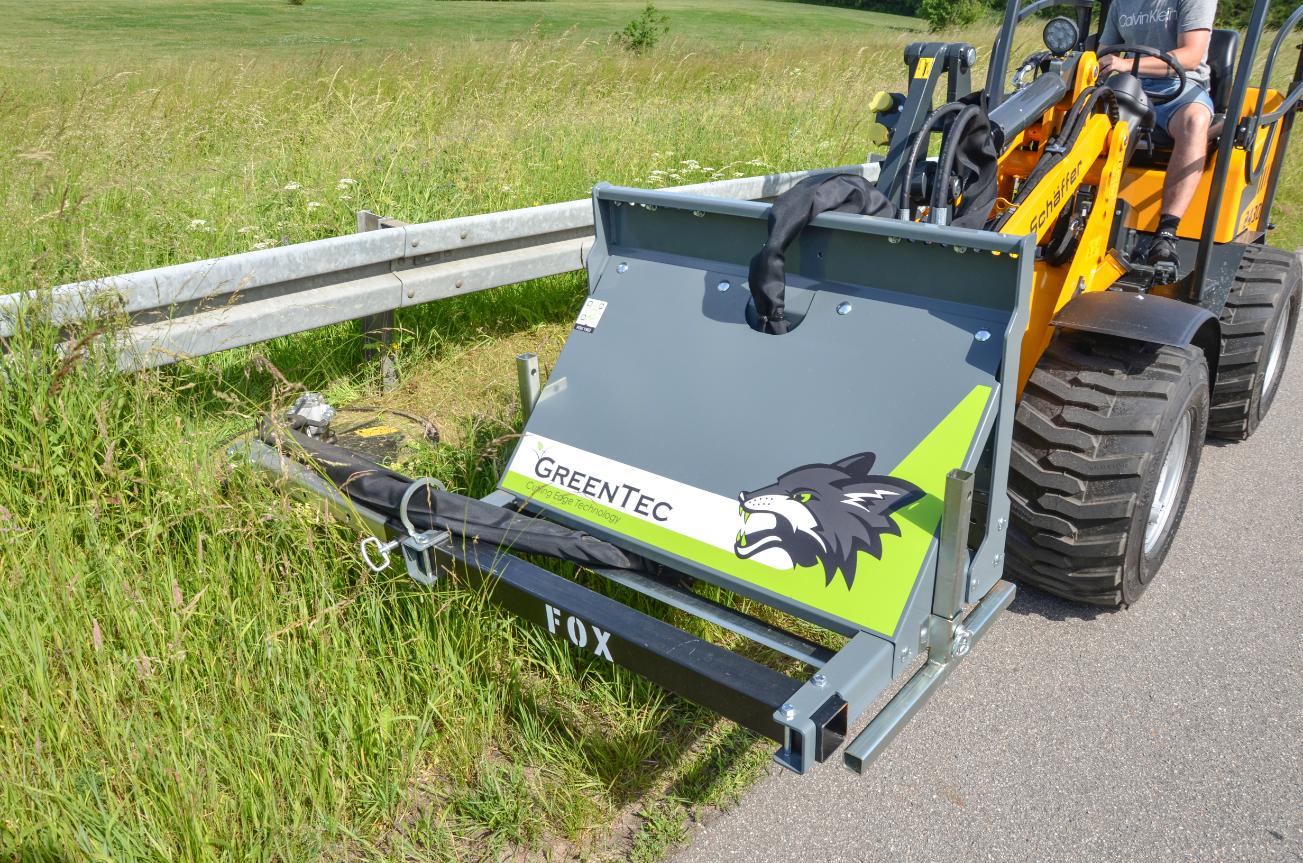

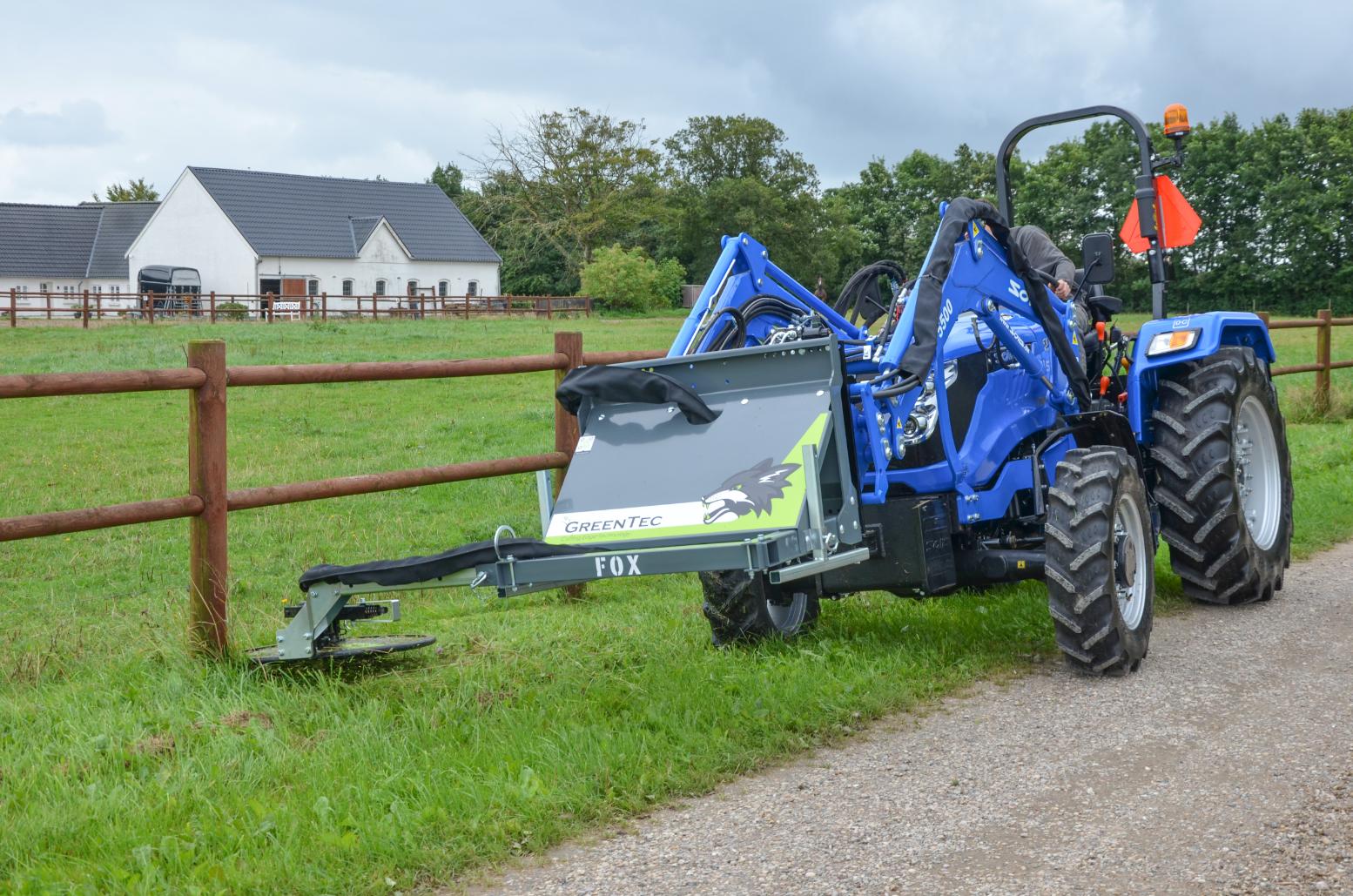

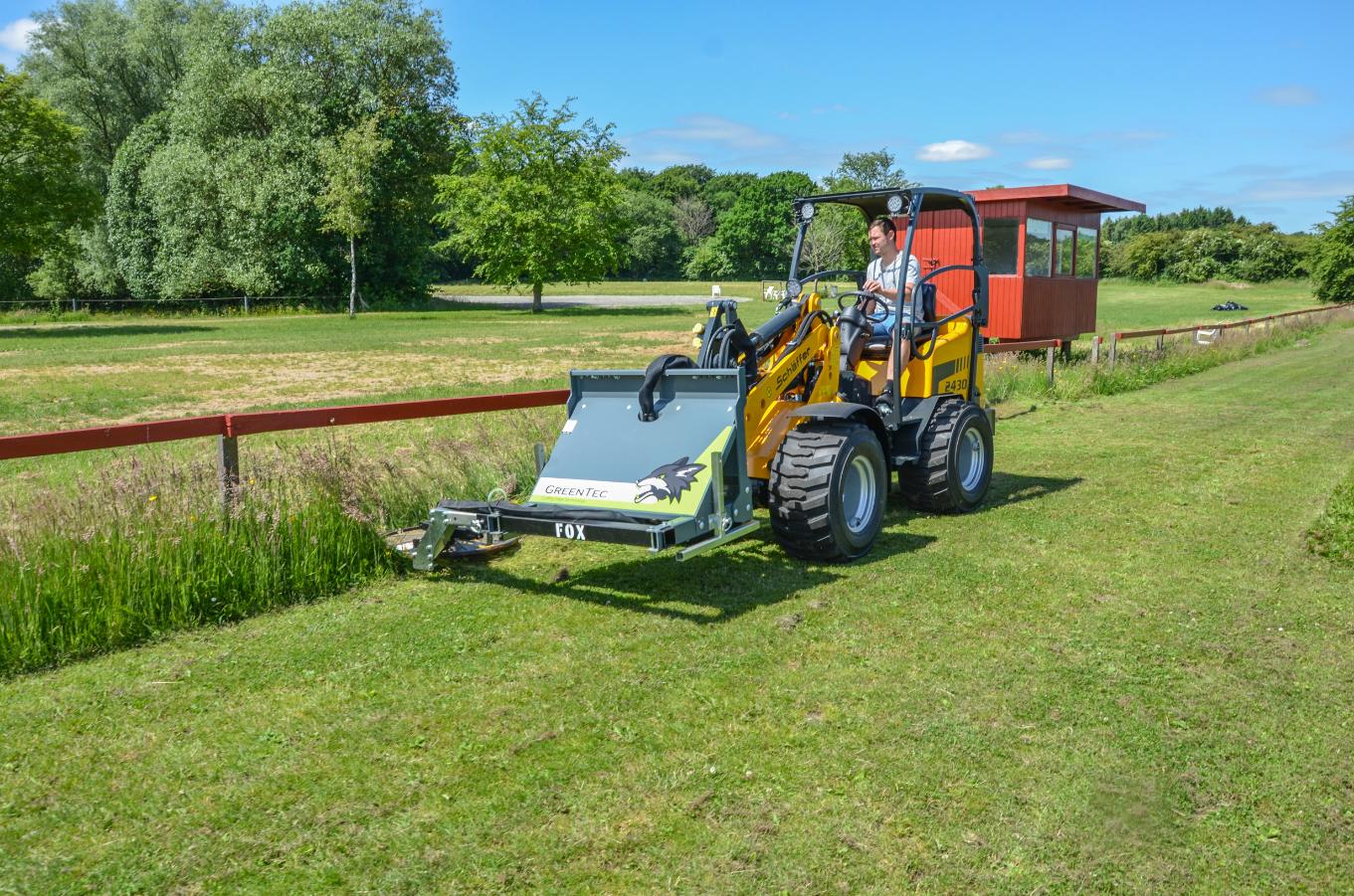

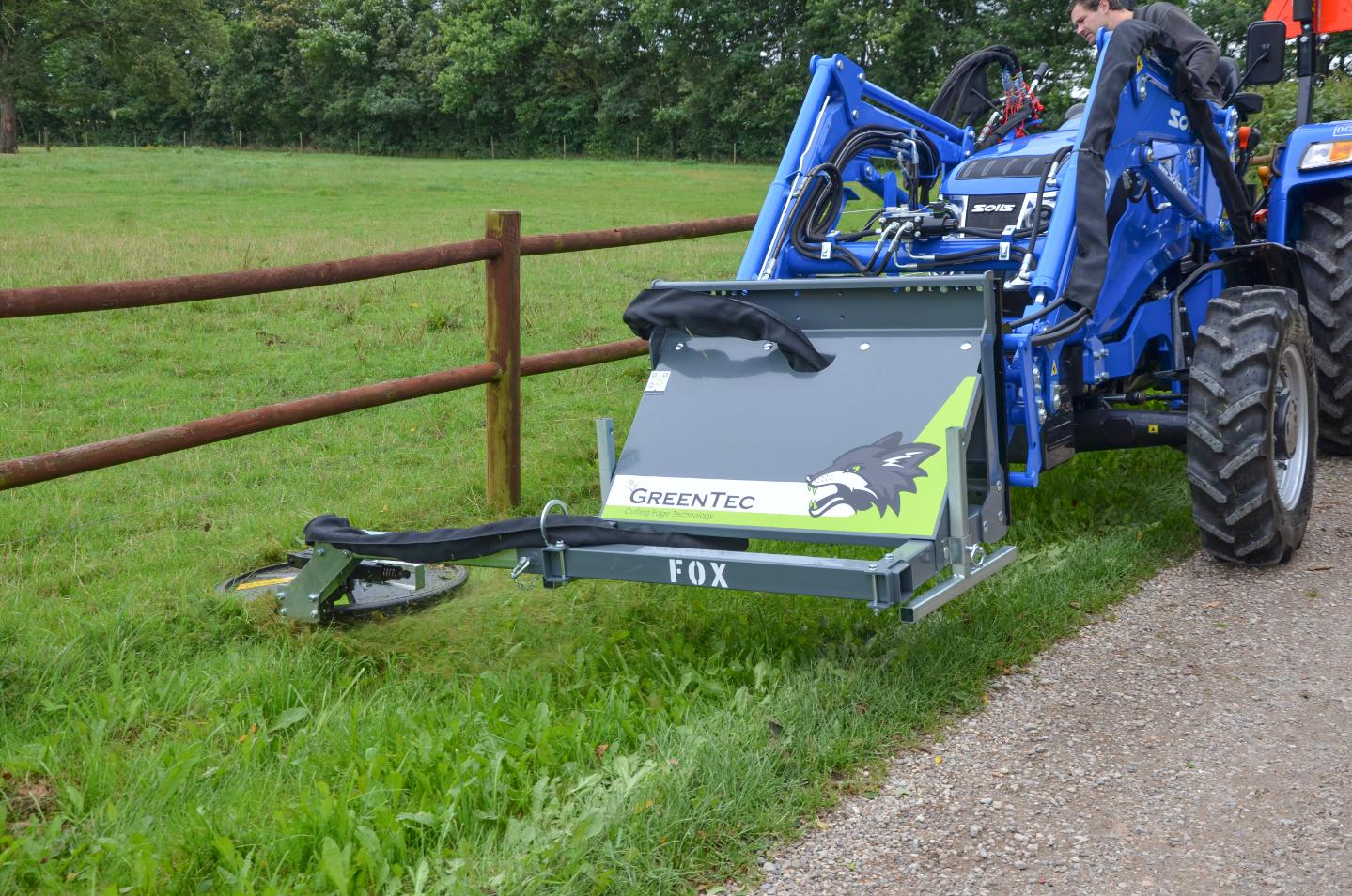

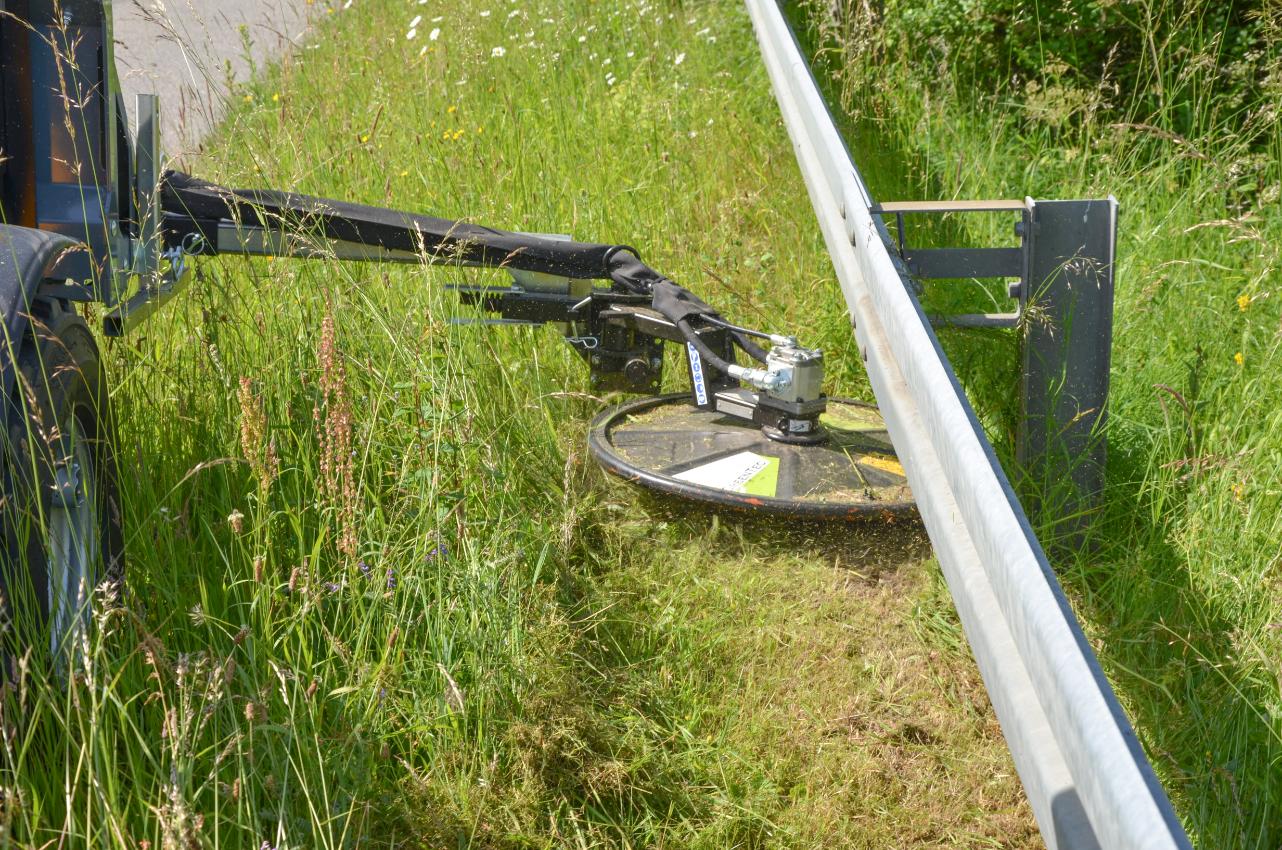

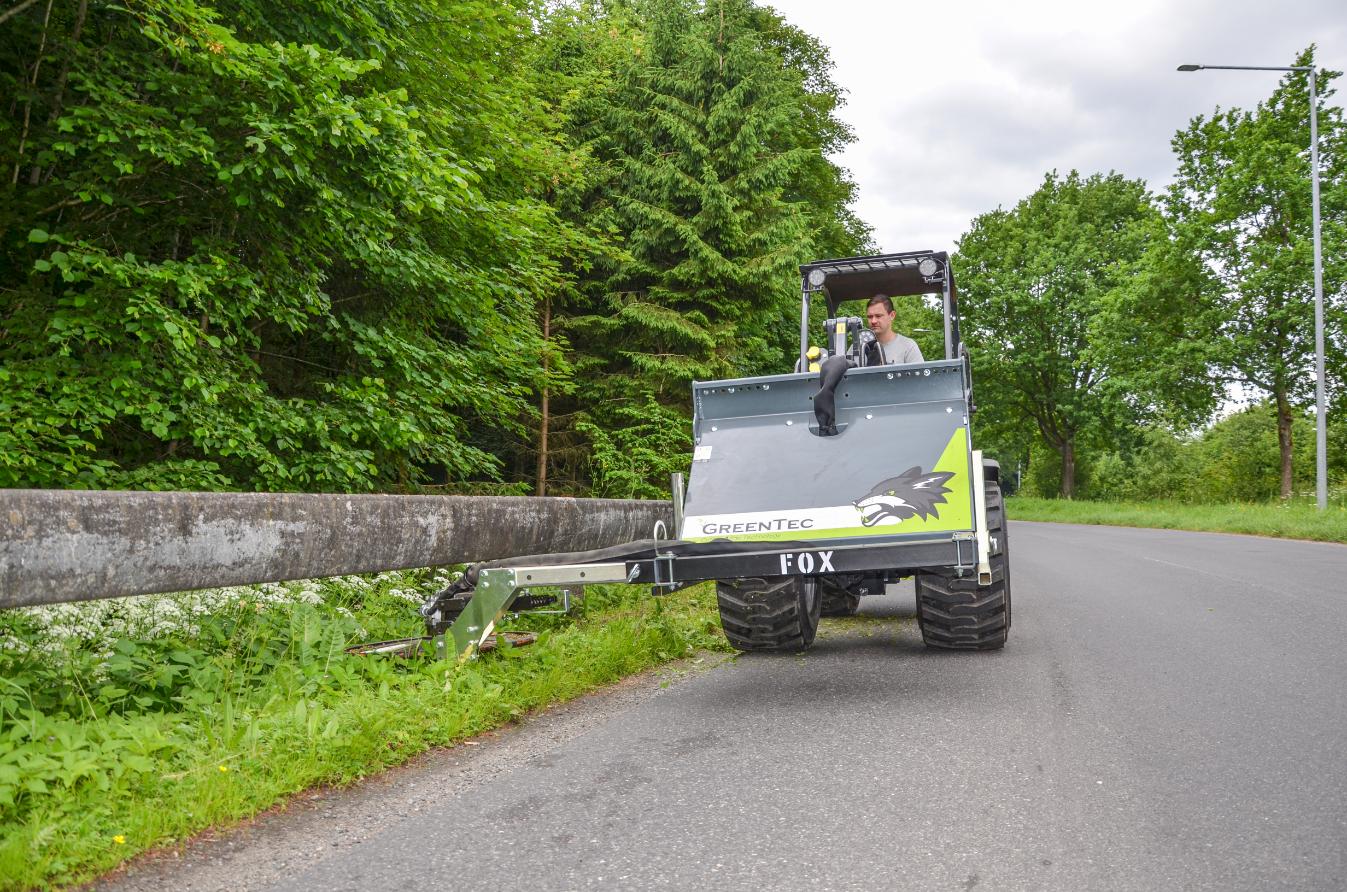

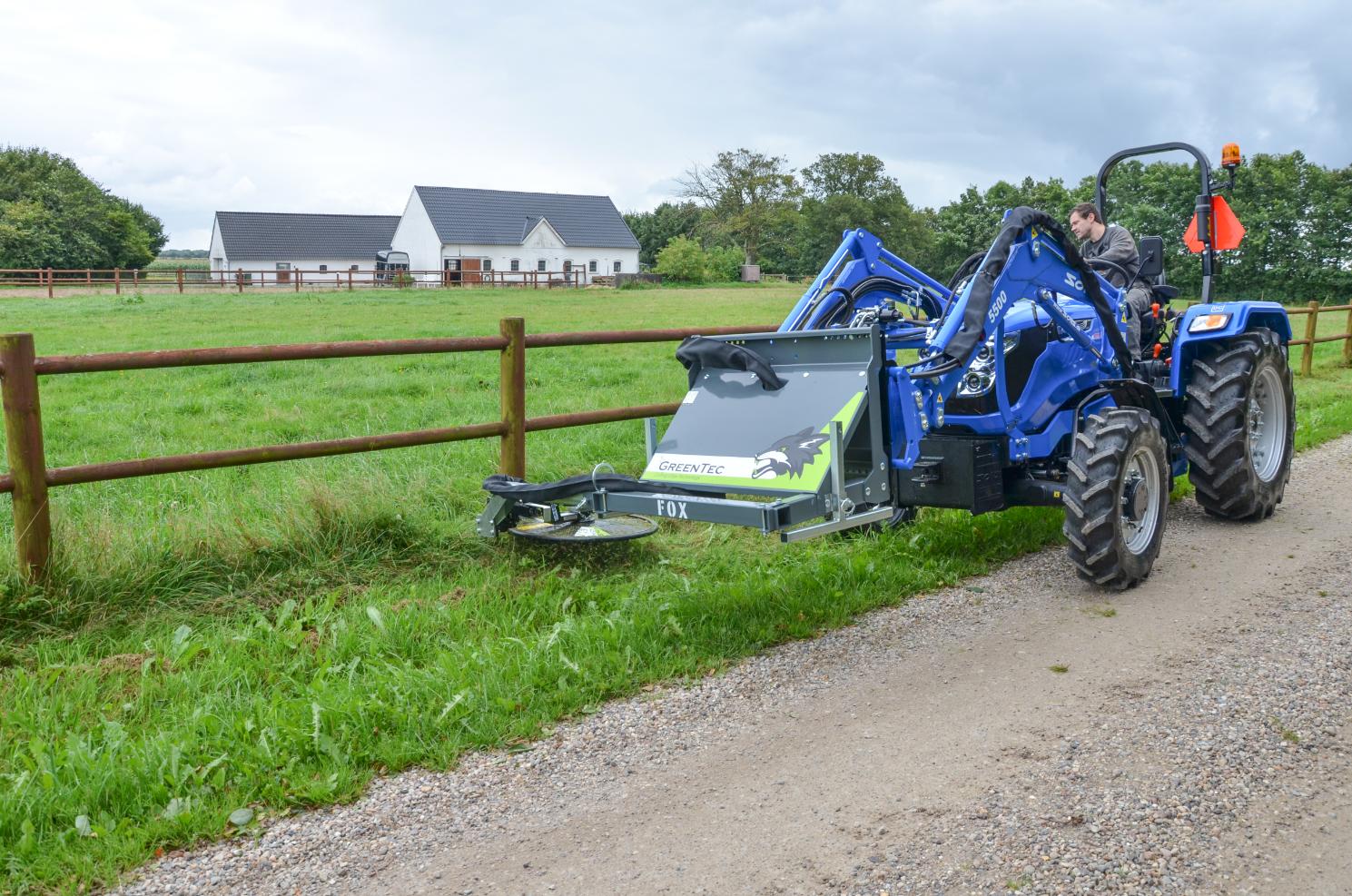

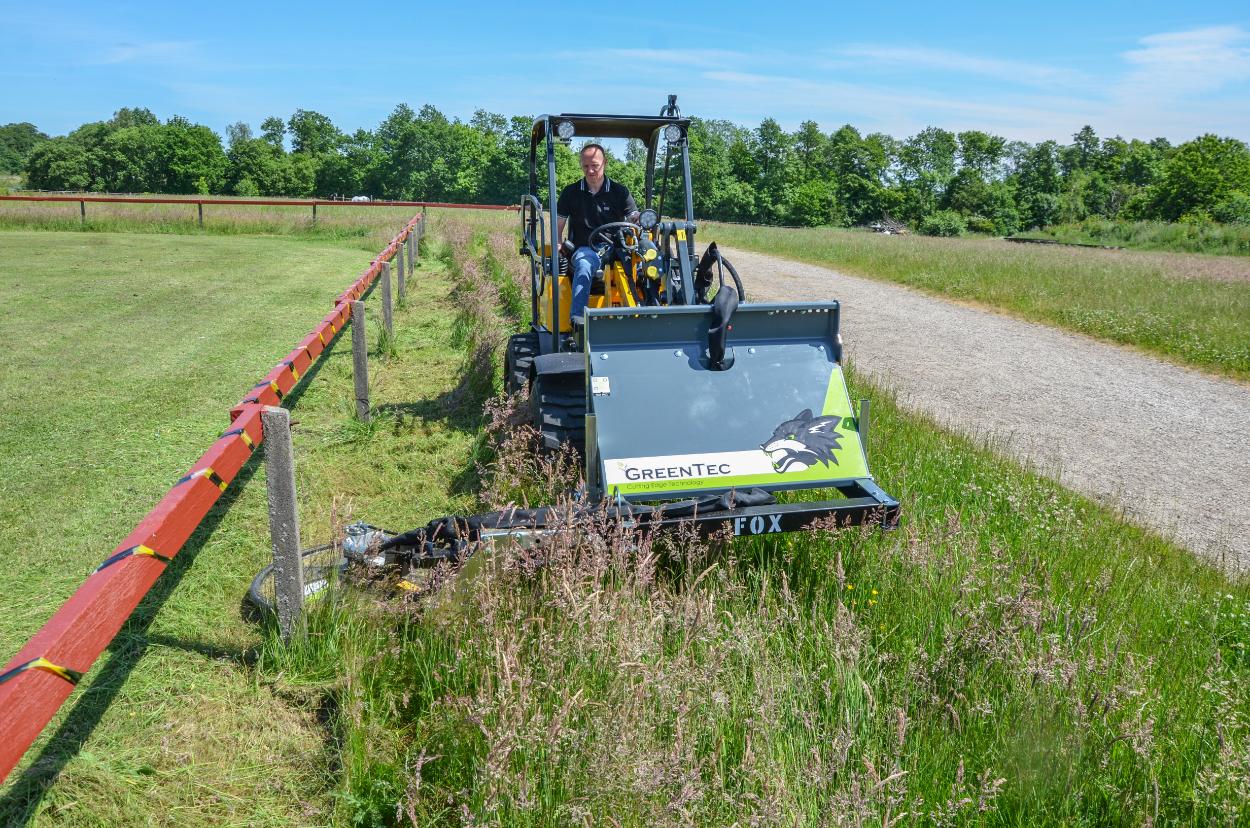

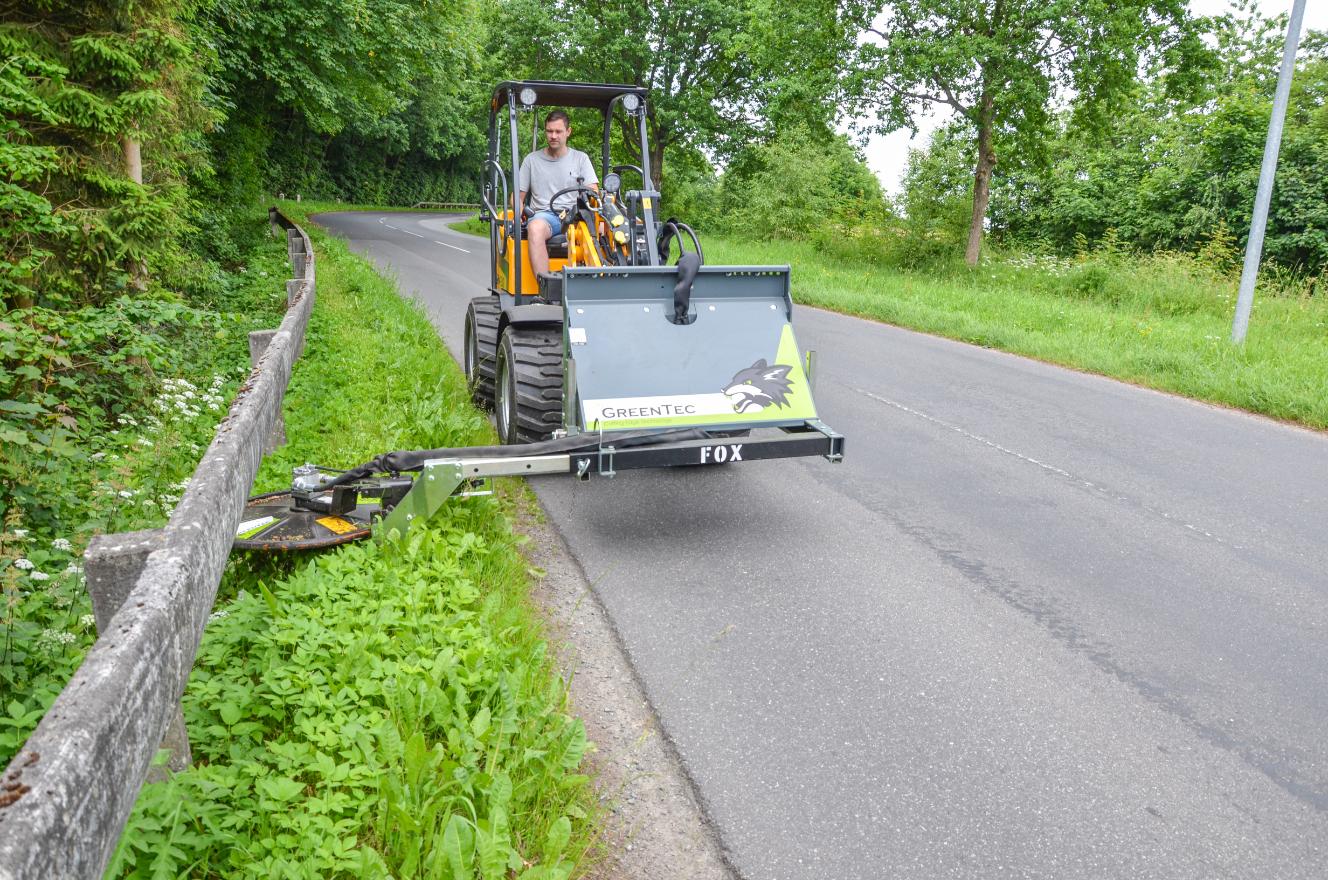

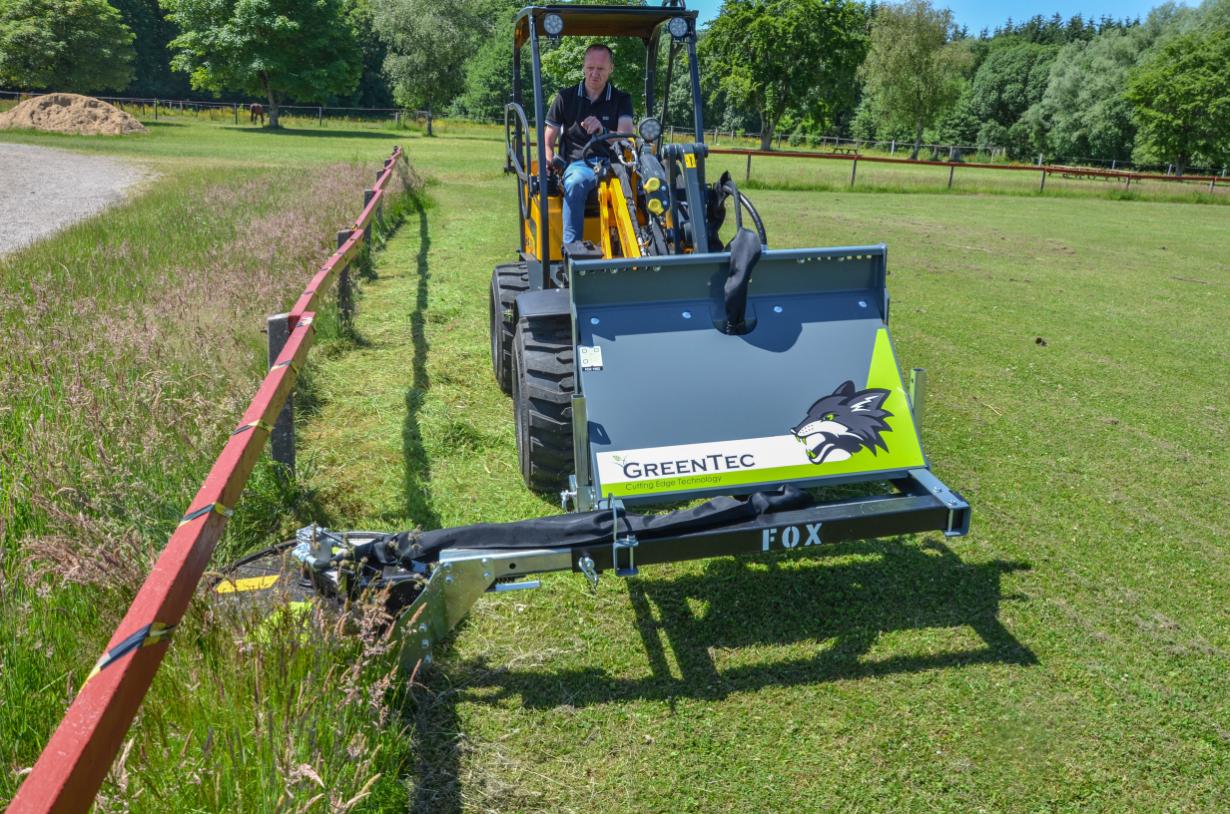

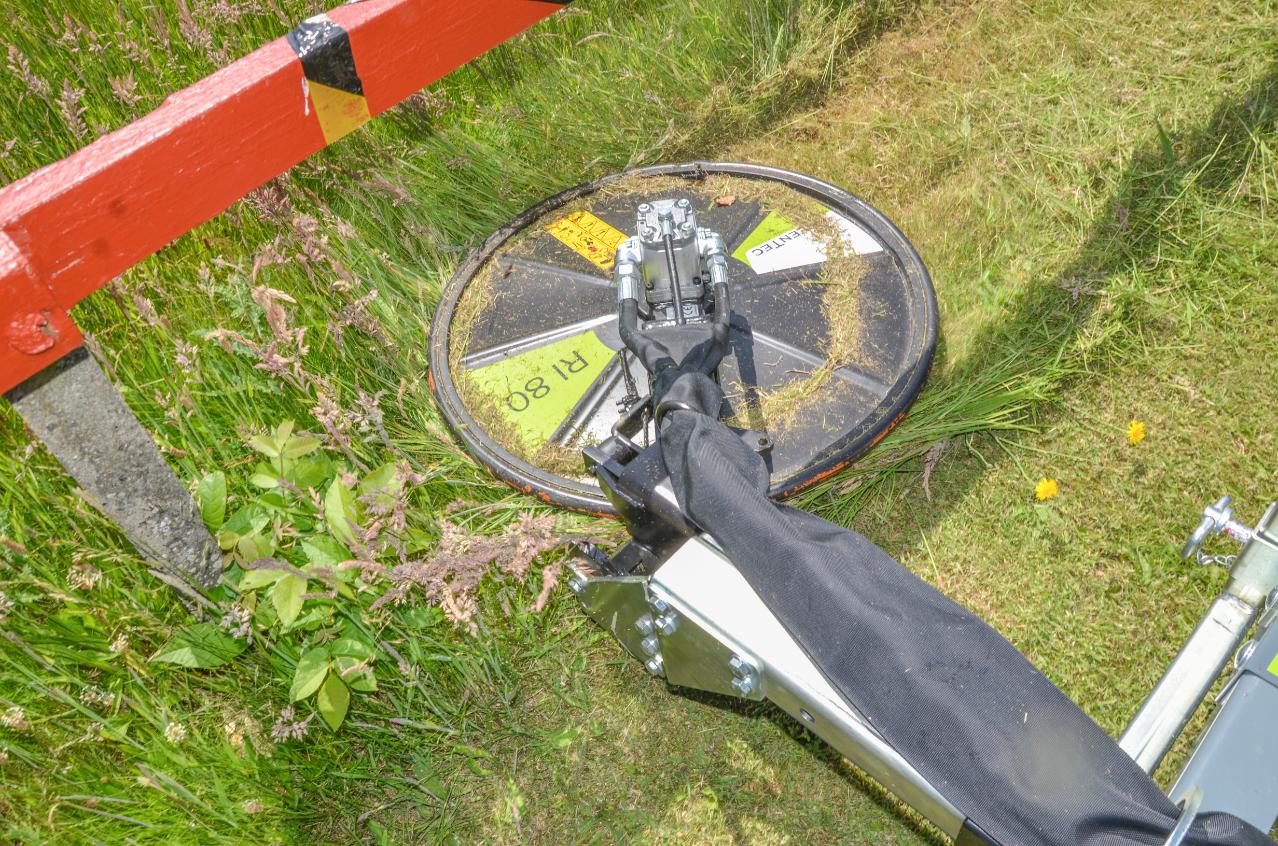

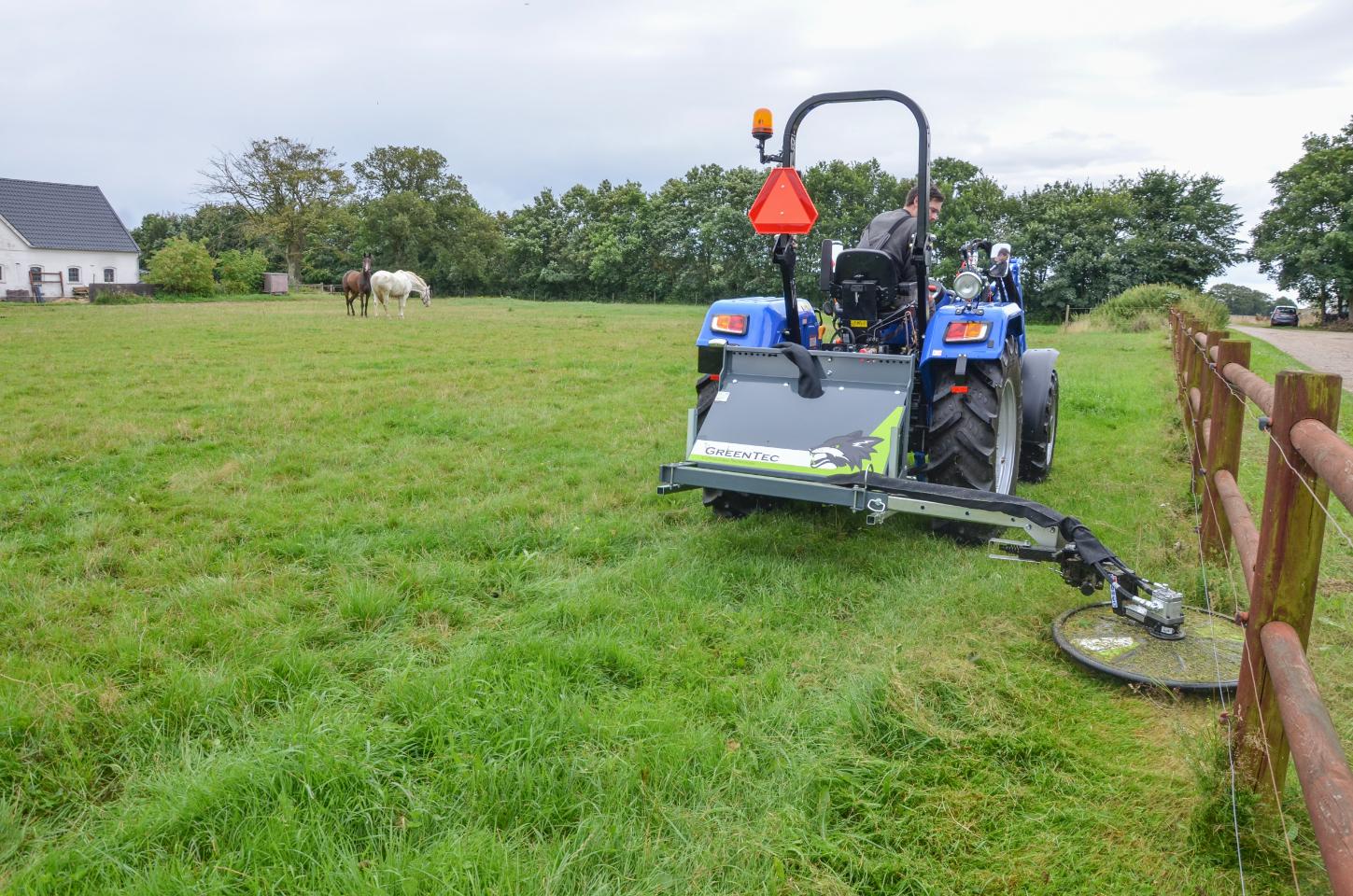

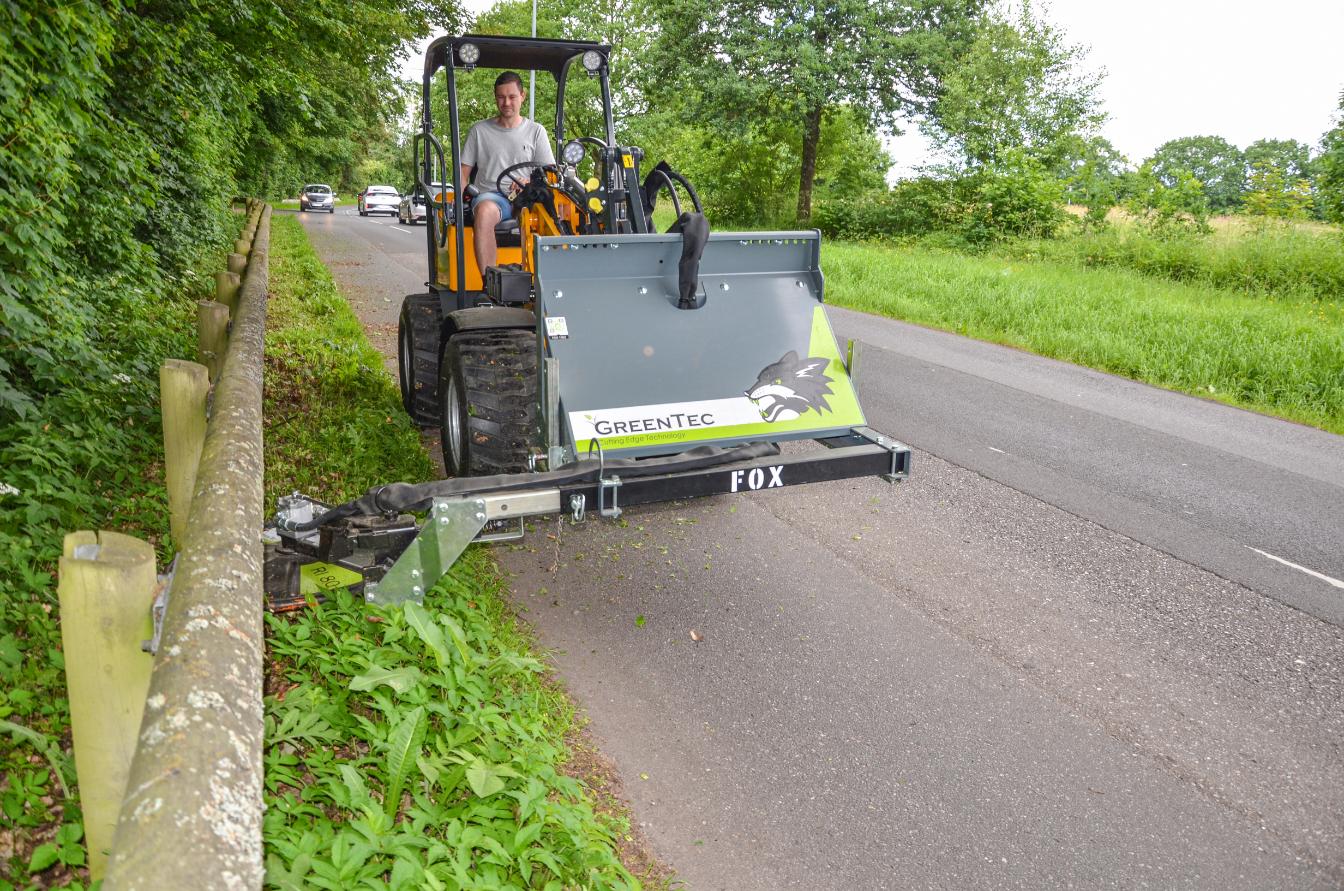

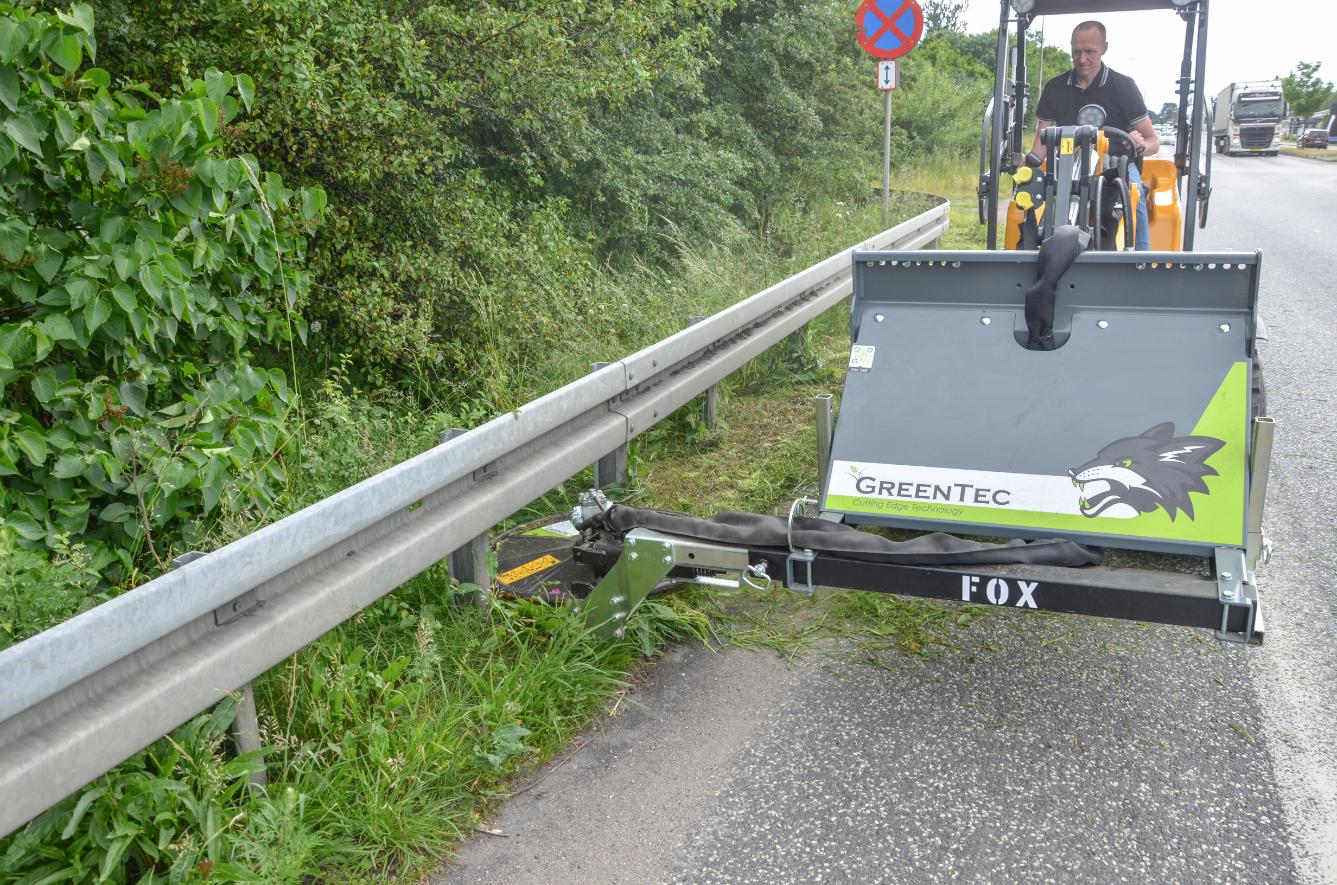

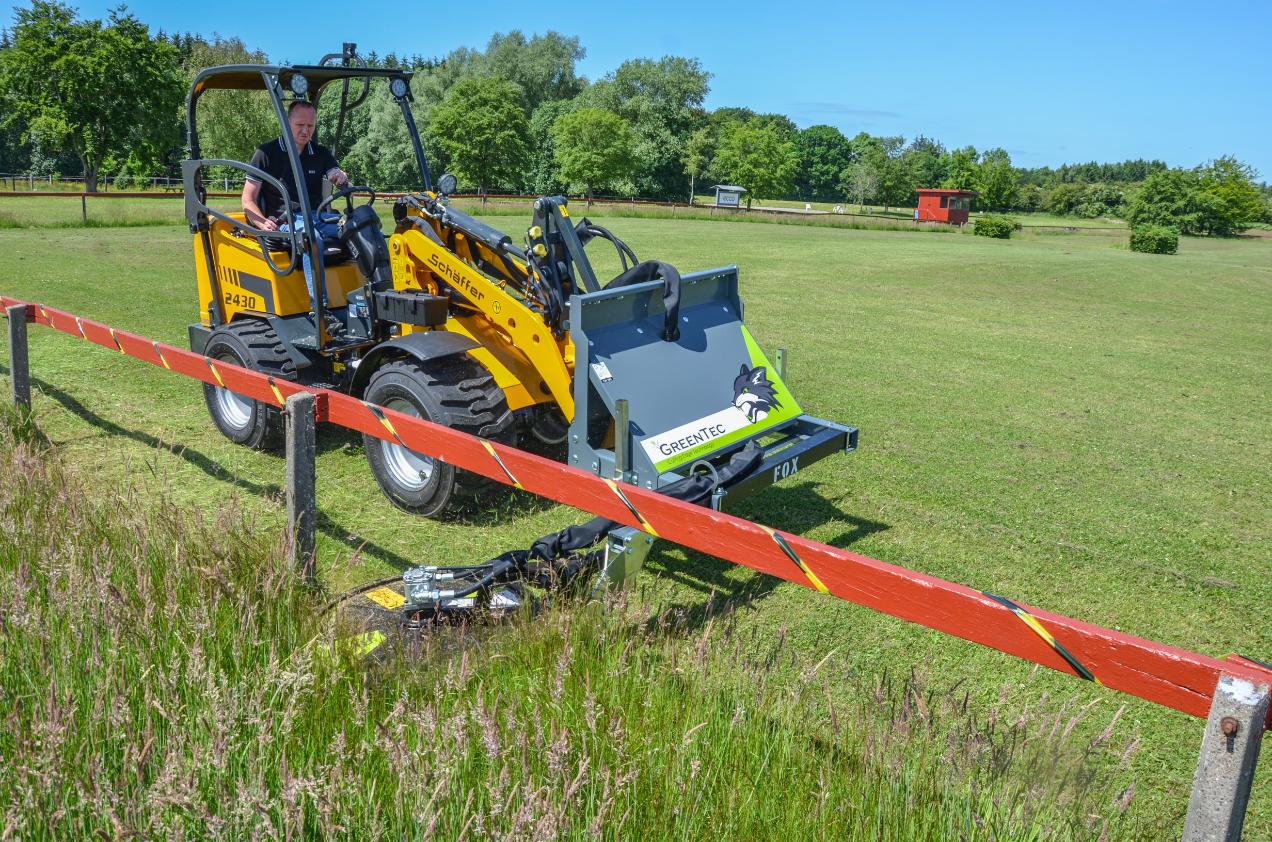

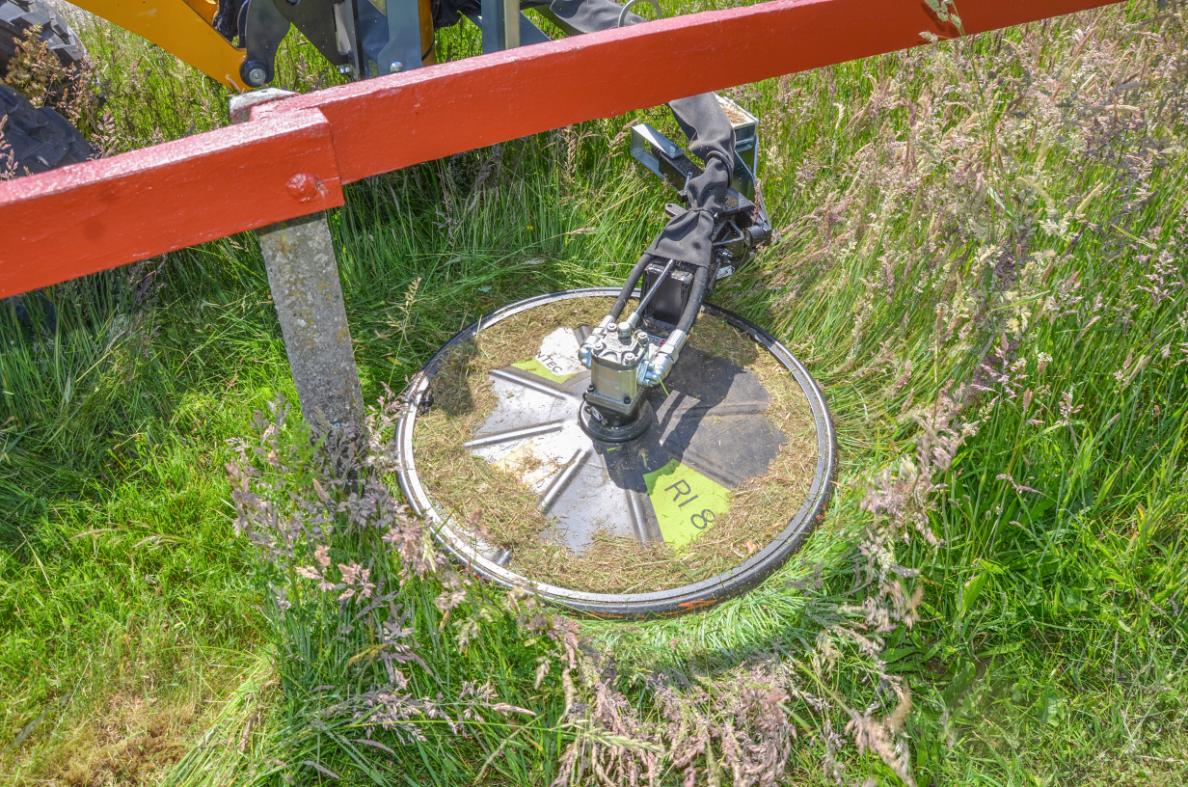

The Barrier Mower RI 60 & 80 is the ideal solution for maintenance of fence lines, guardrails, orchards and vineyards. The fence line mower goes around every obstacle whether that be fence posts, crash barriers or trees. The height from the ground to the plate-shaped cutting head is only 15 cm (6 inches) making it easy to mow under most fences and guardrails. Below the spring-suspended free-hanging plate, there are two strong up-draft blades that mow the grass. The blades are protected by an anti-scalp disc that prevents the blades to mow into the ground and damaging them. The spring-suspension on the fence line trimmer can be adjusted continuously which allows the machine to mow around small fence posts without tipping them over. The fence post mowers RI 60 & 80 are available in left or right hand versions with working widths of 0.6 or 0.8 m (2′ or 2’7″”). The mowers have a high working speed of 3 km/h (1.86 mph). The fence line mower can be mounted on tractors, skid steer loaders and front end loaders by using our Multi Carrier FOX, HXF 2302 or HXF 2802 attachment frames.

The Barrier Mower RI 60 & 80 fits the following GreenTec machines:

RI 60 RI 80
Multi Carrier FOX Check mark Check mark
HXF 2302 Check mark Check mark
HXF 2802 Check mark Check mark
HXF 3302

Equipment Overview

Basic mount incl. 2 m (6’7”) hydraulic hoses Standard equipment
Continuous adjustment of the plate pressure Standard equipment
Rubber protection around the plate Standard equipment
Anti-scalp protection disc Standard equipment

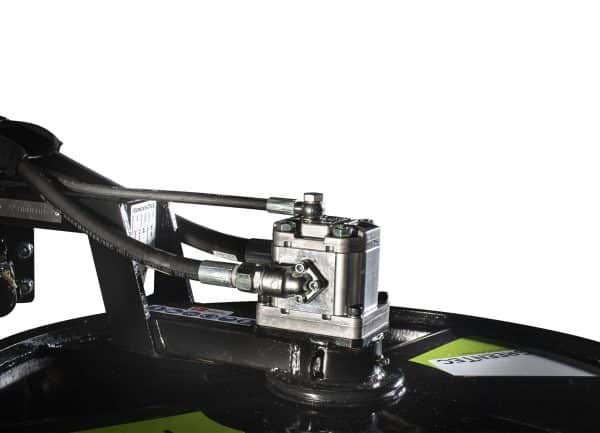

Optional 25 or 40 l (6.6 or 10.6 gpm) motor Standard equipment
Available in left or right hand versions Standard equipment

Specifications

Working width0.6 m (2')
Number of blades2 pieces
Driving speed up to2 km/h (1.24 mph)
Height from the ground to plate15 cm (5.91”)
Total height (motor included)35 cm (1’2”)
Required hydraulic connections1 x double acting + 1 x drain
Minimum oil flow40 l/min @ 190 bar (10.6 gpm @ 2756 psi)
Alternative oil flow25 l/min @ 190 bar (6.6 gpm @ 2756 psi)
Weight45 kg (99 lb)
