Greentec BR70 Weed Cleaning Brush

Greentec BR70 Weed Cleaning Brush

BR 70 is the smallest model in the series and can be mounted on skid steer loaders and front loaders through our Multi Carrier HXF 2302 or HXF 2802 attachment frames. BR 90 is suitable for excavators and tractors with boom arms. The sweepers are hydraulically driven.

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

Thanks for downloading

Before your download begins, please fill out the form below.

Product Details:

  • Powerful and effective
  • Hard steel brushes
  • Hydraulic driven

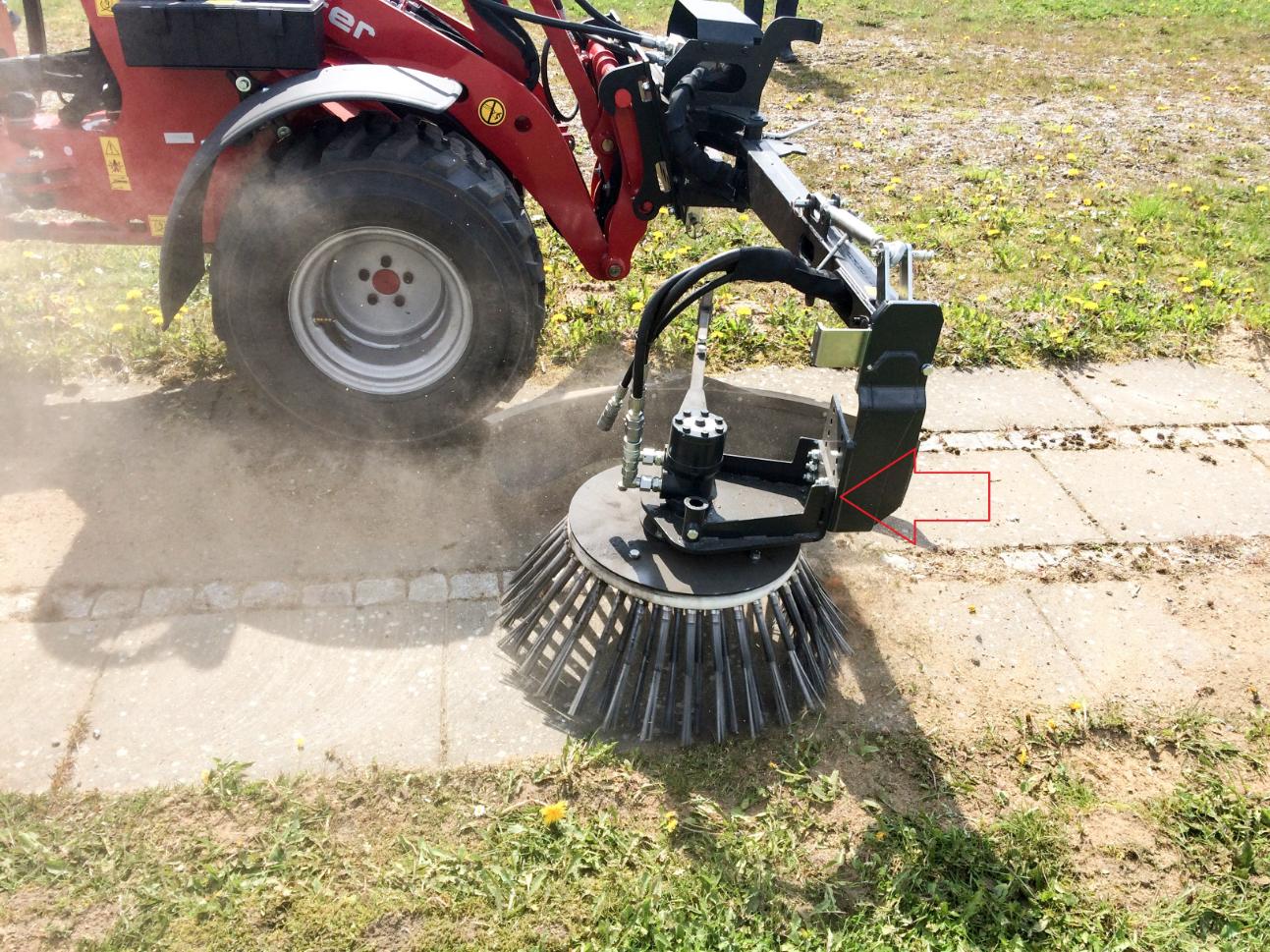

The Greentec BR70 Weed Clearing Brush has a working width of 0.7m, a maximum driving speed of 1 km/h (0.62 mph) and weight of 55kg.

Sweeper Attachments for Skid Steer Loaders and Tractors

GreenTec offers a series of sweeper attachments for skid steer loaders, tractors and excavators. The strong steel brushes easily remove dirt, sludge and weeds from streets, gutters and roads. The broom attachment rotates around itself and provides a nice finish to tiles and paving stones by removing weeds and moss between the surfaces.

BR 70 is the smallest model in the series and can be mounted on skid steer loaders and front loaders through our Multi Carrier HXF 2302 or HXF 2802 attachment frames. BR 90 is suitable for excavators and tractors with boom arms. The sweepers are hydraulically driven.

The Weed Clearing Brush BR 70 & 90 fits the following GreenTec machines:

BR 70 BR 90
Multi Carrier HXF 2302 Check mark
HXF 2802 Check mark
HXF 3302
Boom Mower Scorpion 330 & 430
Scorpion 530 & 630 Check mark
Scorpion 730 & 830 Check mark

Equipment Overview

Hard steel brushes
Hydraulic driven
Pressure relief valve
Directional valve
Hydraulic quick release Optional equipment
Mechanical quick release Optional equipment

Specifications

Working widthØ 0.7 m (2'4")
Working speed up to1 km/h (0.62 mph)
Requried hydraulic connections1 x double acting
Required oil flow25 l/min @ 190 bar (6.6 gpm @ 2756 psi)
Alternative oil flow40 l/min @ 190 bar (10.6 gpm @ 2756 psi)
Weight55 kg (121 lb)
