The Scorpion 330 S is designed for municipalities, agricultural contractors, forest workers, gardeners, and landscapers, is suitable for working in limited spaces such as verge mowing on bike paths and hedge trimming in residential areas, is also capable of trimming trees on narrow forest trails and maintaining hedgerows in fields, and is intended for use with small tractors with a minimum weight of 1,500 kg (3,307 lb), using a four-point mounting system on the mainframe for faster and more reliable installation.
Recommended Uses of Scorpion 330 S
The Scorpion 330 S is designed as a compact and highly maneuverable boom mower for professional vegetation maintenance in narrow and restricted working environments. It is especially suitable for:

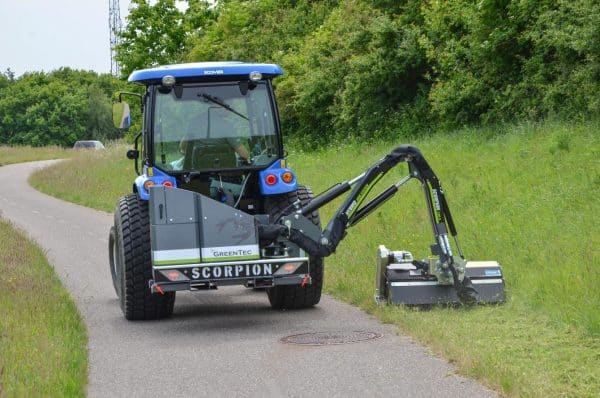

- Verge and roadside mowing along bike paths, footpaths, and narrow roads
- Hedge cutting and shaping in residential areas, parks, and public spaces

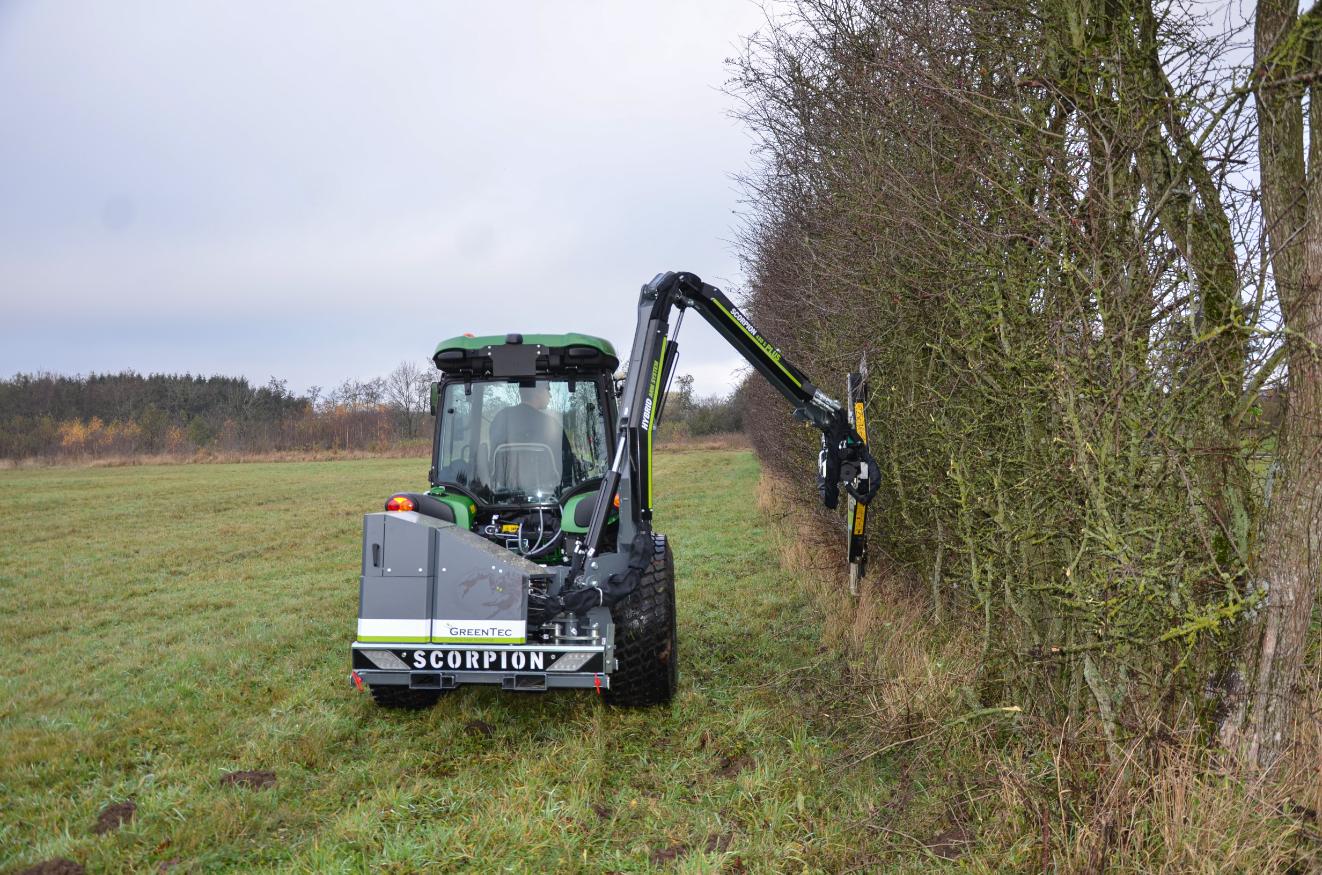

- Tree and branch trimming along narrow forest trails and access routes
- Maintenance of hedgerows and field boundaries in agricultural areas
- Green space and property maintenance for municipalities, gardeners, and landscaping contractors
- Light forestry and vegetation control where compact size and precise handling are essential
Thanks to its compact design, short reach geometry, and flexible hybrid arm system, the Scorpion 330 S is particularly well suited for working in tight spaces where larger boom mowers cannot operate efficiently, while still providing professional cutting performance and stability on small tractors.
Features Under the Hood
- Hybrid arm system – control with or without parallel motion
- 4-point mounting – easy installation with full stability
- Mini joystick – 3 proportional functions
- Oil cooler – effective hydraulic fluid cooling
- LED lights – long-distance visibility
- 155° hydraulic arm turn – flexible movement
- Strenx 700 high-strength steel – durable construction
Equipment Overview
Standard features included with the machine:
✔ Hybrid arm system with dual function
✔ Strenx 700 steel construction
✔ 155° hydraulic arm turn with Power Control
✔ Danfoss proportional valve PVG 16
✔ Mini joystick with 3 proportional functions
✔ Two oil flows: 40 l/min and 25 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle
✔ Oil cooler
✔ 80 l (21.13 gal) oil tank capacity
✔ 4-point mounting for Cat. 1 or 2
✔ PTO 350–540 rpm (rear mounted)
✔ PTO 600–1000 rpm (front mounted)
✔ PTO 350–540 rpm (reverse mounted)
✔ Automatic Hydraulic Security (AHS)
✔ Holes for pallet forks
✔ Transport safety
✔ LED lights
Optional equipment:
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 90 kg (198 lb) counterweights
🔹 Bio oil
Attachment Tools (examples included on page)
The following tools can be fitted to the boom mower:
- Greentec Hedge Cutter RC 102 – Cut and shred branches | Range: 1.0 m | Diameter up to 2 cm
- Greentec Hedge Cutter RC 132 – Cut and shred branches | Range: 1.3 m | Diameter up to 3 cm
- Greentec Quadsaw LRS 1402 – Smooth cut branches | Range: 1.4 m | Diameter up to 10 cm
- Greentec Quadsaw LRS 1602 – Smooth cut branches | Range: 1.6 m | Diameter up to 12 cm
- Greentec Cutterbar HS 172 – Hedge and tree trimmer | Range: 1.7 m | Diameter up to 6 cm
- Greentec Cutterbar HL 152 – Hedge trimmer | Range: 1.5 m | Diameter up to 4 cm
Models
Available mounting versions:
- 9992330R-40SH – Scorpion 330-4 S, rear mounted
- 9992330R-40SF – Scorpion 330-4 S, front mounted
- 9992330R-40SR – Scorpion 330-4 S, reverse mounted
