“The Rotary Ditch Cleaner GR 70 is hydraulic driven and can be fitted to boom arms on tractors. It is a highly efficient machine for cleaning of smaller ditches and streams. The sludge and weeds are removed and thrown up on the cliff.”
STRONG ARGUMENTS:
- Efficient cleaning of ditches
- Continuous duty motor
- Skid shoe

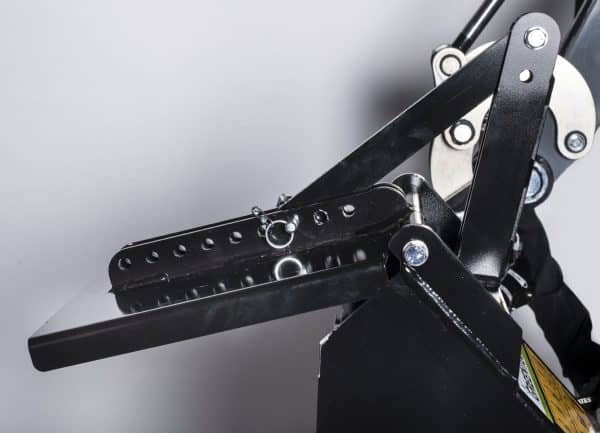

- Adjustable front hood
The GR 70 has a working width of 0.65 m (2’2″”)The GR 70 has a maximum driving speed of 1 km/h (0.62 mph)The GR 70 weighs 220 kg (485 lb)
Rotary Ditch Cleaner Attachment for Tractors
The Rotary Ditch Cleaner GR 70 is hydraulic driven and can be fitted to boom arms on tractors.
It is a highly efficient machine for cleaning of smaller ditches and streams. The sludge and weeds are removed and thrown up on the cliff.
The Rotary Ditch Cleaner GR 70 fits the following GreenTec machines:
GR 70
Boom Mower Scorpion 330 & 430
Scorpion 530 & 630 Check mark
Scorpion 730 & 830 Check mark
TECHNICAL DATA GR 70
Working width Ø 0.65 m
(2’2″”)
Number of blades 6 pieces
Required hydraulic connections 1 x double acting + 1 x drain
Required oil flow 70 l/min @ 320 bar
(18.5 gpm @ 4641 psi)
Weight 220 kg
(485 lb)
EQUIPMENT OVERVIEW
Blades Standard equipment
Hydraulic driven Standard equipment
Hydraulic quick release Optional equipment
Mechanical quick release Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
