Greentec Rotary Crusher GT 135

Greentec Rotary Crusher GT 135

The Rotary Crusher GT 135 & 155 is a series of hydraulic brush cutters specially developed for use in extreme conditions with many stones and tree stumps. It comes with two cutting systems: chains or blades. The chains are used for mowing grass and shrubs in stony conditions. The blades are used for hedge cutting and grass mowing in normal conditions. Both systems are very robust

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

Thanks for downloading

Before your download begins, please fill out the form below.

STRONG ARGUMENTS:

  • Crushes and shreds branches
  • Wide application: grass, hedge, shrubbery, tree stumps and rocky areas
  • Hardox body
  • Double deck
  • Low maintenance costs
  • Pendant mounting

The Rotary Crusher GT 135 and 155 have working widths of 1.35 and 1.55 m (4’5″” and 5’1″”), respectivelyThe Rotary Crusher GT 135 and 155 cut branches up to 7 cm (2.76″”) in thicknessThe Rotary Crusher GT 135 and 155’s maximum driving speed is 5 km/h (3.11 mph)The Rotary Crusher GT 135 and 155 weigh 410 and 460 kg (904 and 1014 lb), respectively

Hydraulic Brush Cutter for Excavator and Tractor

The Rotary Crusher GT 135 & 155 is a series of hydraulic brush cutters specially developed for use in extreme conditions with many stones and tree stumps.

It comes with two cutting systems: chains or blades. The chains are used for mowing grass and shrubs in stony conditions. The blades are used for hedge cutting and grass mowing in normal conditions. Both systems are very robust

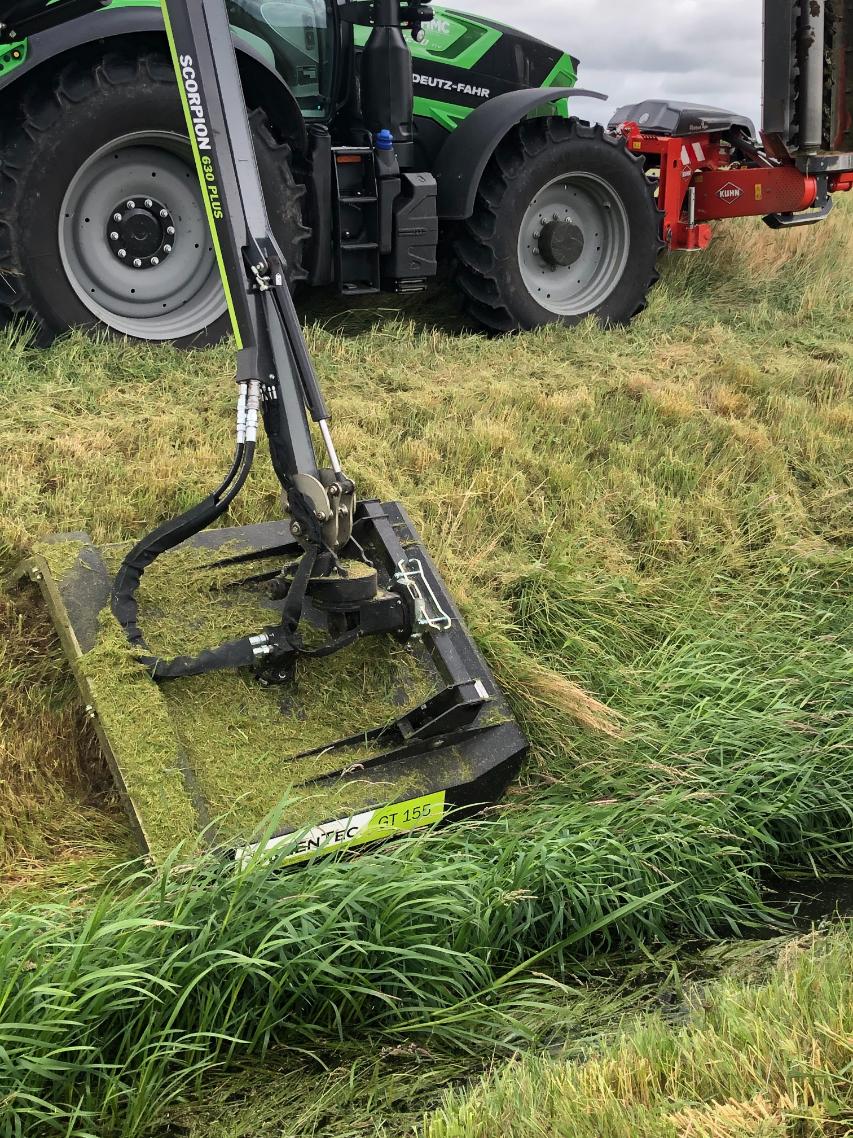

The brush cutters can be mounted on boom mowers for tractors or excavator arms.

The Rotary Crusher GT 135 & 155 fits the following GreenTec machines:

GT 135 GT 155
Boom Mower Scorpion 330 & 430
Scorpion 530 & 630 Check mark
Scorpion 730 & 830 Check mark Check mark

TECHNICAL DATA GT 135 GT 155
Working width 1.35 m
(4’5″”) 1.55 m
(5’1″”)
Branch thickness up to 7 cm
(2.76”) 7 cm
(2.76”)
Driving speed up to 5 km/h
(3.11 mph) 5 km/h
(3.11 mph)
Required hydraulic connections 1 x double acting + 1 x drain 1 x double acting + 1 x drain
Required oil flow 85 l/min @ 280 bar
(22.5 gpm @ 4061 psi) 85 l/min @ 280 bar
(22.5 gpm @ 4061 psi)
Alternative oil flow
110 l/min @ 300 bar
(29.1 gpm @ 4351 psi)

110 l/min @ 300 bar
(29.1 gpm @ 4351 psi)
Weight 410 kg
(904 lb) 460 kg
(1014 lb)

EQUIPMENT OVERVIEW

Hardox body Standard equipment
Double deck Standard equipment
Pendant mounting Standard equipment
Optional HD blades or 10 mm (0.39″”) chains Standard equipment
Rubber flap kit Standard equipment
Continuous duty motor Standard equipment
Anti-cavitation valve Standard equipment
Hydraulic quick release Optional equipment
Mechanical quick release Optional equipment
13 mm (0.51”) chains Optional equipment
Chain magazine incl. chains Optional equipment

Standard equipment = Standard equipment

Optional equipment = Optional equipment”

Specifications

Working width1.35 m (4'5")
Branch thickness7 cm (2.76”)
Driving speed up to5 km/h (3.11 mph)
Required hydraulic connections1 x double acting + 1 x drain
Required oil flow85 l/min @ 280 bar (22.5 gpm @ 4061 psi)
Alternative oil flow110 l/min @ 300 bar (29.1 gpm @ 4351 psi)
Weight410 kg (904 lb)
