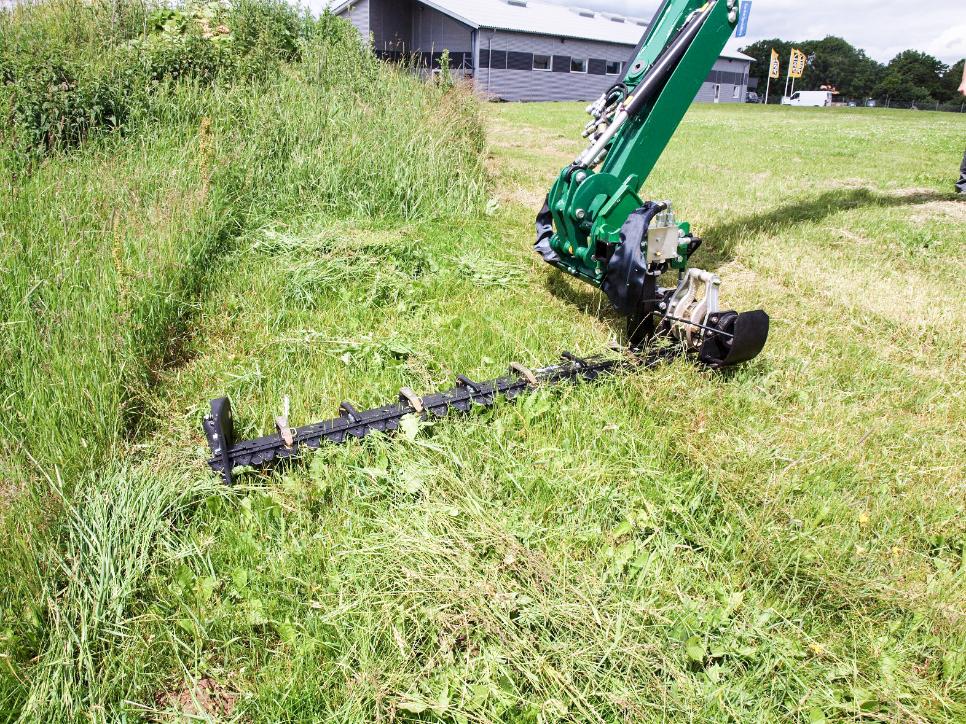

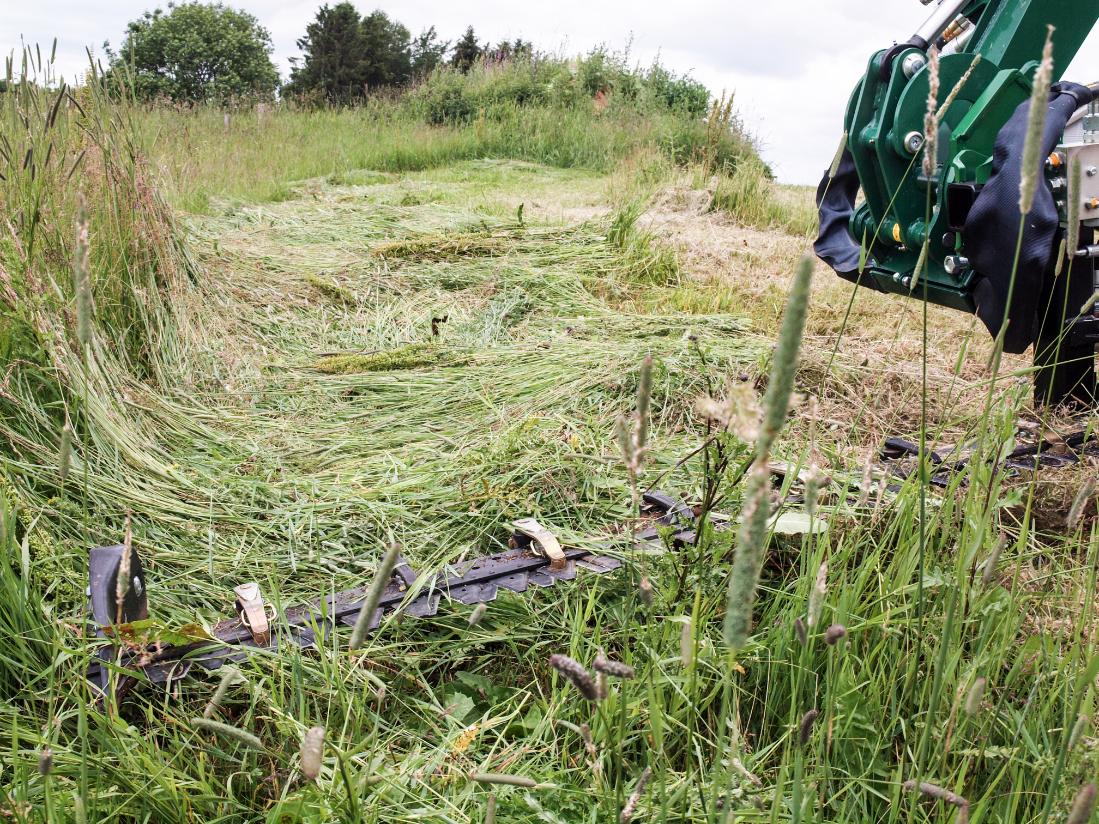

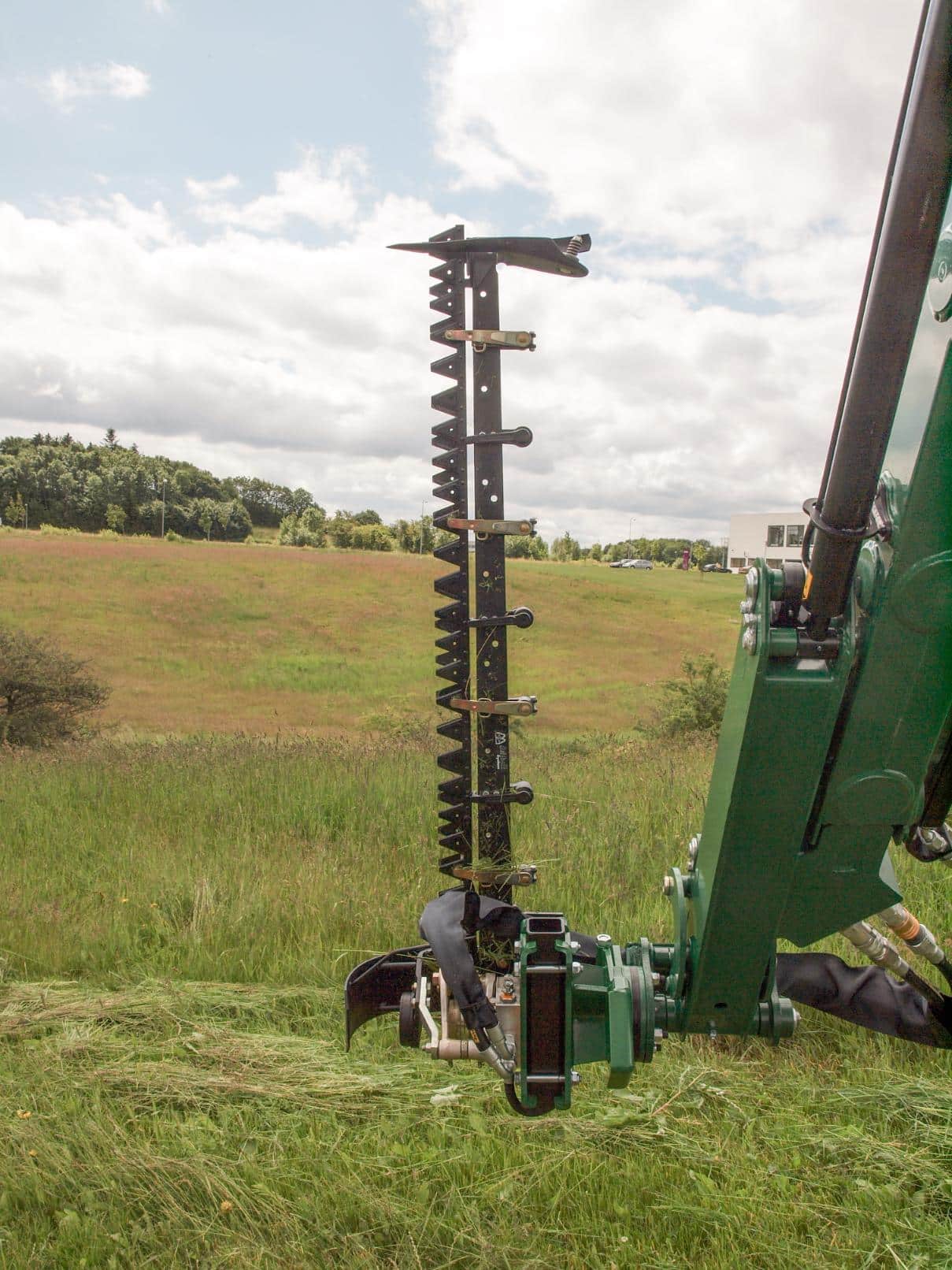

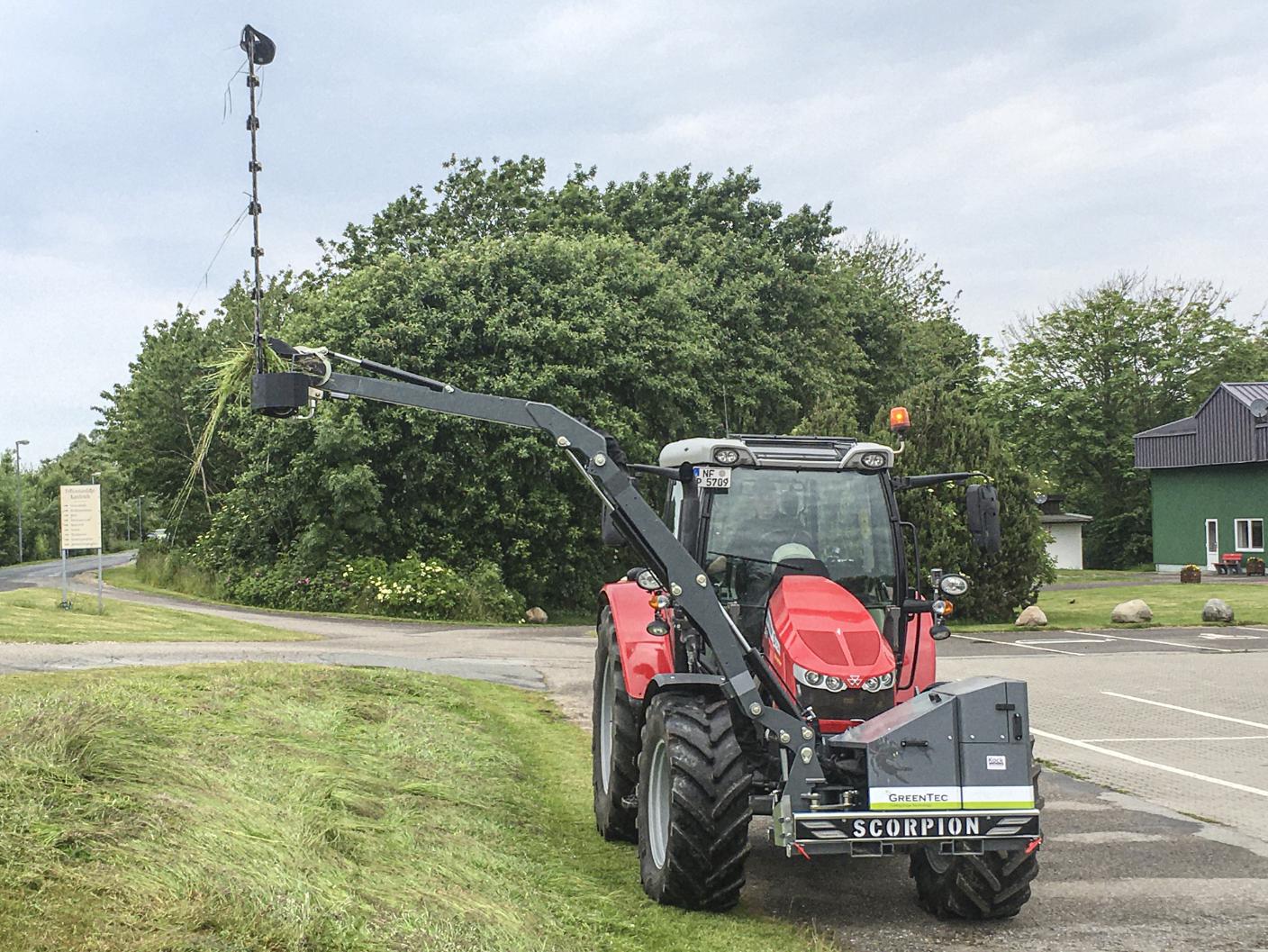

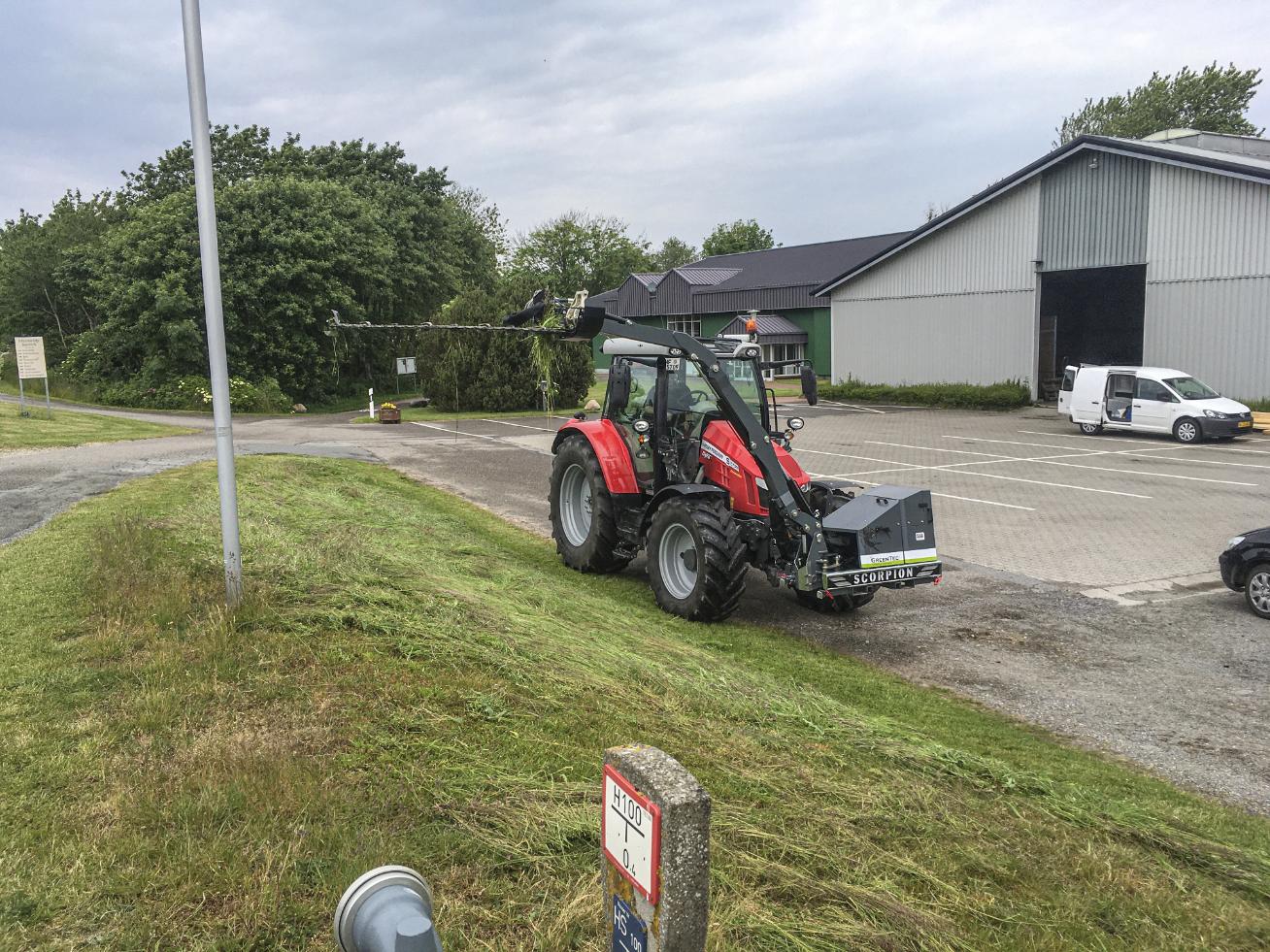

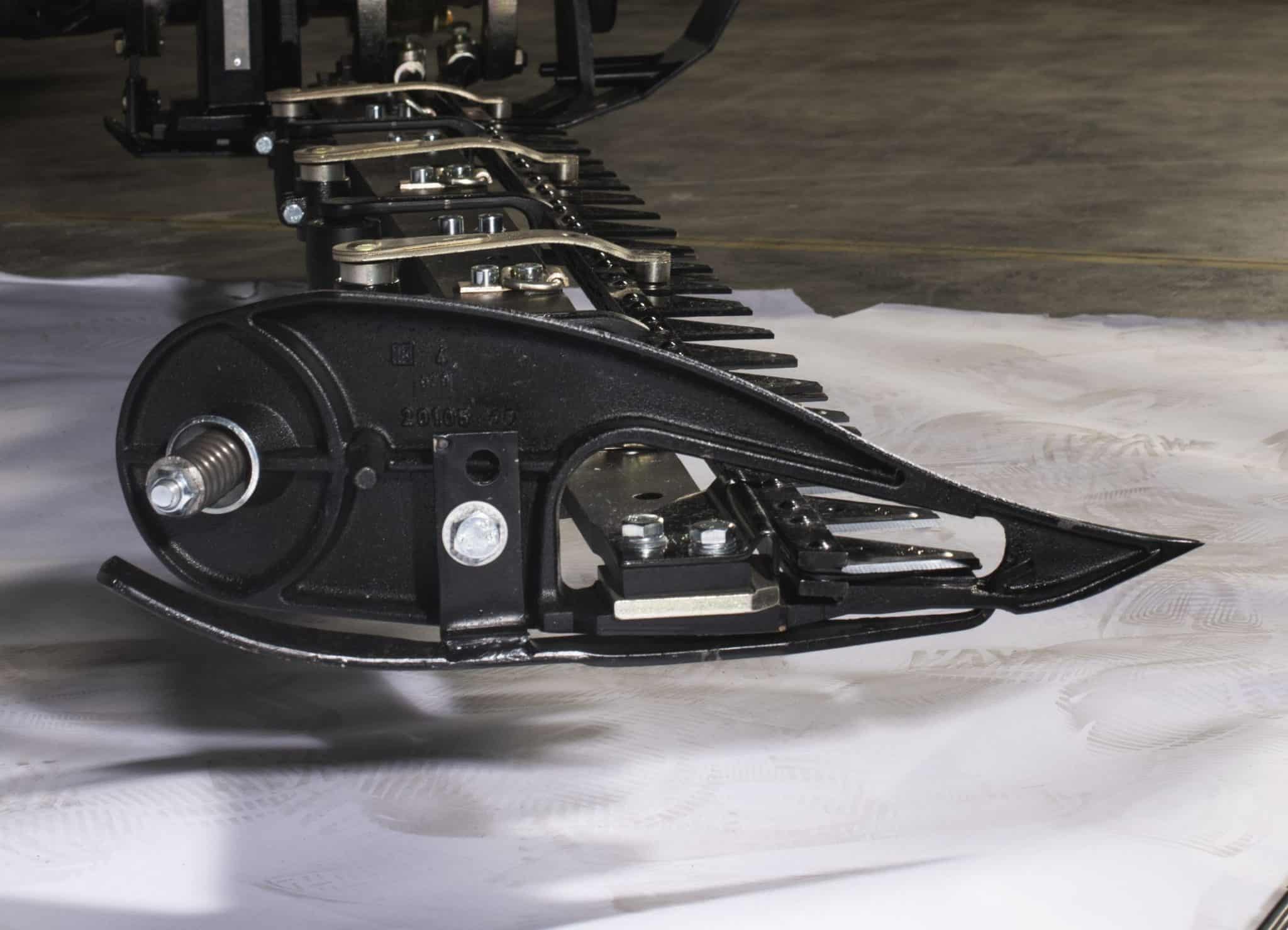

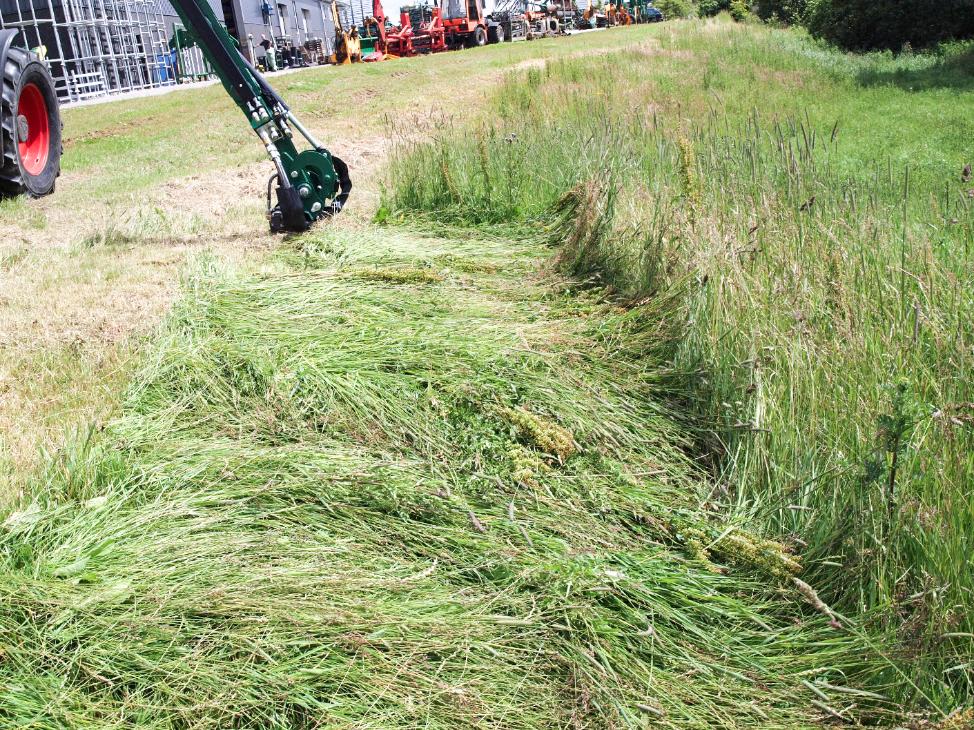

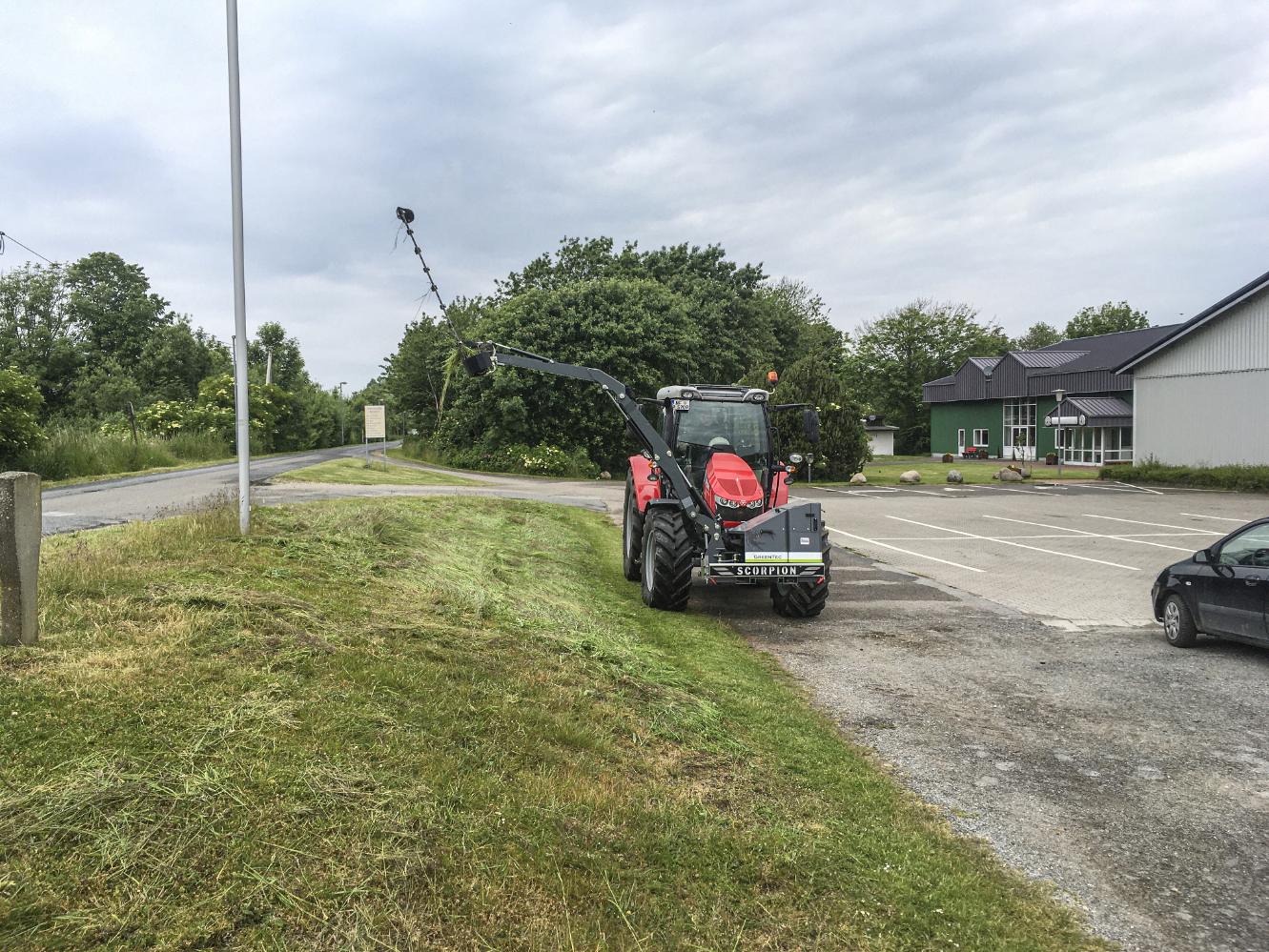

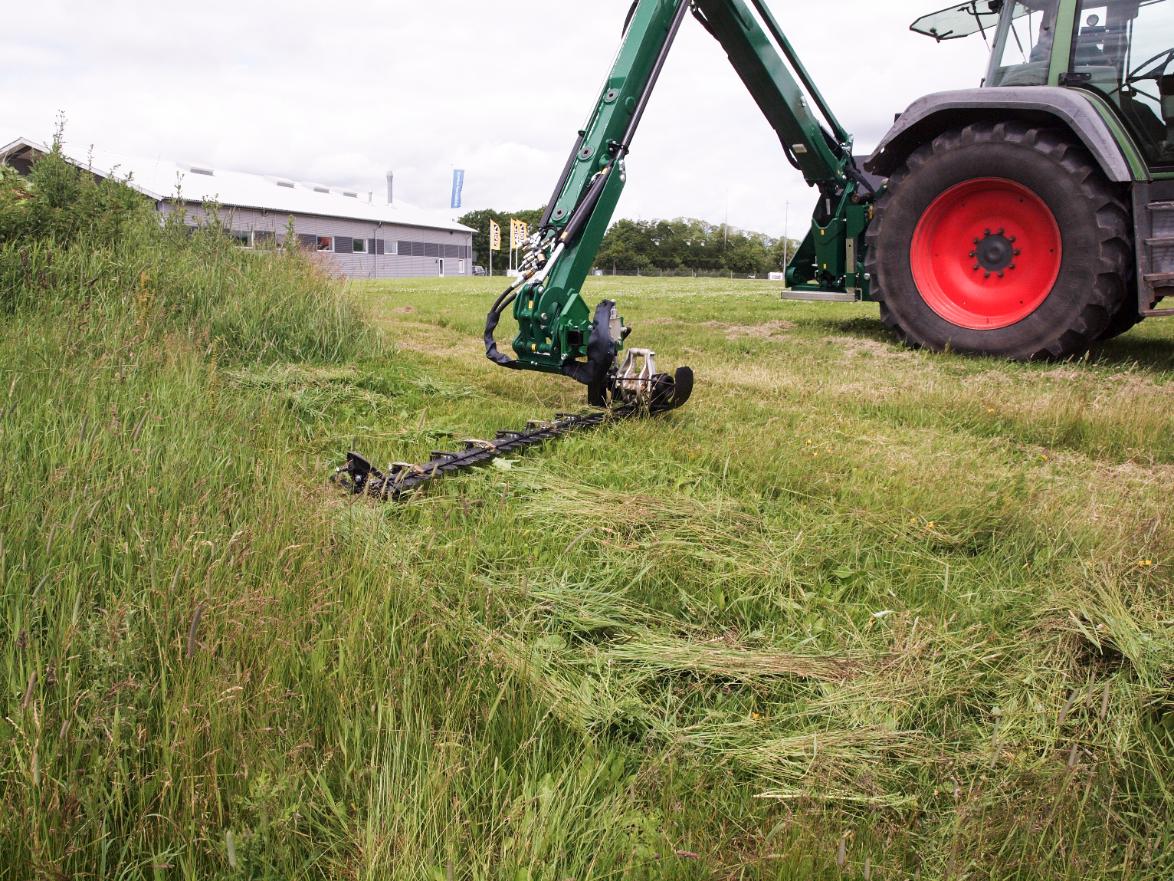

The sickle bar mower is used for cutting grass in inaccessible areas where a fine spread and chop of the cut off material is not required. The bar is mounted with powerful skids on the inside and outside which also acts as a straw divider. The cutterbar can be attached to excavators or boom arms to tractors.
STRONG ARGUMENTS:
- Hydraulic driven
- Available as right or left working versions

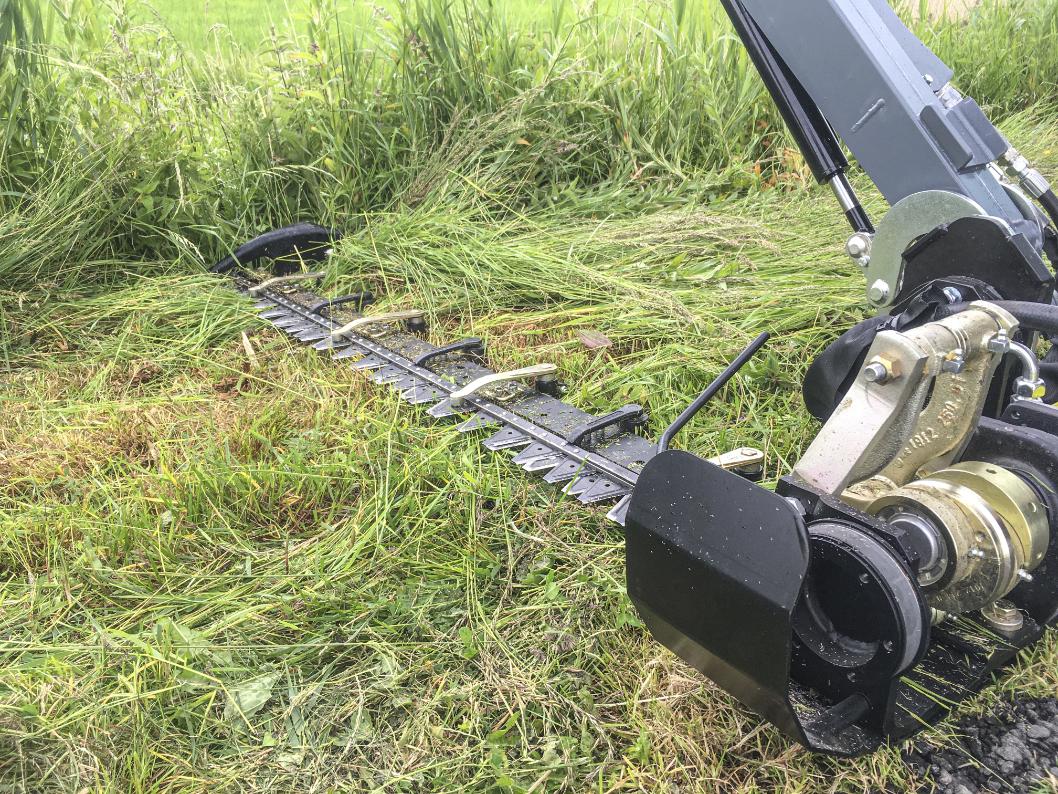

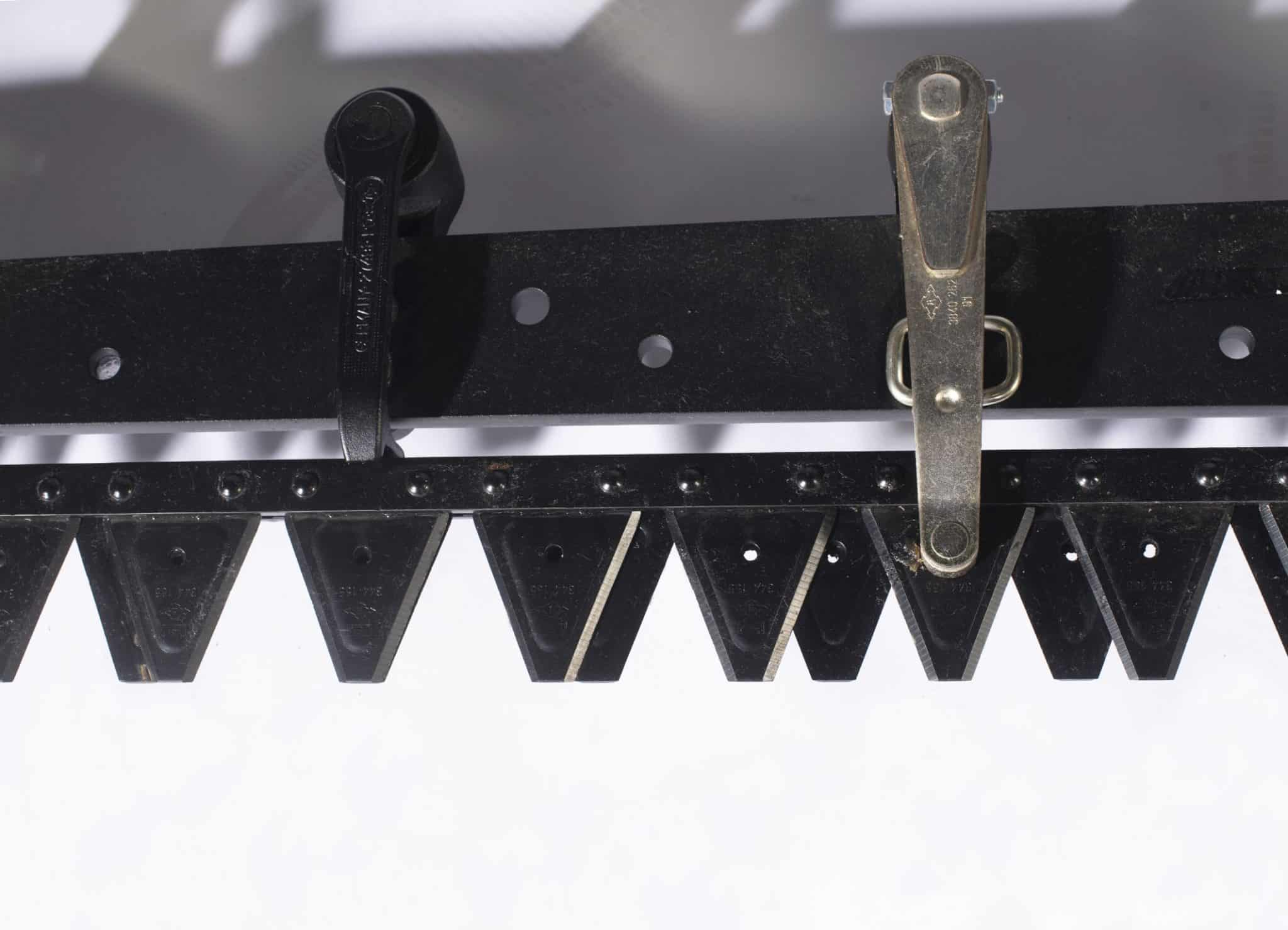

- Bidux blade system
- Cuts up to Ø 1 cm (0.39″”)
The Grass Cutterbar S series has working widths from 1.65 to 2.4 m (5’5″” to 7’10″”)The Grass Cutterbar S 165 – 240 have a maximum driving speed of 3 km/h (1.86 mph)The Grass Cutterbar S 165 – 240 weigh 70 to 102 kg (154 to 225 lb)

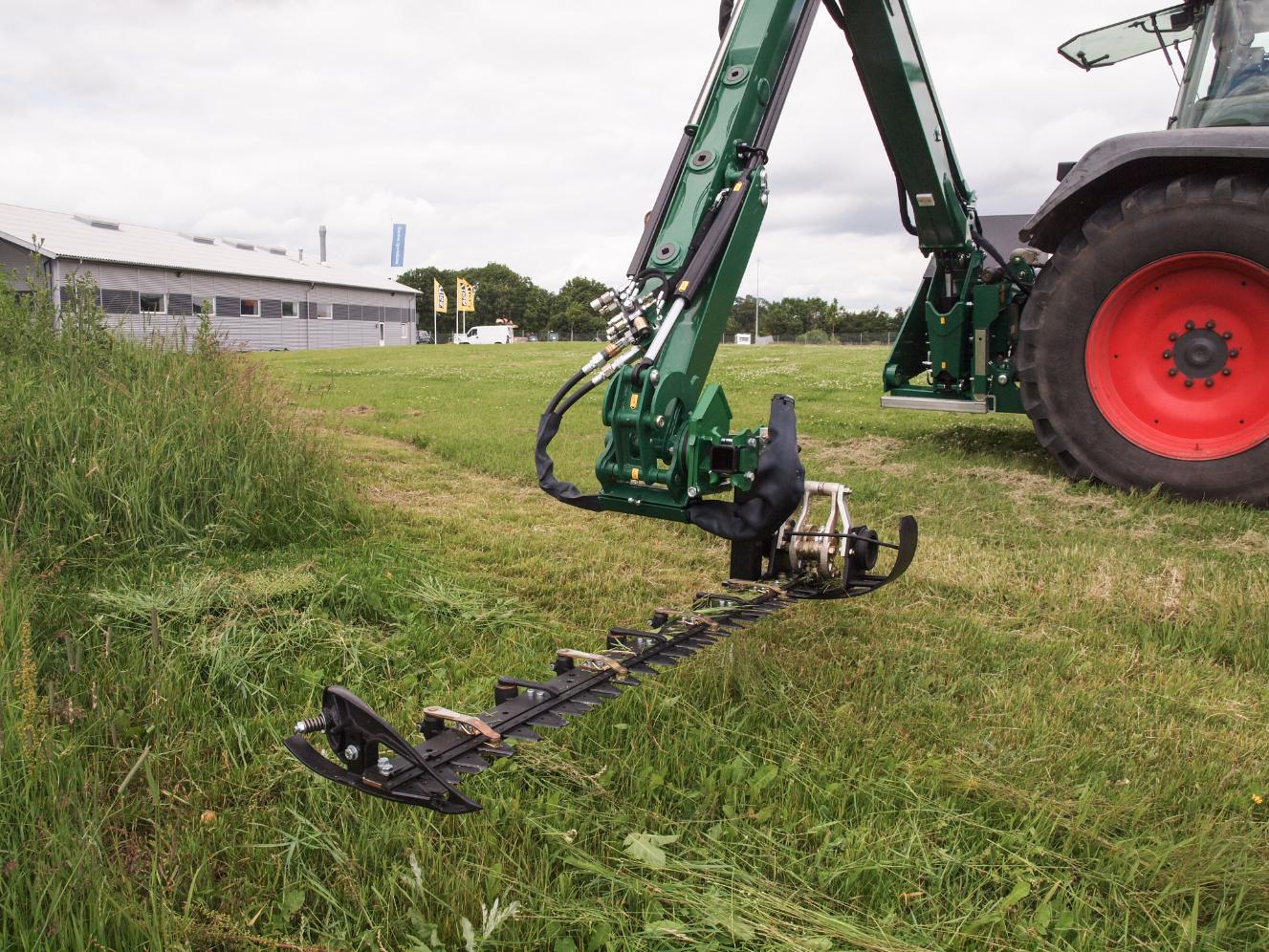

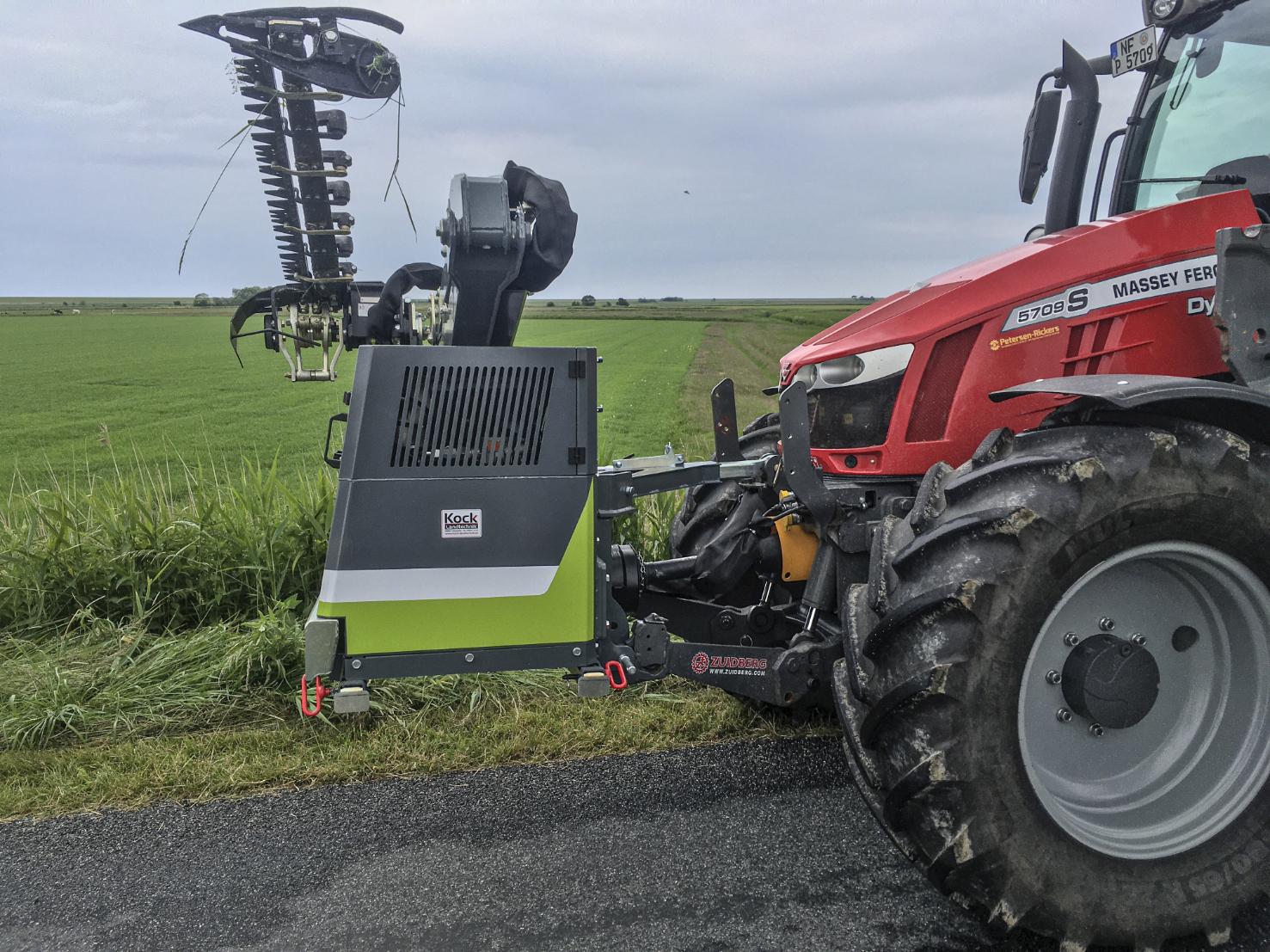

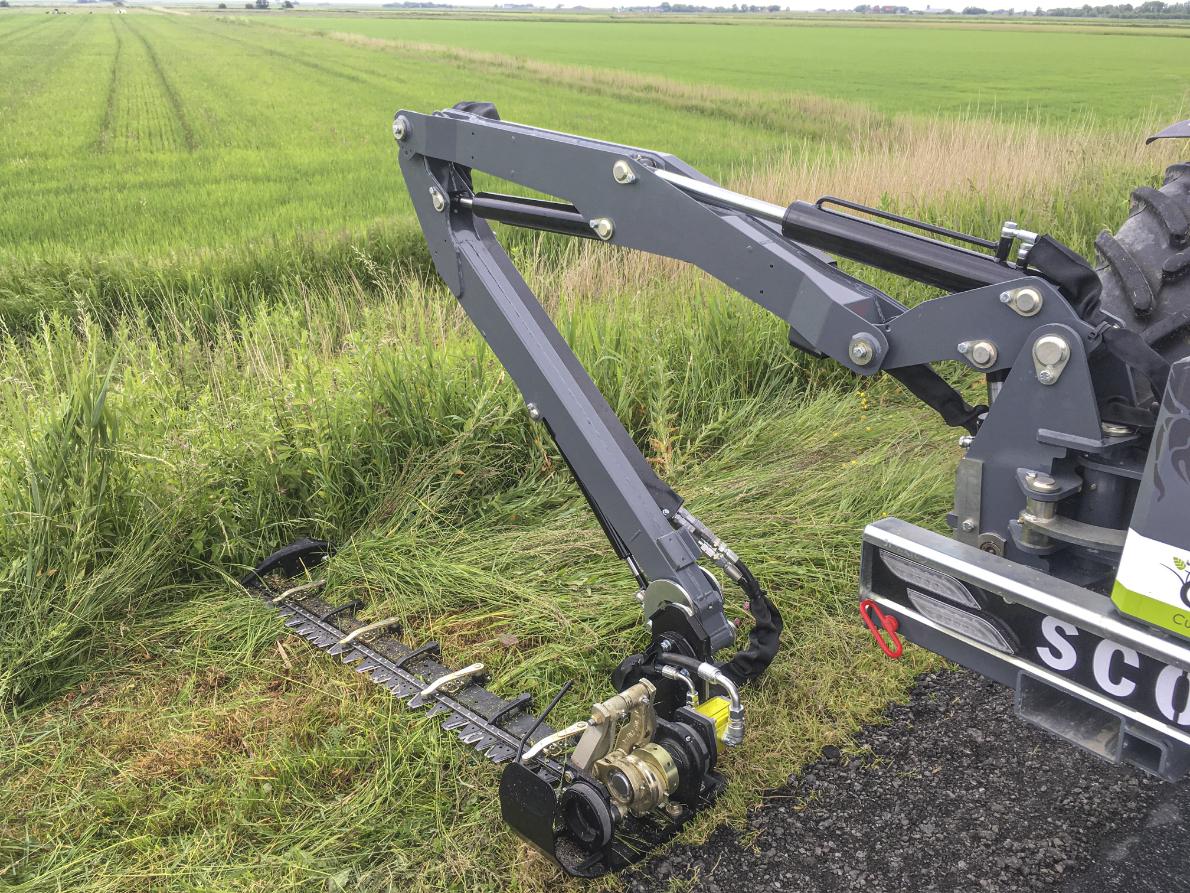

Hydraulic sickle bar mower for tractor
The sickle bar mower is used for cutting grass in inaccessible areas where a fine spread and chop of the cut off material is not required. The bar is mounted with powerful skids on the inside and outside which also acts as a straw divider. The cutterbar can be attached to excavators or boom arms to tractors.
The Gras Cutterbar S Series fits the following GreenTec machines:
S 165 S 190 S 210 S 240

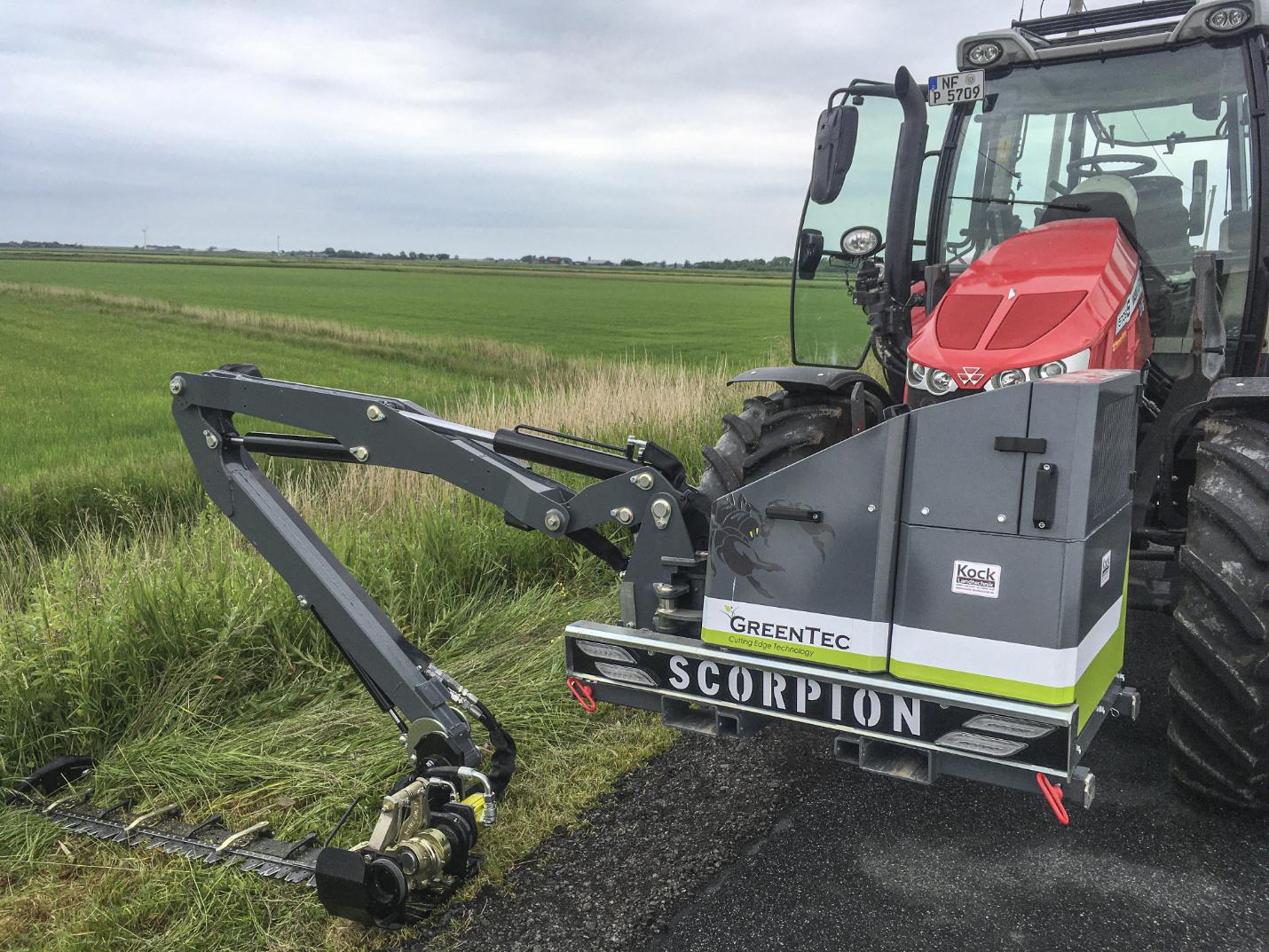

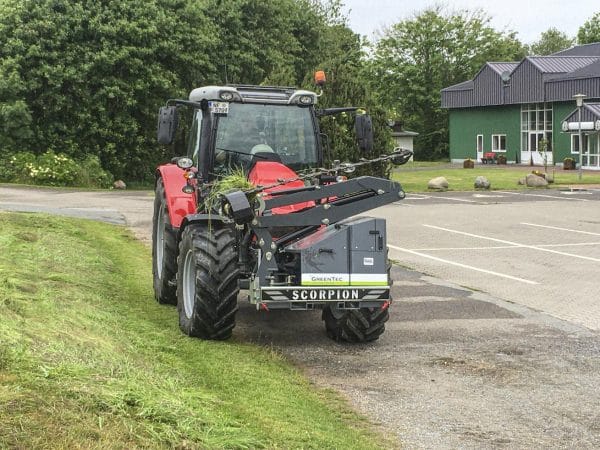

Boom Mower Scorpion 330 & 430 Check mark Check mark
Scorpion 530 & 630 Check mark Check mark Check mark Check mark
Scorpion 730 & 830 Check mark Check mark Check mark Check mark
TECHNICAL DATA S 165 S 190 S 210 S 240
Working width 1.65 m
(5’5″”) 1.90 m
(6’3″”) 2.10 m
(6’11″”) 2.40 m
(7’10″”)
Hydraulic connections 1 x DA 1 x DA 1 x DA 1 x DA
Required oil flow 34 l/min @ 180 bar
(9 gpm @ 2611 psi)
34 l/min @ 180 bar
(9 gpm @ 2611 psi)
34 l/min @ 180 bar
(9 gpm @ 2611 psi) 34 l/min @ 180 bar
(9 gpm @ 2611 psi)
Weight 70 kg
(154 lb) 82 kg
(181 lb) 92 kg
(203 lb) 102 kg
(225 lb)
EQUIPMENT OVERVIEW

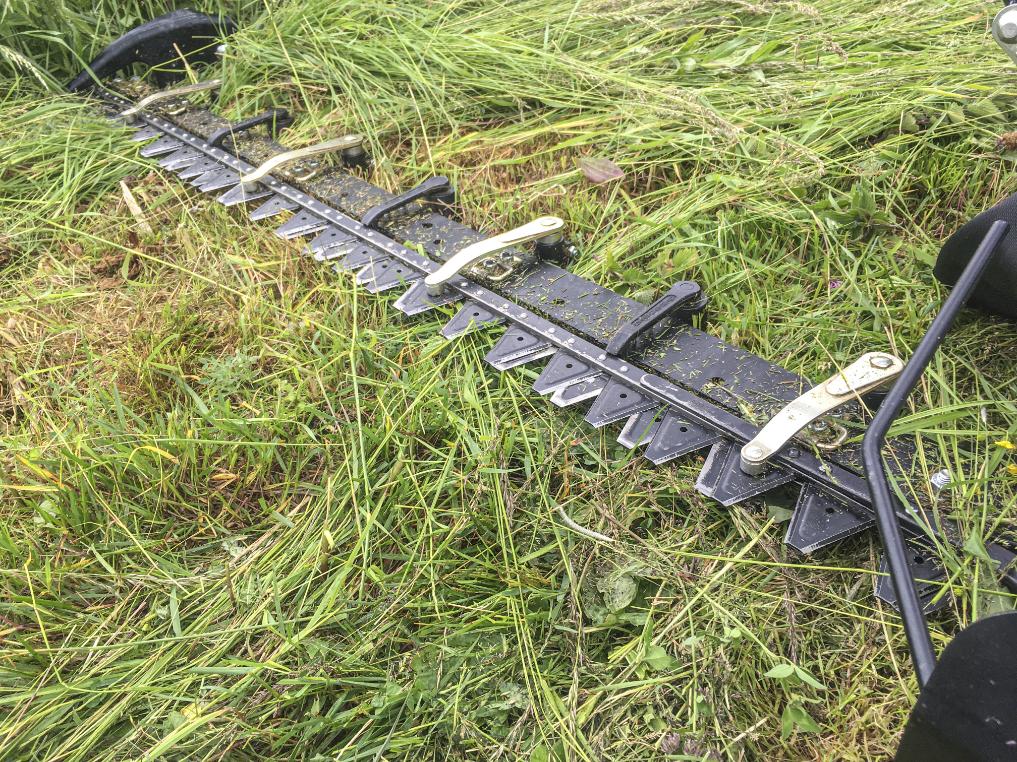

- Blades Standard equipment
- Inner skid shoe Standard equipment
- Outer skid shoe Standard equipment
- Hydraulic quick release Optional equipment
- Mechanical quick release Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
