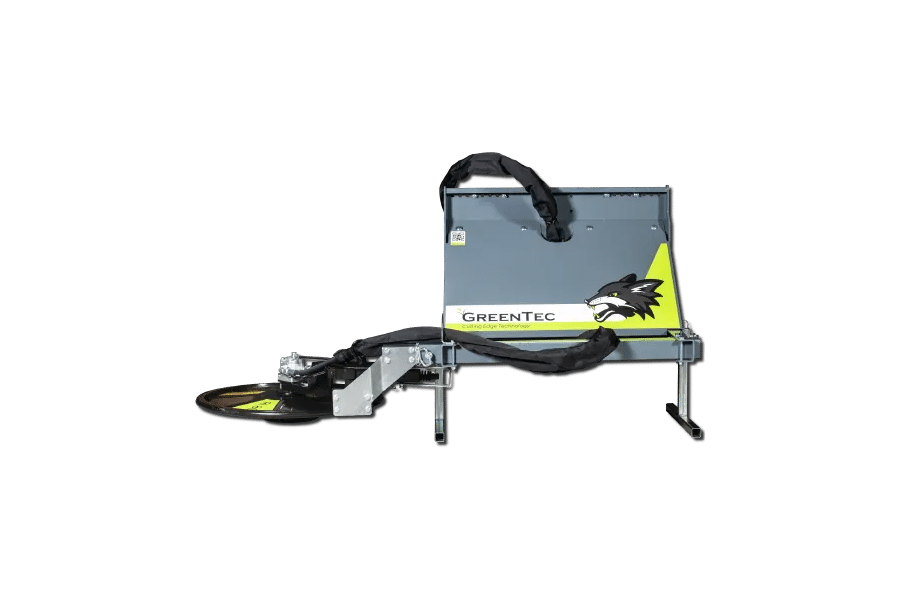

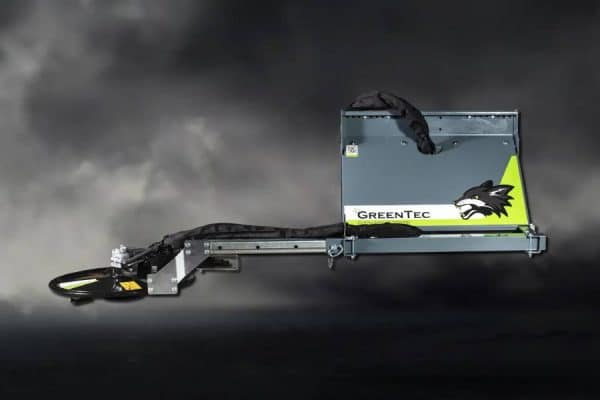

Greentec FOX Multi Carrier

Greentec FOX Multi Carrier

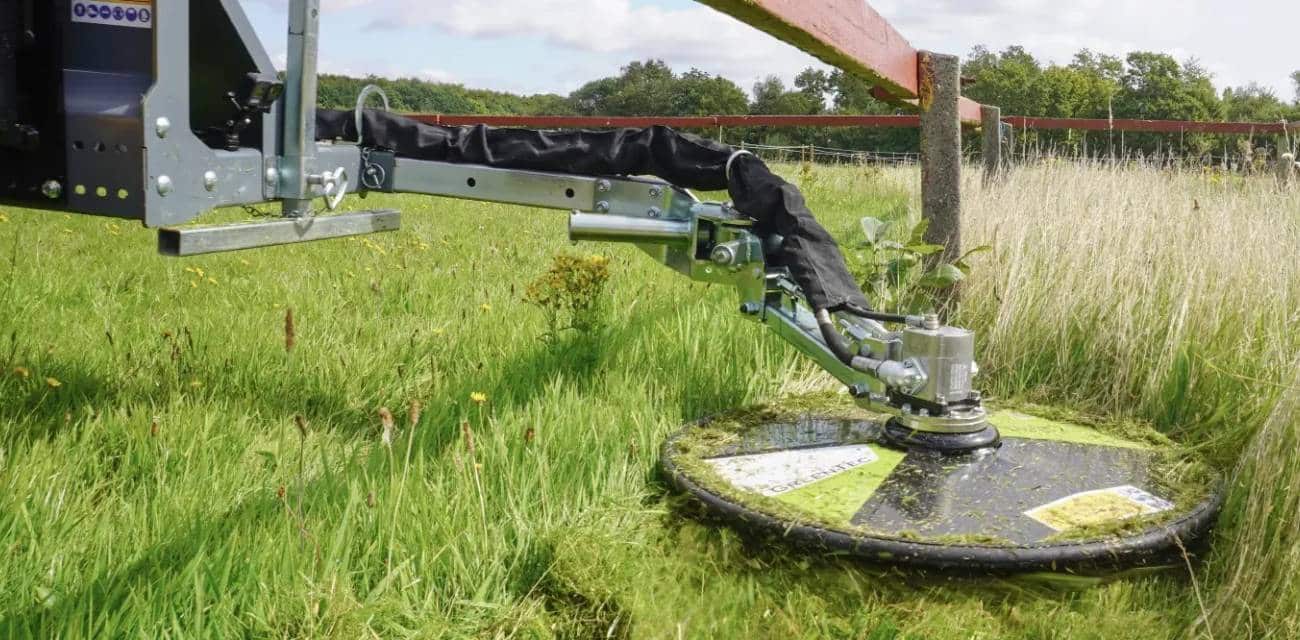

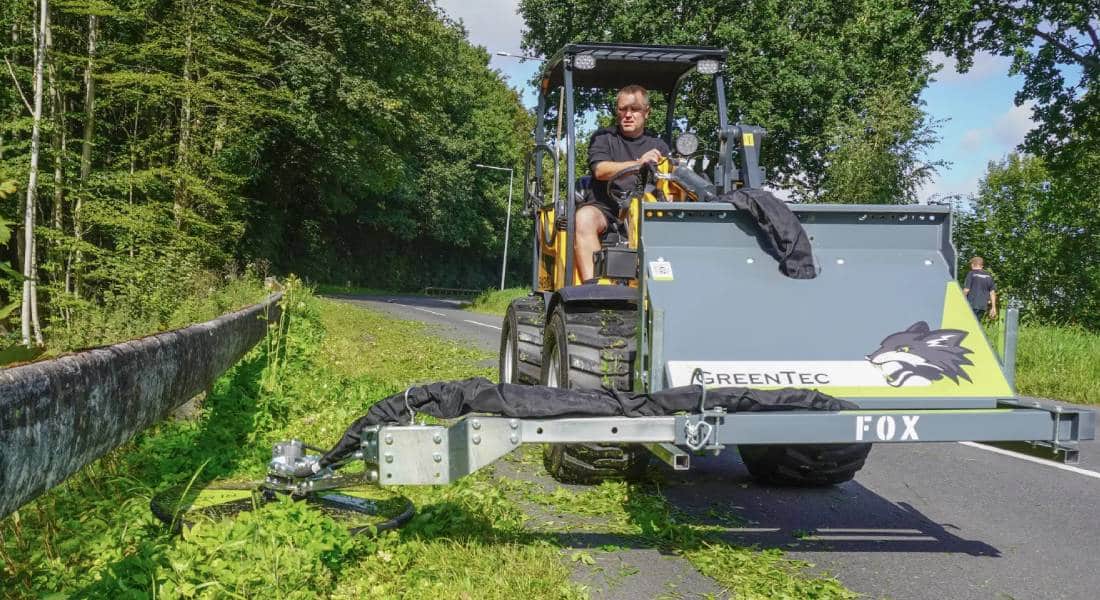

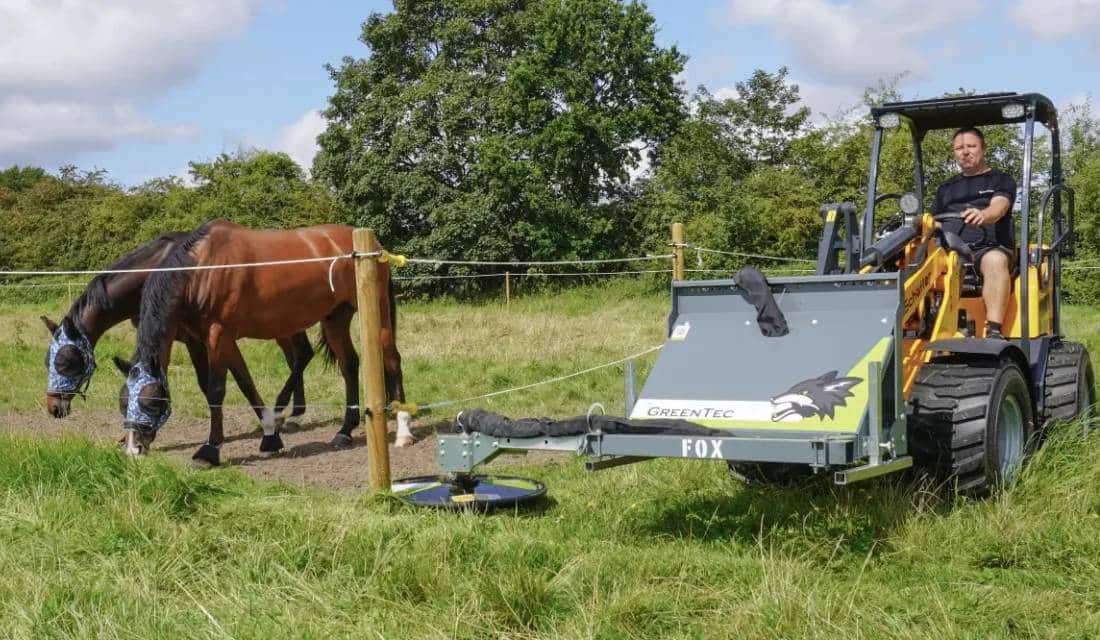

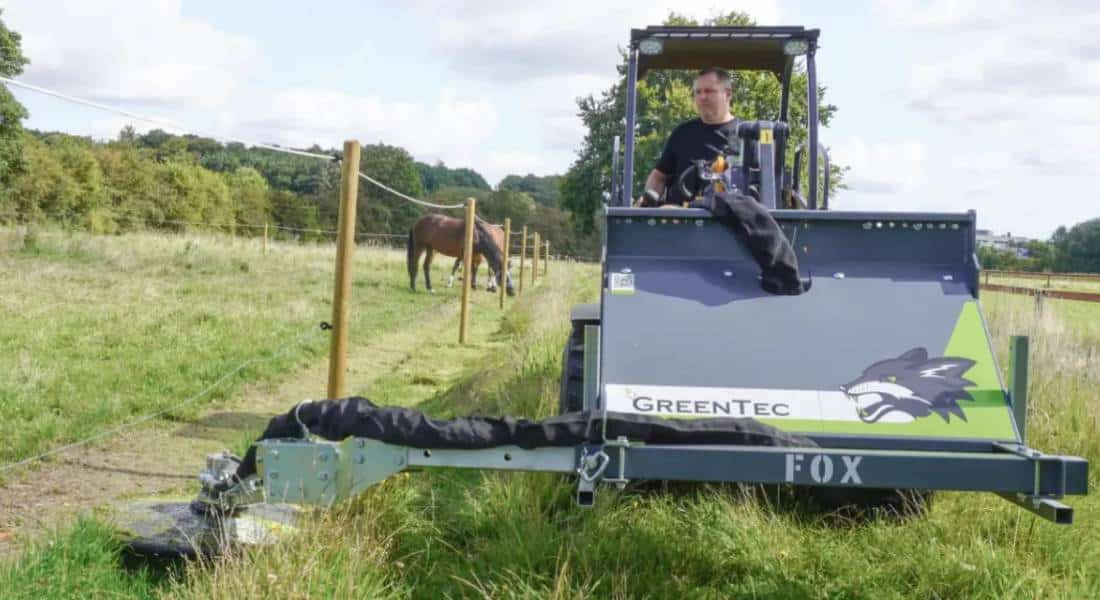

The Multi Carrier FOX is specially developed to carry our Barrier Mower RI 60 & 82. It is an ideal solution for people who are interested in mowing grass under horse fences, guardrails or around trees in orchards.

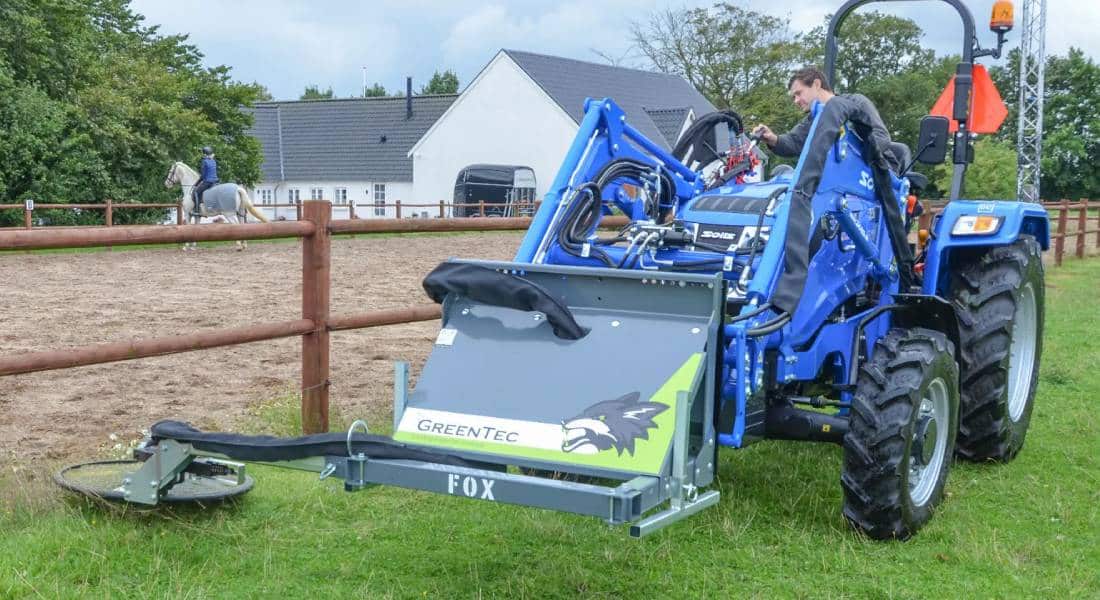

The arm on the FOX can be adjusted to the terrain if you want a shorter or longer range. The FOX has many mounting options as it can be either front or rear mounted on tractors through category 1 or 2. The FOX can also be front mounted on loaders.

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

Thanks for downloading

Before your download begins, please fill out the form below.

Powerful Features:

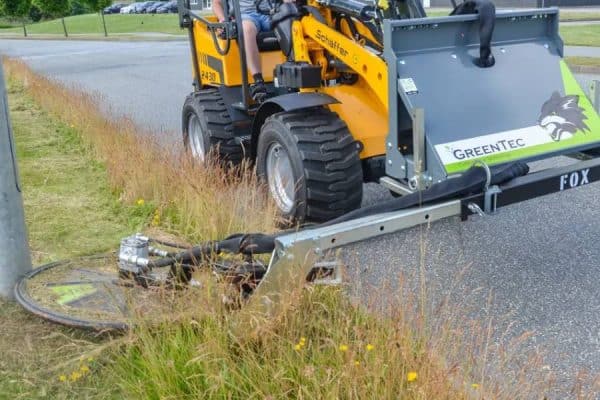

  • Mechanical telescopic arm – The arm has 4 levels from 128-188 cm (4’2″-6’2″)
  • Oil flow divider – Ensure long life on the oil engine due to correct oil supply and pressure
  • Fast and easy installation – The FOX is delivered unassembled and can be assembled in 2 hours

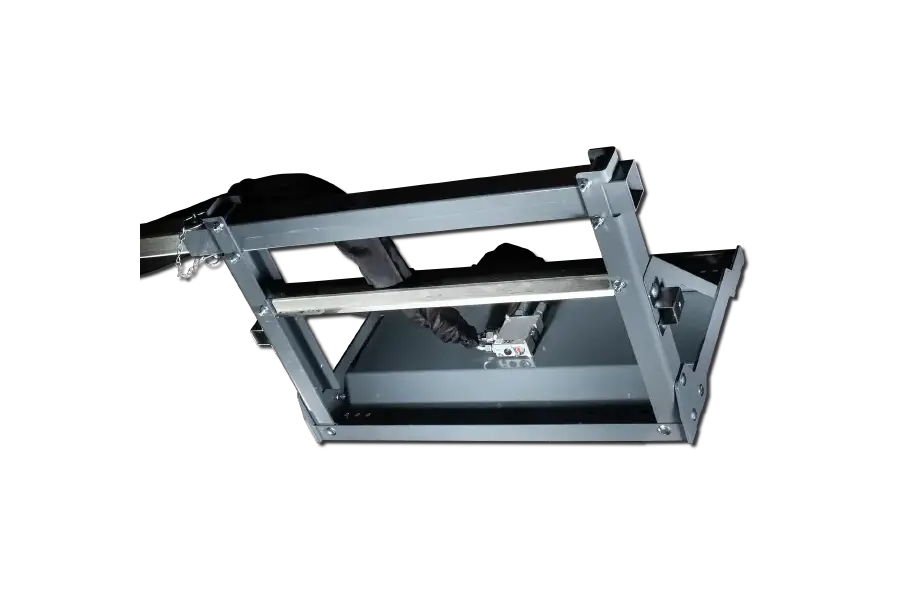

Under the hood

  • Mechanical telescopic arm – The arm has 4 levels from 128-188 cm (4’2″-6’2″)
  • Oil flow divider – Longer life for the oil engine
  • Flexible assembly – Assemble the FOX for left or right handed work
  • Support legs – Easy to park the machine when not in use
  • Wide variety of brackets – Mount the FOX on tractors and loaders

Equipment Overview

(Standard) Oil flow divider
(Standard) Mechanical telescopic arm
(Standard) Support legs
(Standard) Cat. 1/2, Euro brackets or universal plate
(Optional) Other bracket types

Specifications

Reach from center of vehicle to end of tool128-188 cm (4'2"-6'2")
Standard mounting optionsCat. 1/2, Euro brackets or universal plate
Required hydraulic connections1 x double acting + 1 x drain
Standard oil flow40 l/min @ 190 bar (10.6 gpm @ 2756 psi)
Alternative oil flow25 l/min @ 190 bar (6.6 gpm @ 2756 psi)
Weight without brackets115 kg (254 lb)
