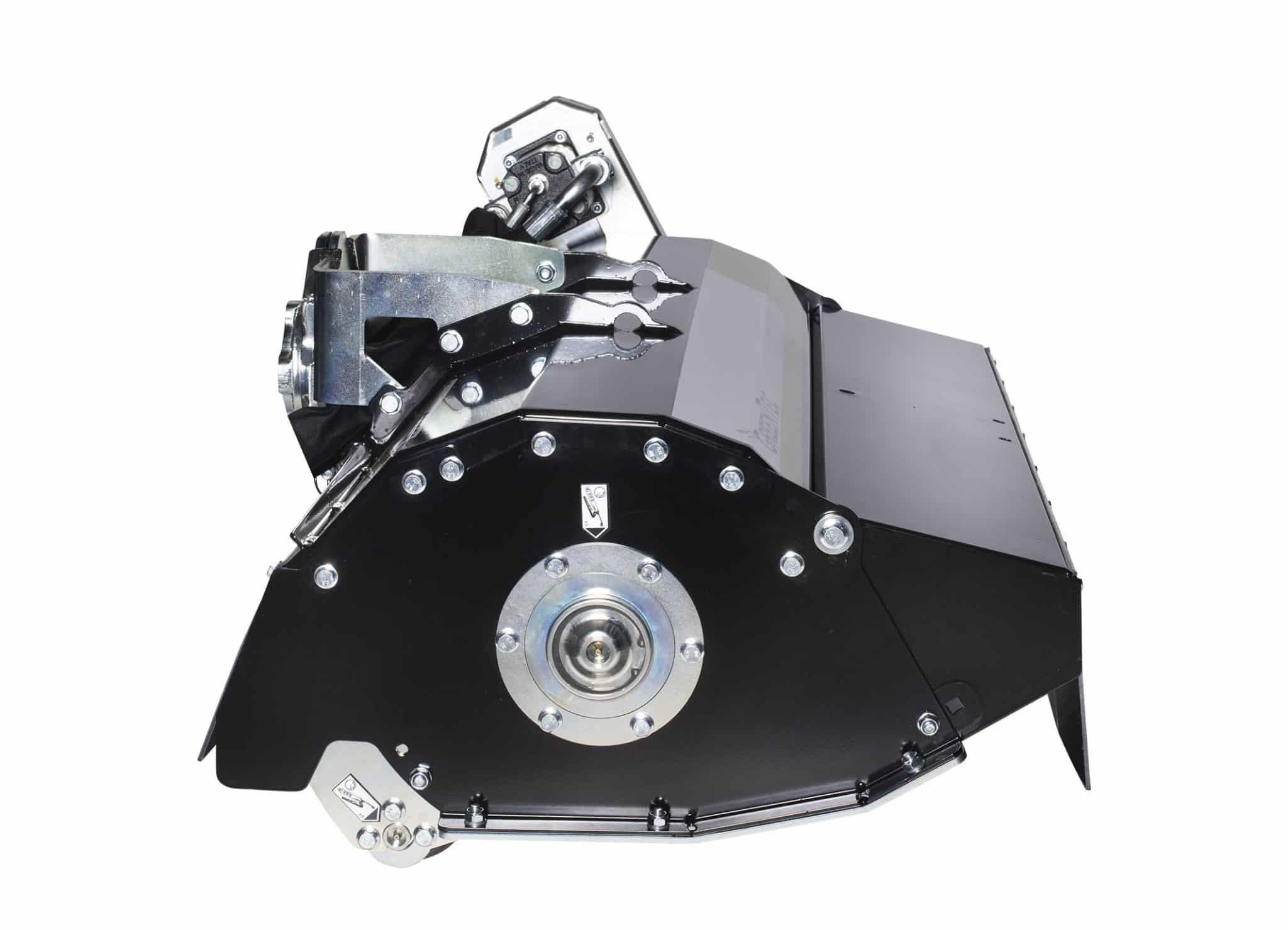

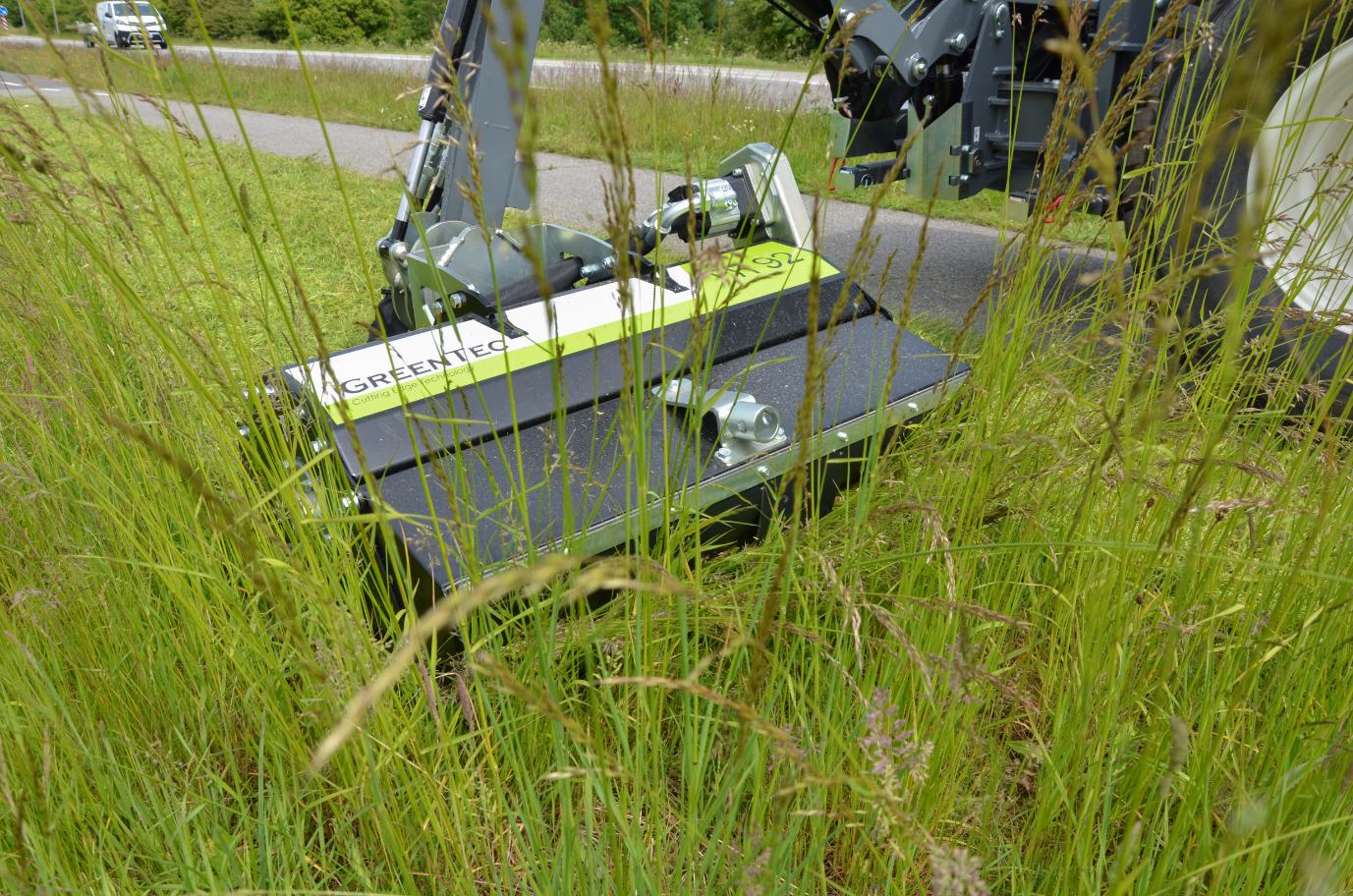

Our Flail Mowers FR 92 & 112 are highly effective for the care of green areas. They can be used for both grass mowing, hedge cutting and windbreak maintenance. Their core competency is verge mowing of grass and thicket.
STRONG ARGUMENTS:
- Integrated Airflow absorbs the grass and reduces the power requirement
- Manufactured in a highly durable material (Strenx high strength steel)
- Minimum total width as the rotor bearings are integrated
- Power Belt drive provides low maintenance costs

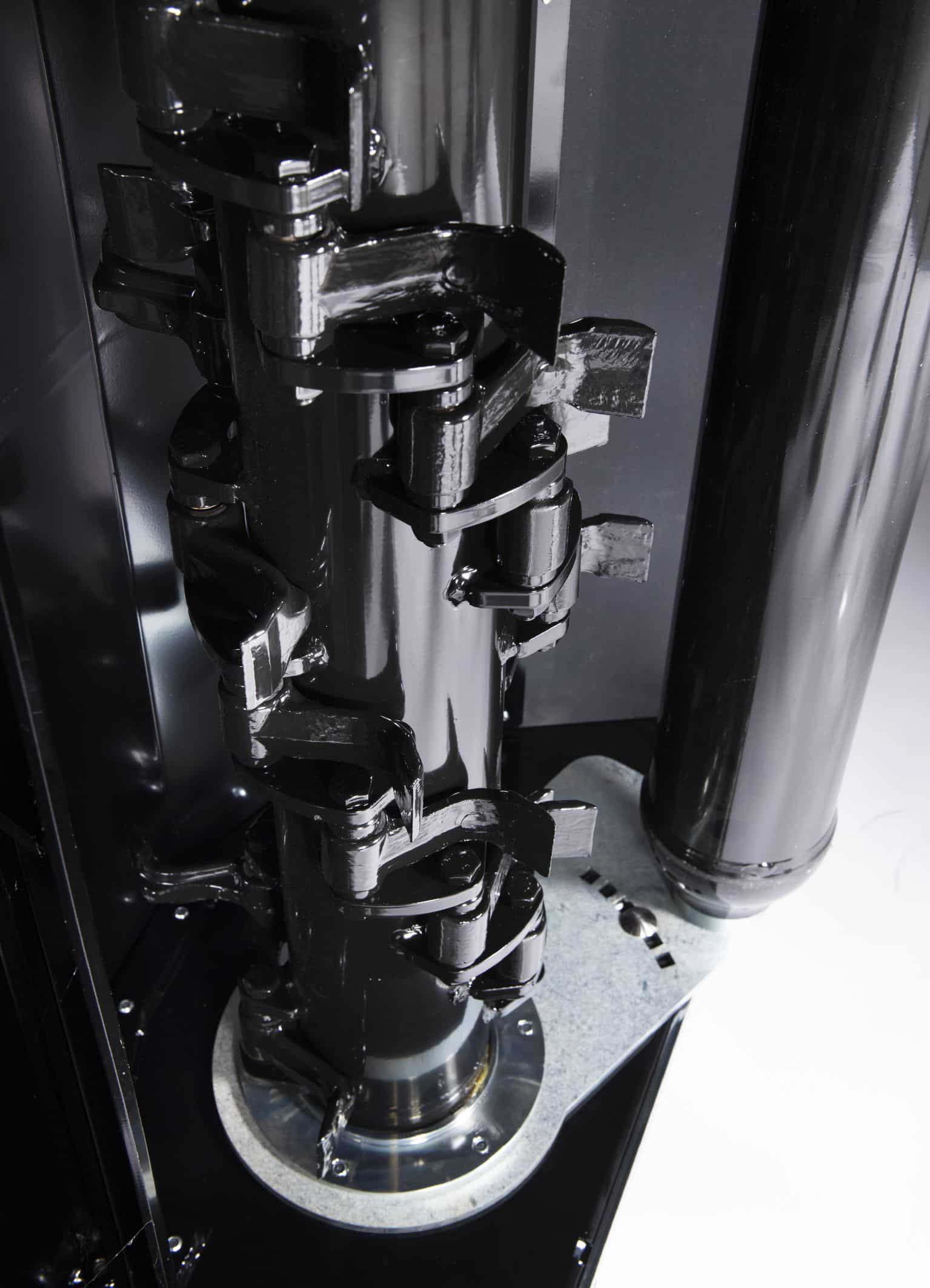

- Double spiral rotor gives a uniform distribution of the material
- Specially developed flails that reduces the risk of breakage and damage
The Flail Mower FR 92 & 112 have working widths of 0.9 and 1.1 m (2’11″” and 3’7″”), respectivelyThe Flail Mower FR 92 & 112 cut branches up to 4 cm (1.57”) in thicknessThe Flail Mower FR 92 & 112 have a maximum driving speed of 5-7 km/h (3.11-4.35 mph)The Flail Mower FR 92 & 112 weigh 138 and 144 kg (304 and 317 lb), respectively
Brush Cutter Attachments for Mini Excavators and Compact Tractors
Our Flail Mowers FR 92 & 112 are highly effective for the care of green areas. They can be used for both grass mowing, hedge cutting and windbreak maintenance. Their core competency is verge mowing of grass and thicket.

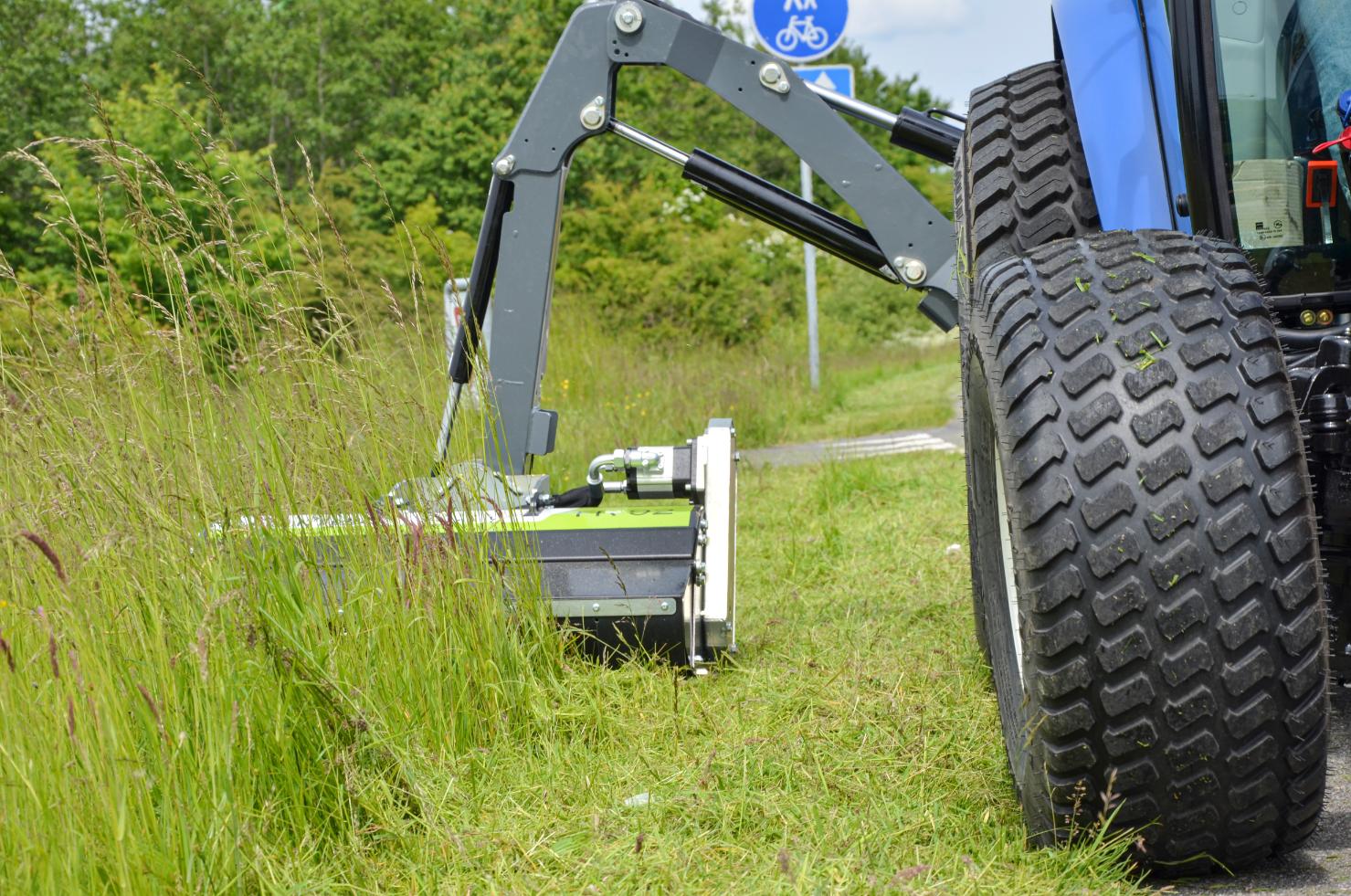

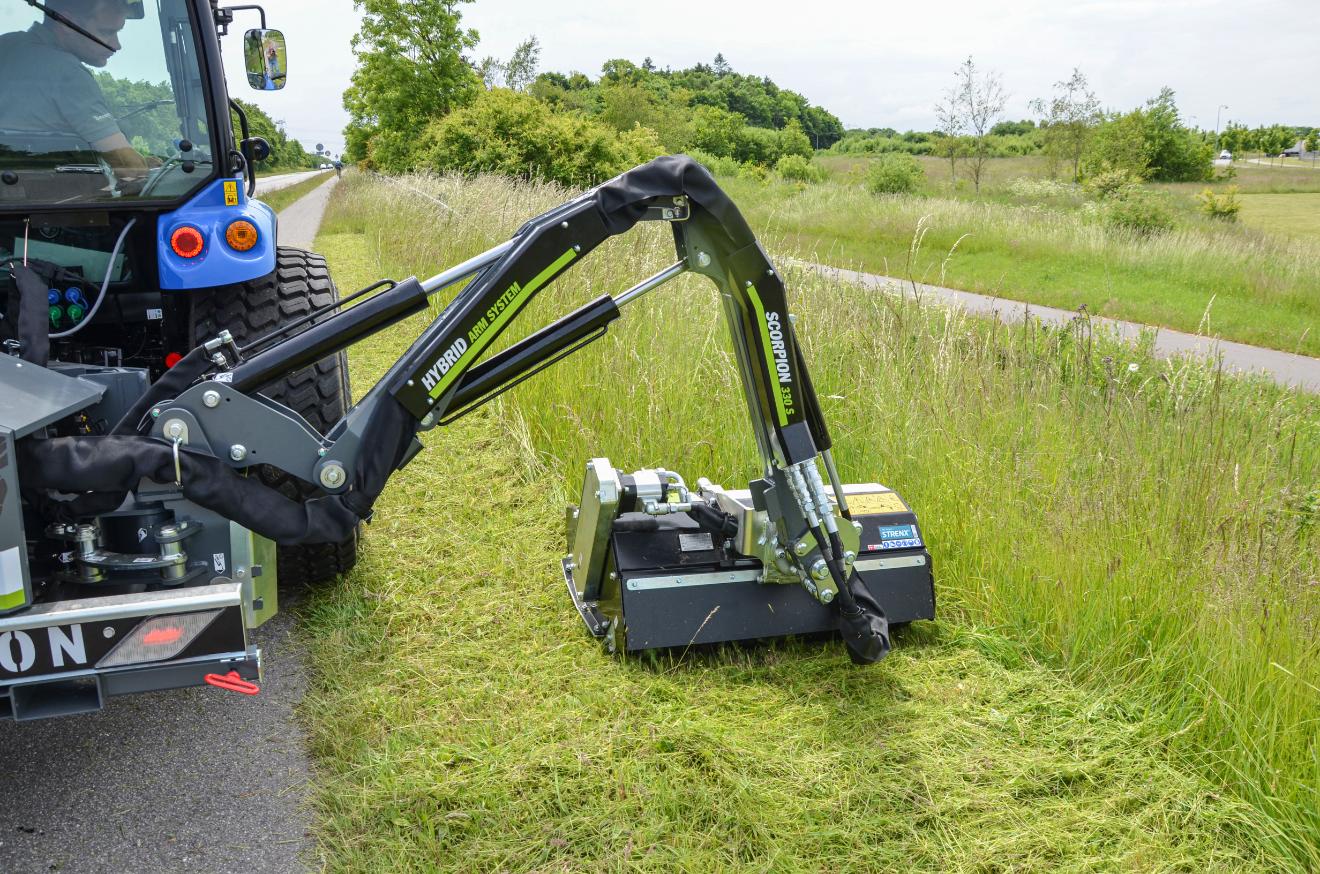

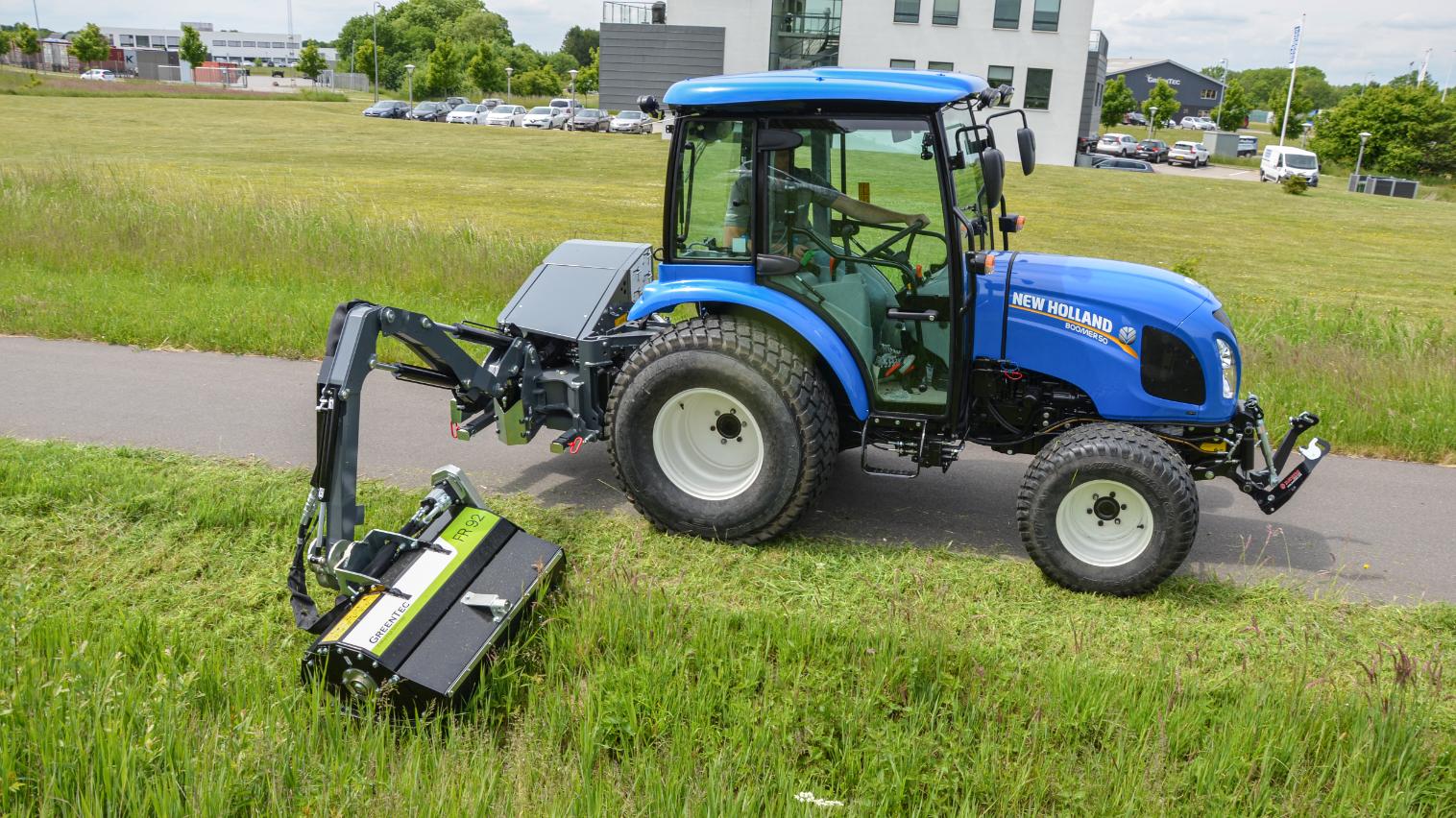

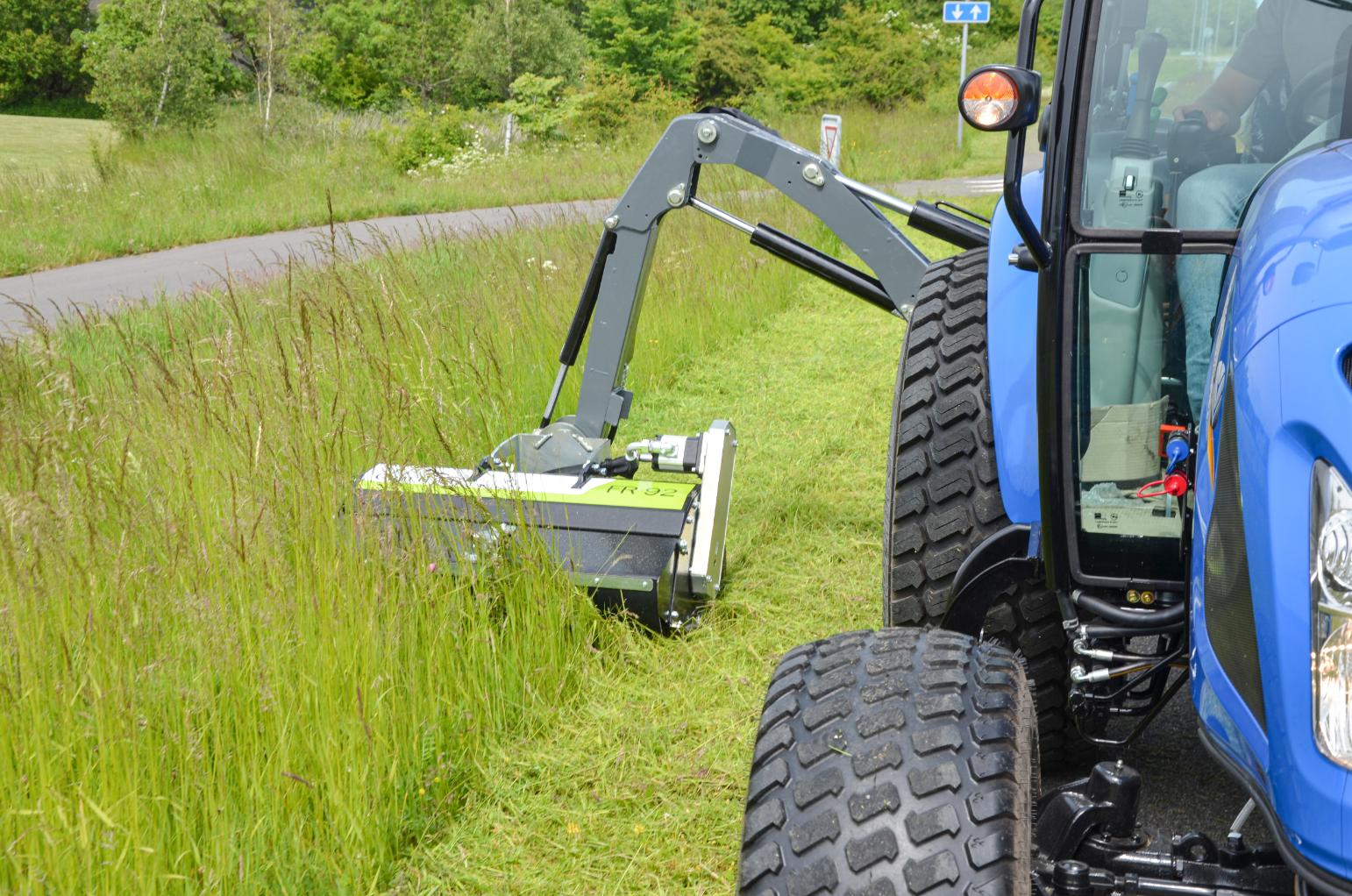

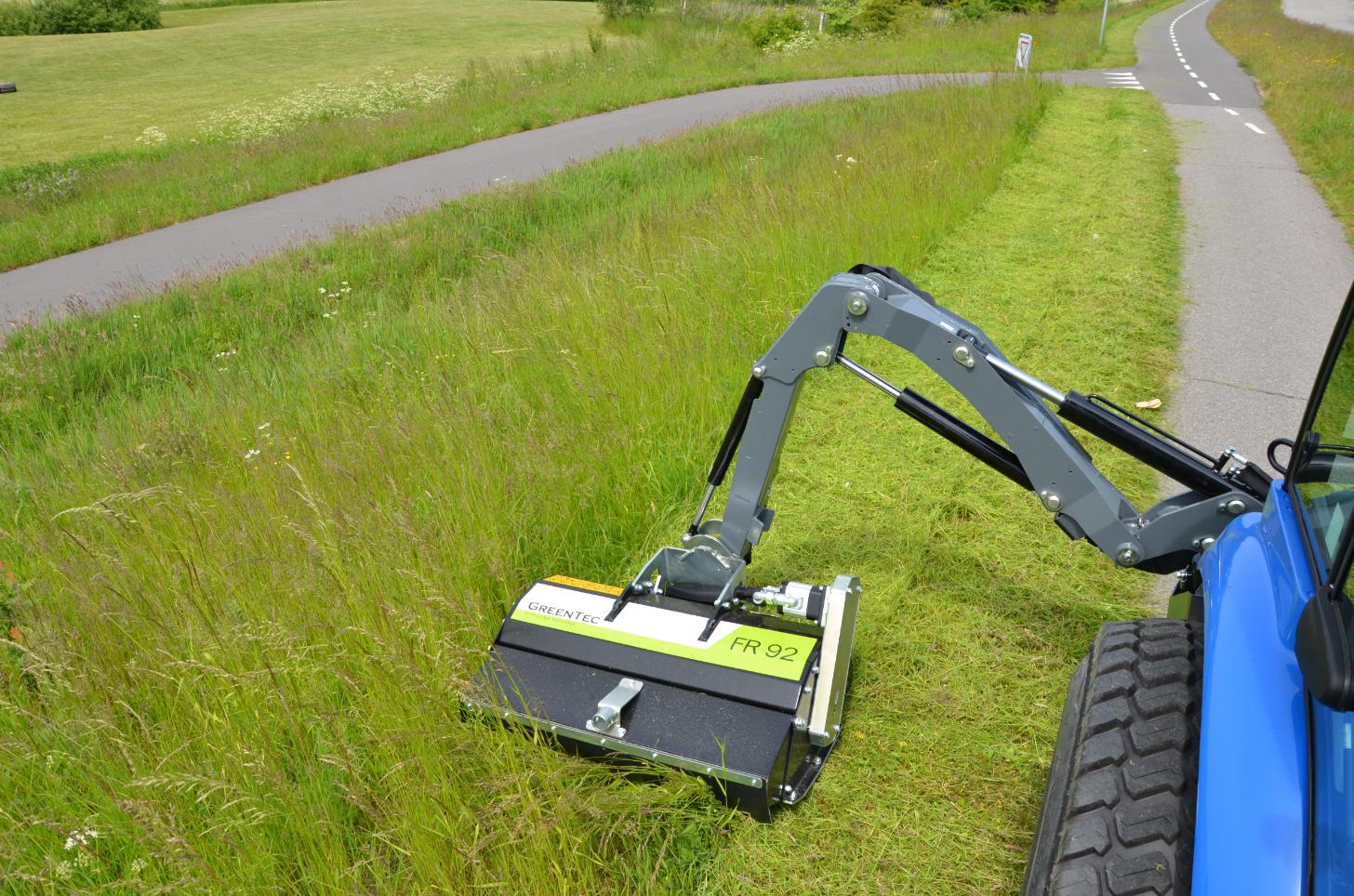

The brush mowers are hydraulic driven and can be fitted on smaller vehicles, as they have a relative low weight of 138 and 144 kg (304 and 317 lb). If you attach the brush mower to a reach arm on a compact tractor, you can maintain a high driving speed up to 7 km/h (4.35 mph). It is also possible to mount the brush cutters on mini excavators which makes it somewhat slower.
The flail mowers have been optimized in every single detail and the total width of the flail head has never been lower. The small working widths of 0.9 and 1.1 m (2’11″” and 3’7″”) make it easy to navigate the vehicle and brush mower in tight spaces, such as bicycle paths, gardens and parks.
The main advantage of the new FR series is the Integrated Airflow system. The term refers to the brush mowers’ suction capacity and power requirement. The flail mowers have been designed to process the incoming material immediately and reduce the time that the material spends in the machine by optimizing the air velocity. The Integrated Airflow system lowers the power requirement and expands the capacity of how much material that can enter the flail head.

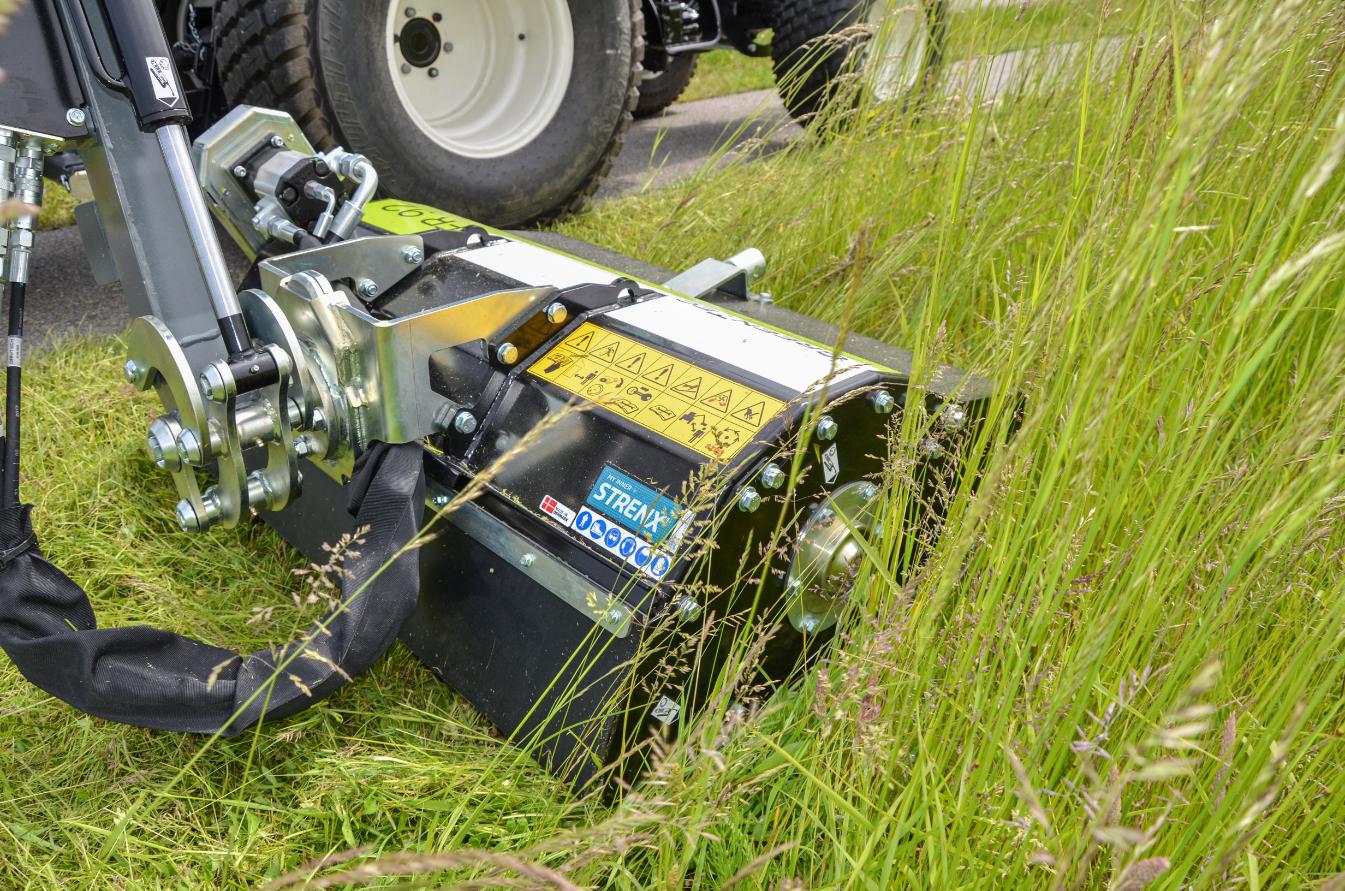

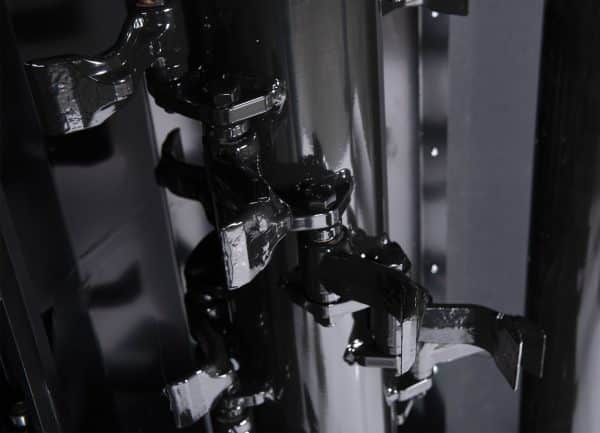

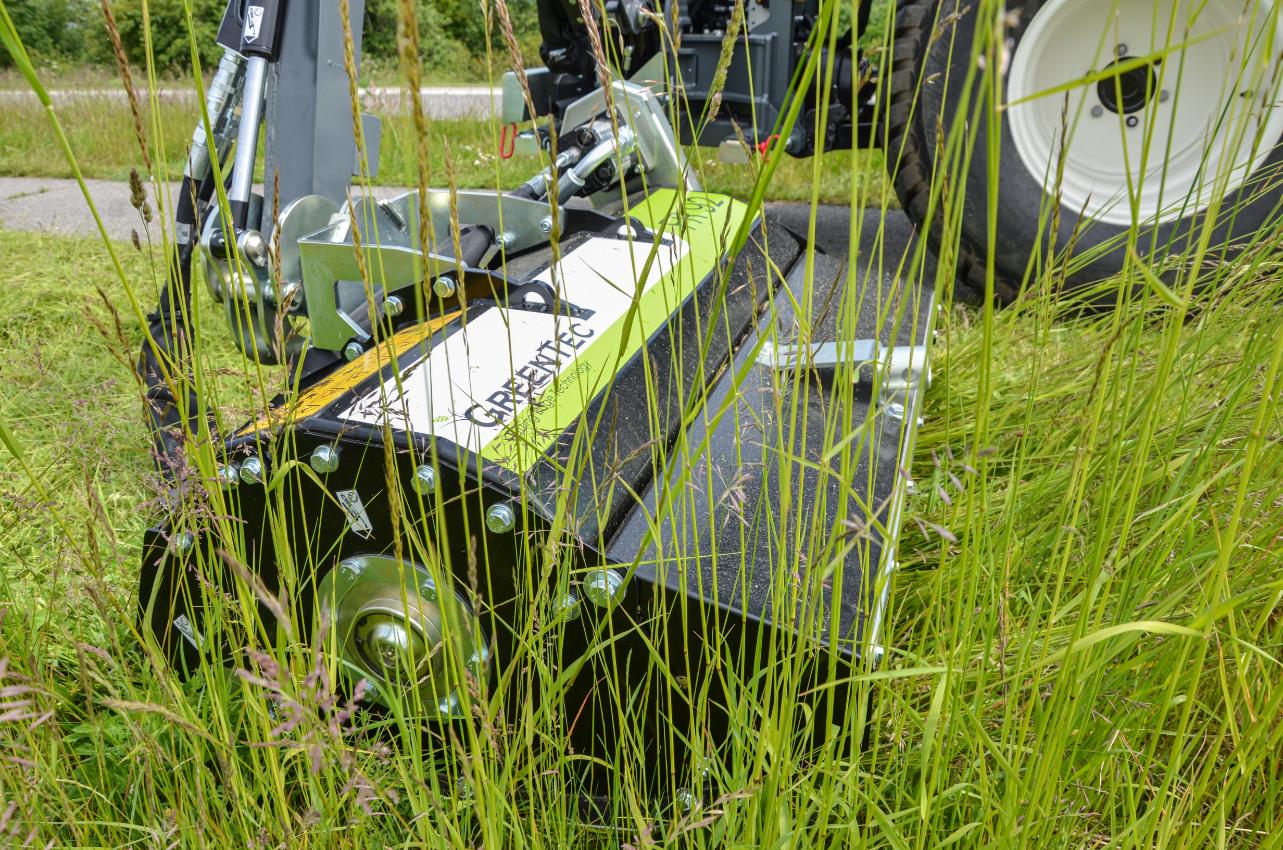

Even though the flail mowers have low weights, they are still made of some very durable material. Strenx 700 high strength steel is one of the most recognized steel types in the world and ensures low maintenance costs. Stones, branches or metal objects ricochet off of the strong exterior shield. Additionally, we have changed the shape of the flails to reduce damage and breakage to the internal rotor.
The Flail Mower FR 92 & 112 fits the following GreenTec machines:
FR 92 FR 112
Boom Mower Scorpion 330 & 430 Check mark Check mark
Scorpion 530 & 630
Scorpion 730 & 830
TECHNICAL DATA FR 92 FR 112
Working width 0.9 m
(2’11″”) 1.1 m
(3’7″”)
Branch thickness 4 cm
(1.57) 4 cm
(1.57)
Driving speed up to 5 – 7 km/h
(3.11 – 4.35 mph) 5 – 7 km/h
(3.11 – 4.35 mph)
Required hydraulic connections 1 x double acting + 1 x drain 1 x double acting + 1 x drain
Required oil flow 40 l/min @ 210 bar
(10.6 gpm @ 3046 psi) 40 l/min @ 210 bar
(10.6 gpm @ 3046 psi)
Weight 138 kg
(304 lb) 144 kg
(317 lb)
EQUIPMENT OVERVIEW
- Integrated Airflow Standard equipment
- Optimized total width Standard equipment
- Power Belt drive Standard equipment
- Strenx 700 steel construction Standard equipment
- Double spiral rotor Standard equipment
- Equipped with C-flails Standard equipment
- Rubber protection in front and back Standard equipment
- Adjustable front Standard equipment
- Rounded rear roller Standard equipment
- Optimized shape of flails Standard equipment
- Hydraulic quick release Optional equipment
- Mechanical quick release Optional equipment
- L-flails Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
