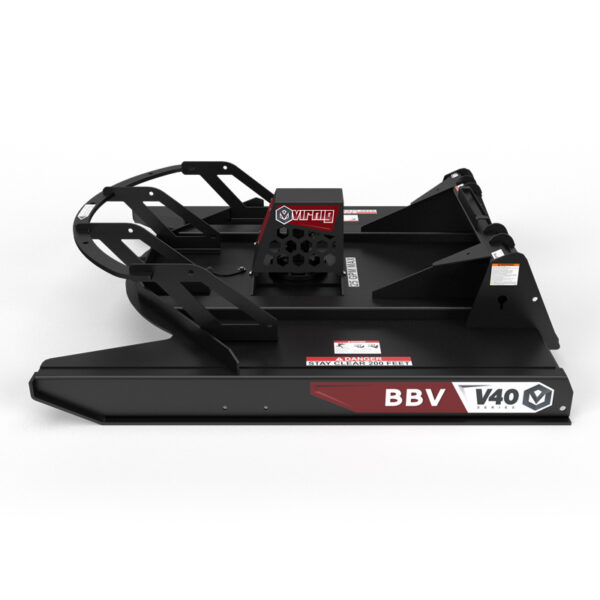

Cuts up to 3″ diameter trees and exposed blades allow faster cutting for a maintained finish.
DO NOT OPERATE CUTTER WITHOUT A SHATTERPROOF CAB ON LOADER.
| Model | BBV60-O | BBV72-O | |||
|---|---|---|---|---|---|
| Cut Width | 60.0 in / 1524 mm | 72.0 in / 1829 mm | |||
| Overall Width | 66.0 in / 1676 mm | 78.0 in / 1981 mm | |||
| Overall Height | 21.4 in / 544 mm | ||||
| Overall Depth | 71.1 in / 1805 mm | 82.1 in / 2086 mm | |||
| Deck Height | 7.7 in / 196 mm | ||||
| Push Bar Height | 19.7 in / 500 mm | ||||
| Minimum Cut Height | 1.9 in / 48 mm | ||||
| Cutting Capacity, Diameter | 3.0 in / 76 mm | ||||
| Deck Thickness¹: Top & Side | 0.19 & 0.25 in / 5 & 6 mm | ||||
| Recommended Flow Rate | 16–25 GPM / 61–95 L/min | ||||
| Max Operating Pressure | 3500 PSI / 24.1 MPa | ||||
| Approximate Weight | 1090 lb / 495 kg | 1310 lb / 595 kg | |||
| Recommended Loader Capacity | Greater than 1500 lb / 680 kg | ||||
¹ Deck material is Grade 50 Plate (50,000 PSI / 345 MPa minimum yield strength).
| Model | 16 GPM Minimum | 20 GPM | 25 GPM Maximum |
|---|---|---|---|
| BBV60-25-O | 9,360 FPM / 47.55 m/s | 11,705 FPM / 59.68 m/s | 14,630 FPM / 74.24 m/s |
| BBV72-25-O | 11,235 FPM / 57.18 m/s | 14,631 FPM / 74.24 m/s | 17,555 FPM / 89.58 m/s |
Flow rates are given in gallons per minute (GPM), and blade tip speeds are listed in feet per minute (FPM) / meters per second (m/s).
The V20 Mini Skid Steer Brush Cutter has three mini mounts to choose from:
Universal skid steer quick tach mount not available.
No, they aren’t as long as the blades on the V40 Cutters but they both use the same mount hardware and utilize ½” x 4” updraft blades.
The motor is rated for 11-18 GPM. All of the motors that Virnig uses have a zero overflow tolerance. Using the attachment at higher than rated flow will eventually cause catastrophic failure of the motor and can cause abnormal stress on the bearing spindle.
Virnig V20 Mini Skid Steer Rotary Brush Cutters are designed to clear undergrowth and cut small trees up to 3” in diameter.
Closed front cutters will be better at cutting grass and mulching material while open front cutters will be better for quickly clearing brush and small trees.
Virnig Brush Cutters are capable of throwing debris over 200 feet and can cause serious bodily harm or death. V20 Mini Skid Steer Brush Cutters should NEVER be operated with the rear deck more than 12” above the ground. Doing so creates a great risk of damage to the loader as well as injury or death of the operator.
The Rotary Brush Cutter is not designed to use casters or a rear roller.
No. Running the flywheel system in reverse will cause the cutter to cut poorly, easily stall, and have minimal torque.
The Rotary Brush Cutter is designed to spin counter-clockwise and takes 7-10 seconds to come to a complete stop. If the flywheel is running in reverse, slow down will be much faster and very loud.
Operating the Rotary Brush Cutter’s flywheel counter-clockwise is essential for proper operation and preventing damage to the cutter’s blades and motor.
The spindle is the most expensive performance component on a skid steer brush cutter. It is responsible for smoothly transferring power from the hydraulic motor to the flywheel and absorbing impact that could damage the hydraulic motor.
High-performance skid steer brush cutters require heavy-duty spindles to ensure reliability and productivity.
For efficient operation, purchase a skid steer brush cutter with a cut width that is wider than the tires or tracks of your loader.
Loader capacity should also be considered. Selecting a skid steer attachment that is too wide will add weight, volume, and surface area, all factors that could affect performance.
