Greentec Spider 820 PLUS Reach Mower

Greentec Spider 820 PLUS Reach Mower

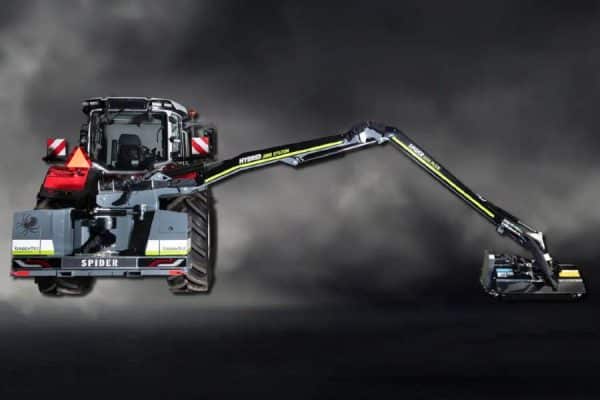

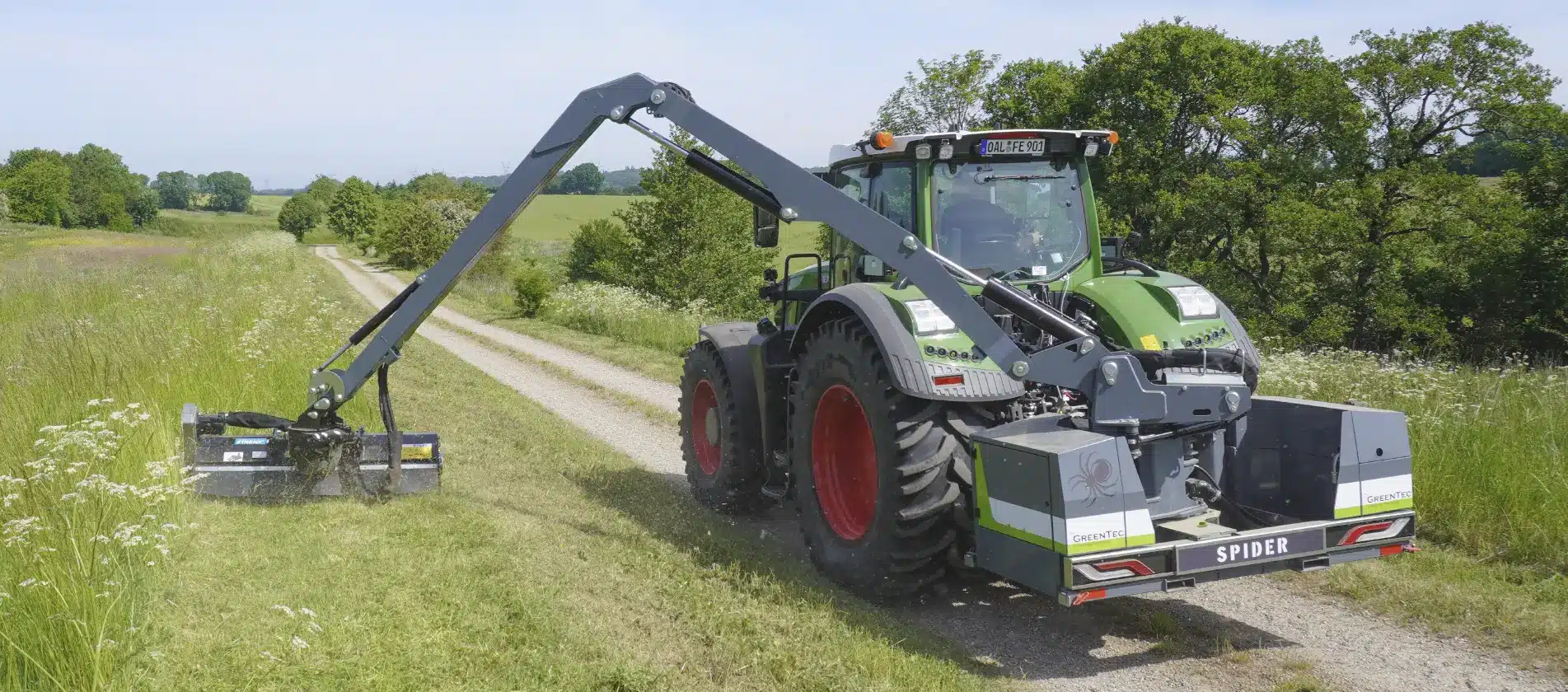

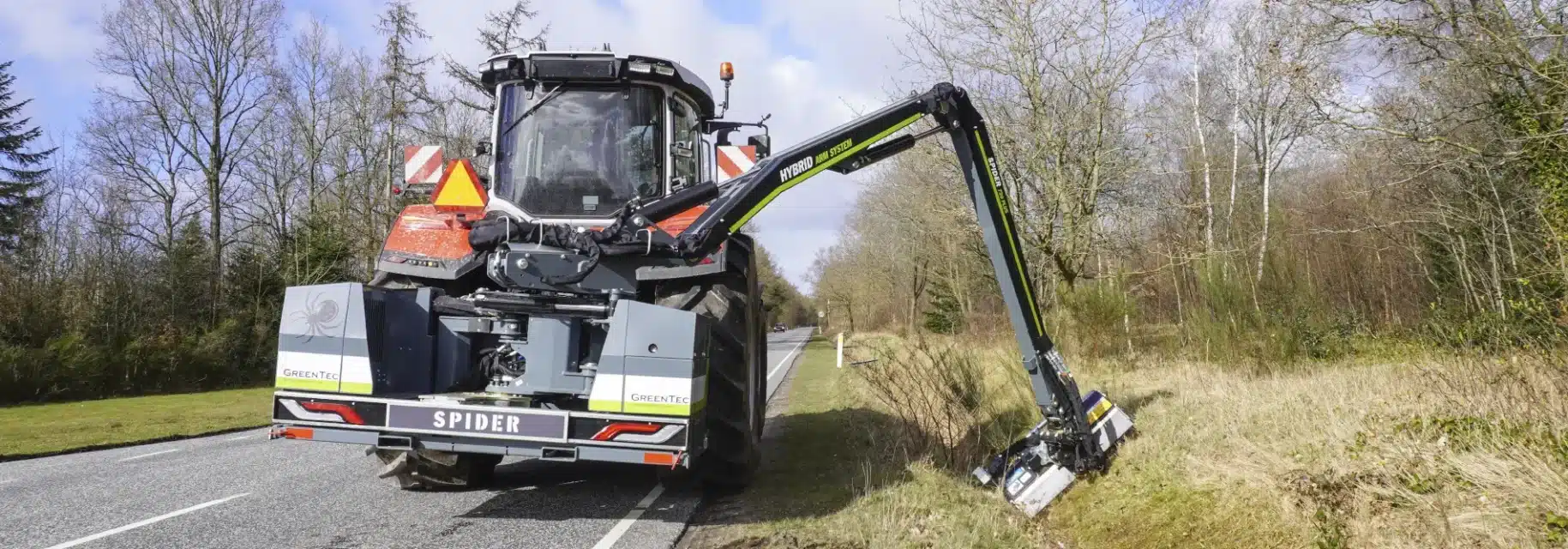

The Spider 820 PLUS is a professional boom mower used by municipalities, agricultural contractors, forest workers, and landscapers; it is suitable for roadside maintenance, hedge cutting, and tree trimming. It is a highly flexible solution where you can easily change the position of the arm for working on either the right or left side of the road, and the arm can be extended forward so the attachment tool is always visible to the driver.

The Spider 820 PLUS can be rear‑mounted on large tractors with a weight of at least 8,000 kg (17,637 lb).

This field is for validation purposes and should be left unchanged.
Name(Required)
Address(Required)

Thanks for downloading

Before your download begins, please fill out the form below.

Recommended Uses of Spider 820 PLUS

The Spider 820 PLUS is designed as a high-reach professional boom mower for demanding vegetation and infrastructure maintenance tasks where long working range, stability, and precise control are essential. It is especially suitable for:

  • Roadside and verge mowing for municipalities and road maintenance authorities
  • Hedge cutting and shaping along highways, main roads, parks, and public spaces
  • Tree and branch trimming along traffic routes, public areas, and infrastructure corridors
  • Maintenance of ditches, embankments, canals, and steep or hard-to-reach slopes
  • Large-scale green area and park maintenance for professional landscaping contractors
  • Agricultural boundary and access-road maintenance, including field edges and farm infrastructure
  • Forestry and utility corridor maintenance, such as vegetation control along forest roads and service lines

Thanks to its long horizontal and vertical reach, reversible left- and right-side working positions, and highly flexible cutting-head movement, the Spider 820 PLUS is particularly well suited for wide, complex, and heavy-duty working environments where safe working distance, high productivity, and excellent operator visibility are required.

Features Under the Hood

  • Hybrid arm system – control the arm with or without parallel motion.
  • Rotor Flex – 270° turn of cutting head and 180° cutting angle.
  • Danfoss joystick – 4 proportional functions.
  • Air Stream Control – effective hydraulic fluid cooling.
  • LED lights – for visibility from a long distance.
  • 270° hydraulic arm movement – maximum working flexibility.
  • Strenx 700 steel construction – high‑strength, durable steel.
  • Hydraulic system – Danfoss 60 ccm piston pump.

Equipment Overview

Standard features included with the machine:

✔ Side shift frame for right or left driving
✔ Hybrid Arm System with dual function
✔ Strenx 700 steel construction
✔ 270° hydraulic turn of the arm with power control
✔ Rotor Flex, double pivot joint (270° turn of cutting head & 180° cutting angle)
✔ Auto Flex, automatic vertical positioning
✔ Danfoss proportional valve PVG 32/16
✔ Danfoss joystick with 4 proportional functions
✔ Two oil flows: 85 l/min and 50 l/min for attachment tool
✔ Hydraulic float of arm and cutting angle
✔ Oil cooler
✔ Air Stream Control (effective oil cooling)
✔ 220 l (58.12 gal) oil tank capacity
✔ 4‑point mounting for Cat. 2 or 3
✔ PTO 500–750 rpm
✔ Automatic Hydraulic Security (AHS)
✔ Transport safety
✔ LED lights

Optional equipment:

🔹 Auto Height Control (for verge mowing)*
🔹 Quick release, hydraulic
🔹 Quick release, mechanical
🔹 Hose kit, 4 pieces for arm
🔹 K80 ball hitch for 4‑point mounting**
🔹 Leaf Blower LG attached to boom mower
🔹 Bio oil

Specifications

Horizontal reach8.2 m (26'11")
Vertical reach8.1 m (26'7")
Transport width2.4 m (7'10")
PumpDanfoss 60 ccm piston pump
Hydraulic system125 l/min @ 315 bar (33.02 gpm @ 4569 psi)
Weight without tools2,385 kg (5,258 lb)
Minimum size of tractor8,000 kg (17,637 lb)
