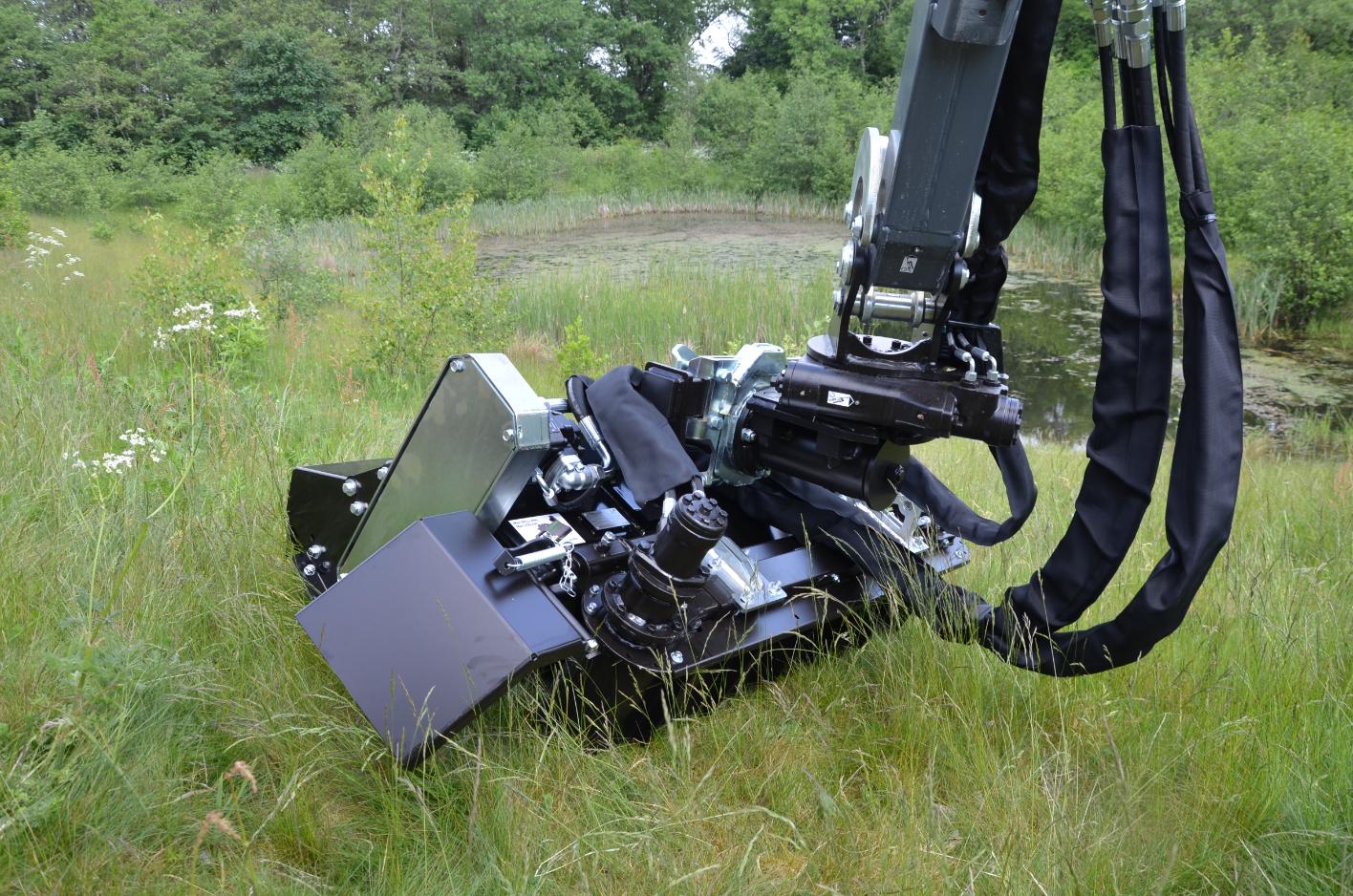

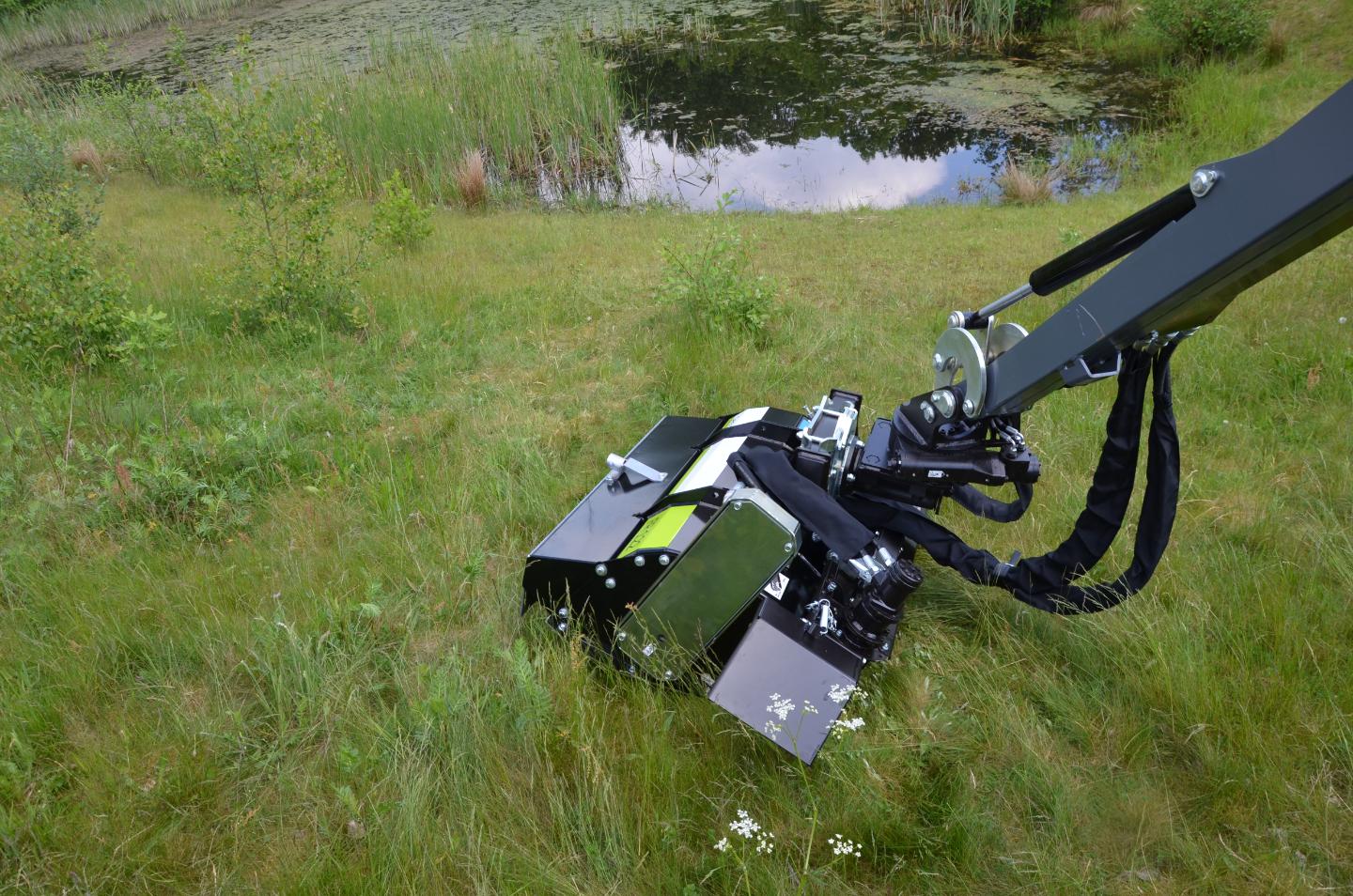

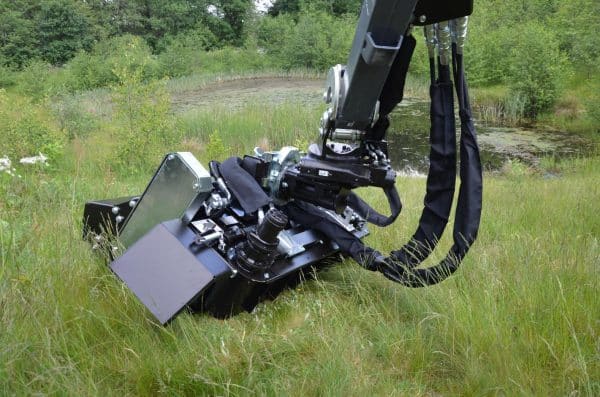

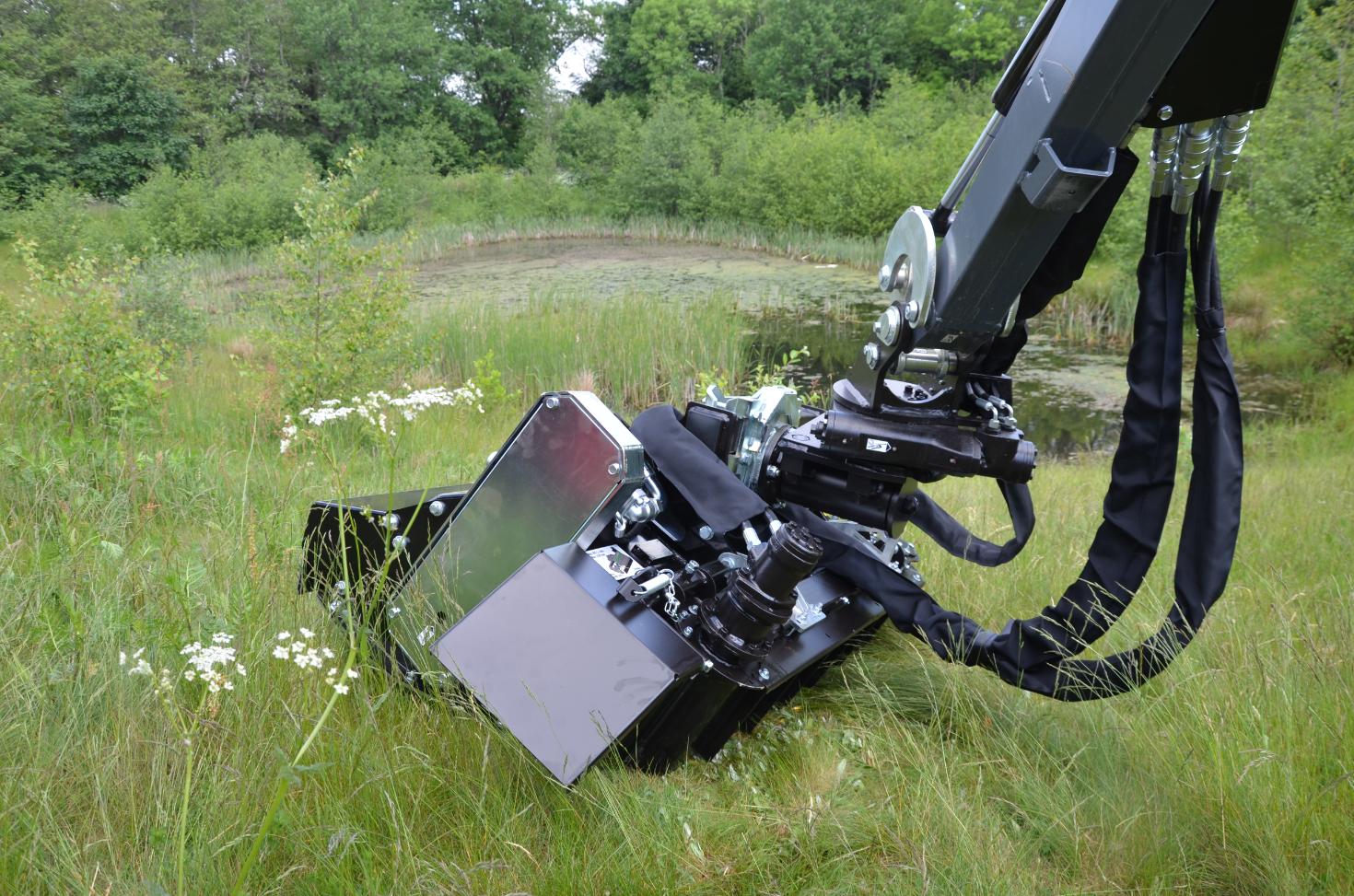

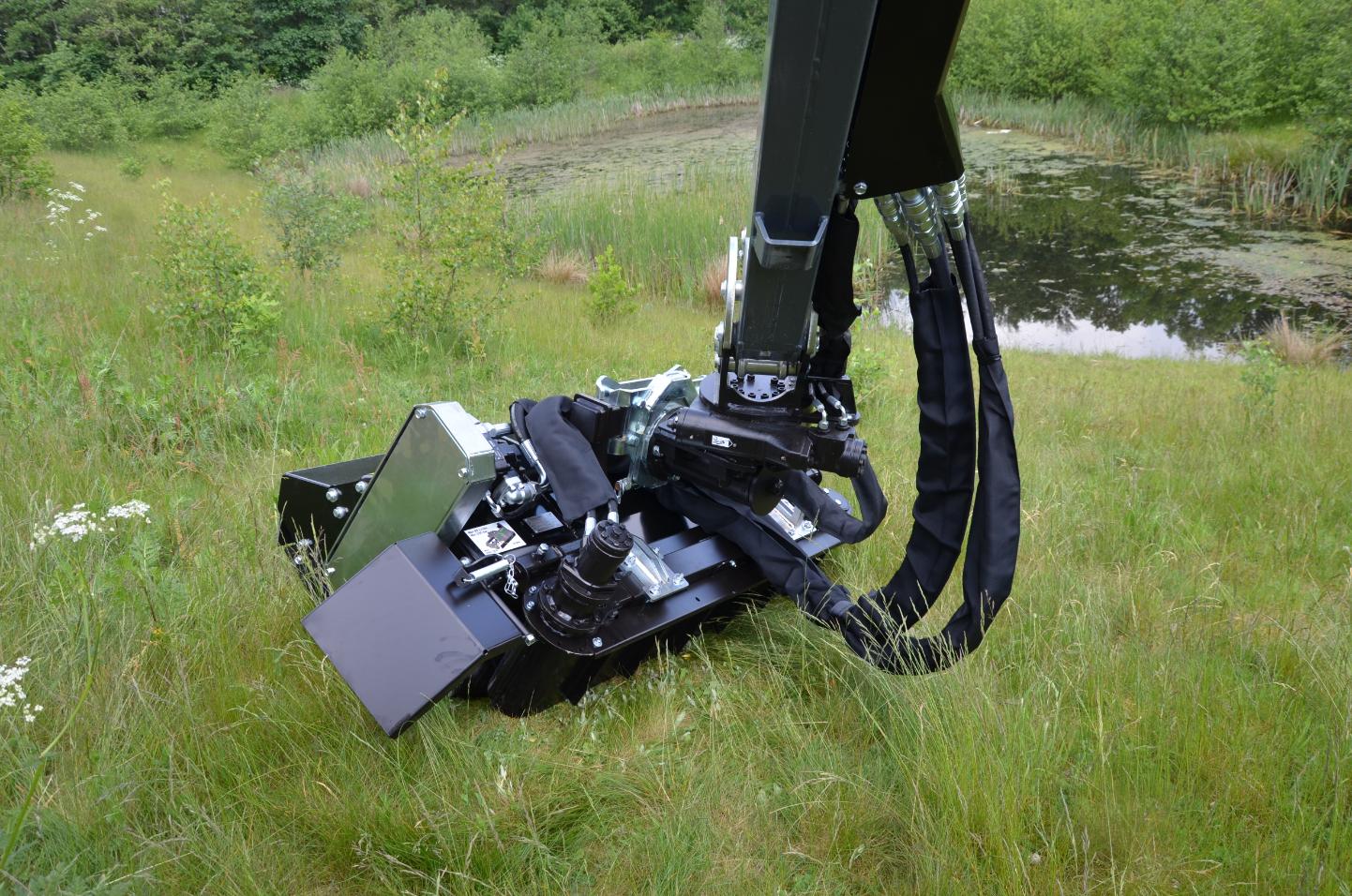

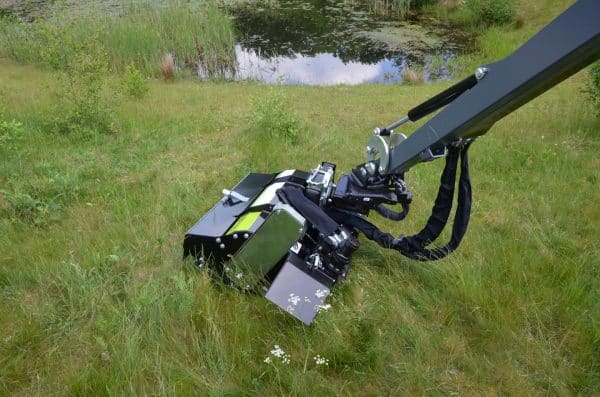

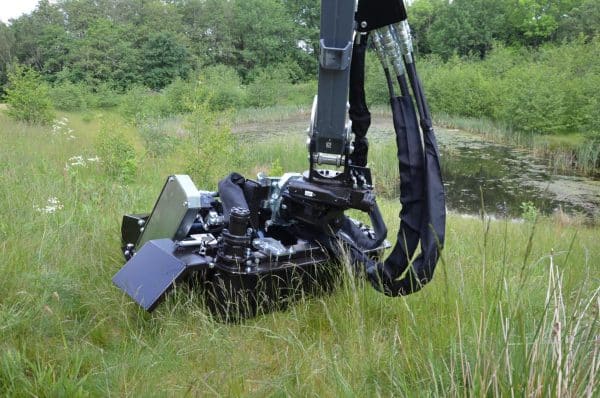

The Flail Mower FR 122 VB is based on a standard FR 122 model, which is equipped with a hydraulically driven conveyor belt that throws the cut-off material away from the work area.
STRONG ARGUMENTS:
- 25% higher power and energy savings with Integrated Airflow
- Weight reduction of 20% by using Strenx 700 steel
- Integrated rotor bearings reduce the overall width
- Power Belt drive ensures minimal maintenance
- Double spiral rotor with uniform flow
- The conveyor belt can drive both ways
The Flail Mower FR 122 VB has a working width of 1.2 m (3’11″”)The Flail Mower FR 122 VB cuts branches up to 4 cm (1.57”) in thicknessThe Flail Mower FR 122 VB has a maximum driving speed of 7 km/h (4.35 mph)The Flail Mower FR 122 VB weighs 385 kg (849 lb)
Embankment flail mower for maintenance of rivers, canals, dams and streams
The Flail Mower FR 122 VB is based on a standard FR 122 model, which is equipped with a hydraulically driven conveyor belt that throws the cut-off material away from the work area.

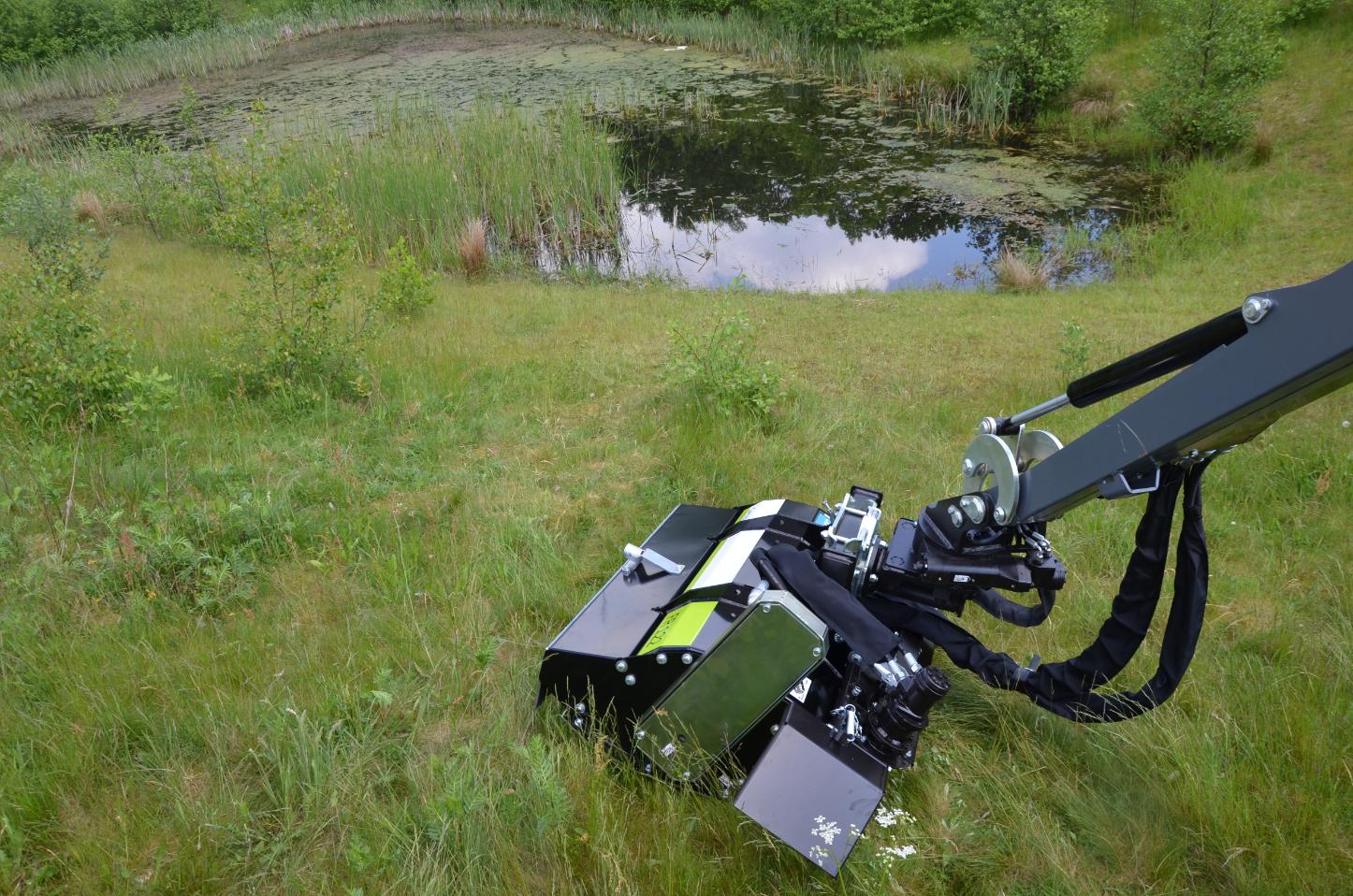

The Flail Mower FR 122 VB is suitable for mowing embankments and ditches near water areas, such as streams, creeks, lakes, rivers, canals and dams. The hydraulic belt makes sure that the cut-off material does not end up in the water by launching it the opposite way towards the top of the bank. This will prevent overflooding and protect the pumping stations.
The conveyor belt is pulled hydraulically via the tractor’s hydraulics. It can drive both ways, simply by changing the rotation of the hydraulics. If you want to drive without the function of the belt, it can be folded up through a hydraulic cylinder
The Integrated Airflow system is one of the main features of the FR series. The space between the rotor and the shield is purposely designed to increase the air velocity so the cut-off material exits the mower as quickly as possible. It creates a natural vacuum that sucks the grass into the mower. This increases the capacity of the flail head and reduces the power requirement.
The flail mower is available in a working width of 1.2 m (3’11″”) and are suitable for contractors and farmers that want the best mowing equipment in the market. You can achieve a driving speed of up to 7 km/h (4.35 mph) which enhances the efficiency significantly.
The main bearings are integrated in the rotor shaft which reduces the total width of the flail head.
The machine is manufactured in Strenx 700 high strength steel which is one of the most durable steel types in the world. It is the same material that is used for chassis in the automotive industry. The flails are adapted to the rotor to stop breakage and damage from happening. These measures keep the maintenance costs at a low level.

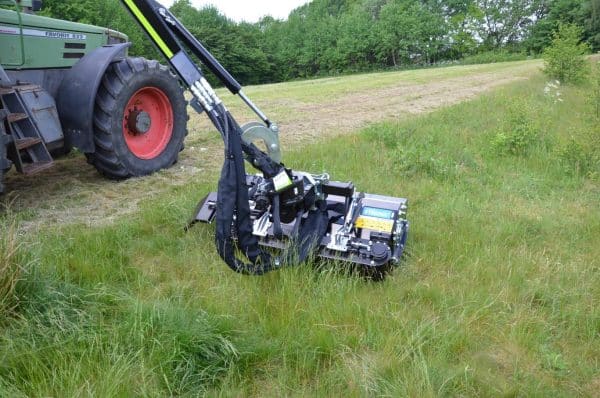

The Flail Mower FR 122 VB is hydraulic driven and can be mounted on our Scorpion boom mowers for tractors or directly on the arm of diggers. When mounted on GreenTec’s Scorpion boom mowers, an integrated hydraulic hose set can be purchased.
The Flail Mower FR 122 VB fits the following GreenTec machines:
FR 122 VB
Boom Mower Scorpion 330 & 430
Scorpion 530 & 630 Check mark
Scorpion 730 & 830 Check mark
TECHNICAL DATA FR 122 VB
Working width 1.2 m
(3’11″”)
Branch thickness 4 cm
(1.57″”)
Driving speed up to
5 – 7 km/h
(3.11 – 4.35 mph)
Required hydraulic connections 1 x double acting + 1 x drain
Required oil flow 85 l/min @ 230 bar
(22.5 gpm @ 3336 psi)
Required oil flow 85 l/min @ 315 bar
(22.5 gpm @ 4569 psi)
Weight 385 kg
(849 lb)
EQUIPMENT OVERVIEW
- Hydraulic belt Standard equipment
- Integrated Airflow Standard equipment
- Optimized total width Standard equipment
- Power Belt drive Standard equipment
- Strenx 700 steel construction Standard equipment
- Double spiral rotor Standard equipment
- Equipped with C-flails Standard equipment
- Rubber protection in front Standard equipment
- Adjustable front Standard equipment
- Rounded rear roller Standard equipment
- Optimized shape of flails Standard equipment
- Hydraulic quick release Optional equipment
- Mechanical quick release Optional equipment
- Hose set, complete, incl. hydraulic quick release Optional equipment
- L-flails Optional equipment
- T-flails Optional equipment
Standard equipment = Standard equipment
Optional equipment = Optional equipment”
