360h Hi Lift – Horticulture Series – Hydralada
360h Hi Lift – Horticulture Series – Hydralada
Get that extra bit of reach

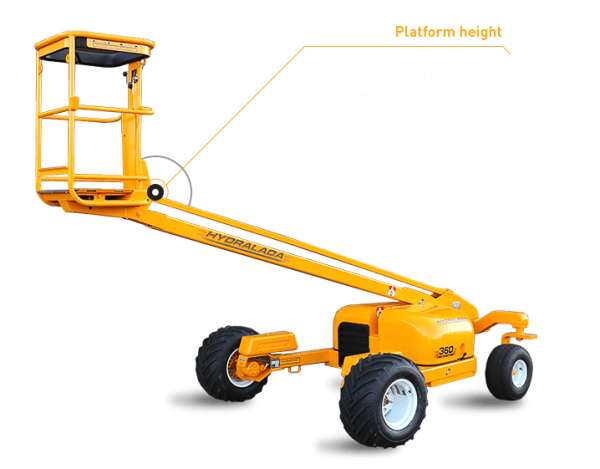

The 360h Hi Lift has the same low profile chassis as the 300h Compact but has a longer boom to give the operator more lift height and better reach into the tree.
Low tail profile
Boom pivot located forward for low tail height
Sleek round bonnets and low chassis design makes this ideal for tight spaces. Has extra lift for taller trees and easily manoeuvres without damaging fruit.
Foot Control
Hands free operation for productivity in the orchard
Includes three pedals in the floor with centre pedal operating lift/lower of the platform and the two pedals either side operate the respective drive wheels.
Independent Wheel Drive
Manoeuvrable with very tight turning circle
Drive one wheel forward and the opposite wheel reverse and it will turn on a dime. This makes it extremely nimble and sets Hydralada apart from other types of elevating work platorm.
Picking Bag
Bag mounts to the front of the Hydralada platform. It has a 54kg capacity, steel case lined with foam and PVC liner, and is divided into three compartments. Field trials have proved this system to be the most effective form of picking fruit without bruising.
Free Wheel Hubs
Free Wheel Hubs allow the drive wheels to be disengaged and the machine can be towed on its own wheels at low speed (Max. 30kph) behind a vehicle. In NZ, no registration is required to tow on the highway. Includes heavy duty ball hitch drawbar.
Hydrafork Bin Shifter
A popular option on apple orchards for shifting a full bin of fruit independent to a tractor forklift. The operator can keep the bin in close vicinity to the picking and once full it can be turned within the row and left for the tractor forklift to collect.
Auxiliary Oil Outlets
Auxiliary oil outlets in the platform to connect hydraulic pruning tools, Hydraloppa Pruners and Hydraulic Chainsaws. This takes the hard work out of pruning and dramatically speeds up the job.
Tandem Four Wheel Drive
Where stability and traction is a problem, Tandem Four Wheel Drive is the answer. Four driving wheels mounted on a heavy duty walking beam means there is virtually nowhere you can’t drive this machine. Includes Hydrabrake.
Hydrabrake System
This is a failsafe, fully automatic park brake system. As soon as the machine is stationary, the brake applies and quickly releases when drive is engaged. Ideal for sloping orchards.
Additional information
| Lift Height To Platform Floor | 3.60m |
|---|---|
| Engine | Twin Cylinder Fuel Injected Petrol Engine 19hp |
| Maximum Load Rating | 175kg |
| Drive Train and Wheels | Fuel Injected Petrol Engine, 1.25" Drive Axles, Independent Hydraulic Wheel Drive, Single Rear Castor Wheel, Dynamic Braking System, Automatic Hydrabrake System (Optional) |
| Chassis Construction | Low Tail Profile, Smooth Unobtrusive Chassis And Bonnet Design, Externally Mounted Muffler |
| Other | Electric Start, As/Nzs 1418-10 2011 Standard, Oaw 2.50m, Weight 800kg |
