640h MAXI – Horticulture Series – Hydralada

640h MAXI – Horticulture Series – Hydralada

REQUEST A QUOTE +

Safe, strong, reliable and productive

The 640h MAXI is our most popular machine for avocados and mangos. Fitted with Tandem Four Wheel Drive for added stability and traction, this machine will go almost anywhere. Safety comes first and the 640h is a stable machine, but still very productive in the field. Contractors use this model for picking fruit due to the high output and low per hour operating costs.

Popular options

Customise your 640h MAXI

alt=

Picking Bag

Picking Bag quick taches to front of the operator platform and is designed to handle fruit without bruising. Fruit passes through the three compartments then empties into a field bin. Trials show it has the best results, delivering high quality fruit to the pack house.

alt=

Tandem Four Wheel Drive

Increases the machine’s overall stability and improves traction on rough, uneven and sloping terrain. Includes four powerful high-torque hydraulic motors and driving wheels are mounted to an oscillating beam for suspension and a smoother ride.

alt=

Free Wheeling Hubs

This enables the drive wheels to be disengaged and the machine becomes towable behind a vehicle at a maximum speed of 30kph. This option comes with a heavy duty towing frame. Ideal for transporting the machine without the need for a trailer or truck.

alt=

Hydraulic Chainsaw

A hydraulic chainsaw from an elevated work platform is the safest and most efficient way to prune. Quiet trigger start/stop, no dangerous pull starting, no refuelling, lightweight and powerful. Available in either pistol grip or pole configuration.

alt=

Twin Castor Rear Wheels

More stability than the standard single castor rear wheel, the Twin Castor option is often included with Tandem Four Wheel drive making for a truly versatile machine for working sloping property.

alt=

Tracks

Steel tracks fit over the Tandem Four Wheel Drive and increase the machines traction. The additional weight also adds to the stability of the machine, ideal for working on steep orchards, and in rough ground conditions.

Additional information

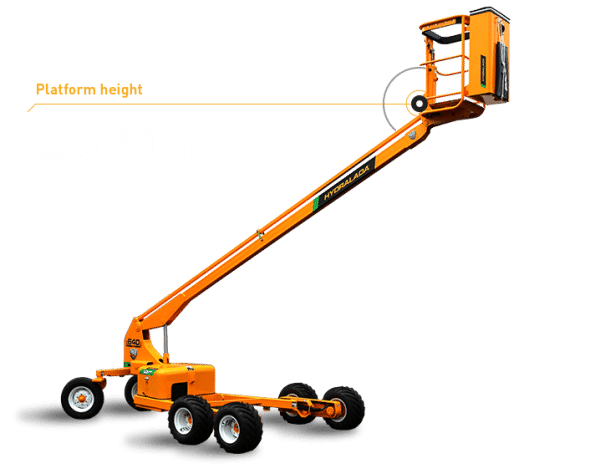

Lift Height To Platform Floor

6.40m

Engine

23hp Kohler Twin Cylinder Ohv Petrol Engine

Maximum Platform Rated Capacity

175kg

Drive Train And Wheels

1.5" Drive Axles, Hydrabrake System, 26 X 12.00 X 12 Drive Wheels, 185 X 14 Rear Castor Wheel, Six Stud Heavy Duty Wheel Equipment, High Torque Hydraulic Motors

Chassis Construction

Heavy Duty Rigid Chassis, Heavy Duty Lift Boom, Low Profile Tail, Externally Mounted Muffler

Controls

Three Pedal Foot Controls, Hand Operated Accelerator, Smooth Hydraulic Valve, Dual Station With Base Controls For Emergency Situations
